UK Screw Type Rail Terminal Block

Rich experience in manufacturing din rail terminal blocks, Sanan Electronic Technology Co,Ltd., mamufacturer in China,complete professional production equipment, strict quality control procedures, perfect sales network.The following is an introduction to UK Screw Type Rail Terminal Block, I hope to help you better underst and UK Screw Type Rail Terminal Block. Welcome new and old customers to continue to cooperate with us to create a better future together!

Send Inquiry

Product Description


DIN rail terminal blocks create a complete circuit by allowing the connection of wiring from one piece of equipment to the input-output ports on other equipment. They are widely used in electrical cabinets and industrial racks to protect complex equipment. They are a standard component in telecommunications, building management, energy conservation, HVAC systems, power supplies, lighting control, and vehicle electronics, our din rails terminal blocks can be suitable for different standards, for example 10A,20A,24A,32A,57A, and in order to improve our level, our blocks have the CE,UL ROSH certifications.

Feature

●Equipped with dual-channel bridge wells, circuit connection testing is more flexible.
●Unique plug-in bridge, high circuit connection efficiency.
●Optional marker to avoid wire mis-inserting.
●Equipped with test holes for easy testing of the circuit.
●With V0 flame retardant
●Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space

Product specification of UK Screw Type Rail Terminal Block

Product name UK Screw Type Rail Terminal Block
Material Flame resistant Nylon PA66 V0
Color Grey(accept customization)
Connection method screw connection
Number of connections 2
Width 6.2mm
Height 46mm
Length 42.5mm
Strip length 8~9mm
Conductor cross section solid AWG 24- 10
Conductor cross section solid 0.2 mm² - 4
Rated voltage 800V
Rated current 32A
Ambient temperature (operation) -40 °C ~ 105 °C(depending on derating curve)
Weight 12g
MOQ 100pcs
Packing Natural packing or customization
Brand OEM

Drawing of UK Screw Type Rail Terminal Block

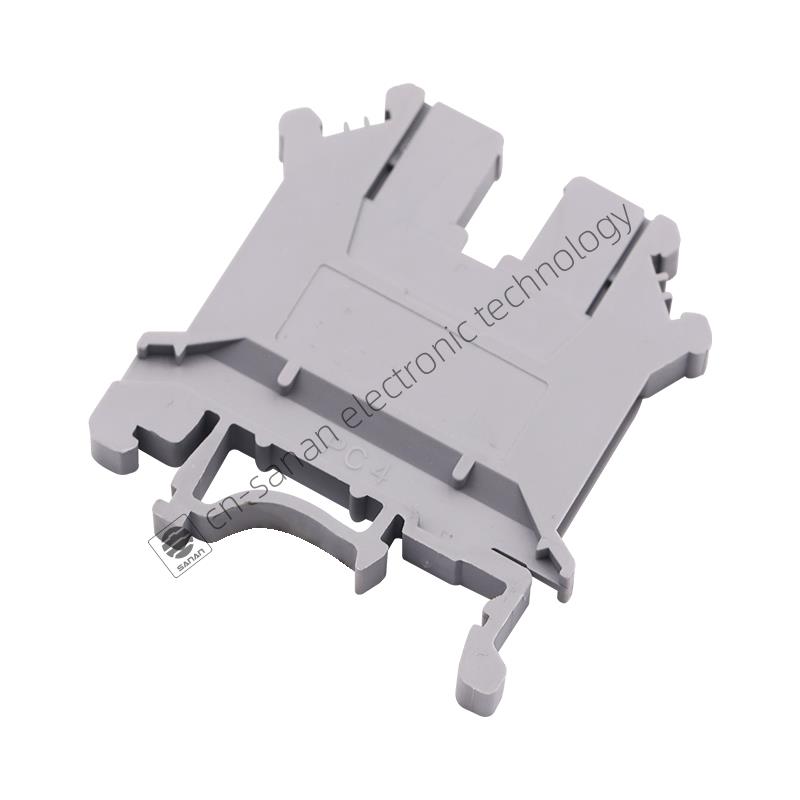

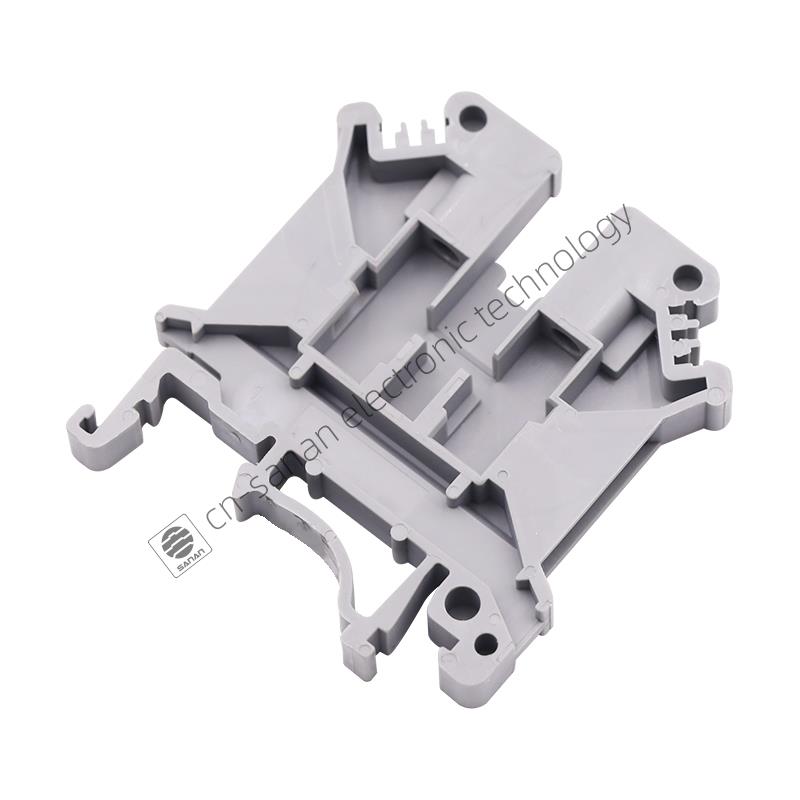

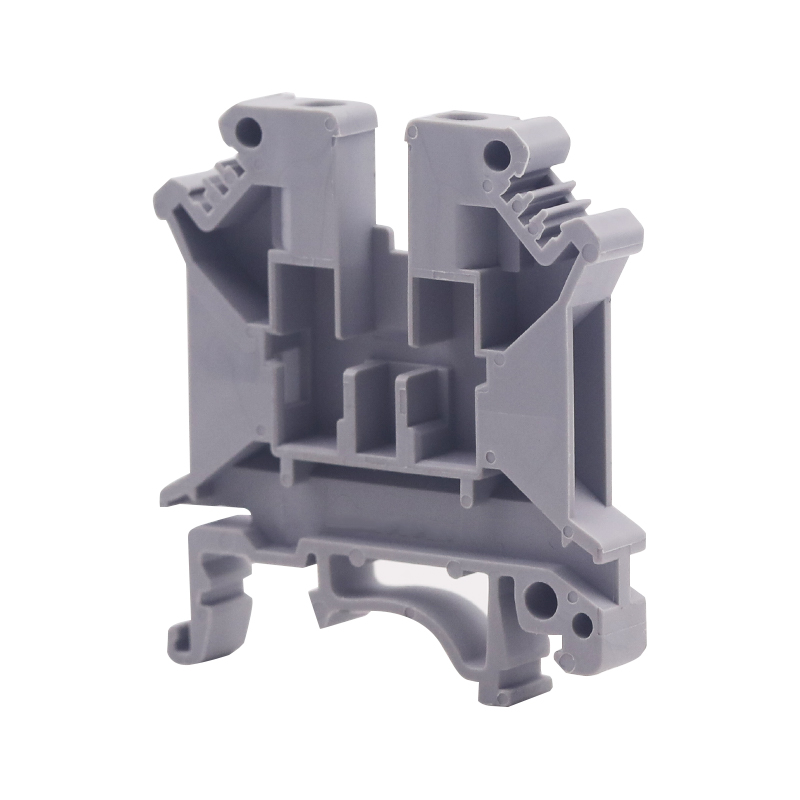

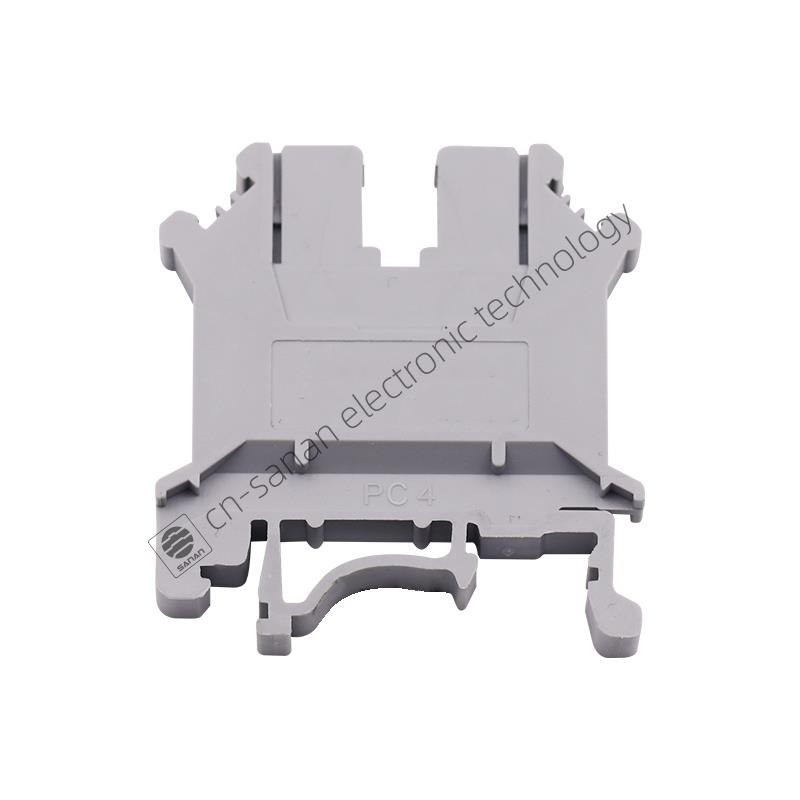

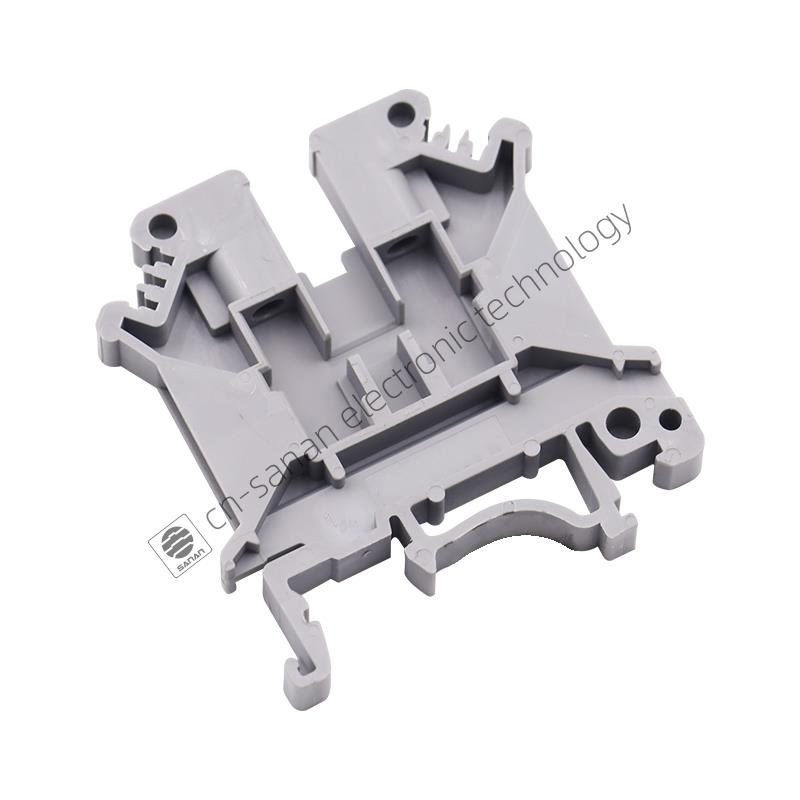

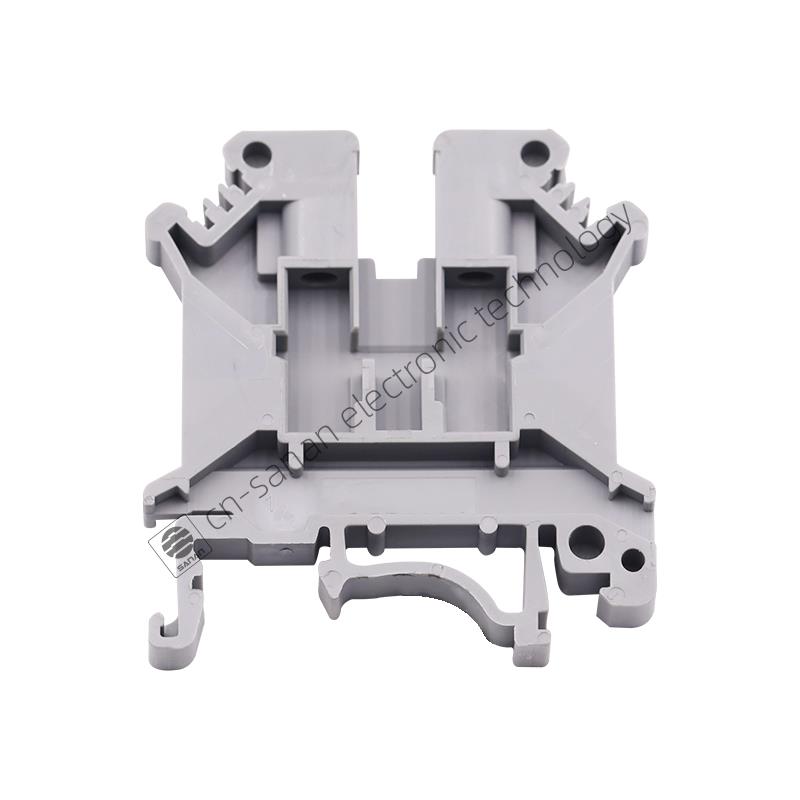

Product details of UK Screw Type Rail Terminal Block


Packing of pluggable terminal block

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
