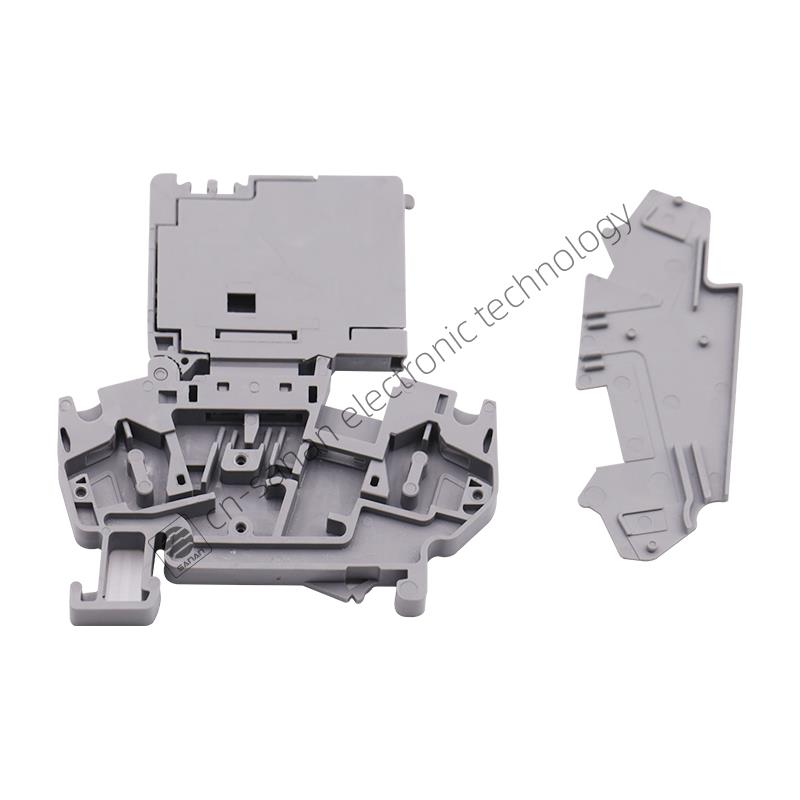

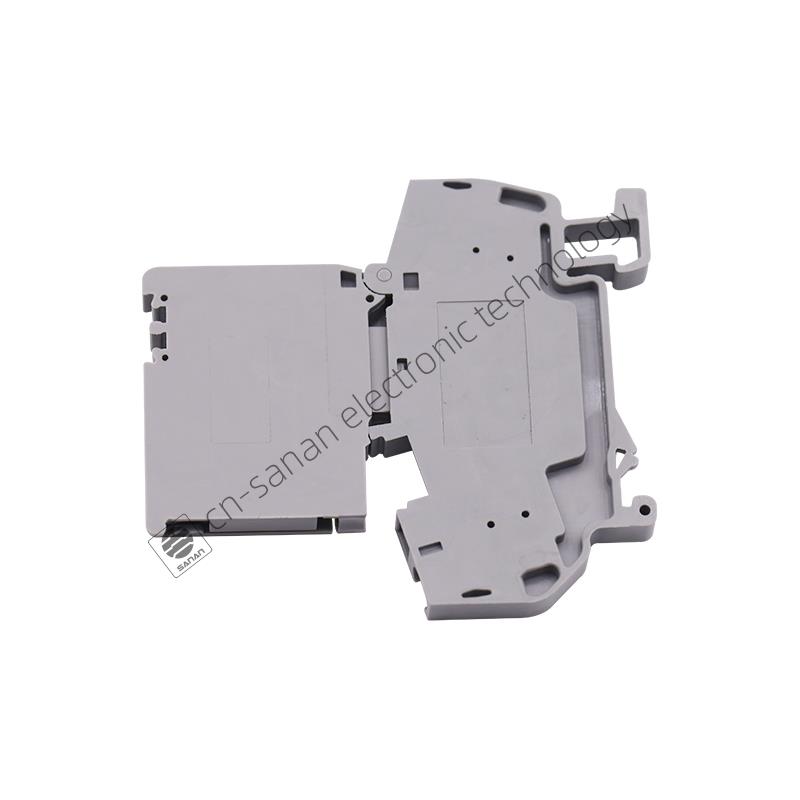

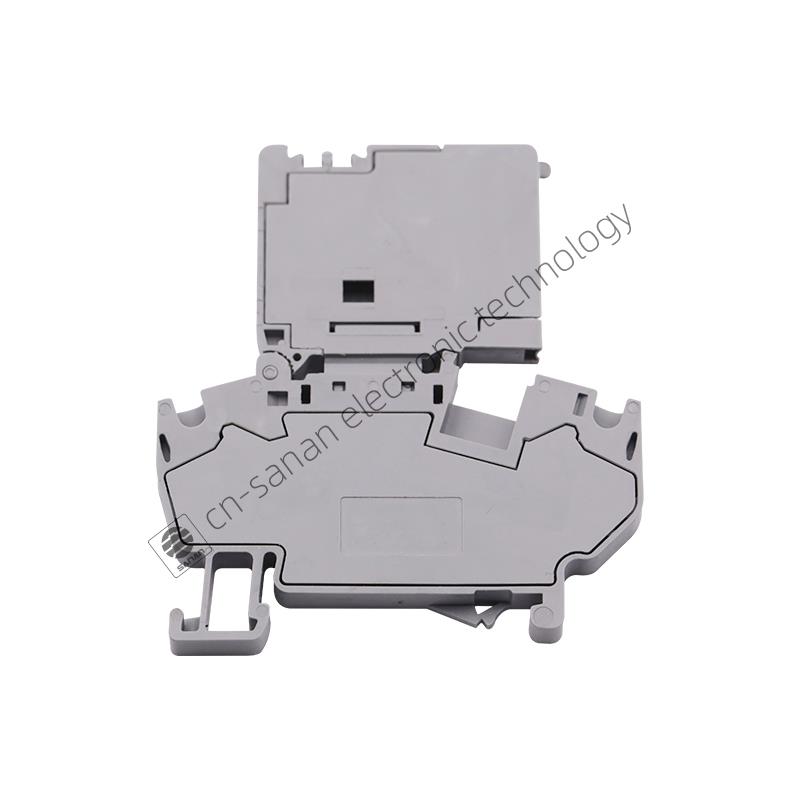

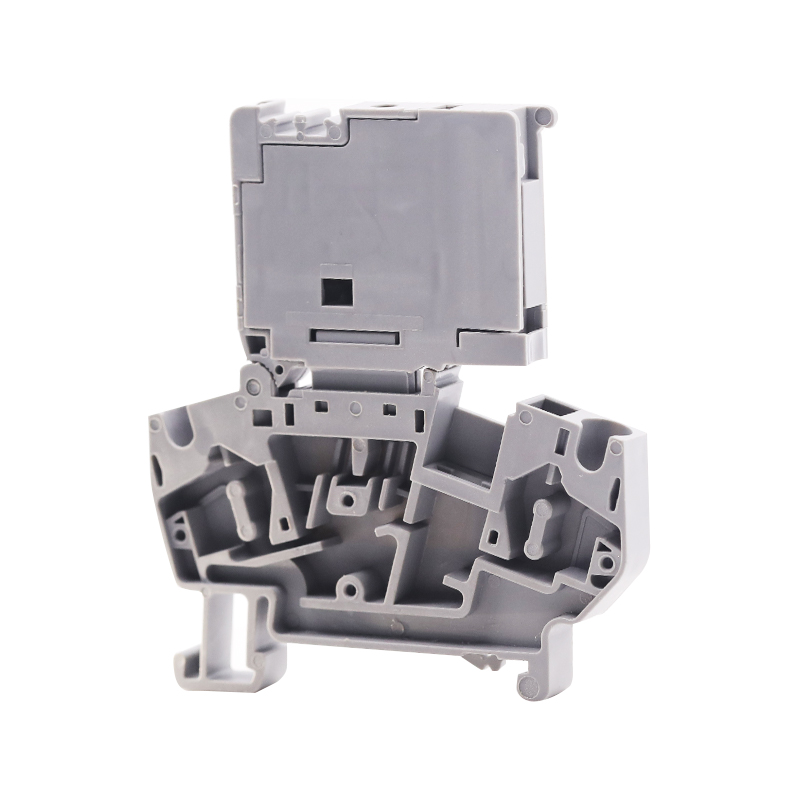

Spring Cage Type Din Rail Terminal block
  • Spring Cage Type Din Rail Terminal blockSpring Cage Type Din Rail Terminal block
  • Spring Cage Type Din Rail Terminal blockSpring Cage Type Din Rail Terminal block
  • Spring Cage Type Din Rail Terminal blockSpring Cage Type Din Rail Terminal block
  • Spring Cage Type Din Rail Terminal blockSpring Cage Type Din Rail Terminal block
  • Spring Cage Type Din Rail Terminal blockSpring Cage Type Din Rail Terminal block

Spring Cage Type Din Rail Terminal block

Sanan Electronic Technology Co,.Ltd. is professional manufacturer and exporter of products in industrial automation, electric energy,wind power generation etc in China.Our din rail treminal blocks are widely applied in electronic industry,we can be the agent for searching and exporting products from China especially in the electrical and industrial filed!We are looking forward to your contact.You can rest assured to buy high quality Spring Cage Type Din Rail Terminal block from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description


DIN rail terminal blocks create a complete circuit by allowing the connection of wiring from one piece of equipment to the input-output ports on other equipment. They are widely used in electrical cabinets and industrial racks to protect complex equipment. They are a standard component in telecommunications, building management, energy conservation, HVAC systems, power supplies, lighting control, and vehicle electronics, our din rails terminal blocks can be suitable for different standards, for example 10A,20A,24A,32A,57A, and in order to improve our level, our blocks have the CE,UL ROSH certifications.

Feature

●Equipped with dual-channel bridge wells, circuit connection testing is more flexible.
●Unique plug-in bridge, high circuit connection efficiency.
●Optional marker to avoid wire mis-inserting.
●Equipped with test holes for easy testing of the circuit.
●With V0 flame retardant
●Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space

Product specification of Spring Cage Type Din Rail Terminal block

Product name Spring Cage Type Din Rail Terminal block
Material Flame resistant Nylon PA66 V0
Color Grey (accept customization)
Connection method Spring-cage connection
Number of connections 2
Width 6mm
Height 66.6mm
Length 60mm
Strip length 10~12mm
Conductor cross section solid AWG 28~12
Conductor cross section solid 0.2~4mm²
Rated voltage 300V
Rated current 10A
Ambient temperature (operation) -40 °C ~ 105 °C(depending on derating curve)
Weight 9g
MOQ 100pcs
Packing Natural packing or customization
Brand OEM

Drawing



Product details



Packing of pluggable terminal block

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
