Diode Din Rail Terminal Block
Sanan Electronic Technology Co,.Ltd., manufacturer in China, we have our own associated factory,which is an enterprise dedicated to the research, development and production of high-performance connectors and providing indudtry automation solutions.Our company has a perfect quality management system, innovative r & D team, complete testing laboratory and enthusiastic service personnel, can provide customers with high quality products and competitive prices.Welcome to buy Diode Din Rail Terminal Block from us. Every request from customers is being replied within 24 hours.
Send Inquiry
Product Description
DIN rail terminal blocks create a complete circuit by allowing the connection of wiring from one piece of equipment to the input-output ports on other equipment. They are widely used in electrical cabinets and industrial racks to protect complex equipment. They are a standard component in telecommunications, building management, energy conservation, HVAC systems, power supplies, lighting control, and vehicle electronics, our din rails terminal blocks can be suitable for different standards, for example 10A,20A,24A,32A,57A, and in order to improve our level, our blocks have the CE,UL ROSH certifications.
Feature
●Equipped with dual-channel bridge wells, circuit connection testing is more flexible.
●Unique plug-in bridge, high circuit connection efficiency.
●Optional marker to avoid wire mis-inserting.
●Equipped with test holes for easy testing of the circuit.
●With V0 flame retardant
●Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space
●Unique plug-in bridge, high circuit connection efficiency.
●Optional marker to avoid wire mis-inserting.
●Equipped with test holes for easy testing of the circuit.
●With V0 flame retardant
●Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space
Product specification of Diode Din Rail Terminal block
| Product name | Diode Din Rail Terminal Block |
| Material | Flame resistant Nylon PA66 V0 |
| Color | Grey(accept customization) |
| Connection method | Push in connection |
| Number of connections | 4 |
| Width | 5.2mm |
| Height | 44.3mm |
| Length | 72.2mm |
| Strip length | 13~14mm |
| Conductor cross section solid AWG | 26~12 |
| Conductor cross section solid | 0.2 mm² - 4 mm² |
| Rated voltage | 800V |
| Rated current | 1A |
| Ambient temperature (operation) | -40 °C ~ 105 °C（depending on derating curve） |
| Weight | 12g |
| MOQ | 100pcs |
| Packing | Natural packing or customization |
| Brand | OEM |
Drawing of Diode Din Rail Terminal block

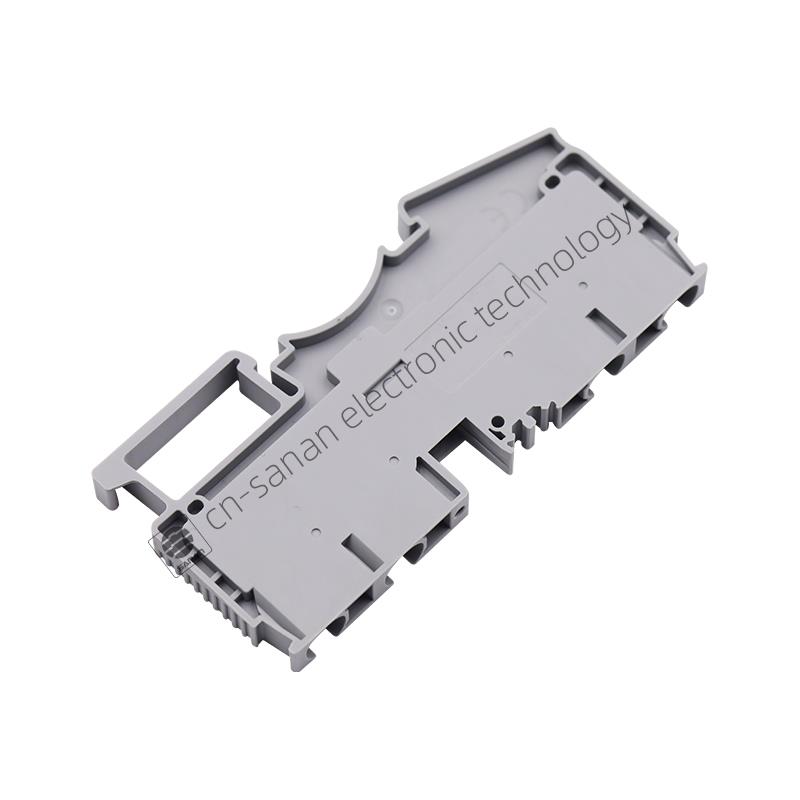

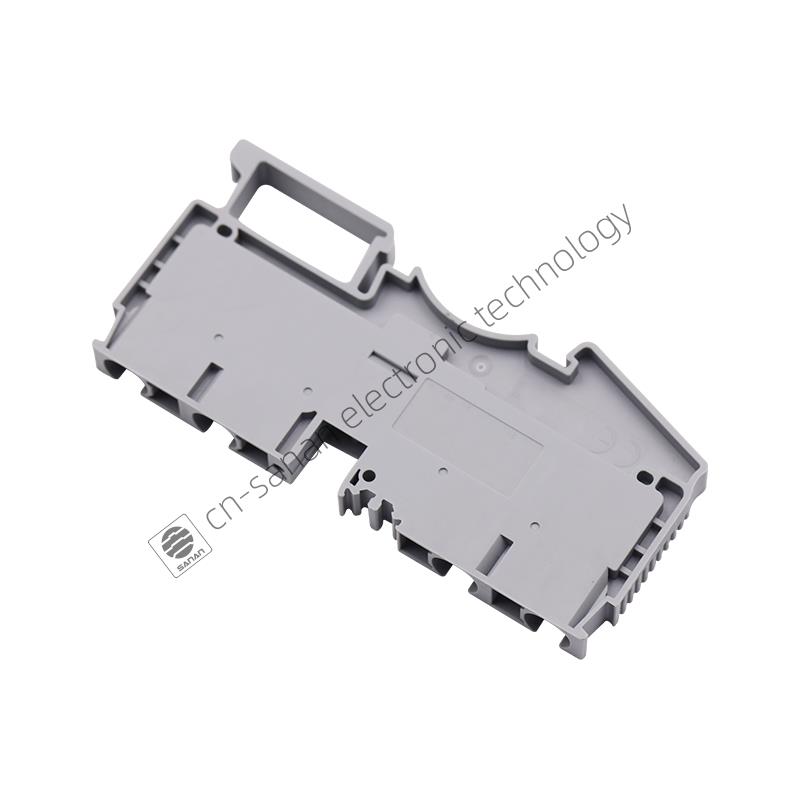

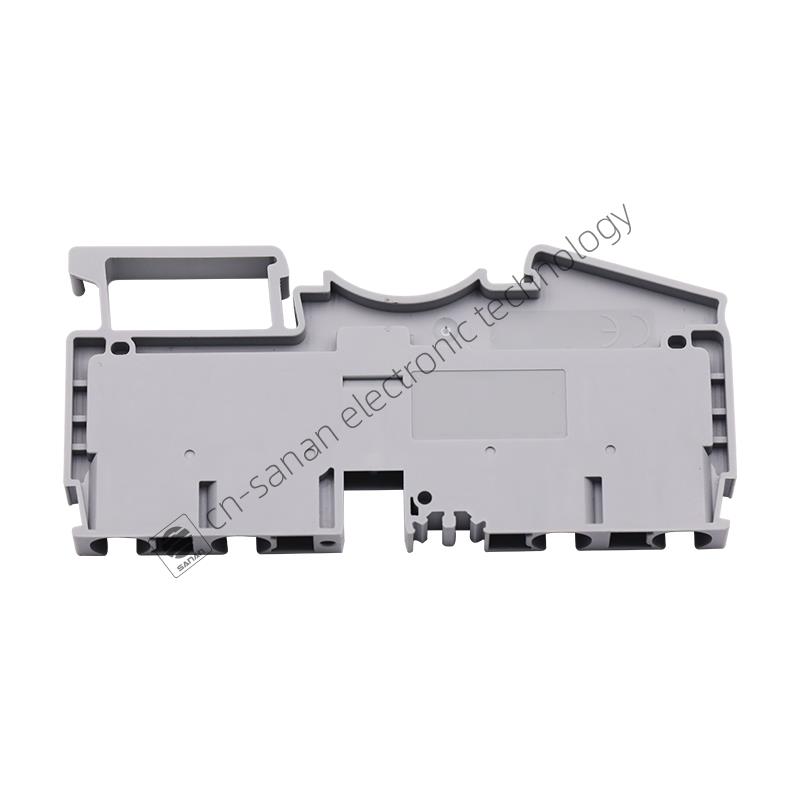

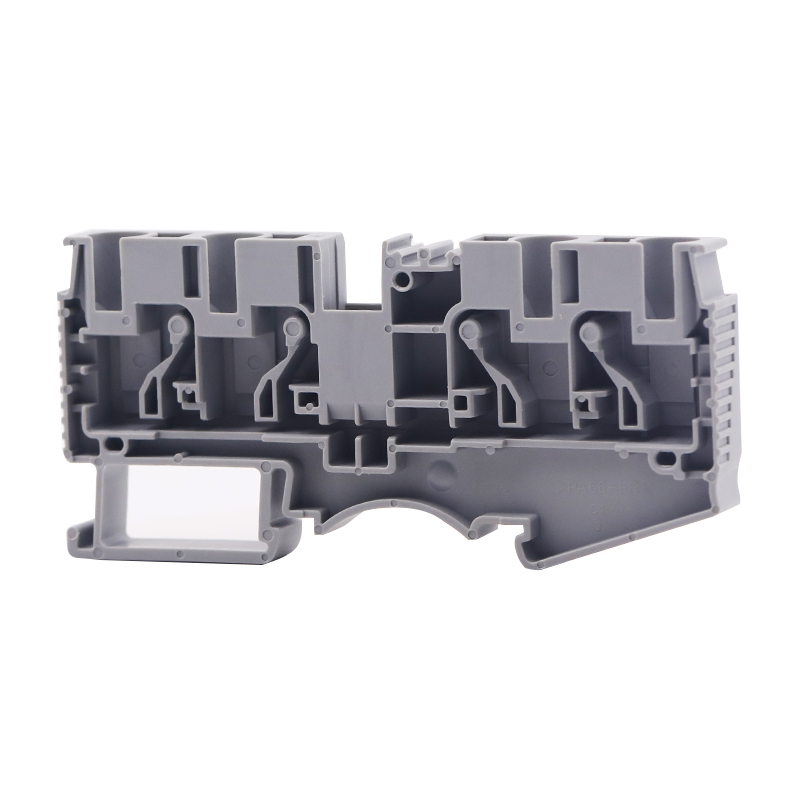

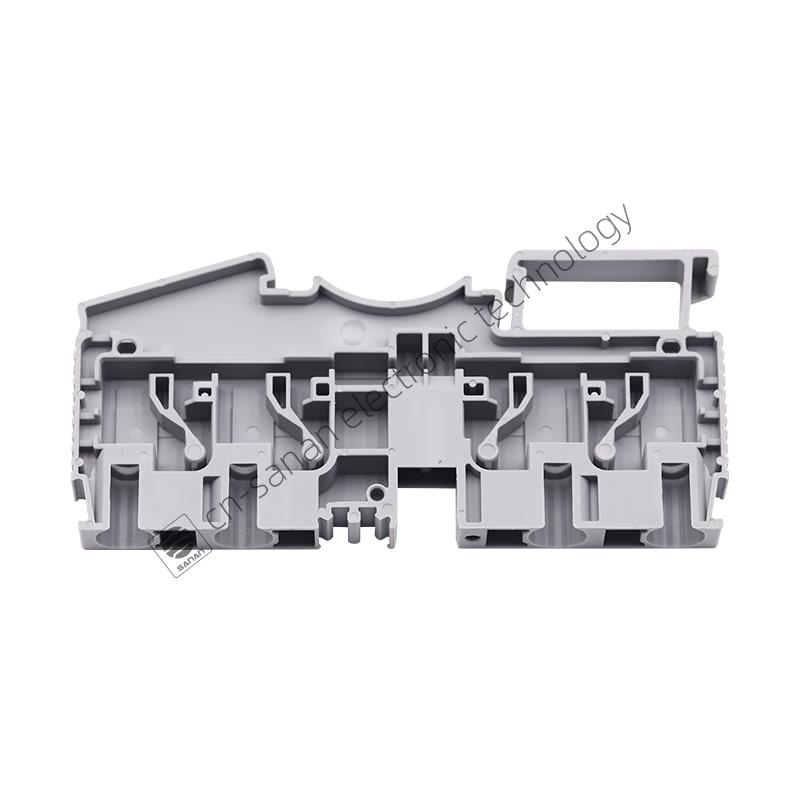

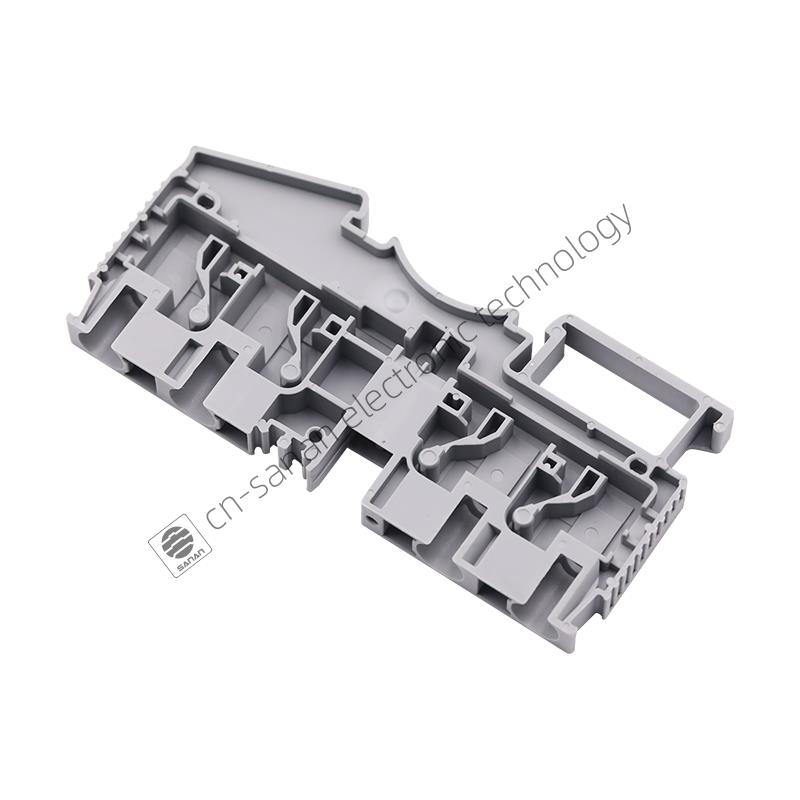

Product details of Diode Din Rail Terminal block
Packing of pluggable terminal block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
