Screw Type Double Level Din Rail Terminal block

DIN rail terminal blocks create a complete circuit by allowing the connection of wiring from one piece of equipment to the input-output ports on other equipment. They are widely used in electrical cabinets and industrial racks to protect complex equipment. They are a standard component in telecommunications, building management, energy conservation, HVAC systems, power supplies, lighting control, and vehicle electronics.You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Screw Type Double Level Din Rail Terminal block. We look forward to cooperating with you.

Send Inquiry

Product Description


DIN rail terminal blocks create a complete circuit by allowing the connection of wiring from one piece of equipment to the input-output ports on other equipment. They are widely used in electrical cabinets and industrial racks to protect complex equipment. They are a standard component in telecommunications, building management, energy conservation, HVAC systems, power supplies, lighting control, and vehicle electronics, our din rails terminal blocks can be suitable for different standards, for example 10A,20A,24A,32A,57A, and in order to improve our level, our blocks have the CE,UL ROSH certifications.

Feature

●Equipped with dual-channel bridge wells, circuit connection testing is more flexible.
●Unique plug-in bridge, high circuit connection efficiency.
●Optional marker to avoid wire mis-inserting.
●Equipped with test holes for easy testing of the circuit.
●With V0 flame retardant
●Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space

Product specification of Screw Type Double Level Din Rail Terminal block

Product name Screw Type Double Level Din Rail Terminal block
Material Flame resistant Nylon PA66 V0
Color Grey (accept customization)
Connection method Screw connection
Number of connections 4
Width 10mm
Height 71.2mm
Length 83.9mm
Strip length 10~12mm
Conductor cross section solid AWG 20~6
Conductor cross section solid 0.5 mm² - 10 mm²
Rated voltage 500V
Rated current 50A
Ambient temperature (operation) -40 °C ~ 105 °C(depending on derating curve)
Weight 16g
MOQ 100pcs
Packing Natural packing or customization
Brand OEM

Drawing of Screw Type Double Level Din Rail Terminal block

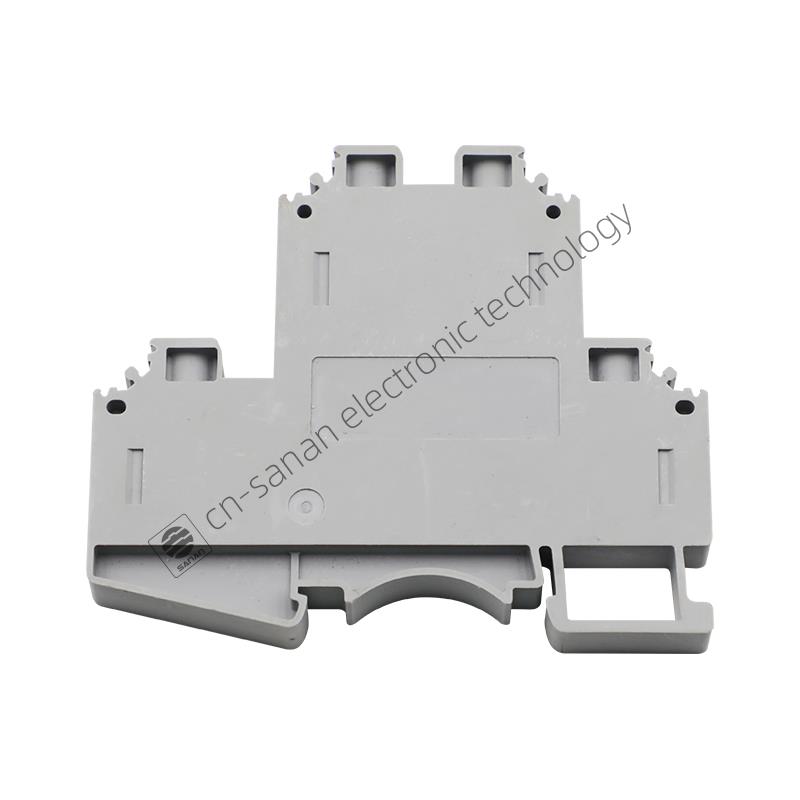

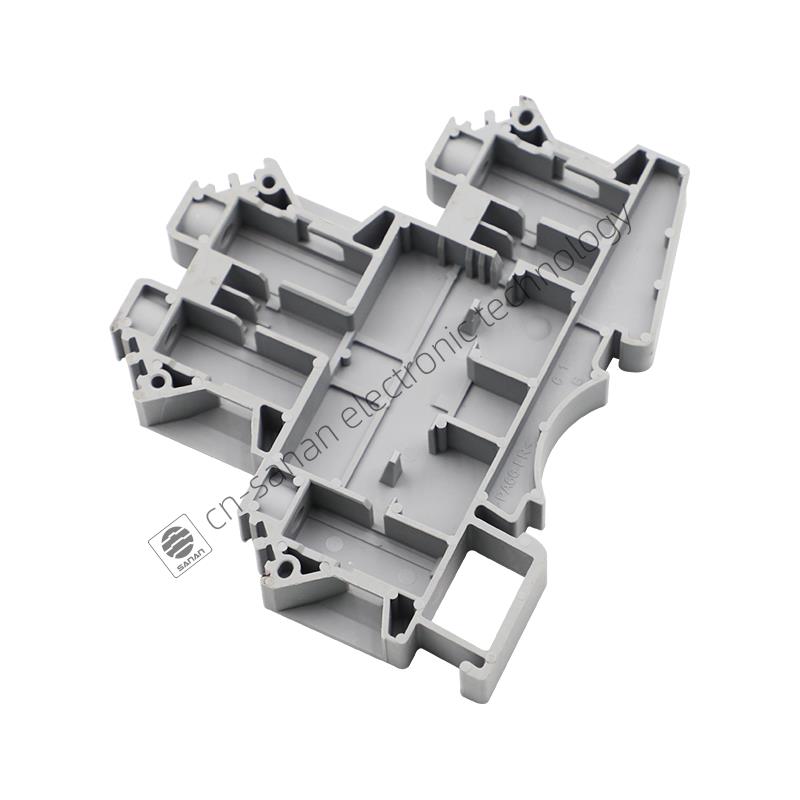

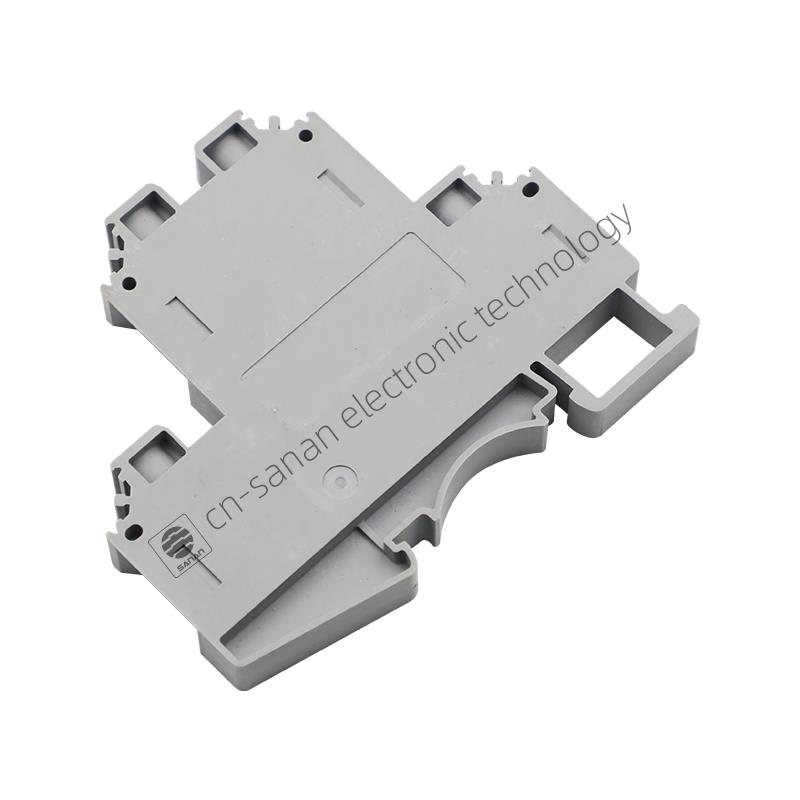

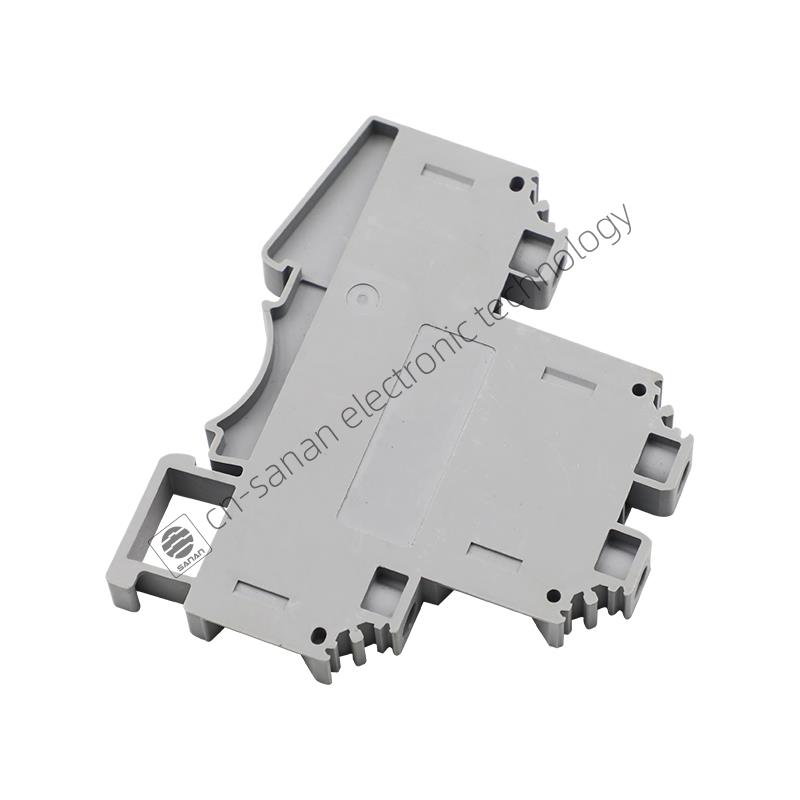

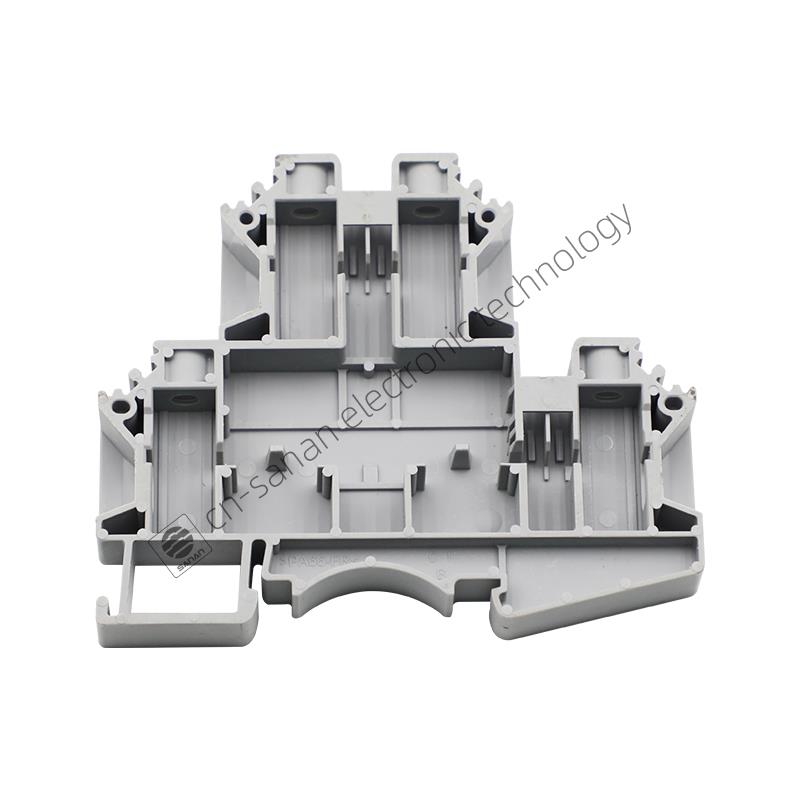

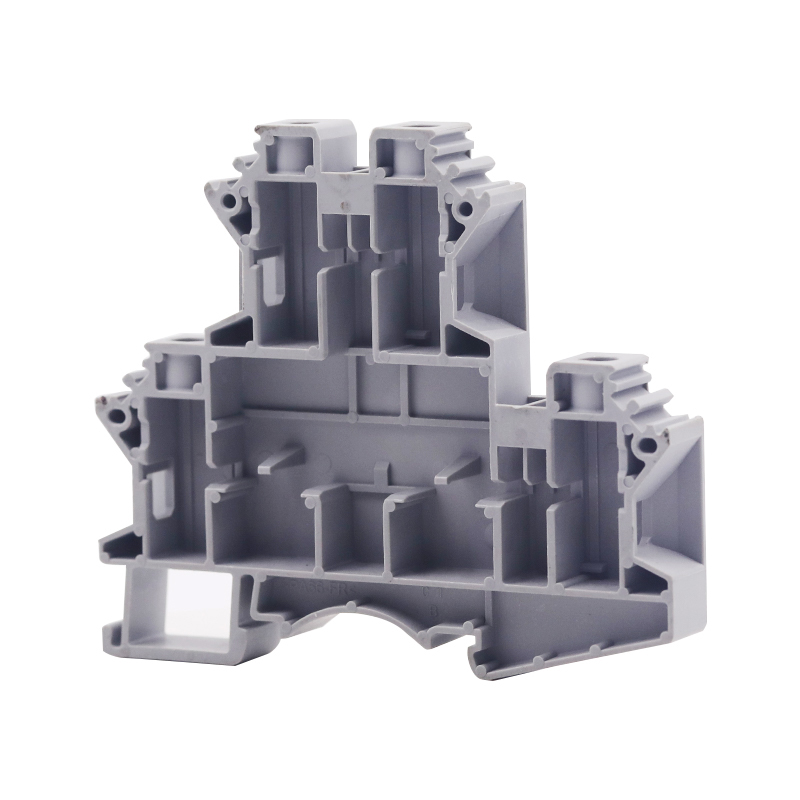

Product details of Screw Type Double Level Din Rail Terminal block



Packing of pluggable terminal block

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
