32A 800V Spring Cage Type Rail Terminal Block

Rich experience in manufacturing din rail terminal blocks, Sanan Electronic Technology Co,Ltd., mamufacturer in China,complete professional production equipment, strict quality control procedures, perfect sales network.As the professional manufacture, we would like to provide you high quality 32A 800V Spring Cage Type Rail Terminal Block. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description


DIN rail terminal blocks create a complete circuit by allowing the connection of wiring from one piece of equipment to the input-output ports on other equipment. They are widely used in electrical cabinets and industrial racks to protect complex equipment. They are a standard component in telecommunications, building management, energy conservation, HVAC systems, power supplies, lighting control, and vehicle electronics, our din rails terminal blocks can be suitable for different standards, for example 10A,20A,24A,32A,57A, and in order to improve our level, our blocks have the CE,UL ROSH certifications.

Feature

●Equipped with dual-channel bridge wells, circuit connection testing is more flexible.
●Unique plug-in bridge, high circuit connection efficiency.
●Optional marker to avoid wire mis-inserting.
●Equipped with test holes for easy testing of the circuit.
●With V0 flame retardant
●Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space

Product specification of 32A 800V Spring Cage Type Rail Terminal Block

Product name 32A 800V Spring Cage Type Rail Terminal Block
Material Flame resistant Nylon PA66 V0
Color Grey(accept customization)
Connection method Spring connection
Number of connections 2
Width 6mm
Height 34.45mm
Length 60.4mm
Strip length 10~12mm
Conductor cross section solid AWG 20 - 8
Conductor cross section solid 0.2 mm² - 4
Rated voltage 800V
Rated current 32A
Ambient temperature (operation) -40 °C ~ 105 °C(depending on derating curve)
Weight 12g
MOQ 100pcs
Packing Natural packing or customization
Brand OEM

Drawing of 32A 800V Spring Cage Type Rail Terminal Block

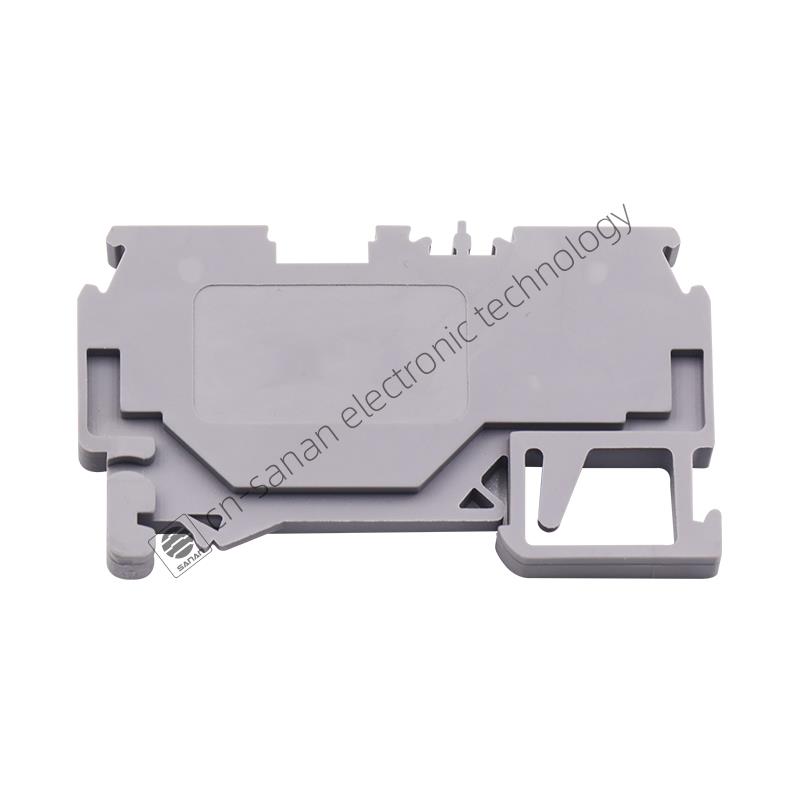

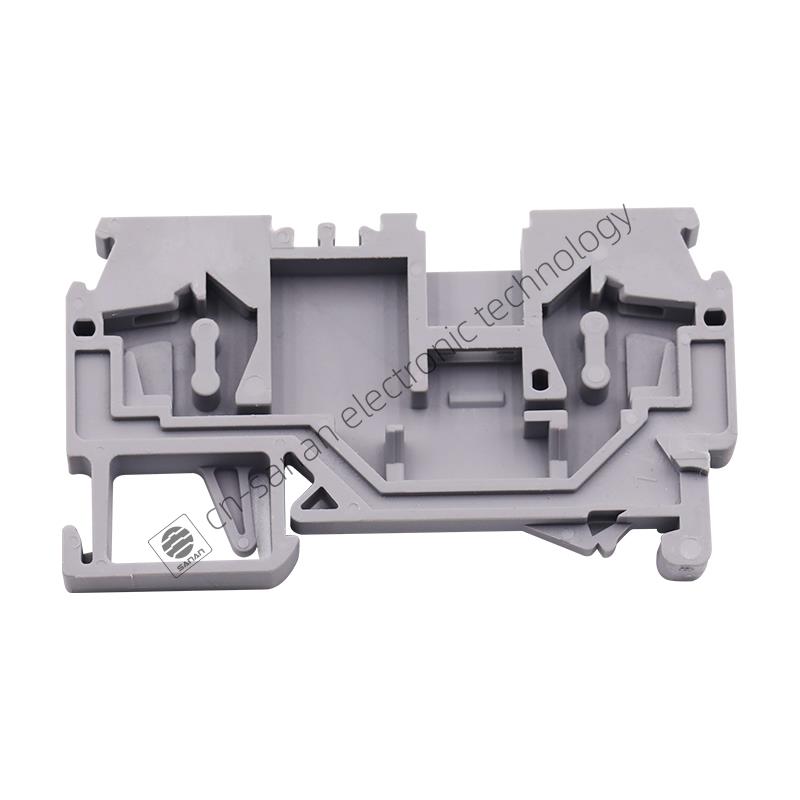

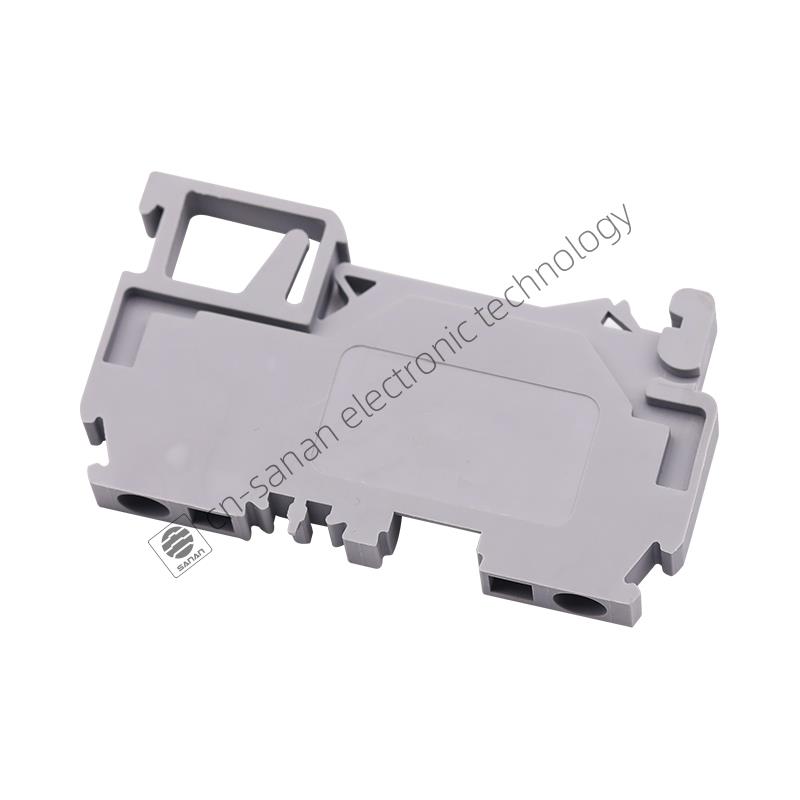

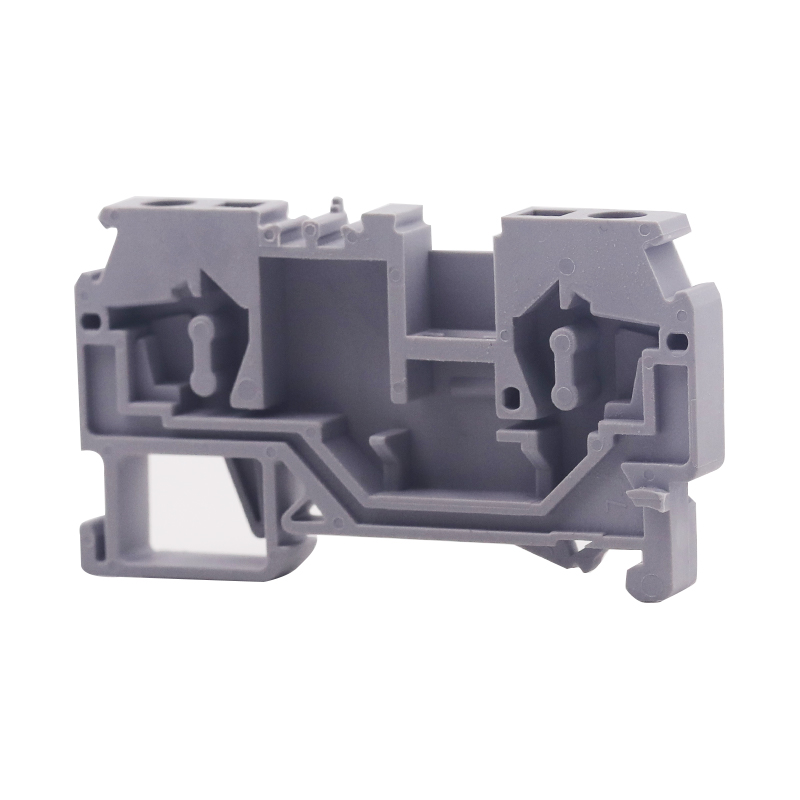

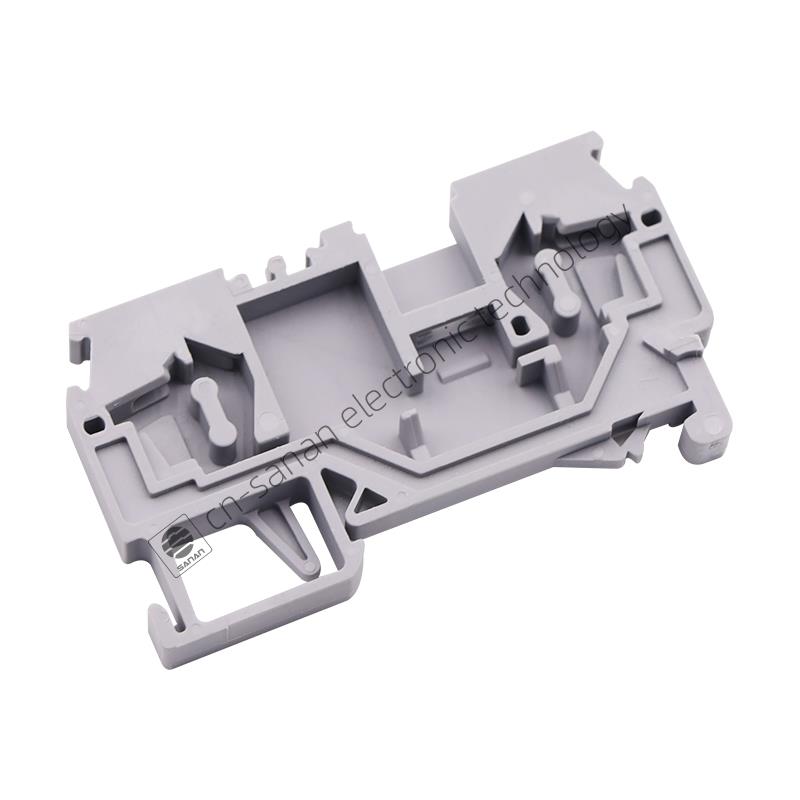

Product details of 32A 800V Spring Cage Type Rail Terminal Block


Packing of pluggable terminal block

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
