PCB Terminal Block With Screw 3P 3.5mm

Ningbo Sanan Electronics Co., LTD. is a professional manufacturer and exporter that specializes in automation system products,IO modeule, din rail enclosure, terminal blocks, PCB Terminal Block With Screw 3P 3.5mm,production and sales, We offer a wide variety of PCB pluggable terminal blocks, PCB screw terminal blocks, spring terminal blocks, barrier terminal blocks and feed through terminal blocks. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

Send Inquiry

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.

Feature

●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of PCB Terminal Block With Screw 3P 3.5mm

Product name PCB Terminal Block With Screw 3P 3.5mm
Material Plastic / copper
Color Green
Contact Form 2P-24P(accept customization )
AWG 30~14AWG
Strip length 6mm
Rated voltage 300V 12A UL
Rated voltage 250V 16A IEC
Conductor cross section solid 0.2~1.5mm²²
Pitch 3.5/3.81mm
Weight 4g(depends the contacts)
MOQ 500pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

Application of PCB Terminal Block With Screw 3P 3.5mm

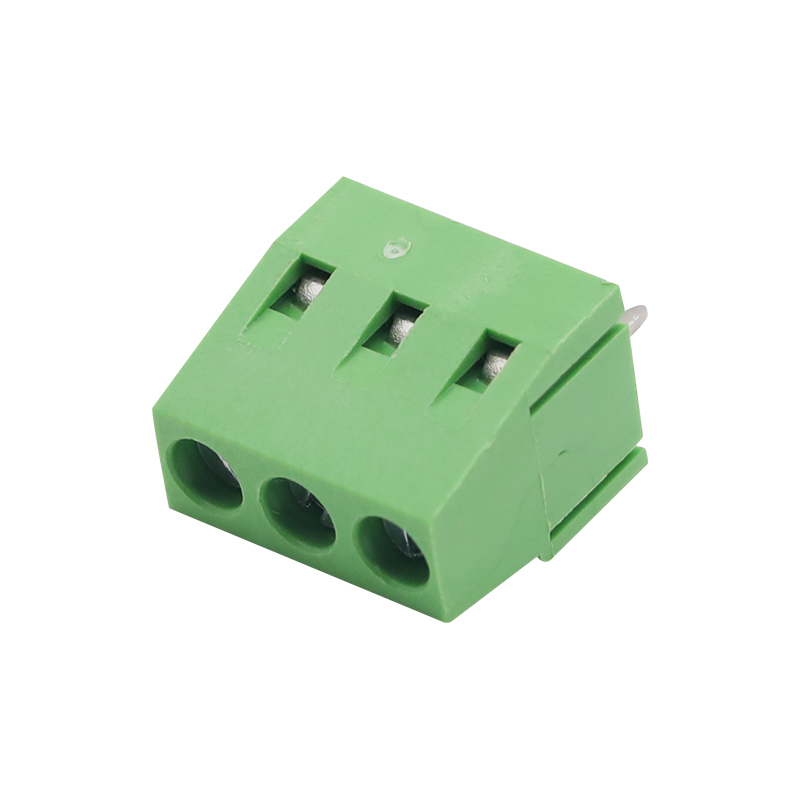

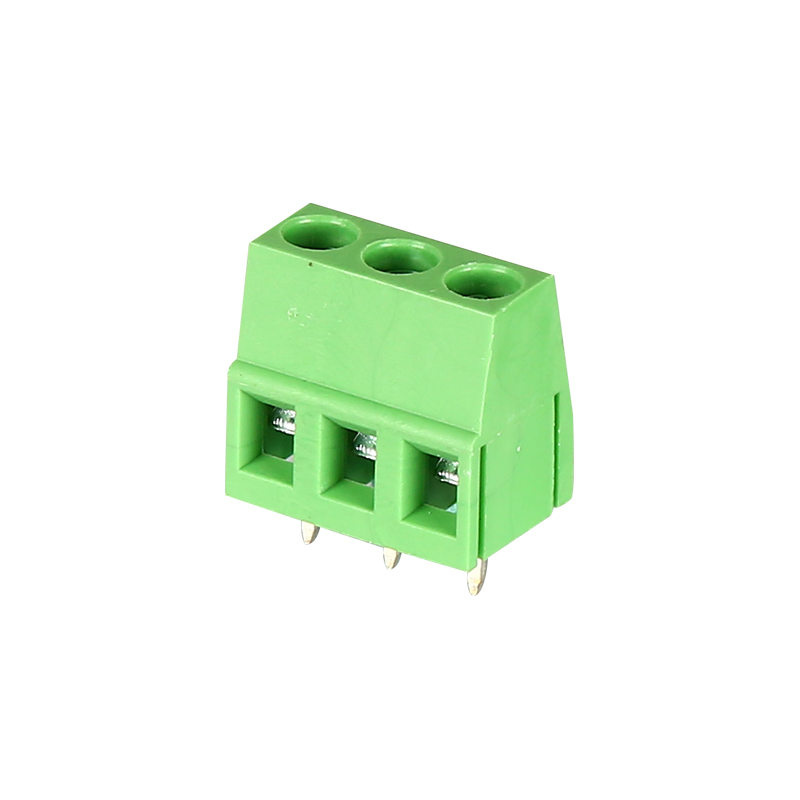

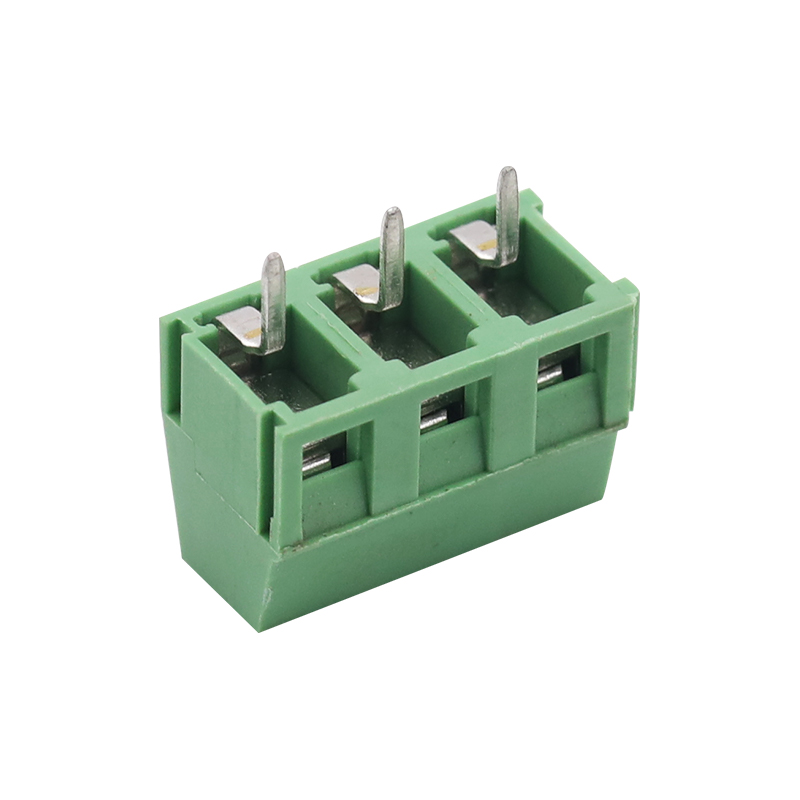

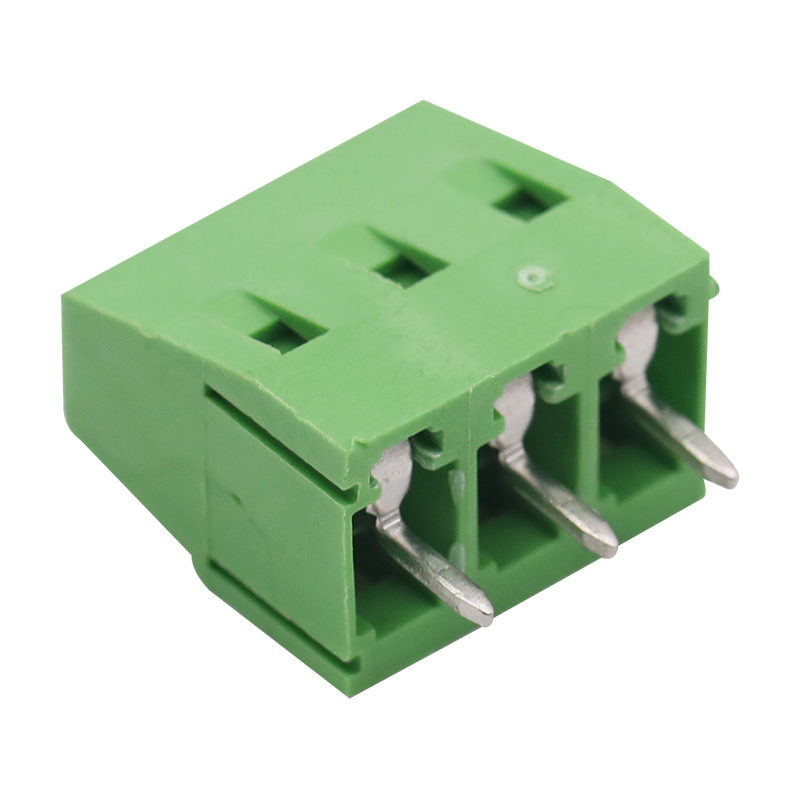

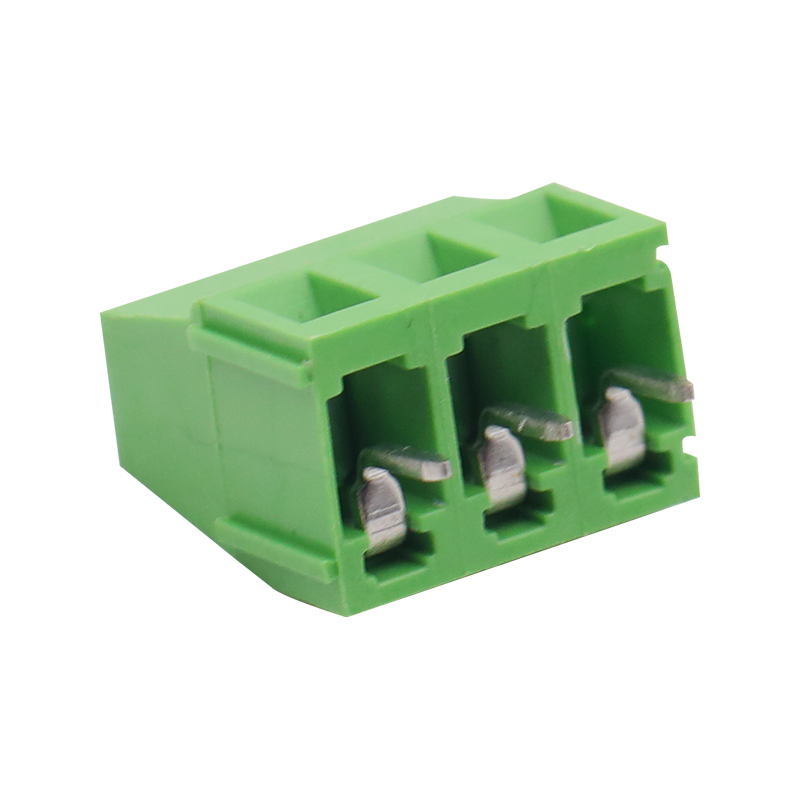

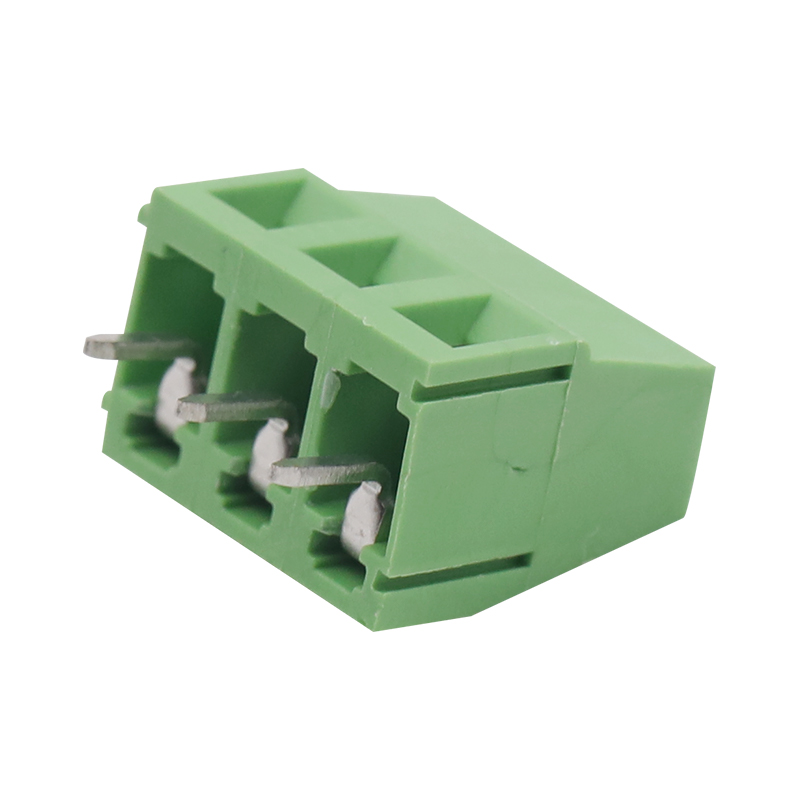

Product details of PCB Terminal Block With Screw 3P 3.5mm


Drawing of PCB Terminal Block With Screw 3P 3.5mm



Packing of PCB Terminal Block With Screw 3P 3.5mm

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
