PCB Terminal Block With Screw 3.81mm
  • PCB Terminal Block With Screw 3.81mmPCB Terminal Block With Screw 3.81mm
  • PCB Terminal Block With Screw 3.81mmPCB Terminal Block With Screw 3.81mm
  • PCB Terminal Block With Screw 3.81mmPCB Terminal Block With Screw 3.81mm
  • PCB Terminal Block With Screw 3.81mmPCB Terminal Block With Screw 3.81mm
  • PCB Terminal Block With Screw 3.81mmPCB Terminal Block With Screw 3.81mm
  • PCB Terminal Block With Screw 3.81mmPCB Terminal Block With Screw 3.81mm

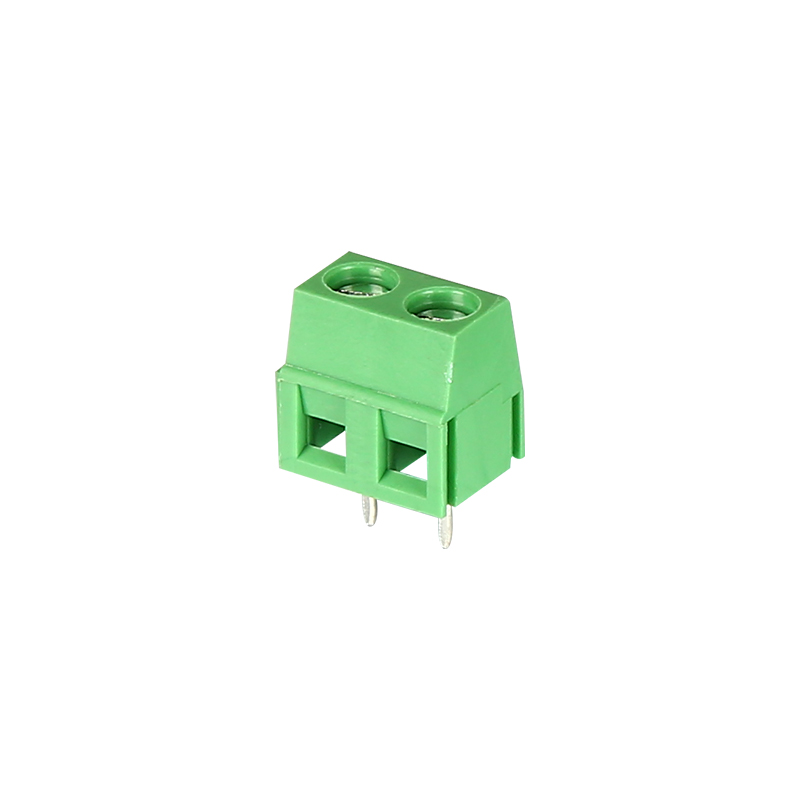

PCB Terminal Block With Screw 3.81mm

Sanan Electrical Co,ltd was a manufacturer in China.We mainly produces,screw terminal, plug-in terminal blocks, din rail enclosure, IO module etc.Through unremitting efforts,our company has rich experience in manufacturing terminal blockscomplete professional production equipment, strict quality control procedures, perfect salesnetwork, and extensive product application examples to ensure PCB Terminal Block With Screw 3.81mm to sart customers projects.At present, Our company has become one of the leading manufacturers of terminal blocks inthe field. Our brand values of fair, effort, innovation, dedication are rooted in all levels of the company.We constantly use new method to create and enhance value for our clients.ln delivering superior value product and services for our clients, we focus on our quality policyand objective that we adopted to capitalize on existing resources and strengths and to providea more structured approach to growing and expanding our business.

Model:SA128-5.0-2P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.

Feature

●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of PCB Terminal Block With Screw 3.81mm

Product name PCB Terminal Block With Screw 3.81mm
Material Plastic / copper
Color Green
Contact Form 2P-24P(accept customization )
AWG 30~14AWG
Strip length 6mm
Rated voltage 300V 12A UL
Rated voltage 250V 16A IEC
Conductor cross section solid 0.2~1.5mm²²
Pitch 3.5/3.81mm
Weight 4g(depends the contacts)
MOQ 500pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

Application of PCB Terminal Block With Screw 3.81mm



Product details of PCB Terminal Block With Screw 3.81mm


Drawing of PCB Terminal Block With Screw 3.81mm



Packing of PCB Terminal Block With Screw 3.81mm

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
