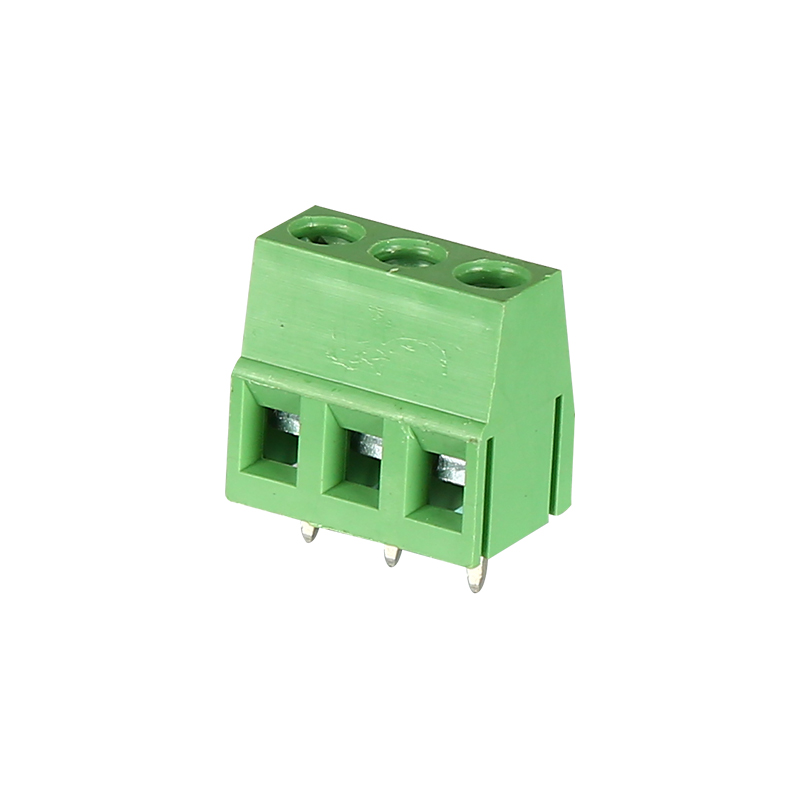

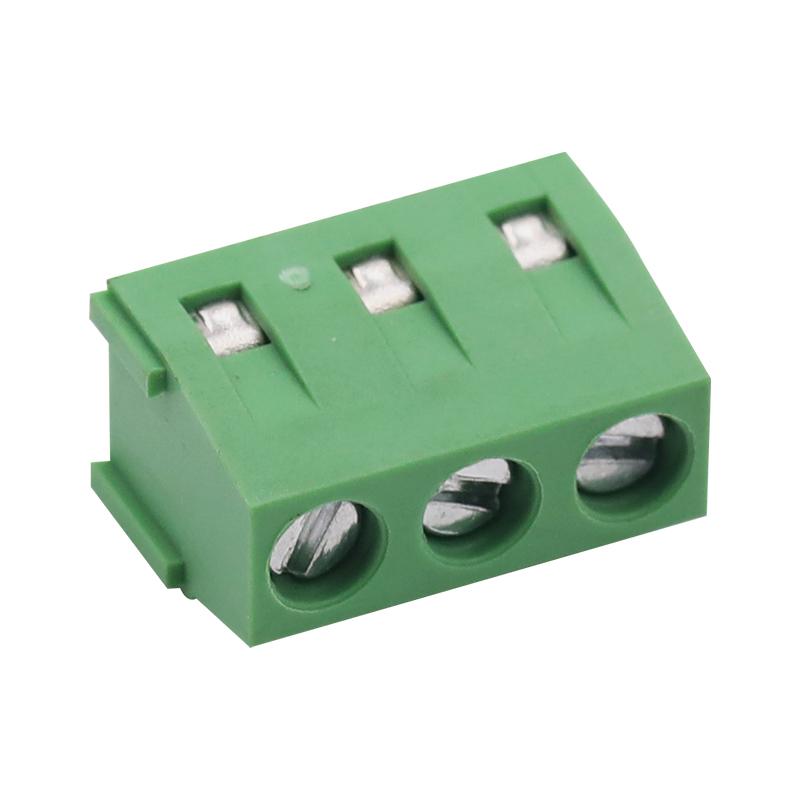

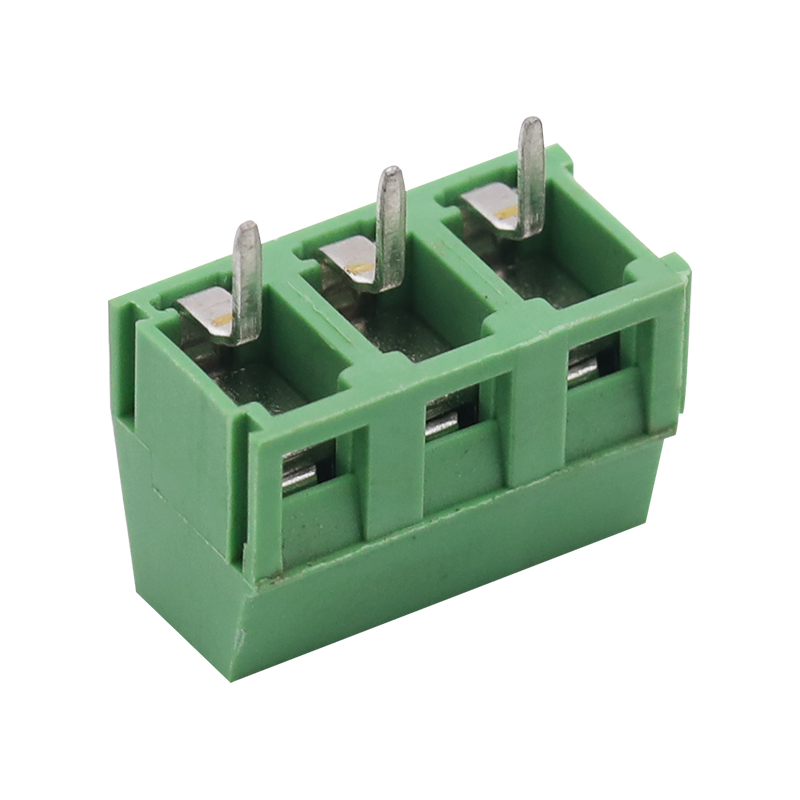

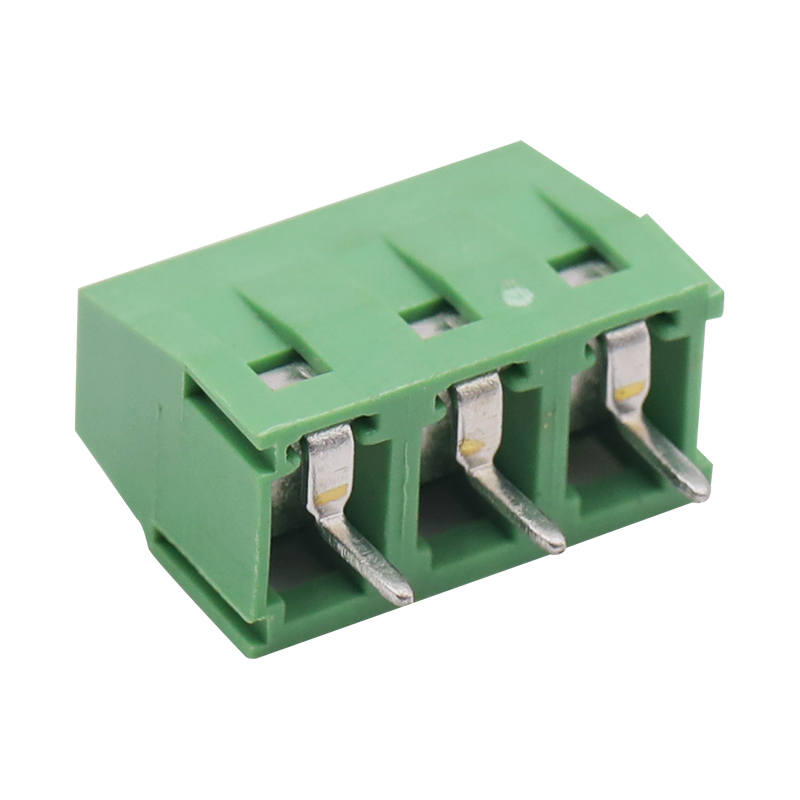

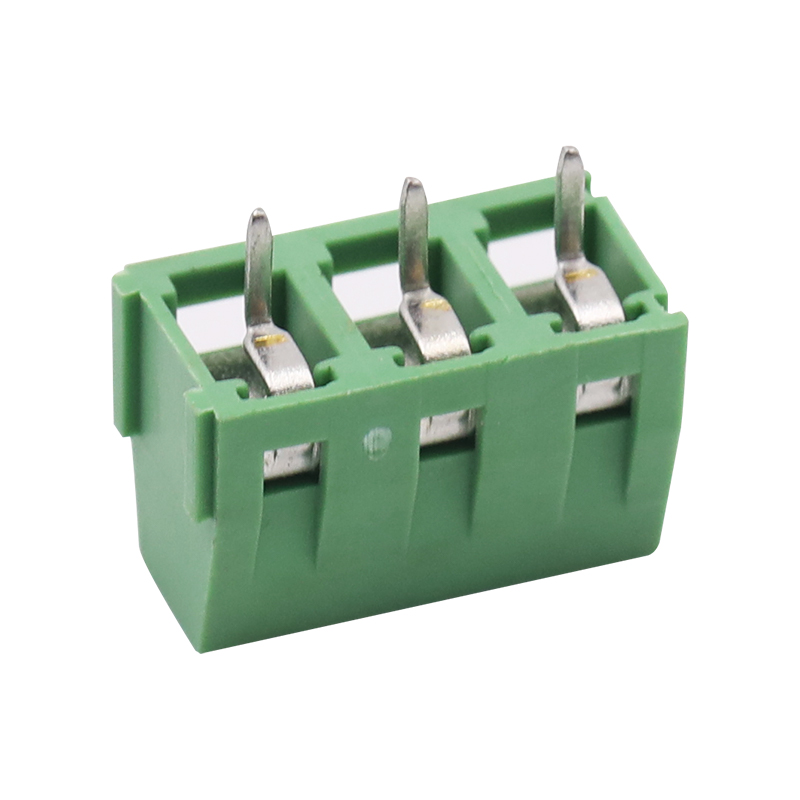

PCB Terminal Block With Screw 3P 3.81mm
Sanan Electrical Co,ltd was a manufacturer in China.We mainly produces,screw terminal, plug-in terminal blocks, PCB Terminal Block With Screw 3P 3.81mm, din rail enclosure, IO module etc.Through unremitting efforts,our company has rich experience in manufacturing terminal blockscomplete professional production equipment, strict quality control procedures, perfect salesnetwork, and extensive product application examples.At present, Our company has become one of the leading manufacturers of terminal blocks inthe field. Our brand values of fair, effort, innovation, dedication are rooted in all levels of the company.We constantly use new method to create and enhance value for our clients.ln delivering superior value product and services for our clients, we focus on our quality policyand objective that we adopted to capitalize on existing resources and strengths and to providea more structured approach to growing and expanding our business.
Send Inquiry
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.
Feature
●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of PCB Terminal Block With Screw 3P 3.81mm
| Product name | PCB Terminal Block With Screw 3P 3.81mm |
| Material | Plastic / copper |
| Color | Green |
| Contact | Form 2P-24P(accept customization ) |
| AWG | 30~14AWG |
| Strip length | 6mm |
| Rated voltage | 300V 12A UL |
| Rated voltage | 250V 16A IEC |
| Conductor cross section solid | 0.2~1.5mm²² |
| Pitch | 3.5/3.81mm |
| Weight | 4g(depends the contacts) |
| MOQ | 500pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Contact zone metal surface | Tin-plated |
| Insulation Materials | PA66 |
Application of PCB Terminal Block With Screw 3P 3.81mm
Product details of PCB Terminal Block With Screw 3P 3.81mm
Drawing of PCB Terminal Block With Screw 3P 3.81mm
Packing of PCB Terminal Block With Screw 3P 3.81mm
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
