Screw PCB Terminal Block 2.54mm 6P
  • Screw PCB Terminal Block 2.54mm 6PScrew PCB Terminal Block 2.54mm 6P
  • Screw PCB Terminal Block 2.54mm 6PScrew PCB Terminal Block 2.54mm 6P
  • Screw PCB Terminal Block 2.54mm 6PScrew PCB Terminal Block 2.54mm 6P
  • Screw PCB Terminal Block 2.54mm 6PScrew PCB Terminal Block 2.54mm 6P
  • Screw PCB Terminal Block 2.54mm 6PScrew PCB Terminal Block 2.54mm 6P
  • Screw PCB Terminal Block 2.54mm 6PScrew PCB Terminal Block 2.54mm 6P

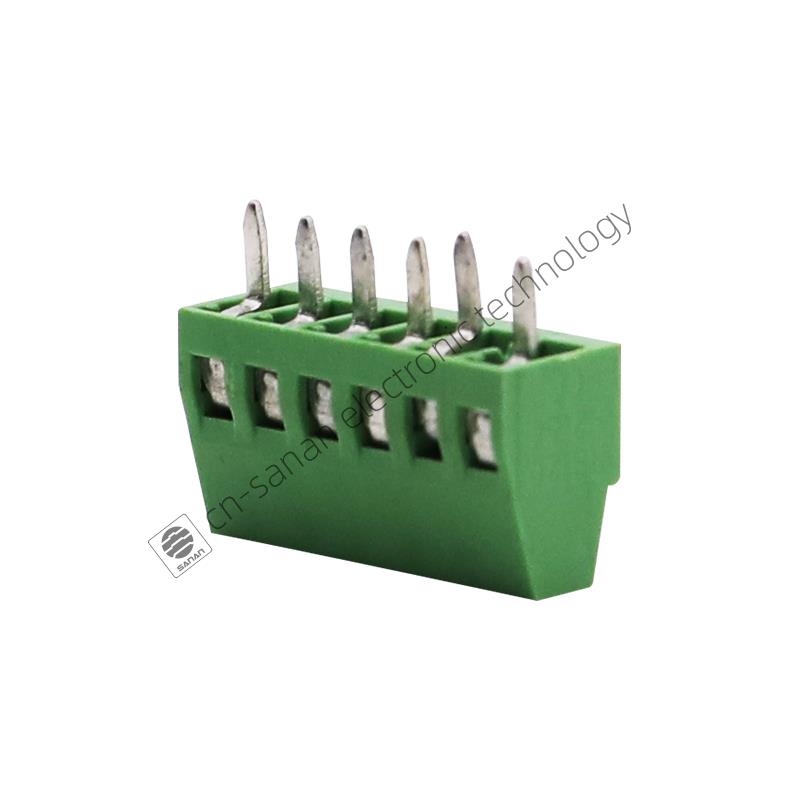

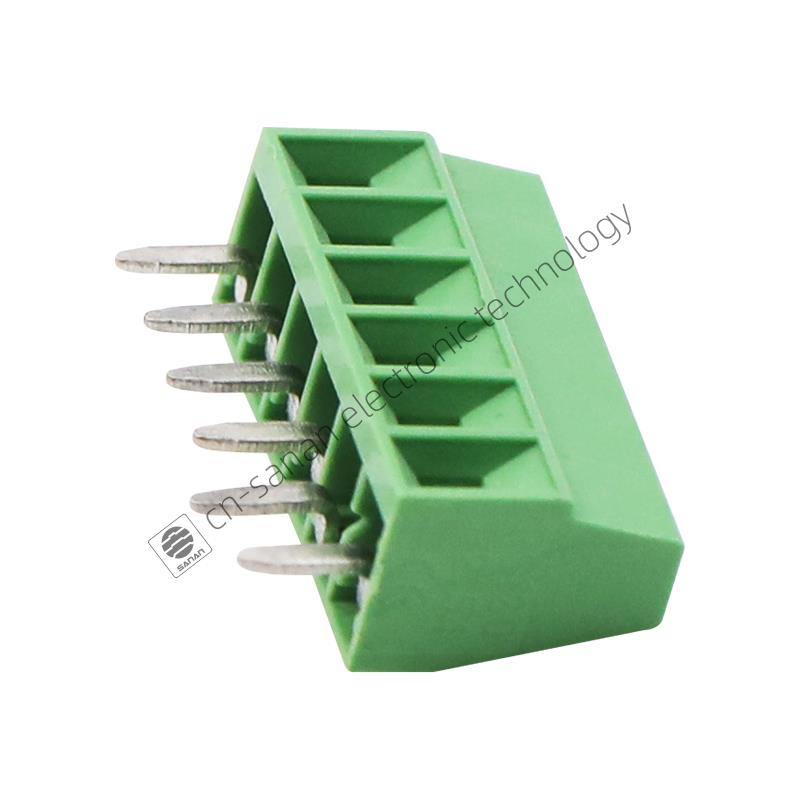

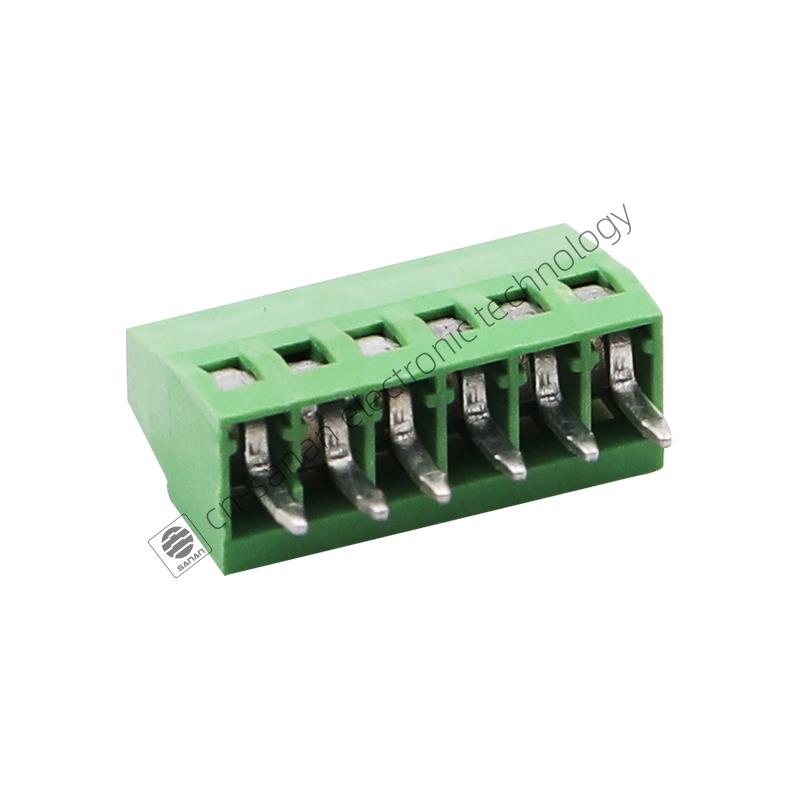

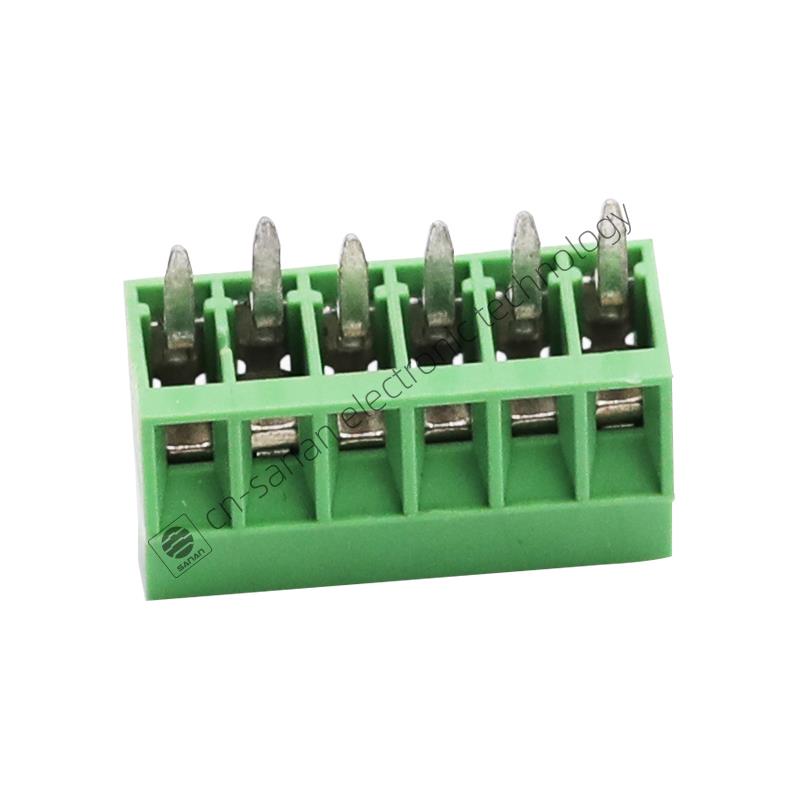

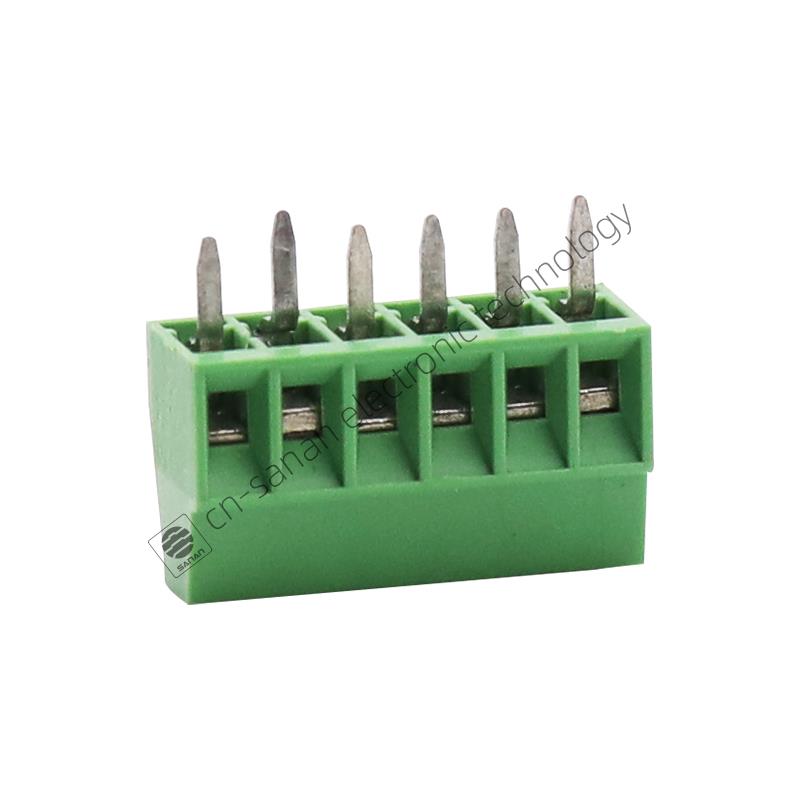

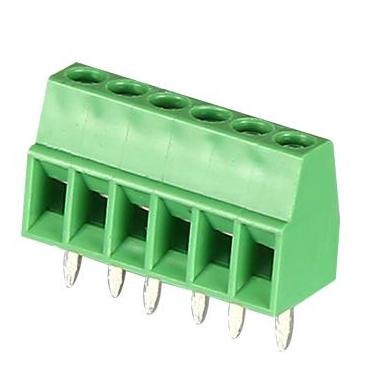

Screw PCB Terminal Block 2.54mm 6P

Sanan Electronic Technology Co,Ltd.is a manufacturer engaged in the production of termianl block connectors in China.We have outstanding technical staff with advanced management. Our company already has more than 20 years experience in the field of industry automation.As the professional manufacture, we would like to provide you Screw PCB Terminal Block 2.54mm 6P. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.

Feature

●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of Screw PCB Terminal Block 2.54mm 6P

Product name Screw PCB terminal block
Material Plastic / copper
Color Green
Contact Form 2P-18P(accept customization )
AWG 26~18AWG
Strip length 4mm
Rated voltage 150V 6A UL
Rated voltage 130V 8A IEC
Conductor cross section solid 0.5~1.0mm²
Pitch 2.54mm
Weight 4g(depends the contacts)
MOQ 500pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

Application of Screw PCB Terminal Block 2.54mm 6P



Product details of Screw PCB Terminal Block 2.54mm 6P


Drawing



Packing ofScrew PCB Terminal Block 2.54mm 4P

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
