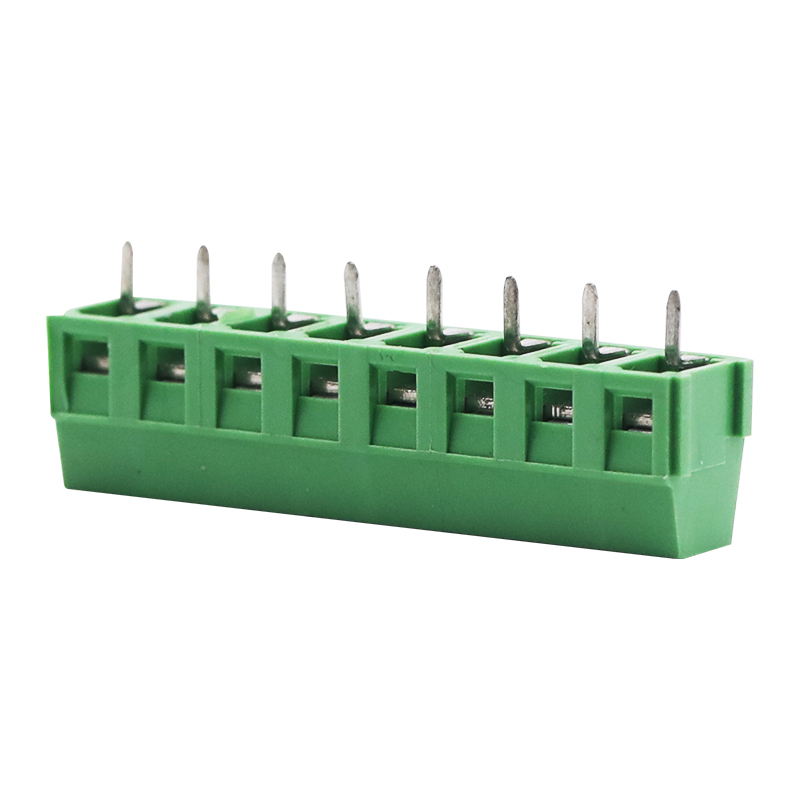

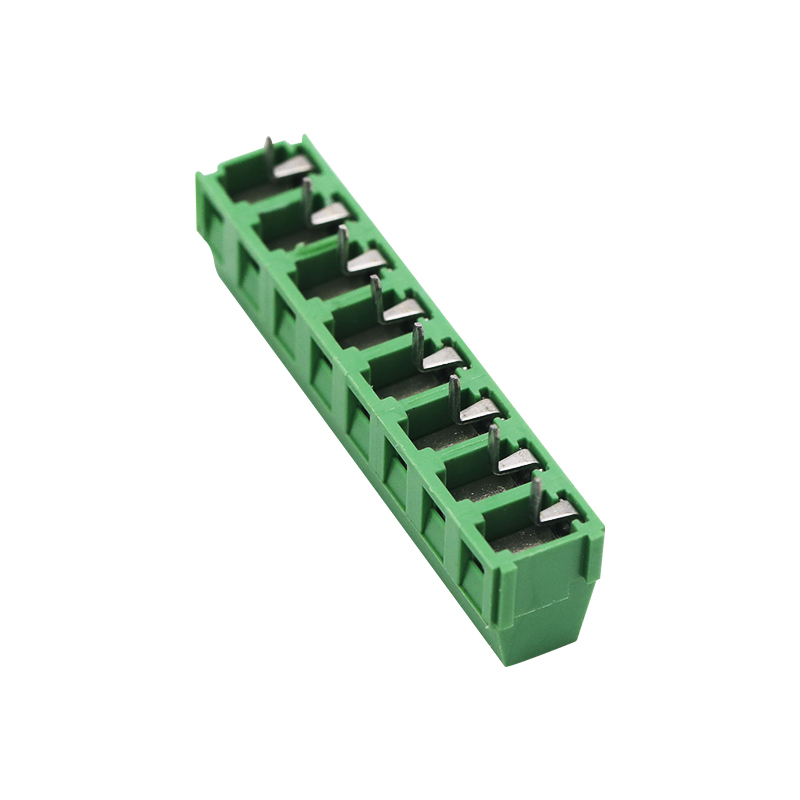

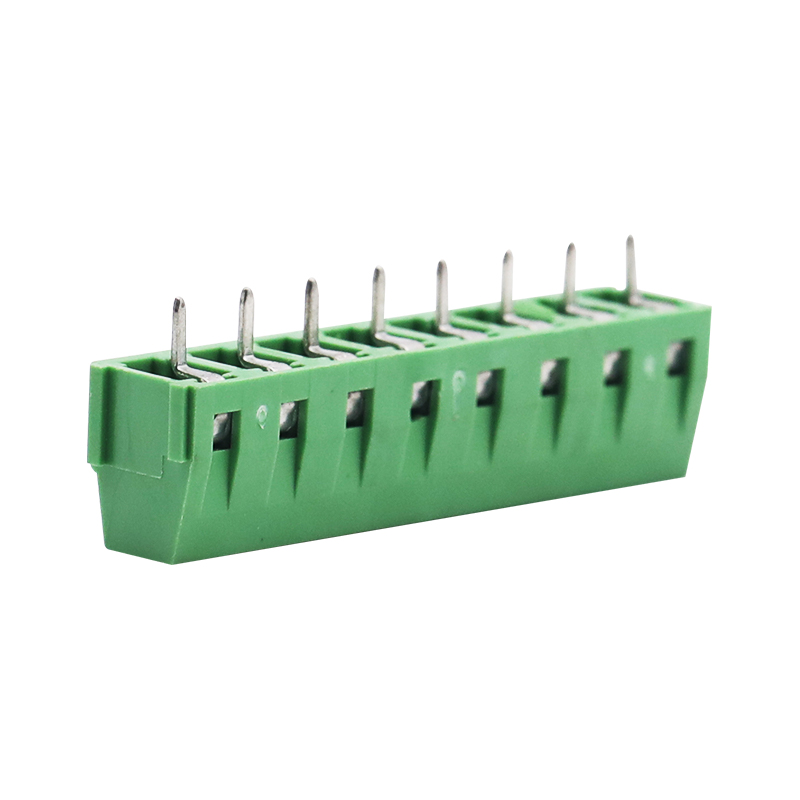

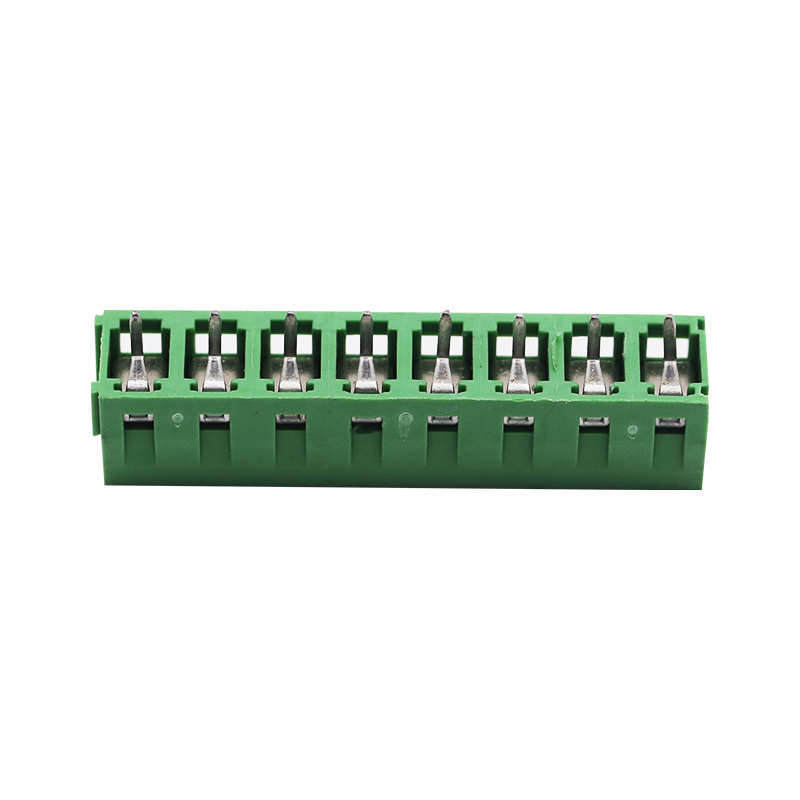

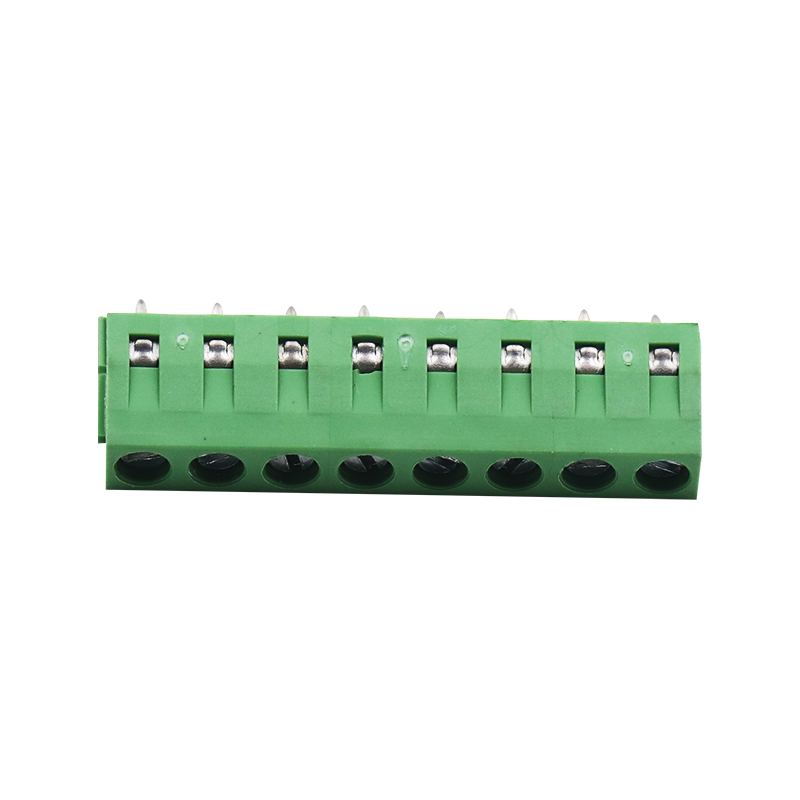

8P 5.0mm PCB Terminal Block
  • 8P 5.0mm PCB Terminal Block8P 5.0mm PCB Terminal Block
  • 8P 5.0mm PCB Terminal Block8P 5.0mm PCB Terminal Block
  • 8P 5.0mm PCB Terminal Block8P 5.0mm PCB Terminal Block
  • 8P 5.0mm PCB Terminal Block8P 5.0mm PCB Terminal Block
  • 8P 5.0mm PCB Terminal Block8P 5.0mm PCB Terminal Block
  • 8P 5.0mm PCB Terminal Block8P 5.0mm PCB Terminal Block

8P 5.0mm PCB Terminal Block

Sanan Electronics Co., Ltd. is a manufacturer specializing in researching new products, mass-producing and selling goods with brands. With the development of market,our company has accumulated rich experience in researching and producing insertion parts. The three main series of the products containing electronic connectors, terminal blocks,as 8P 5.0mm PCB Terminal Block,DIN rail enclosure,type, IO modeules. Currently, our company gets the certification of ISO9001 again, and our products also get the authentication of Europe CE, America UL, and Europe RoHS. Surviving in the current international situation filled with opportunity and challenge, we are improving the technology, normalizing the management, consummating the methods of measure and our fame is also broadening. Now we own nearly one thousand clients and the products have been sold to the countries including Europe and Southeast Asia.Our company pays more attention on the innovation management, and the tenet of the company lies in creating a harmonious situation with the related people and things. Self-discipline and social commitment would embrace everything.

Send Inquiry

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.

Feature

●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of 8P 5.0mm PCB Terminal Block

Product name 8P 5.0mm PCB Terminal Block
Material Plastic / copper
Color Green
Contact Form 2P-10P(accept customization )
AWG 26~12AWG
Strip length 6mm
Rated voltage 300V 16A UL
Rated voltage 320V 18A IEC
Conductor cross section solid 0.2~2.5mm²
Pitch 5.0/5.08mm (accept customization )
Weight 8g(depends the contacts)
MOQ 500pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

Application of 8P 5.0mm PCB Terminal Block



Product details of 8P 5.0mm PCB Terminal Block


Drawing of 8P 5.0mm PCB Terminal Block



Packing of 8P 5.0mm PCB Terminal Block

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
