5.0mm Bleu PCB Terminal Block With Screw
  • 5.0mm Bleu PCB Terminal Block With Screw5.0mm Bleu PCB Terminal Block With Screw
  • 5.0mm Bleu PCB Terminal Block With Screw5.0mm Bleu PCB Terminal Block With Screw
  • 5.0mm Bleu PCB Terminal Block With Screw5.0mm Bleu PCB Terminal Block With Screw
  • 5.0mm Bleu PCB Terminal Block With Screw5.0mm Bleu PCB Terminal Block With Screw
  • 5.0mm Bleu PCB Terminal Block With Screw5.0mm Bleu PCB Terminal Block With Screw
  • 5.0mm Bleu PCB Terminal Block With Screw5.0mm Bleu PCB Terminal Block With Screw

5.0mm Bleu PCB Terminal Block With Screw

Sanan Electronics Co., Ltd.was established 2020 and is a manufacturer in china specializing in the research and development industrial automation,electric energy of terminal block connectors,for example,5.0mm Bleu PCB Terminal Block With Screw,enclosures, board-to-board and wire-to-board.All our products meet international quality standards and are well received indifferent markets around the world. We maintain our customer-defined world-class supplierstatus in terms of quality, delivery, capacity, technology andcost. Looking forward to establishing successful businessrelationships with new clients all over the world in the near future.

Send Inquiry

Product Description


Sanan Electronics Co., Ltd.was established 2020 and is a manufacturer in china specializing in the research and development industrial automation,electric energy of terminal block connectors,enclosures, board-to-board and wire-to-board.All our products meet international quality standards and are well received indifferent markets around the world. We maintain our customer-defined world-class supplierstatus in terms of quality, delivery, capacity, technology andcost. Looking forward to establishing successful businessrelationships with new clients all over the world in the near future.

Feature

●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of 5.0mm Bleu PCB Terminal Block With Screw

Product name 5.0mm Bleu PCB Terminal Block With Screw
Material Plastic / copper
Color Green
Contact Form 2P-10P(accept customization )
AWG 30~14AWG
Strip length 6mm
Rated voltage 300V 20A UL
Rated voltage 250V 24A IEC
Conductor cross section solid 0.2~2.5mm²
Pitch 5.0/5.08mm (accept customization )
Weight 8g(depends the contacts)
MOQ 500pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

Application of 5.0mm Bleu PCBTerminal Block With Screw

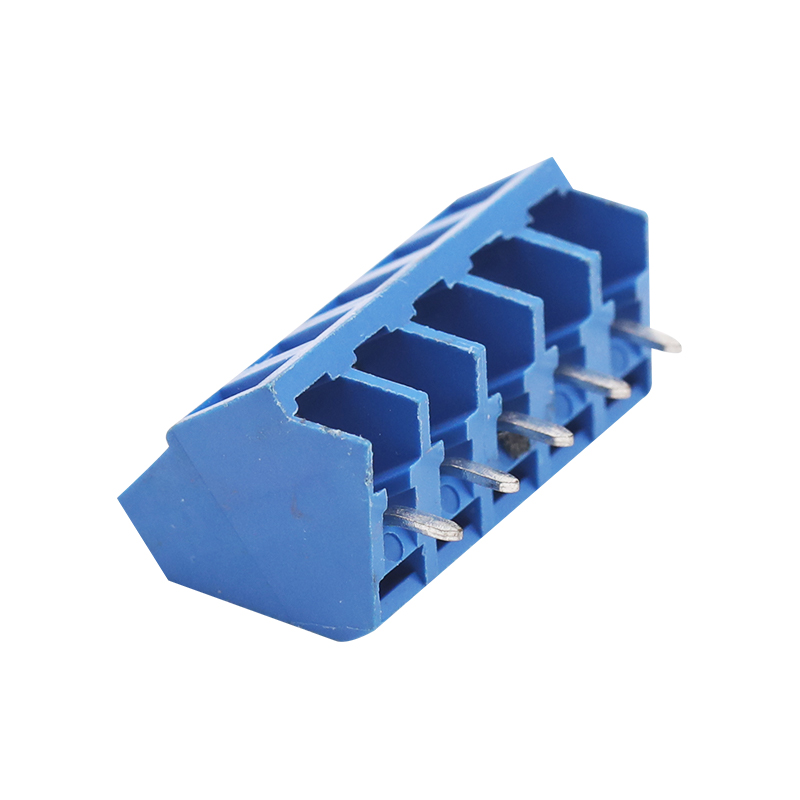

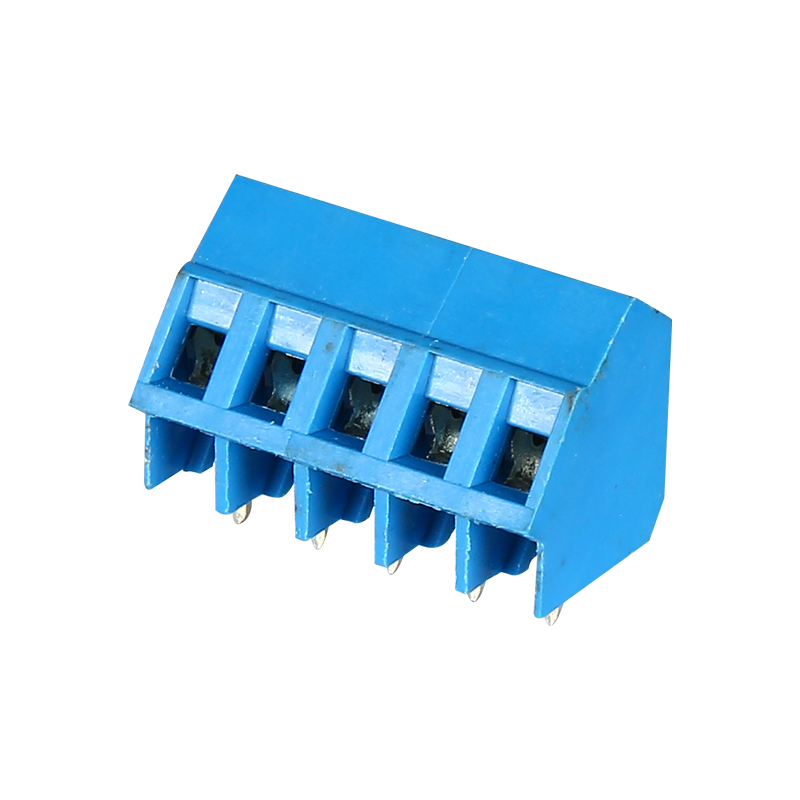

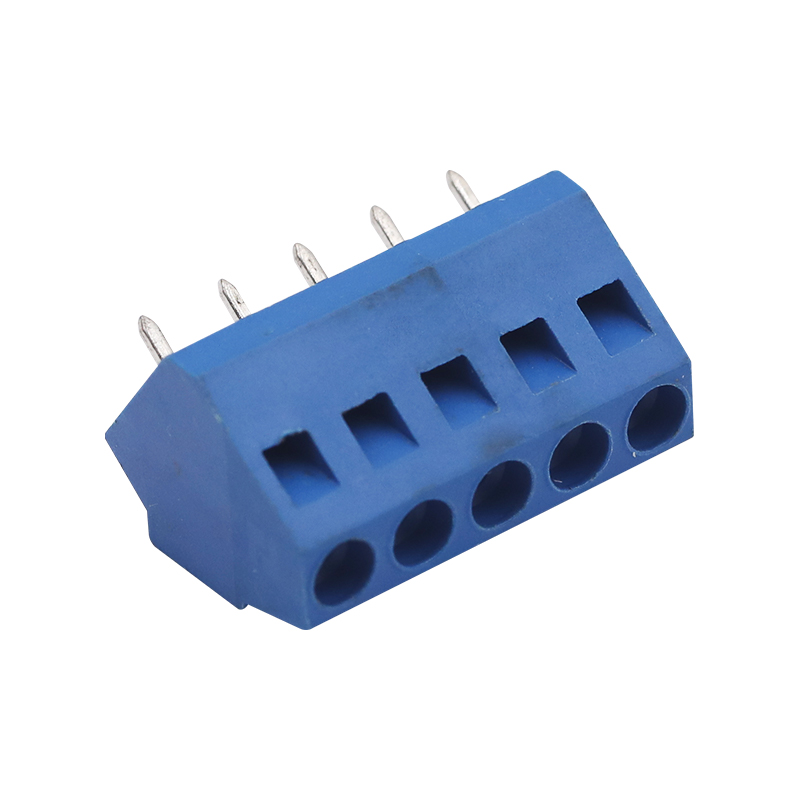

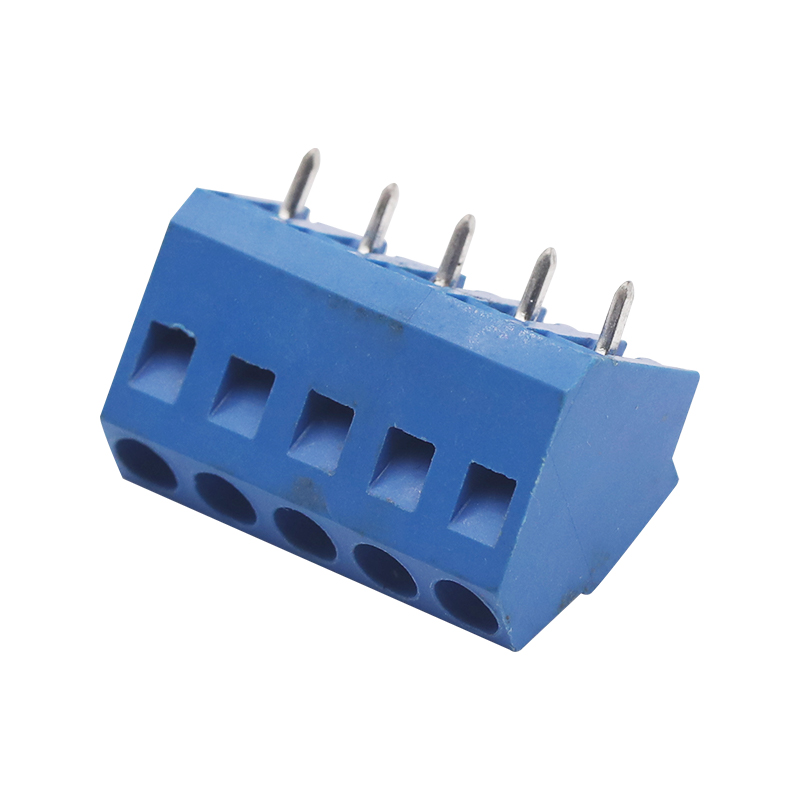

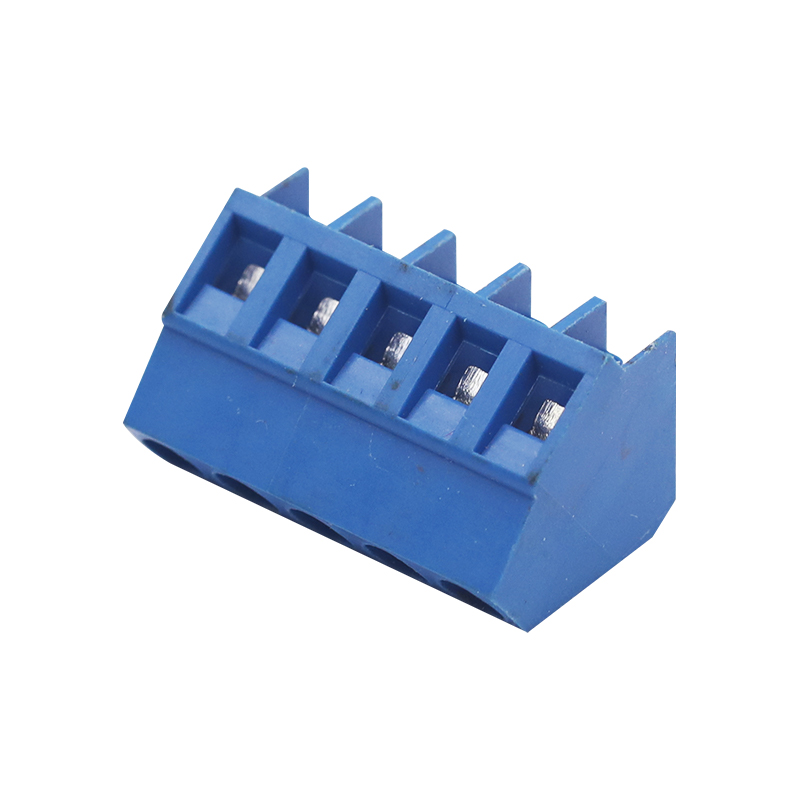

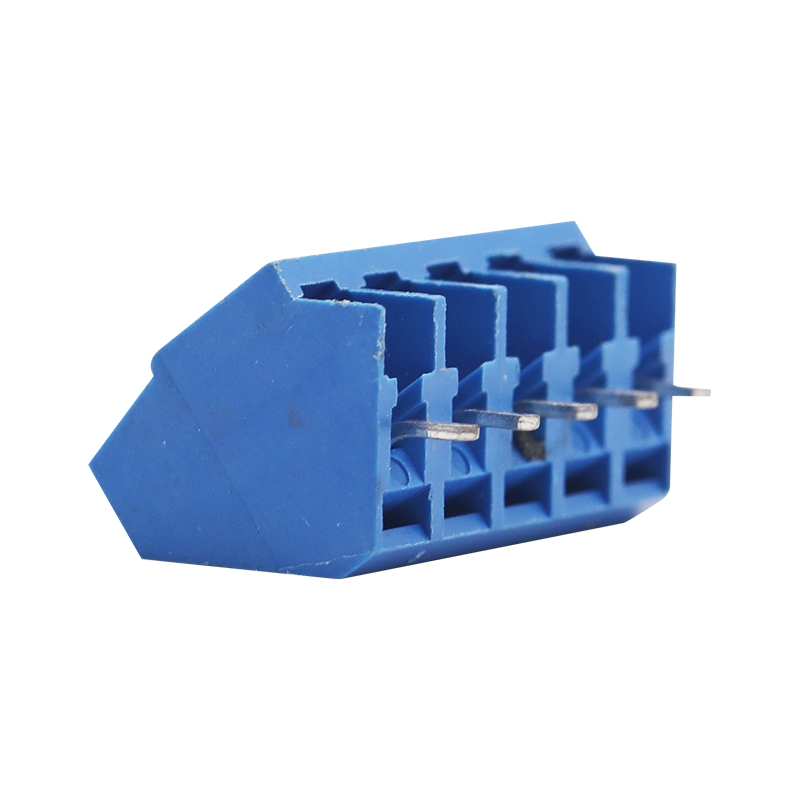

Product details of 5.0mm  Bleu PCB Terminal Block With Screw


Drawing of 5.0mm Bleu PCB Terminal Block With Screw



Packing of 5.0mm Bleu PCB Terminal Block With Screw

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
