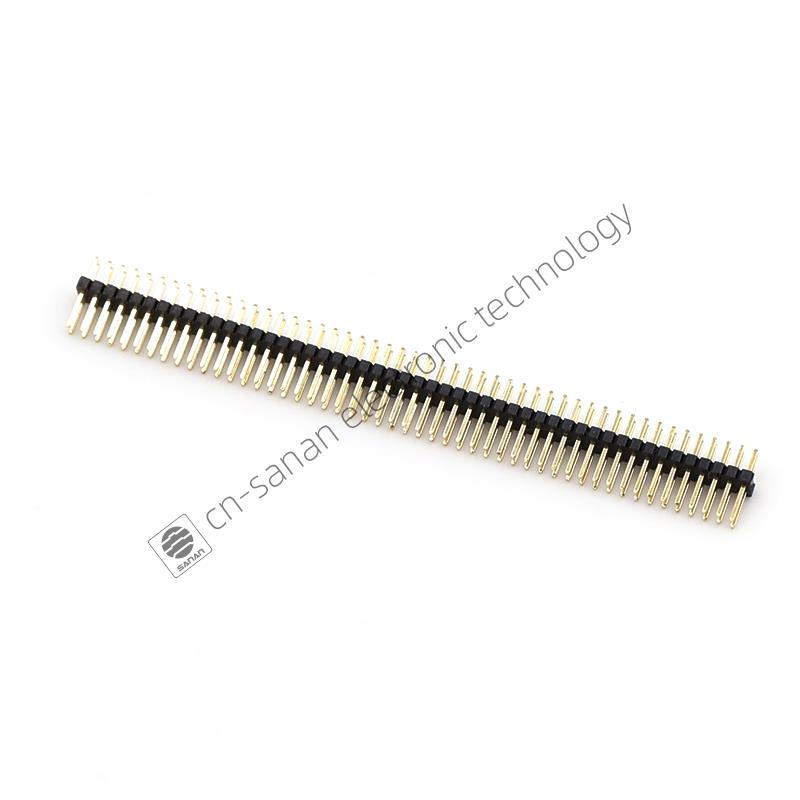

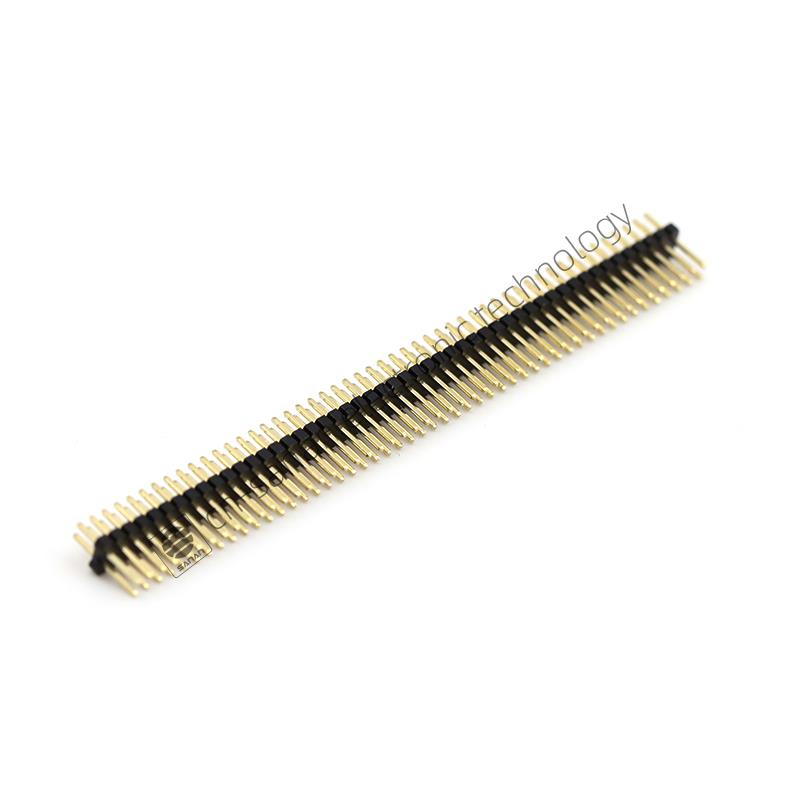

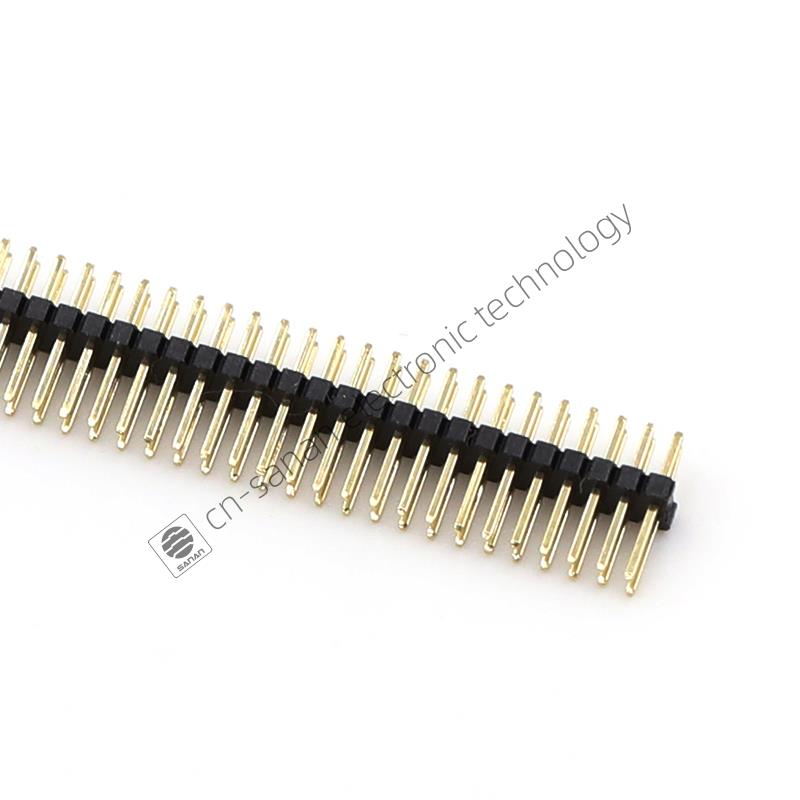

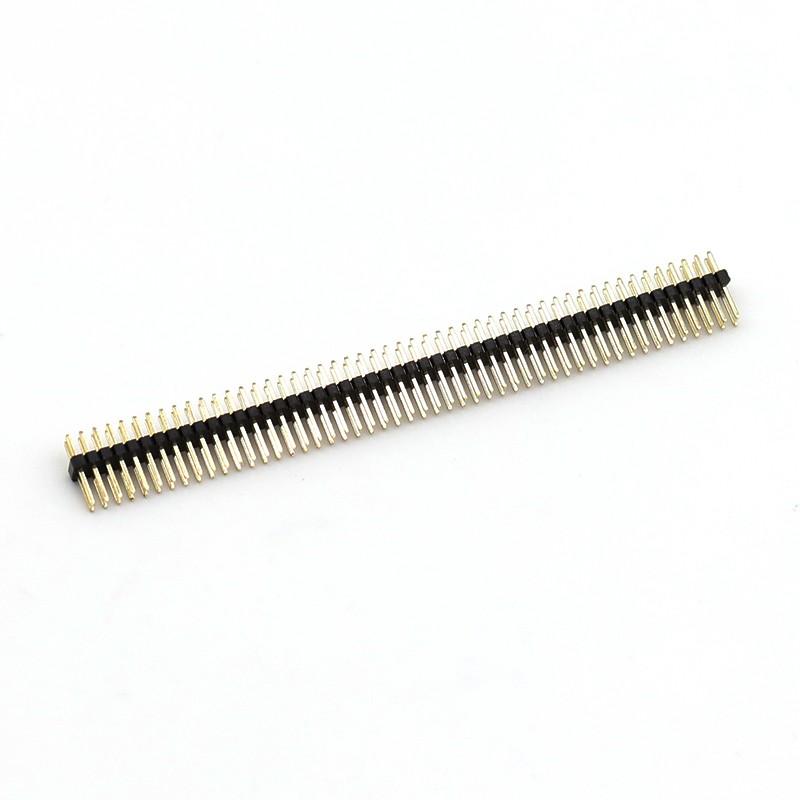

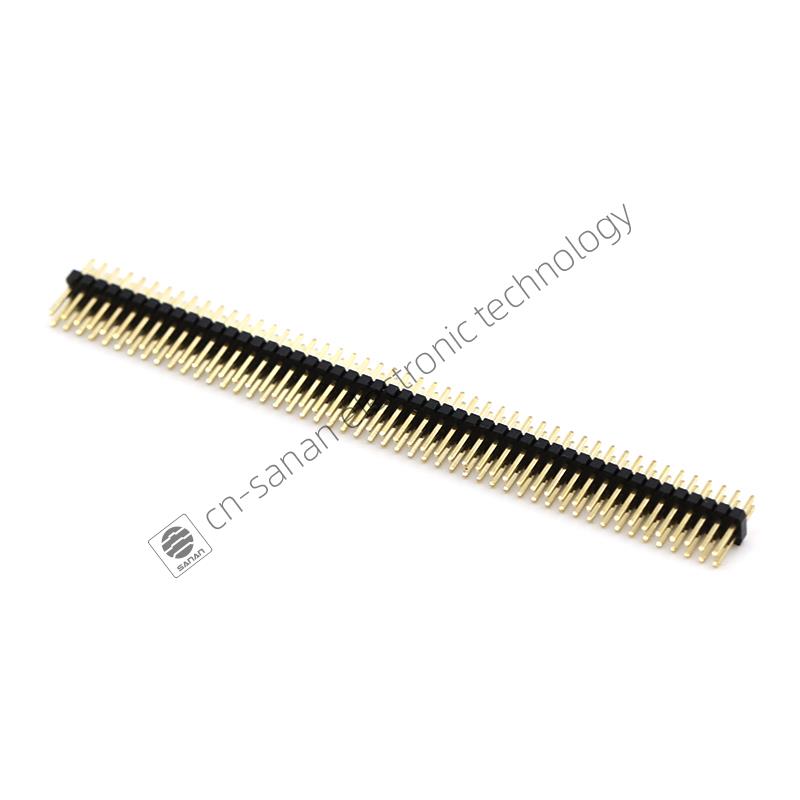

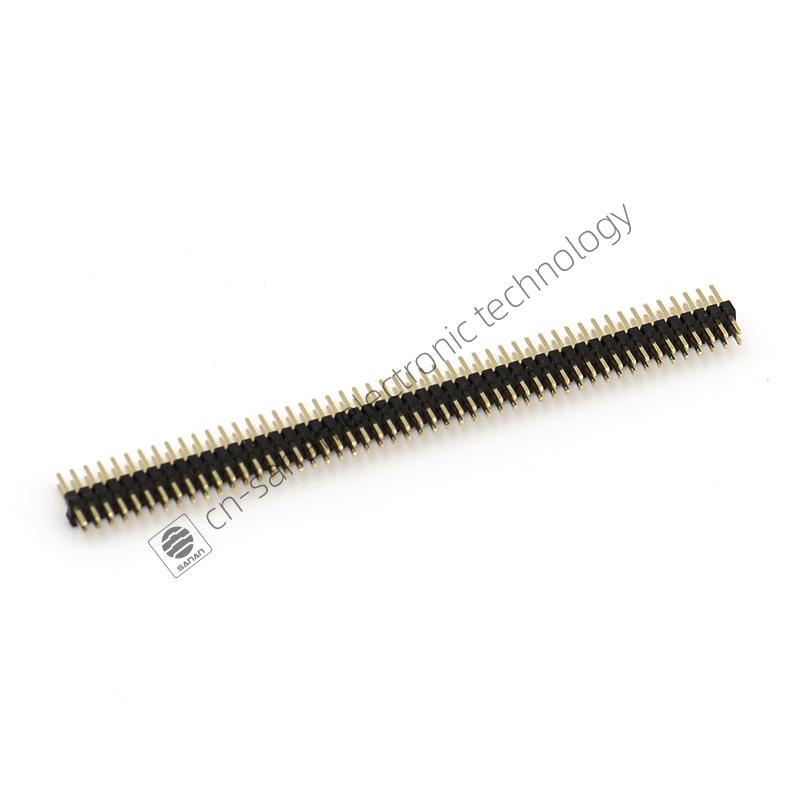

Pin Header Gold Double Row 2.54mm
  • Pin Header Gold Double Row 2.54mmPin Header Gold Double Row 2.54mm
  • Pin Header Gold Double Row 2.54mmPin Header Gold Double Row 2.54mm
  • Pin Header Gold Double Row 2.54mmPin Header Gold Double Row 2.54mm
  • Pin Header Gold Double Row 2.54mmPin Header Gold Double Row 2.54mm
  • Pin Header Gold Double Row 2.54mmPin Header Gold Double Row 2.54mm
  • Pin Header Gold Double Row 2.54mmPin Header Gold Double Row 2.54mm

Pin Header Gold Double Row 2.54mm

Sanan is a leading China Pin Header Gold Double Row 2.54mm manufacturers. Our company is a manufacturer specializing in electronic components and various connectors, pin header connectors is one of top industry connectors, we have designed PCB pin header, SMD(SMT),male , female, size 1.0mm, 2.0mm, 2.54mm etc, with automatic production techniques. High quality, we have own many clients from the world.

Send Inquiry

Product Description


Pin header connectors comprise several different means of connection. Generally, one side is a series of pins which are soldered to a PCB, and they can either be at a right-angle to the PCB surface (usually called "straight") or parallel to the board's surface (confusingly referred to as "right-angle" pins),they are stiff metallic connectors that are soldered to a circuit board and stick up to receive a connection from a female socket

Feature

●Stable performance: Stable electric current and signal transmission performance.
●An ideal connector for PCB, IC or your RPi, are widely used in computer, breadboard, arduinoetc and other electronic projects
●Have the characteristics of convenient connection, excellent electrical and mechanical properties

Product specification of Pin Header Gold Double Row 2.54mm

Product name Pin Header Gold Double Row 2.54mm
Material Plastic / metal
Color Black(accept customization)
Contact Brass
Pitch 2.54mm
Plating Gold
Contact number 2X50
Application PCB or other applications
Material Flammability Rating 94-V0
Storage Temperature -20℃~+70℃
Operating Temperature -40℃~+105℃
Current Rating 3AMP
Insulator Resistance 1000MΩmin
Contact Resistance 20MΩmax
Withstanding Voltage 1000V AC/rms 50HZ For 1 minute
Packing Plastic bag or customization
Brand OEM
MOQ 500pcs

Product details of Pin Header Gold Double Row 2.54mm


Application of Pin Header Gold Double Row 2.54mm



Packing

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
