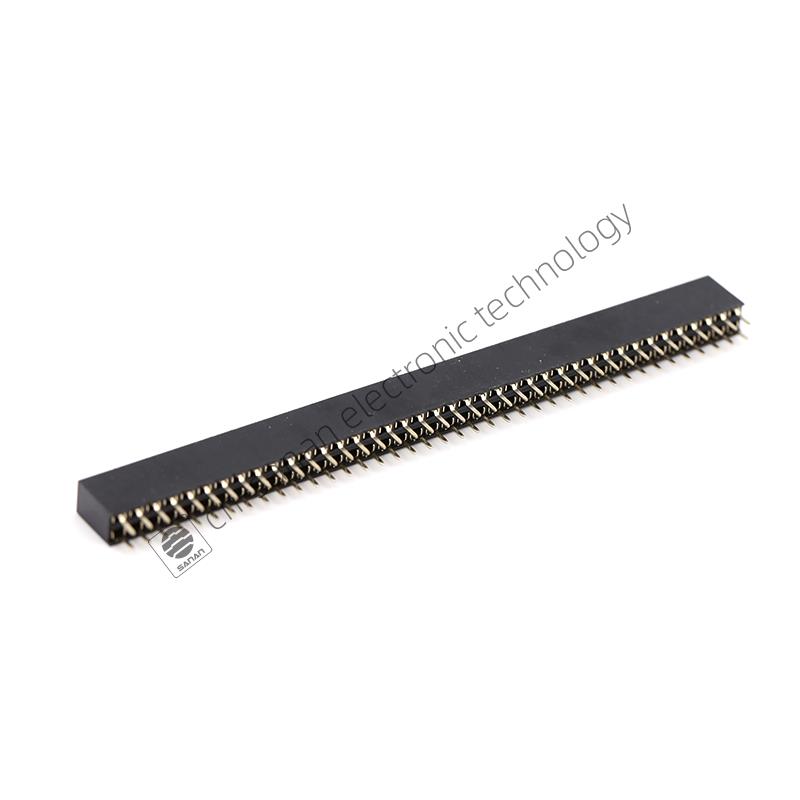

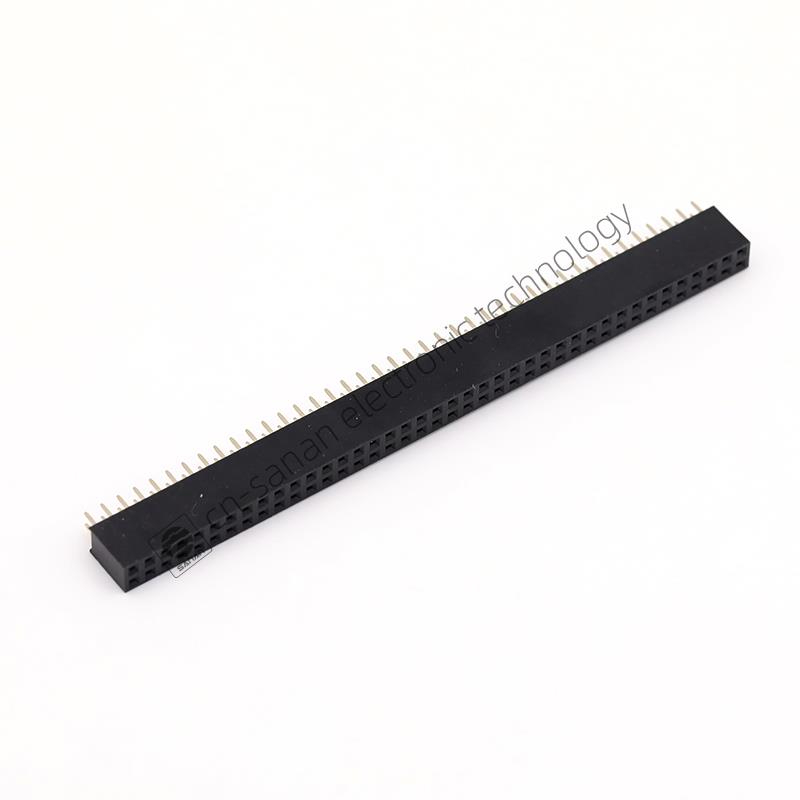

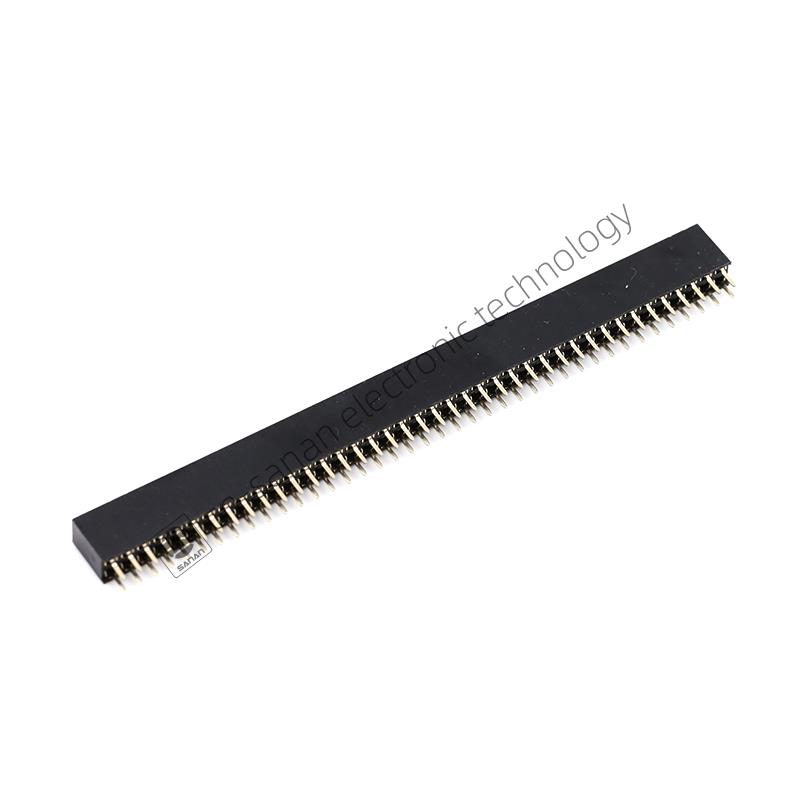

Pin Header Femle 2.54mm
Sanan is a leading China Pin Header Femle 2.54mm manufacturers. In today's high-tech market, those who innovate are the ones who will thrive，Sanan electronic technology company always keep attentions of the market’s pin header, improving the quality, meanwhile, we adjust our design to offer rich solution for customer, the pin header in the different applications, teh connecting Arduino boards, PCB board, the computer etc,
Send Inquiry
Product Description
Pin header connectors comprise several different means of connection. Generally, one side is a series of pins which are soldered to a PCB, and they can either be at a right-angle to the PCB surface (usually called "straight") or parallel to the board's surface (confusingly referred to as "right-angle" pins),they are stiff metallic connectors that are soldered to a circuit board and stick up to receive a connection from a female socket
Feature
●Stable performance: Stable electric current and signal transmission performance.
●An ideal connector for PCB, IC or your RPi, are widely used in computer, breadboard, arduinoetc and other electronic projects
●Have the characteristics of convenient connection, excellent electrical and mechanical properties
●An ideal connector for PCB, IC or your RPi, are widely used in computer, breadboard, arduinoetc and other electronic projects
●Have the characteristics of convenient connection, excellent electrical and mechanical properties
Product specification of Pin Header Femle 2.54mm
| Product name | Pin Header Femle 2.54mm |
| Material | Plastic / metal |
| Color | Black(accept customization) |
| Contact | Brass |
| Pitch | 2.54mm |
| Plating | Gold/tin |
| Type | Straight |
| Contact number | 1X40 |
| Application | PCB or other applications |
| Material Flammability Rating | 94-V0 |
| Storage Temperature | -20℃~+70℃ |
| Operating Temperature | -40℃~+105℃ |
| Current Rating | 3AMP |
| Insulator Resistance | 1000MΩmin |
| Contact Resistance | 20MΩmax |
| Withstanding Voltage | 1000V AC/rms 50HZ For 1 minute |
| Packing | Plastic bag or customization |
| Brand | OEM |
| MOQ | 500pcs |
Product details of Pin Header Femle 2.54mm
Application of Pin Header Femle 2.54mm
Packing
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
