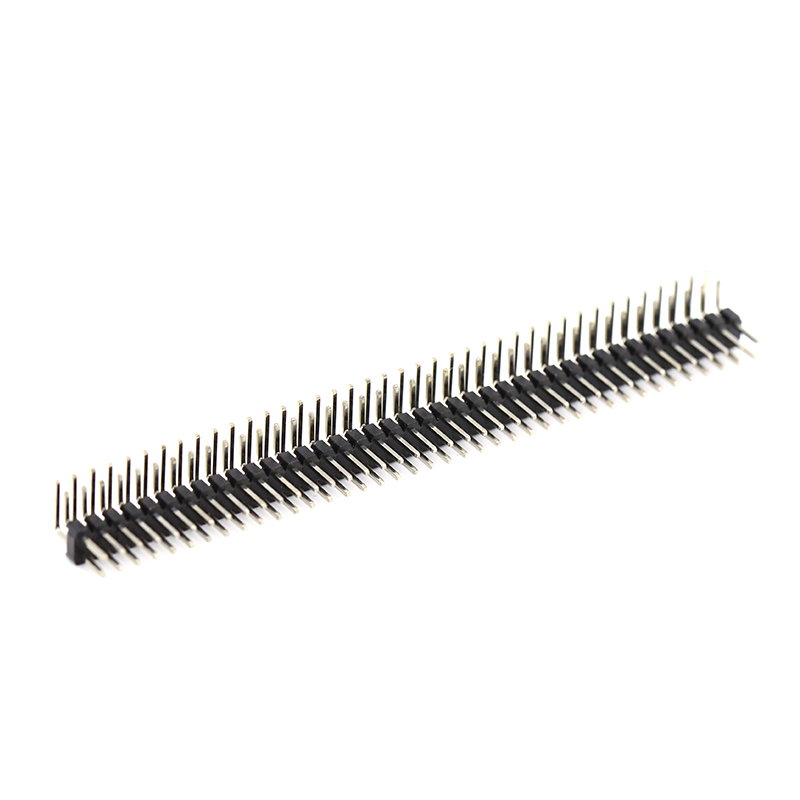

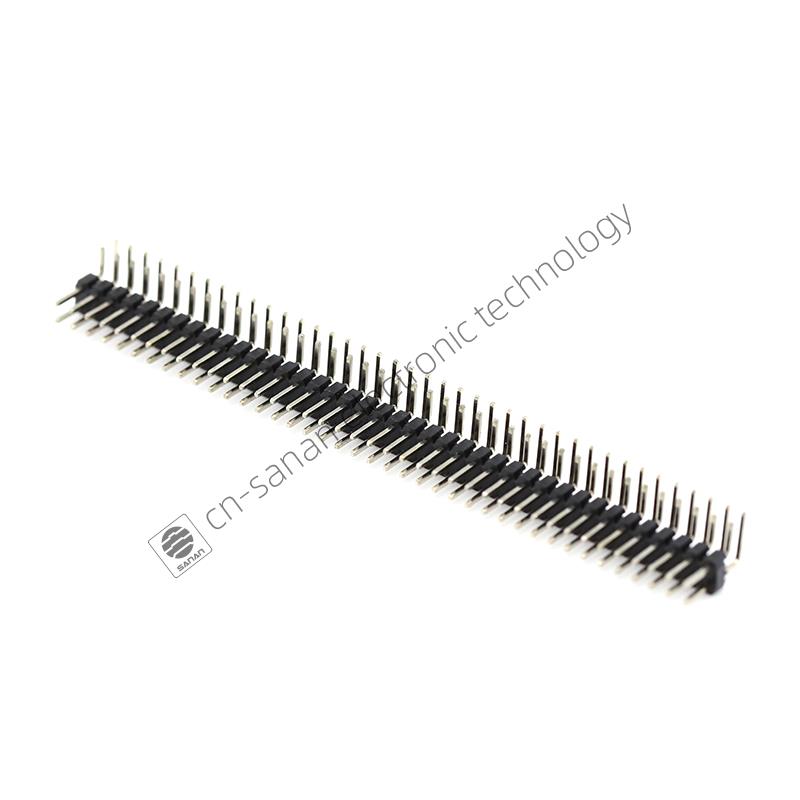

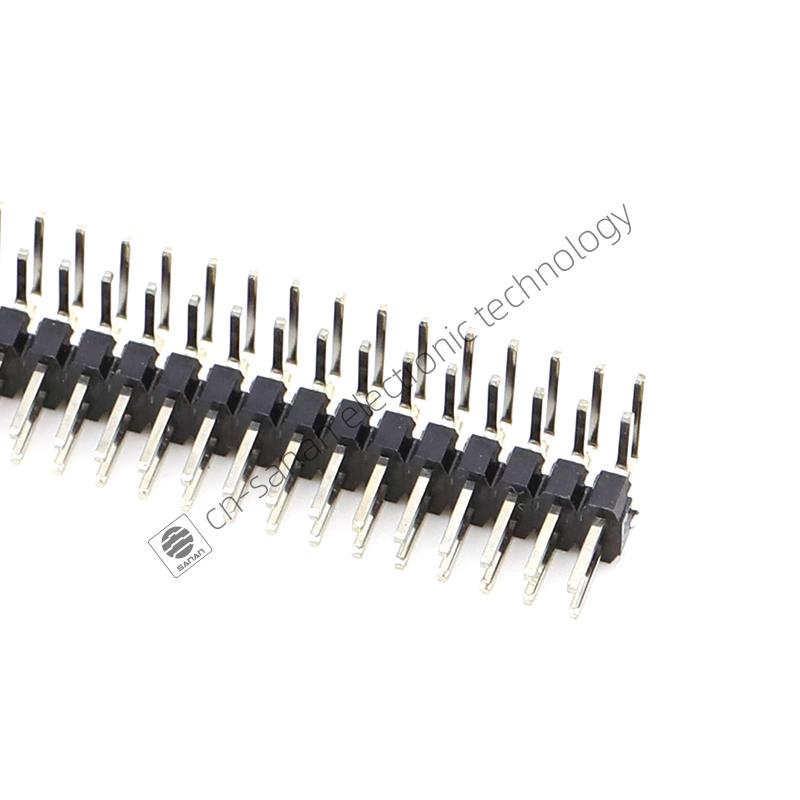

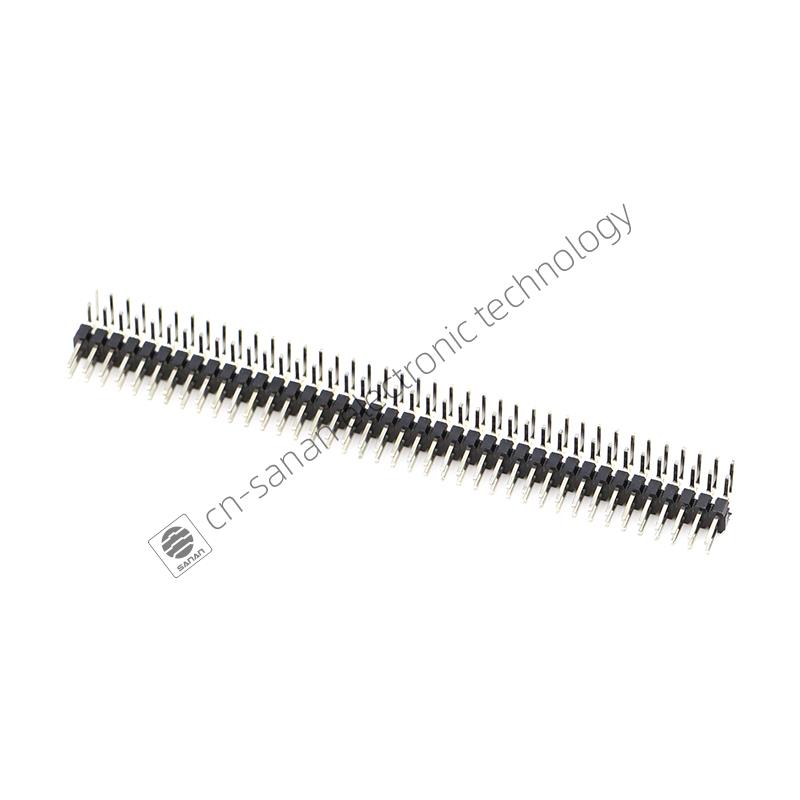

2X40 2.54mm Step Tin Pin Header
Sanan is a leading China 2X40 2.54mm Step Tin Pin Header manufacturers. Our company is a manufacturer specializing in electronic components and various connectors, pin header connectors is one of top industry connectors, we have designed PCB pin header, SMD（SMT),male , female, size 1.0mm, 2.0mm, 2.54mm etc, with automatic production techniques. High quality, we have own many clients from the world.
Send Inquiry
Product Description
Pin header connectors comprise several different means of connection. Generally, one side is a series of pins which are soldered to a PCB, and they can either be at a right-angle to the PCB surface (usually called "straight") or parallel to the board's surface (confusingly referred to as "right-angle" pins),they are stiff metallic connectors that are soldered to a circuit board and stick up to receive a connection from a female socket
Feature
●Stable performance: Stable electric current and signal transmission performance.
●An ideal connector for PCB, IC or your RPi, are widely used in computer, breadboard, arduinoetc and other electronic projects
●Have the characteristics of convenient connection, excellent electrical and mechanical properties
●An ideal connector for PCB, IC or your RPi, are widely used in computer, breadboard, arduinoetc and other electronic projects
●Have the characteristics of convenient connection, excellent electrical and mechanical properties
Product specification of 2X40 2.54mm Step Tin Pin Header
| Product name | 2X40 2.54mm Step Tin Pin Header |
| Material | Plastic / metal |
| Color | Black(accept customization) |
| Contact | Brass |
| Pitch | 2.54mm |
| Plating | Gold/tin |
| Contact number | 2X40 |
| Application | PCB or other applications |
| Material Flammability Rating | 94-V0 |
| Storage Temperature | -20℃~+70℃ |
| Operating Temperature | -40℃~+105℃ |
| Current Rating | 3AMP |
| Insulator Resistance | 1000MΩmin |
| Contact Resistance | 20MΩmax |
| Withstanding Voltage | 1000V AC/rms 50HZ For 1 minute |
| Packing | Plastic bag or customization |
| Brand | OEM |
| MOQ | 500pcs |
Application of 2X40 2.54mm Step Tin Pin Header
Packing
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
