Electric Panel Mounted 5mm 4Pins Pluggable Terminal Block
  • Electric Panel Mounted 5mm 4Pins Pluggable Terminal BlockElectric Panel Mounted 5mm 4Pins Pluggable Terminal Block
  • Electric Panel Mounted 5mm 4Pins Pluggable Terminal BlockElectric Panel Mounted 5mm 4Pins Pluggable Terminal Block
  • Electric Panel Mounted 5mm 4Pins Pluggable Terminal BlockElectric Panel Mounted 5mm 4Pins Pluggable Terminal Block
  • Electric Panel Mounted 5mm 4Pins Pluggable Terminal BlockElectric Panel Mounted 5mm 4Pins Pluggable Terminal Block
  • Electric Panel Mounted 5mm 4Pins Pluggable Terminal BlockElectric Panel Mounted 5mm 4Pins Pluggable Terminal Block
  • Electric Panel Mounted 5mm 4Pins Pluggable Terminal BlockElectric Panel Mounted 5mm 4Pins Pluggable Terminal Block
  • Electric Panel Mounted 5mm 4Pins Pluggable Terminal BlockElectric Panel Mounted 5mm 4Pins Pluggable Terminal Block

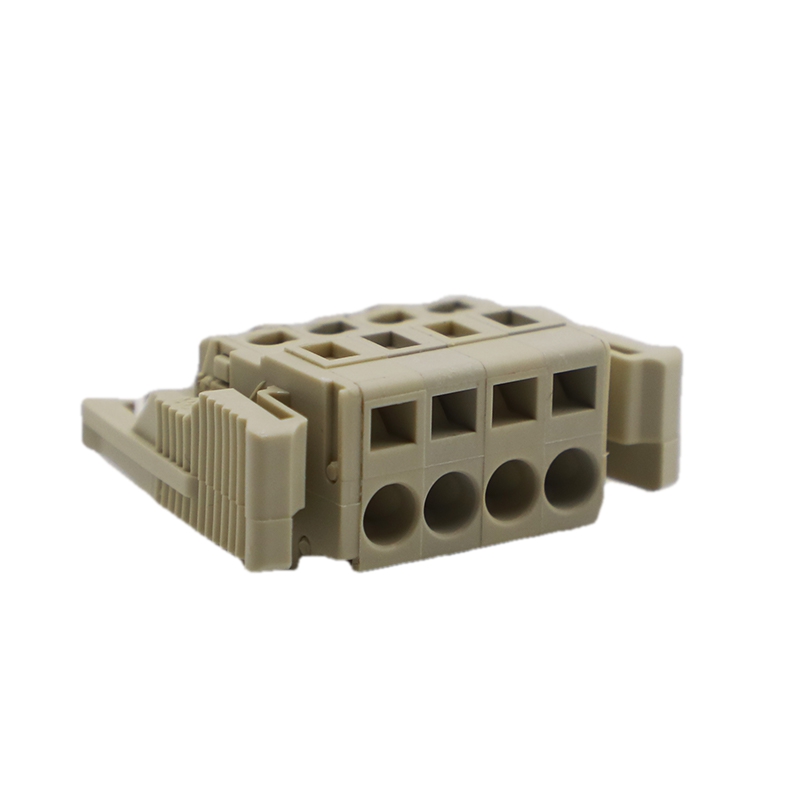

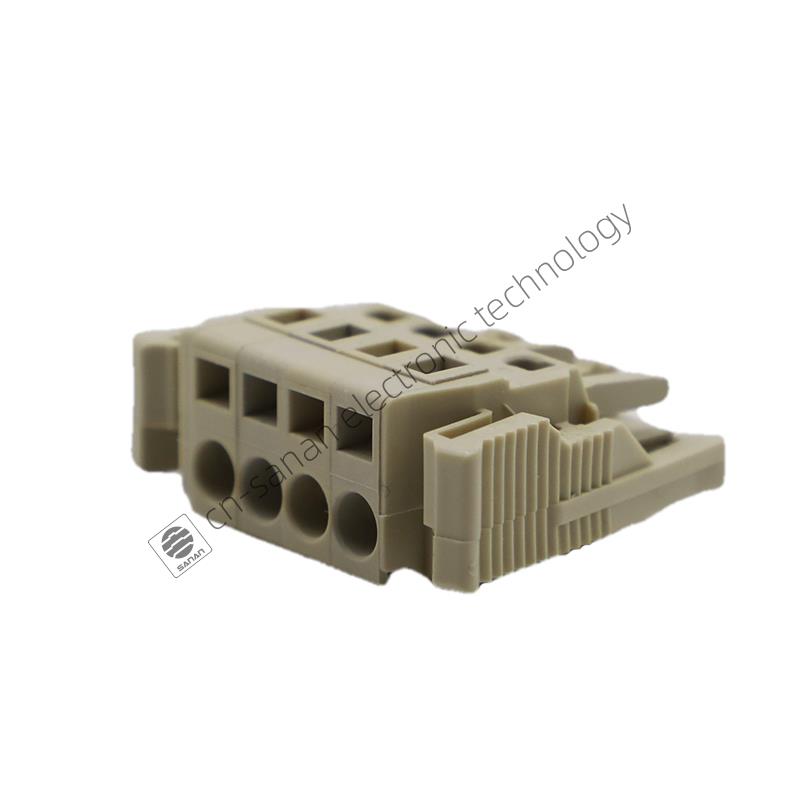

Electric Panel Mounted 5mm 4Pins Pluggable Terminal Block

Sanan® is a professional industry solutions supplier in China, for the Electric Panel Mounted 5mm 4Pins Pluggable Terminal Block, we have 20 years experience, with strong advantages and high quality, we own many clients all over the world, We look forward to becoming your long-term partner.

Model:8ESAKG-5.0-4P

Send Inquiry    PDF DownLoad

Product Description


Sanan® is a leading China Electric Panel Mounted 5mm 4Pins Pluggable Terminal Block manufacturers, suppliers and exporter. Pluggable terminal block and pluggable connectors for drive and controller technology, the lighting industry and more,as a supplier, Sanan’s PBC plug made of high-quality plastic and cooper, featured with good conductivity, effective flame retardant, long service time, safe and reliable, has the certification of ROSH, VDE etc.

Feature of Electric Panel Mounted 5mm 4Pins Pluggable Terminal Block

●Adapt to multi-type sockets, device design is highly flexible
●Cage clamp connection technology,fast wiring
●Universal installation method, suitable for various situations

Product specification of Pluggable Terminal Block

Product name Pluggable terminal block
Material Plastic / copper
Color Gray
Contact Form 2P-20P(accept customization )
AWG 22~14AWG
Number of potentials 4
Rated voltage 320V
Conductor cross section solid 0.2~2.5mm²
Pitch 5.0mm
Contact surface Tin
Weight 7.5g(depends the contacts)
MOQ 500pieces
Brand OEM
Packing Natural packing or customization
Connection method spring-cage connection
Ambient temperature (operation) -40℃~105℃
Flammability rating UL94V-0

Application of Electric Panel Mounted 5mm 4Pins Pluggable Terminal Block



Product details of Electric Panel Mounted 5mm 4Pins Pluggable Terminal Block


Packing of pluggable terminal block

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc


Hot Tags: Electric Panel Mounted 5mm 4Pins Pluggable Terminal Block, China, Manufacturers, Suppliers, Wholesale, Factory, Customized, Free Sample, Made in China, CE, Newest, Quality
