Push In Pluggable Terminal Block 2.5MM 10P

Sanan Electronics Co., Ltd. is a professional manufacturer chinese of terminal blocks, PLC IO modules , DIN rail terminal blocks etc . You can rest assured to buy Push In Pluggable Terminal Block 2.5MM 10P from our factory and we will offer you the best after-sale service and timely delivery.The company has passed ISO9001 and ISO14001 certification, and its products have passed the certification of major national and international institutions, meeting environmental protection requirements. Tens of thousands of terminal blocks have been exported to Russia, the US and 66 different countries in over 110 locations worldwide.

Model:15ESAVC-2.5-10P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.

Push In Terminal Block 2.5MM 10P Feature

●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of Push In Pluggable Terminal Block 2.5MM 10P

Product name Pluggable terminal block
Material Plastic / copper
Color Green
Contact Form 2P-18P(accept customization )
Pitch 3.5mm
Rated voltage 300V 8A UL
Rated voltage 250V 7A IEC
Type of installation PCB welding
Weight 4.5g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

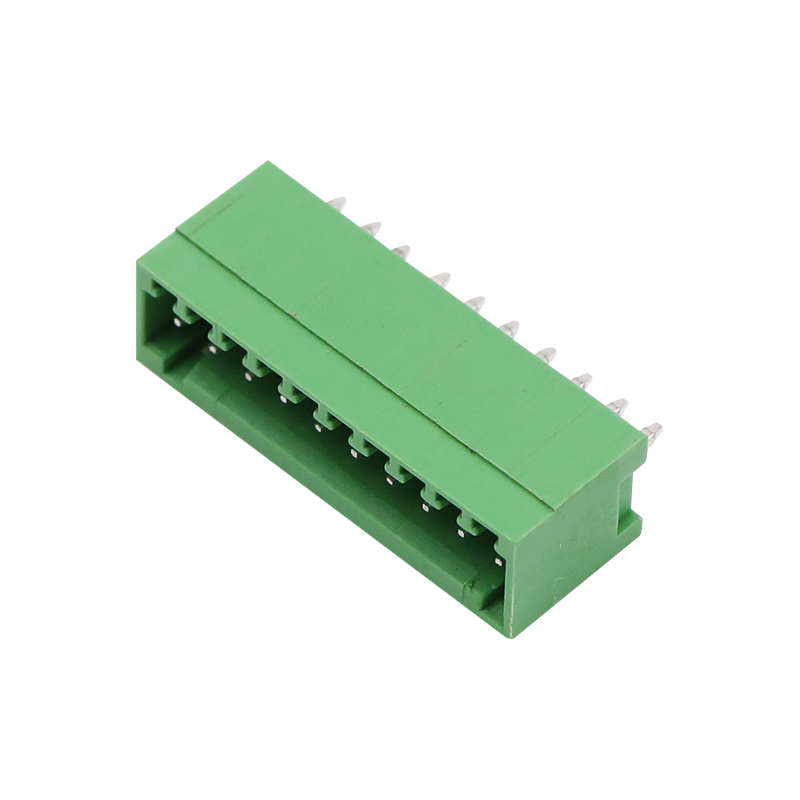

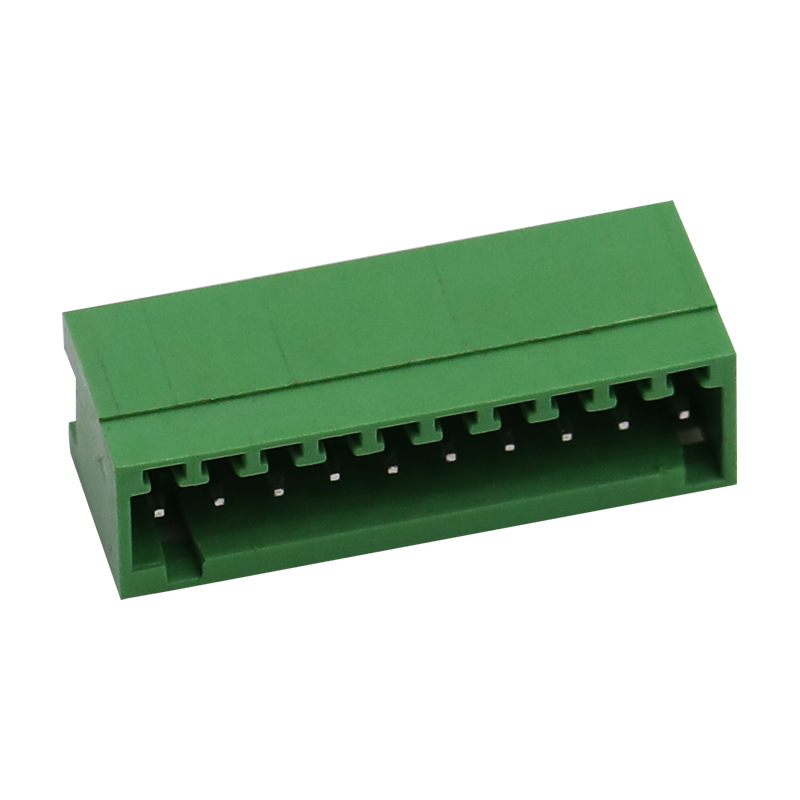

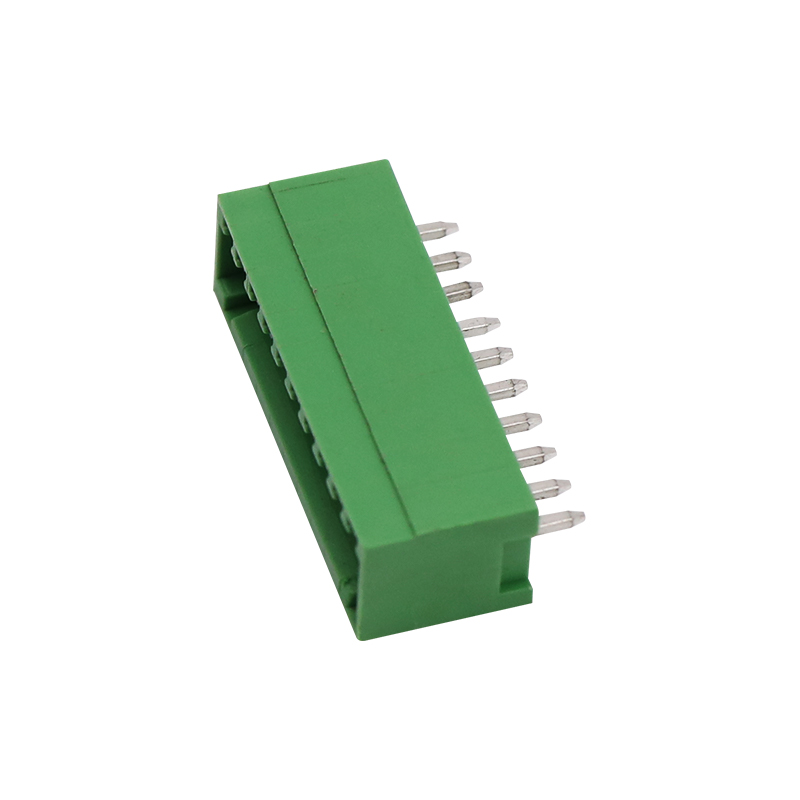

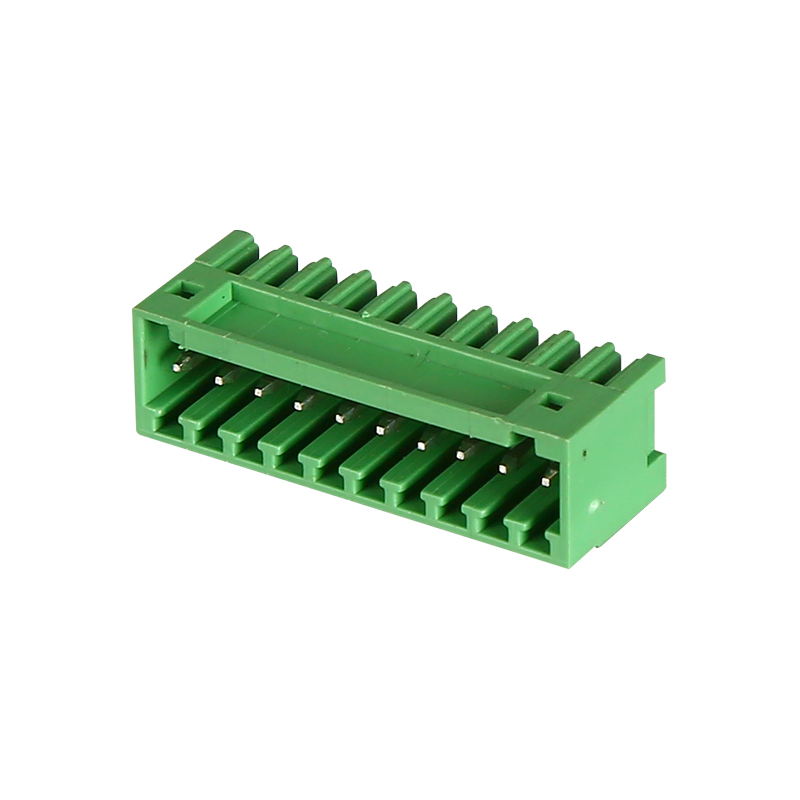

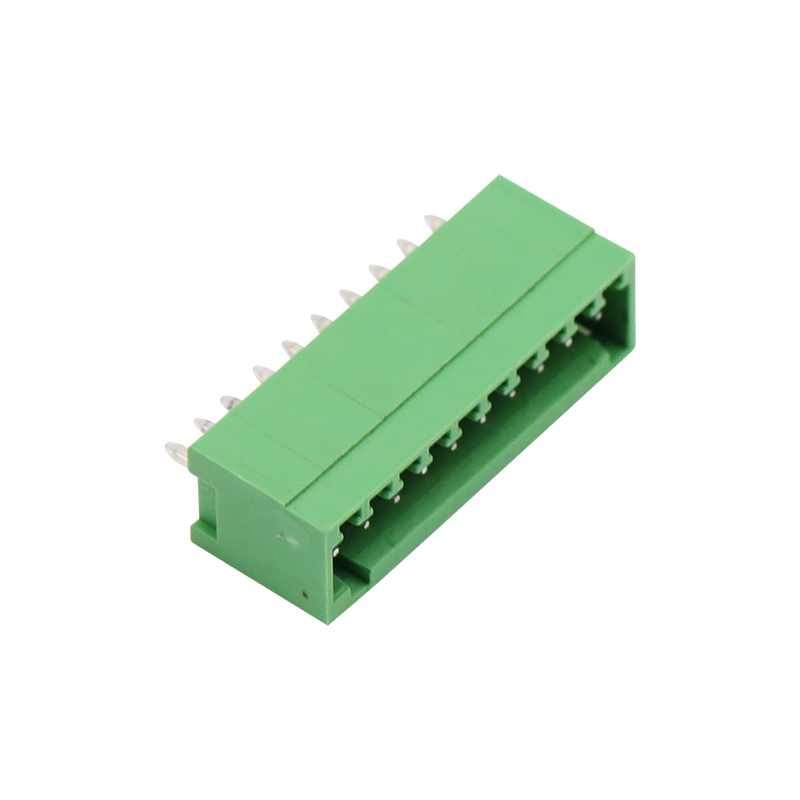

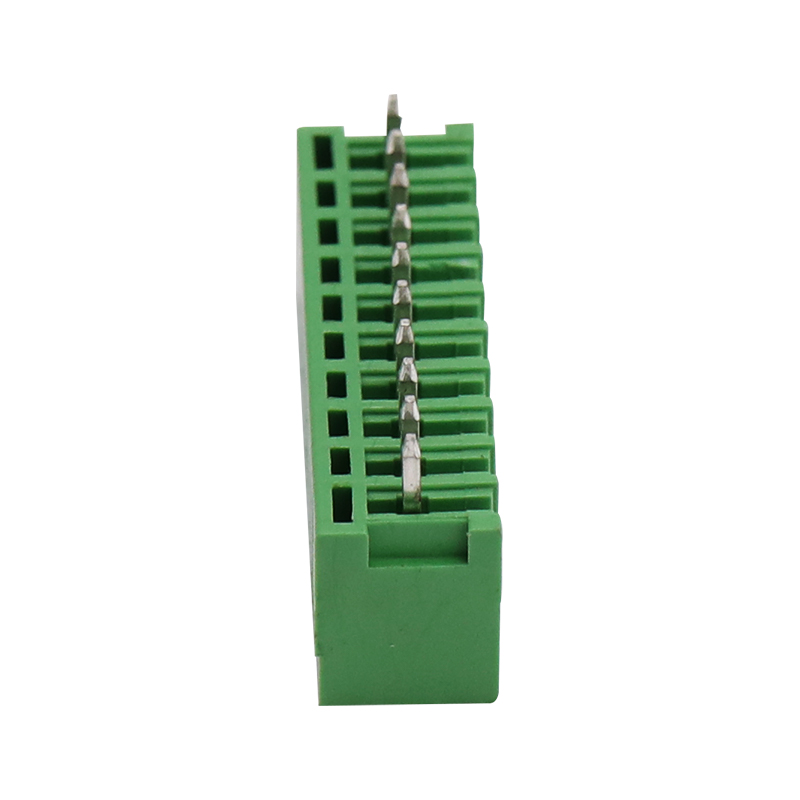

Product details of Push In Pluggable Terminal Block 2.5MM 10P


Drawing of Push In Pluggable Terminal Block 2.5MM



Packing of Push In Pluggable Terminal Block 2.5MM 10P

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
