2.54mm IC Pin Header Connector
  • 2.54mm IC Pin Header Connector2.54mm IC Pin Header Connector
  • 2.54mm IC Pin Header Connector2.54mm IC Pin Header Connector
  • 2.54mm IC Pin Header Connector2.54mm IC Pin Header Connector
  • 2.54mm IC Pin Header Connector2.54mm IC Pin Header Connector
  • 2.54mm IC Pin Header Connector2.54mm IC Pin Header Connector
  • 2.54mm IC Pin Header Connector2.54mm IC Pin Header Connector

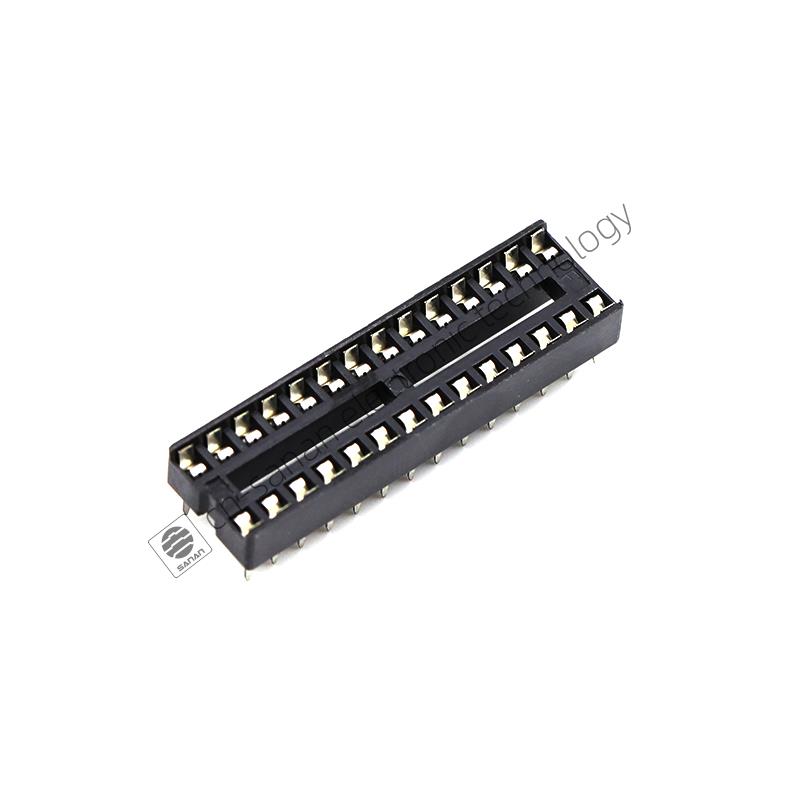

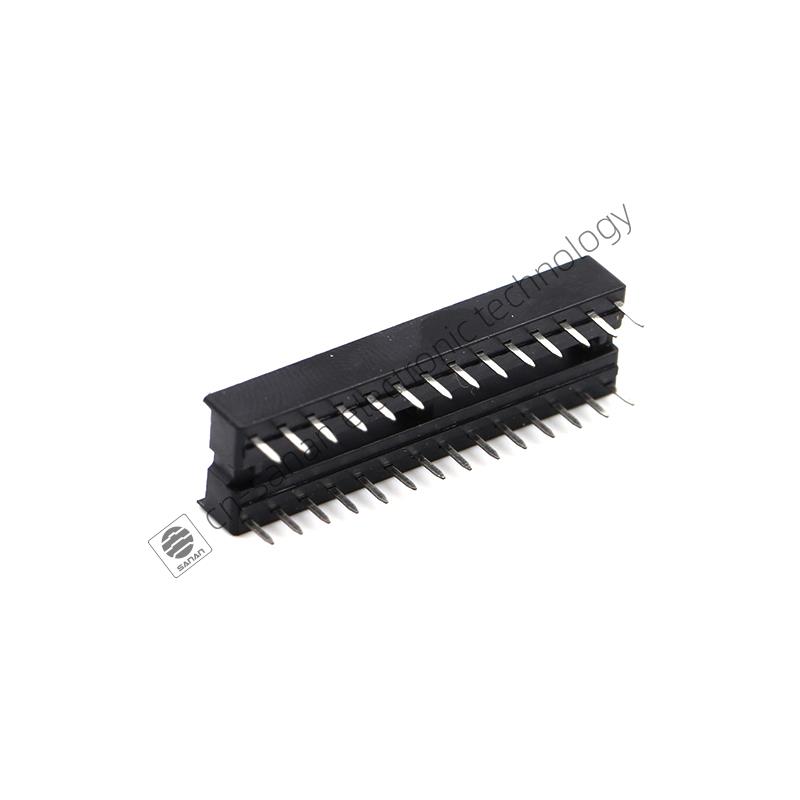

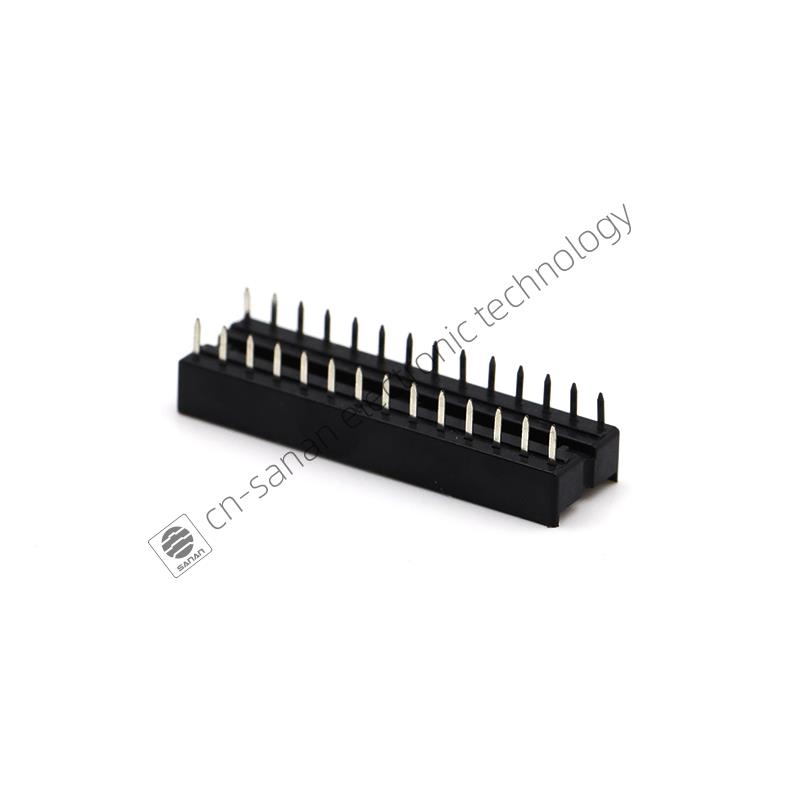

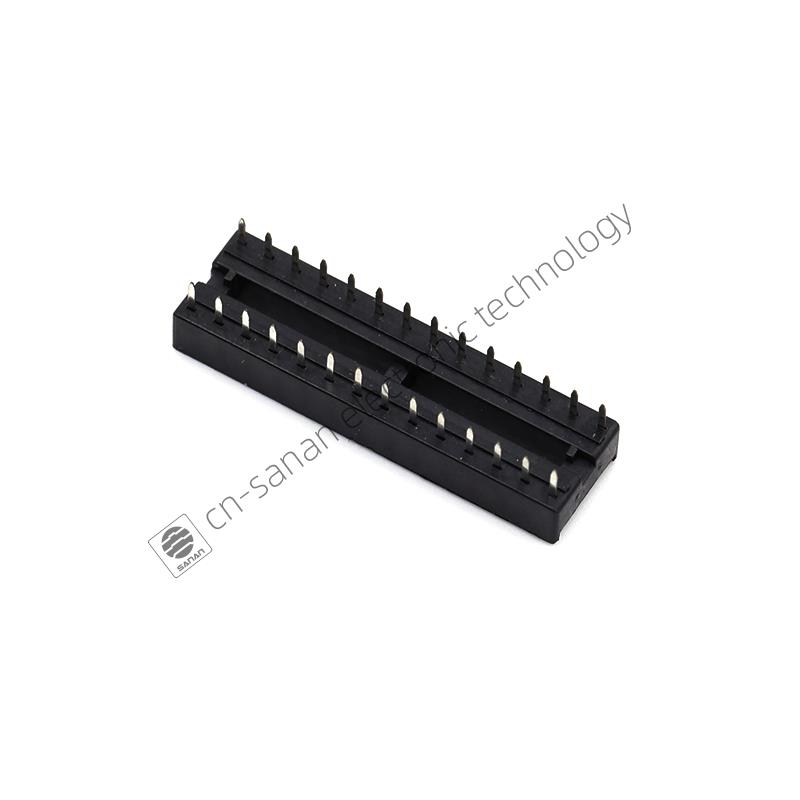

2.54mm IC Pin Header Connector

2.54mm IC Pin Header Connector is to help customers to solve the connection of industry automation,Sanan electronic technology company is a supplier in China, who offers complete solution for industrial automation,electric energy, wind power generation, rail traffic and so on. we devote ourselves to this part and get into the world’s automation, we improve our quality and obtain the certification of CE, UL, ROSH etc of pin header connector to provide higher service.

Send Inquiry

Product Description


Pin header connectors comprise several different means of connection. Generally, one side is a series of pins which are soldered to a PCB, and they can either be at a right-angle to the PCB surface (usually called "straight") or parallel to the board's surface (confusingly referred to as "right-angle" pins),they are stiff metallic connectors that are soldered to a circuit board and stick up to receive a connection from a female socket

Feature

●Stable performance: Stable electric current and signal transmission performance.
●An ideal connector for PCB, IC or your RPi, are widely used in computer, breadboard, arduinoetc and other electronic projects
●Have the characteristics of convenient connection, excellent electrical and mechanical properties

Product specification of 2.54mm IC Pin Header Connector

Product name 2.54mm IC Pin Header Connector
Material Plastic / metal
Color Black(accept customization)
Contact Brass
Pitch 2.54mm
Plating Tin
Contact number 2X10
Application PCB or other applications
Material Flammability Rating 94-V0
Storage Temperature -20℃~+70℃
Operating Temperature -40℃~+105℃
Current Rating 3AMP
Insulator Resistance 1000MΩmin
Contact Resistance 20MΩmax
Withstanding Voltage 1000V AC/rms 50HZ For 1 minute
Packing Plastic bag or customization
Brand OEM
MOQ 500pcs

Application of 8P Female Pin Header



Packing

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc



Hot Tags: 2.54mm IC Pin Header Connector, China, Manufacturers, Suppliers, Wholesale, Factory, Customized, Free Sample, Made in China, CE, Newest, Quality
