Through-Wall Pluggable Terminal Block 5.08mm 4P

Professional in the industry automation products, Sanan Electronic Technology Co,Ltd.is a manufacturer in China, offers PLC control housings, Terminal Block, Energy Storage Connector, IO module housings, industrial relay housings and other connector housings, also terminal block connectors is our strong electronic product for customers.Our company possesses advanced world-class processing and testing equipment in development and production of highly precise connectors.As the professional manufacture, we would like to provide you Through-Wall Pluggable Terminal Block 5.08mm 4P. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.

Feature

●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of through-wall pluggable terminal block 5.08mm 4P

Product name Through-Wall Pluggable Terminal Block 5.08mm 4P
Material Plastic / copper
Color Green
Contact Form 2P-22P(accept customization )
AWG 26~12AWG
Rated voltage 300V 10A/15A UL
Rated voltage 320V 12A IEC
Pitch 3.81/5.08mm
Weight 4g(depends the contacts)
MOQ 500pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

Application of through-wall pluggable terminal block 5.08mm 4P

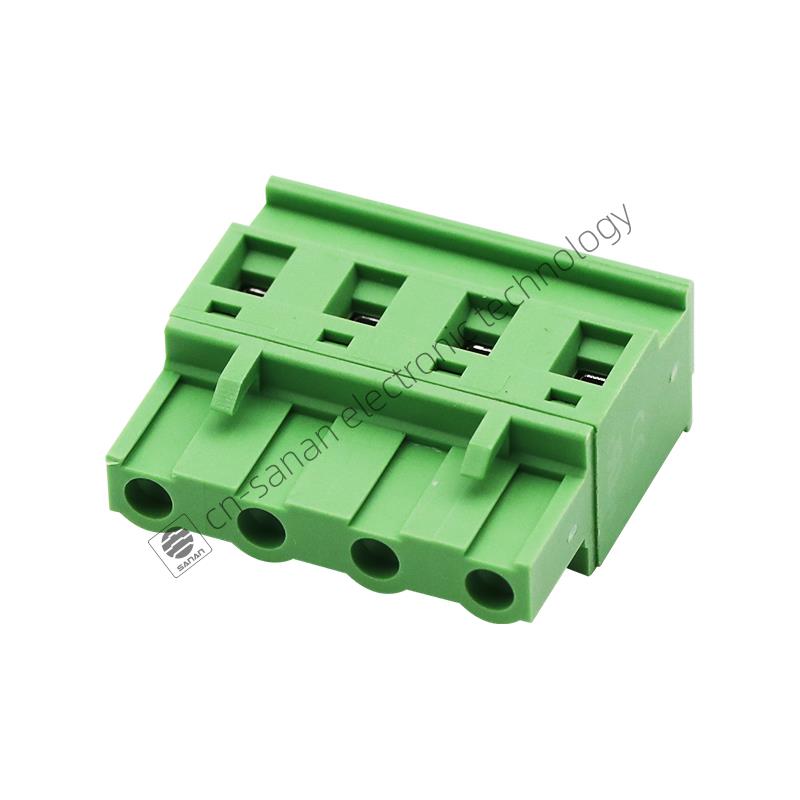

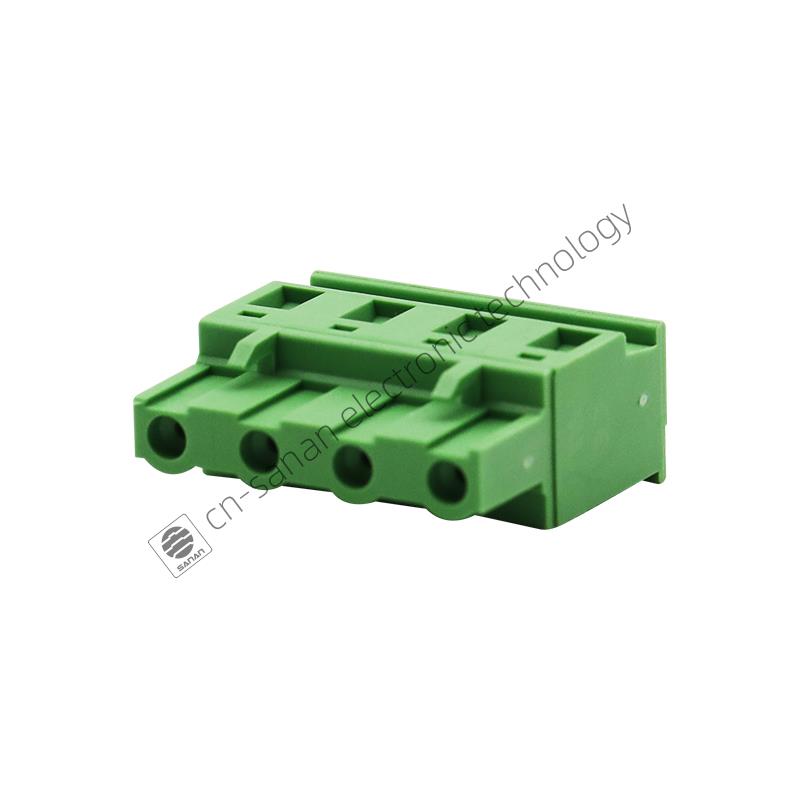

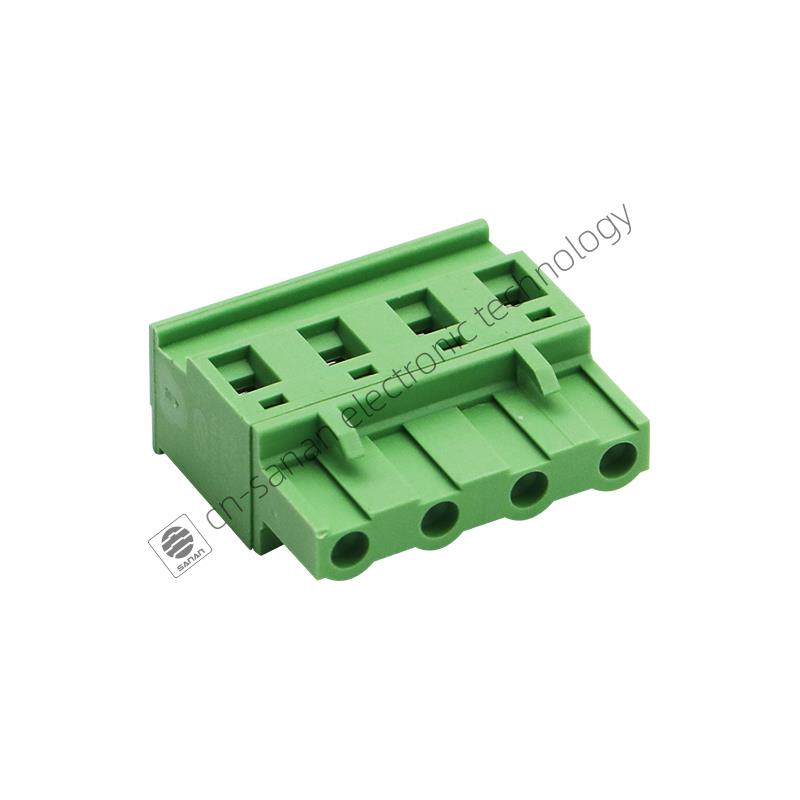

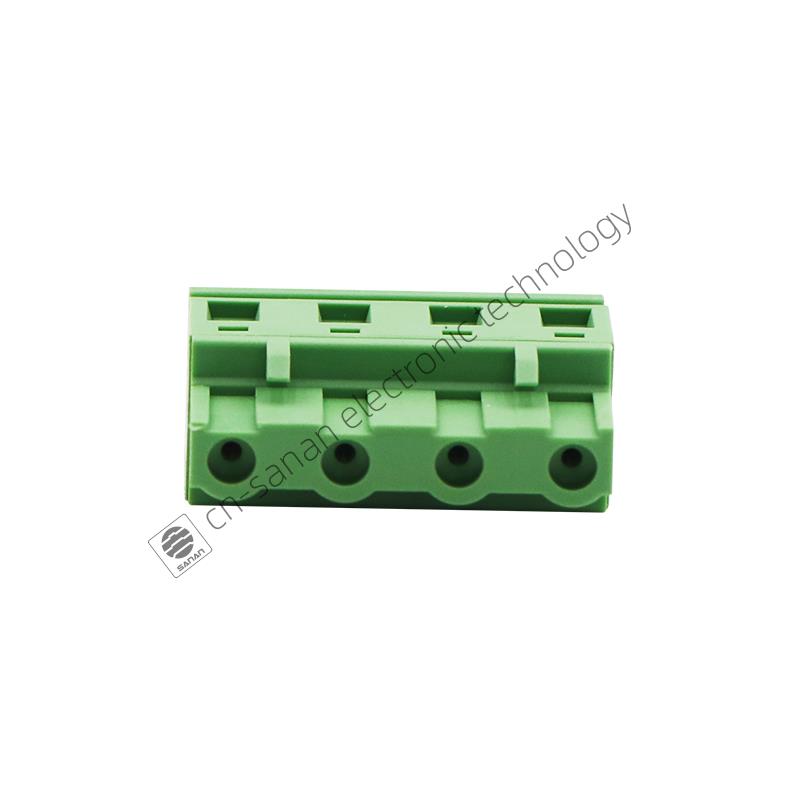

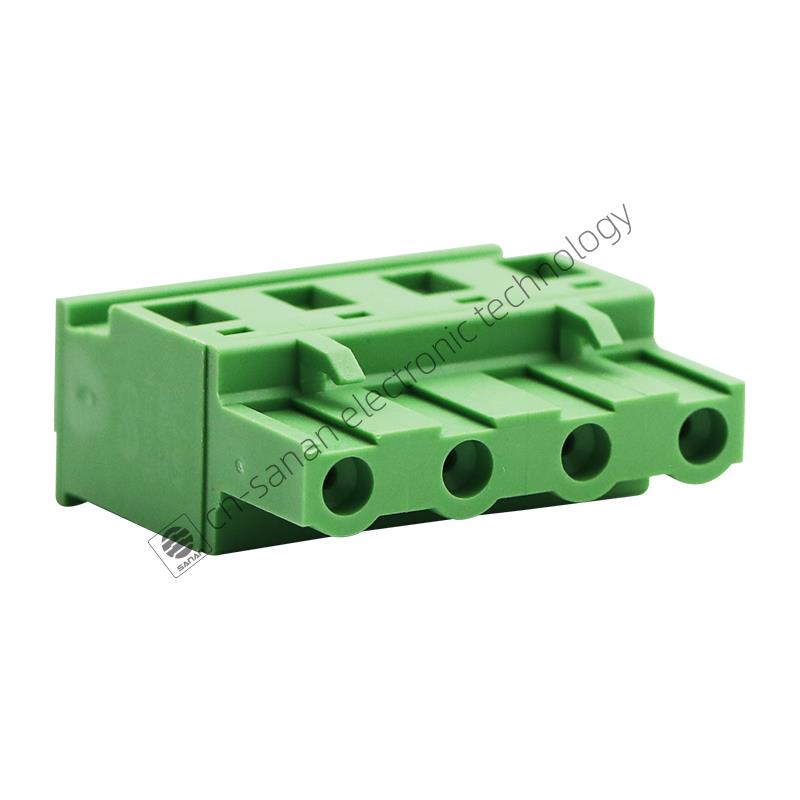

Product details of through-wall pluggable terminal block 5.08mm 4P


Drawing



Packing of pluggable terminal block

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
