Terminal Block For PCB Board 6.35MM

Founded in 2020, Ningbo San'an Electronic Technology Co., Ltd. is a professional manufacturer of Electronic Connectors. The main products include: Terminal blocks, Terminal Block For PCB Board 6.35MM, pluggable terminal blocks, din rail terminal blocks and so on.We have exported many countries like USA, Mexico, Canada, Germany,Spain,Poland,Russia,Singapore,Thailand, India etc.Professional design team,We have engineers in design team, nealy all of them get bachelor degree, They design and develop new products under the guidance of the market.The company has passed ISO45001,ISO9001,ISO14001management system certification.We are sincerely welcomes the domestic and international customers to negotiate business.

Model:SA635-6.35-3P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.

Feature

● Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
● Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
● Universal installation method, suitable for various situations
● PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of Terminal Block For PCB Board 6.35MM

Product name Terminal Block For PCB Board 6.35MM
Material Plastic / copper
Color Green
Contact Form 2P-24P(accept customization )
AWG 26~10AWG
Strip length 7mm
Rated voltage 450V32A
Conductor cross section solid 0.2~2.5mm²
Pitch 6.35mm (accept customization )
Weight 8g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

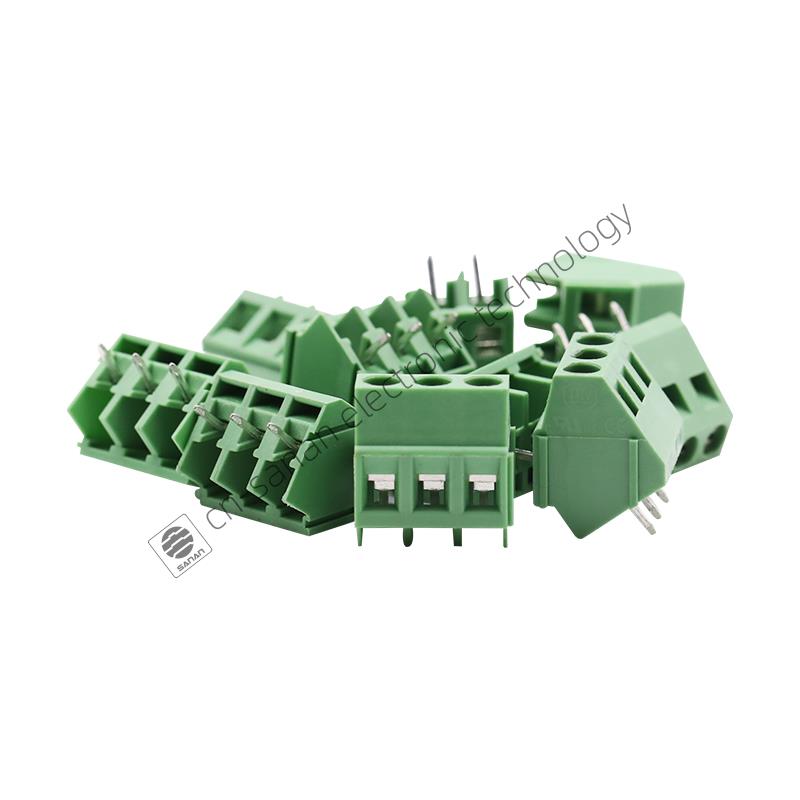

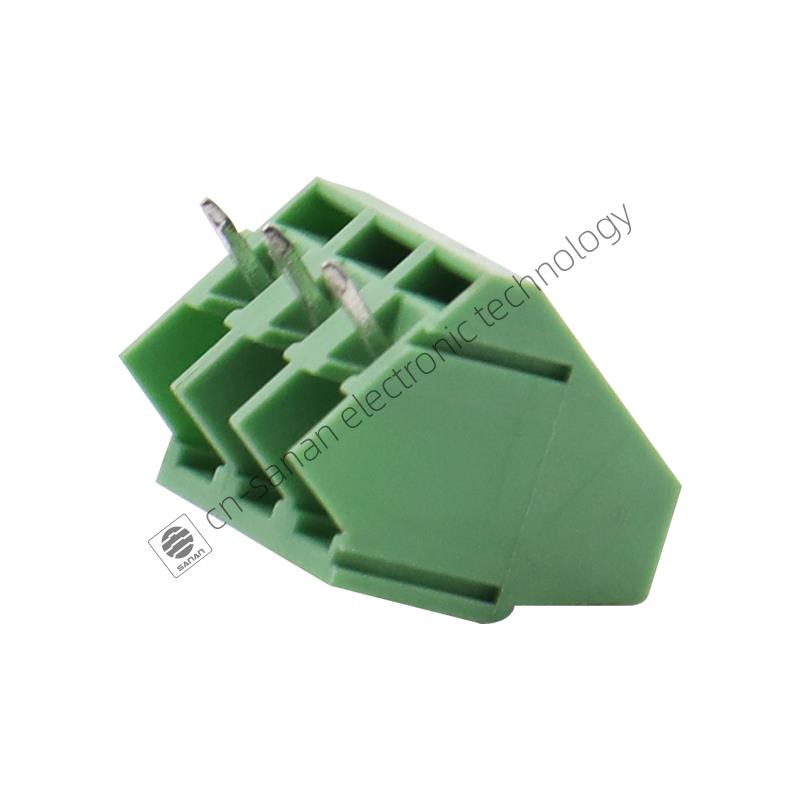

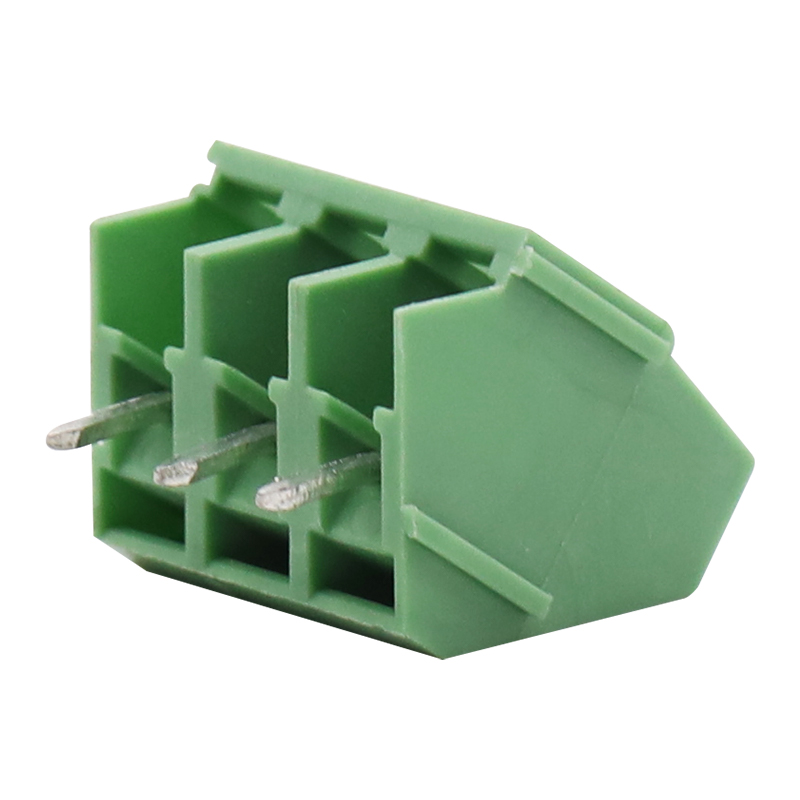

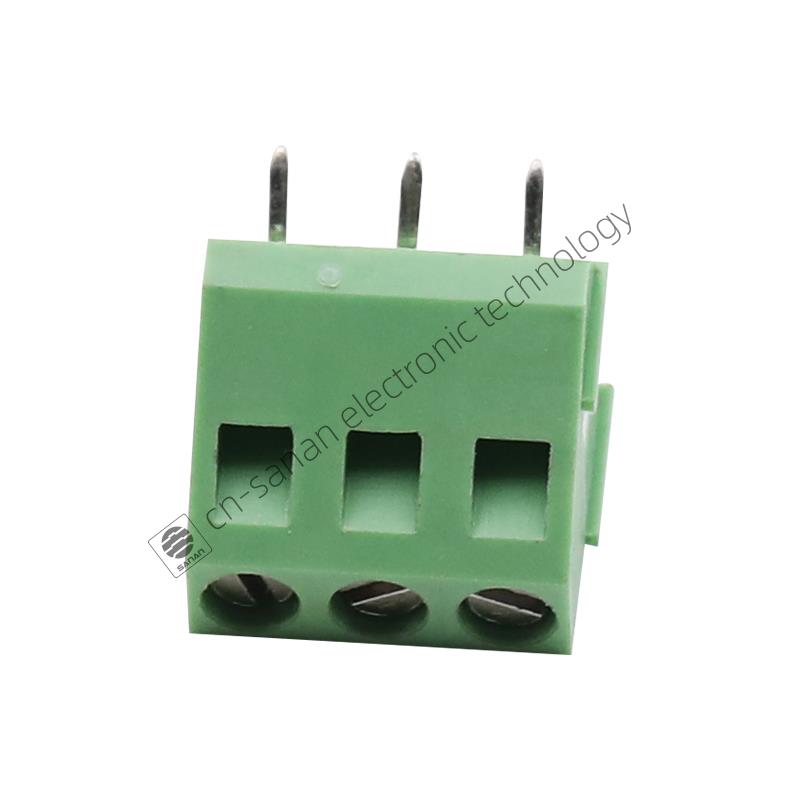

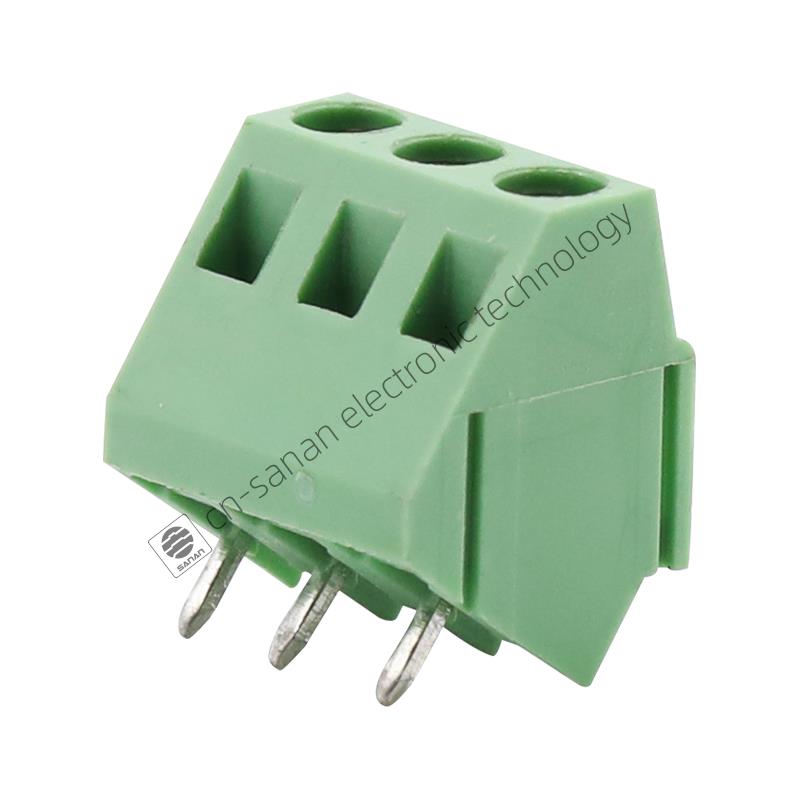

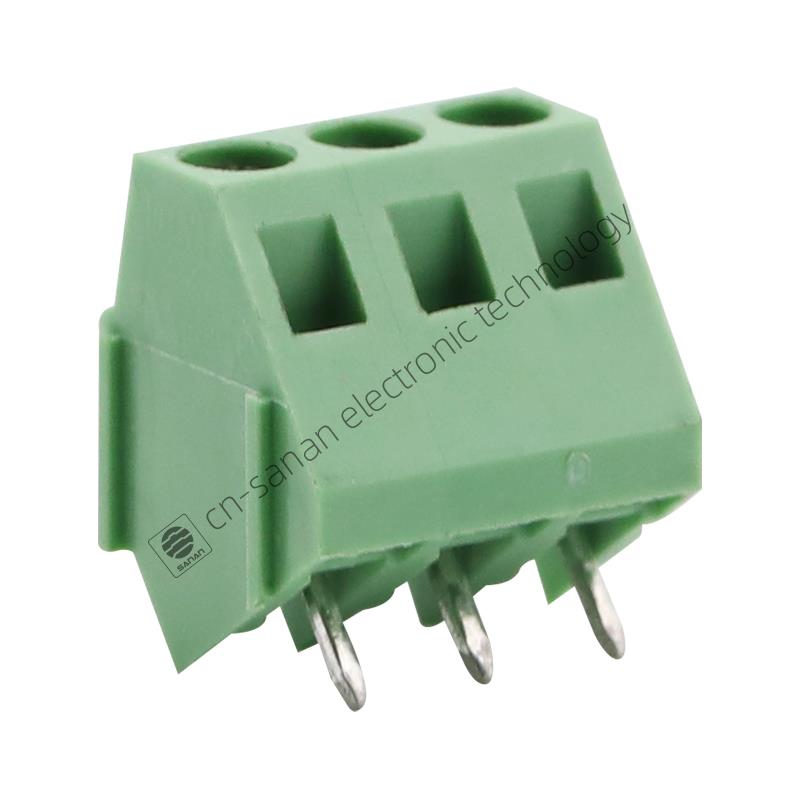

Details of Terminal Block For PCB Board 6.35MM


Drawing of Terminal Block For PCB Board 6.35MM



Packing of Terminal Block For PCB Board 6.35MM

According to Standard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
