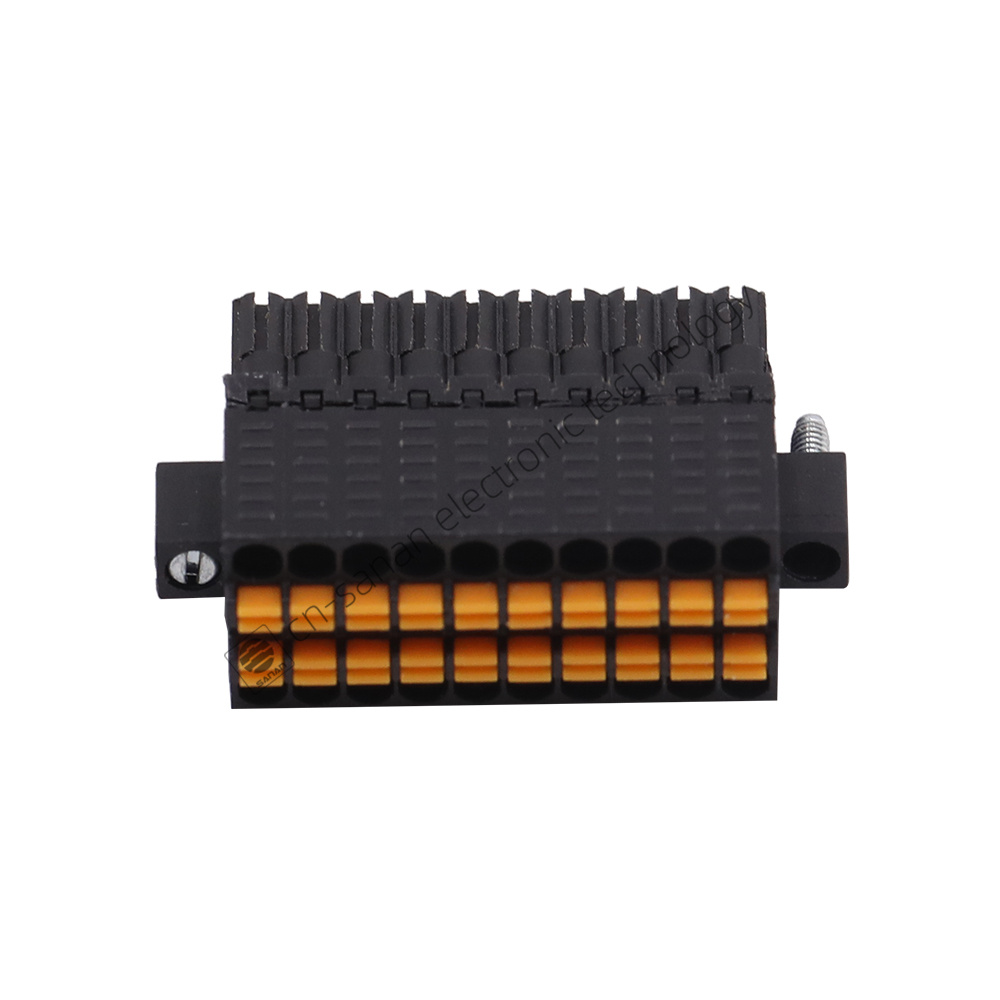

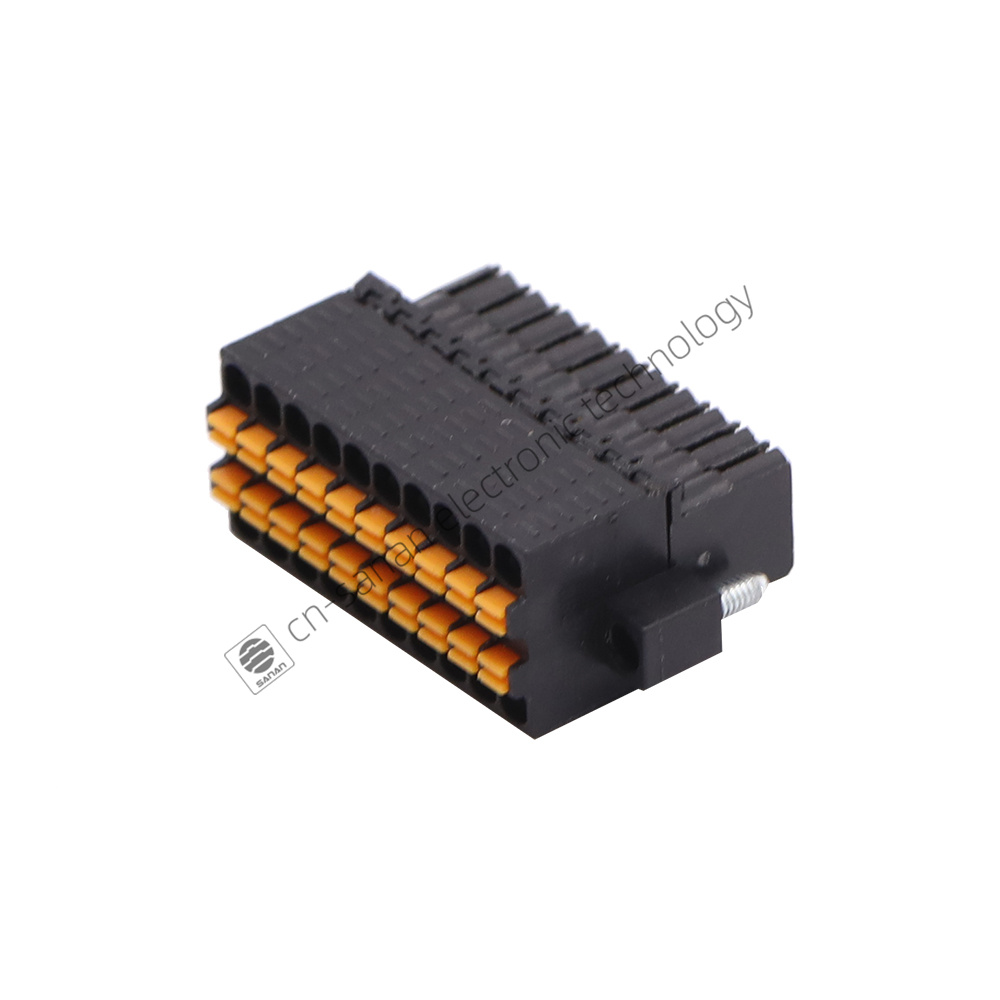

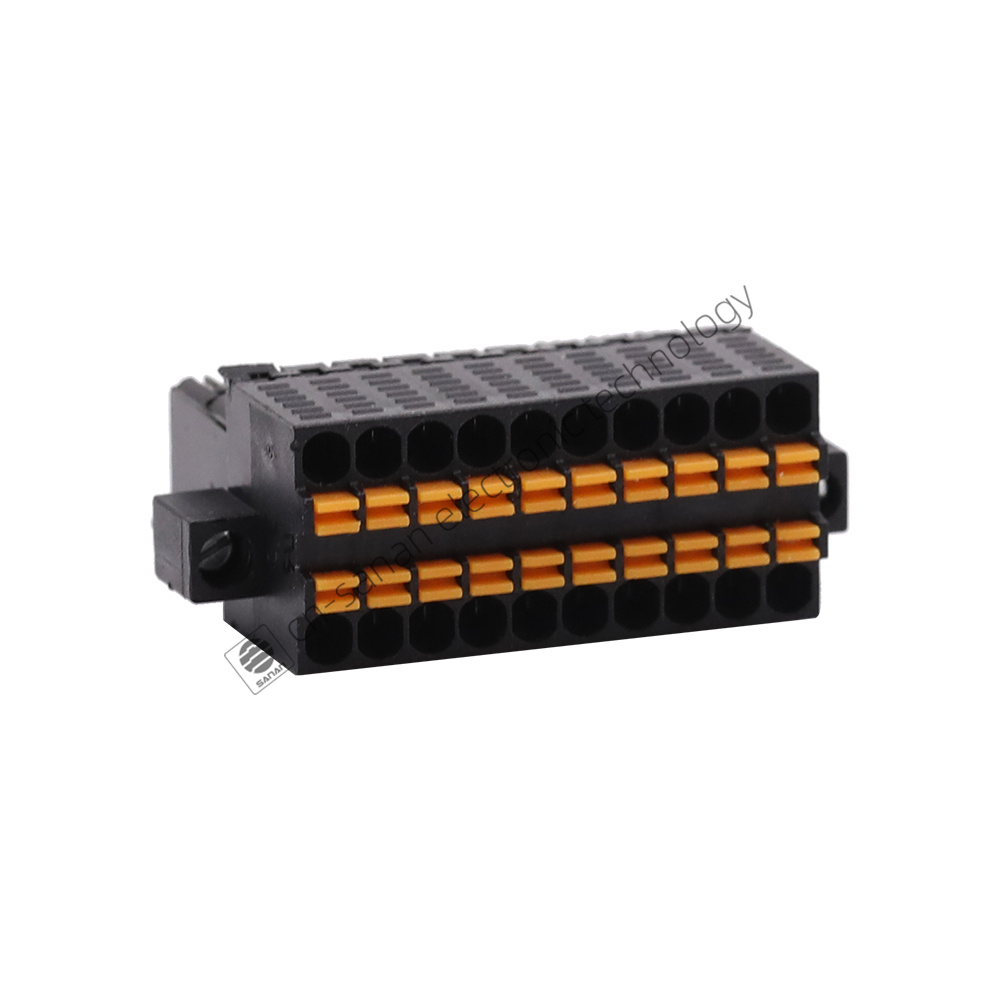

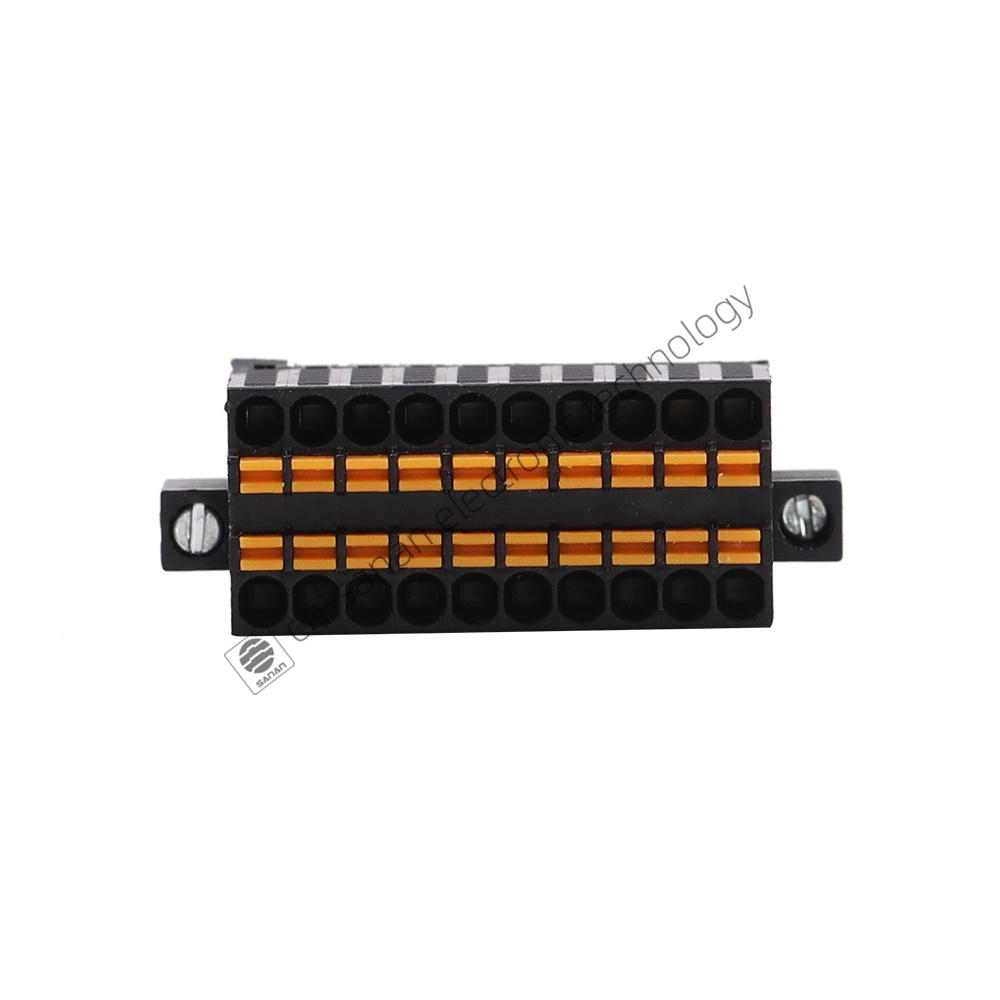

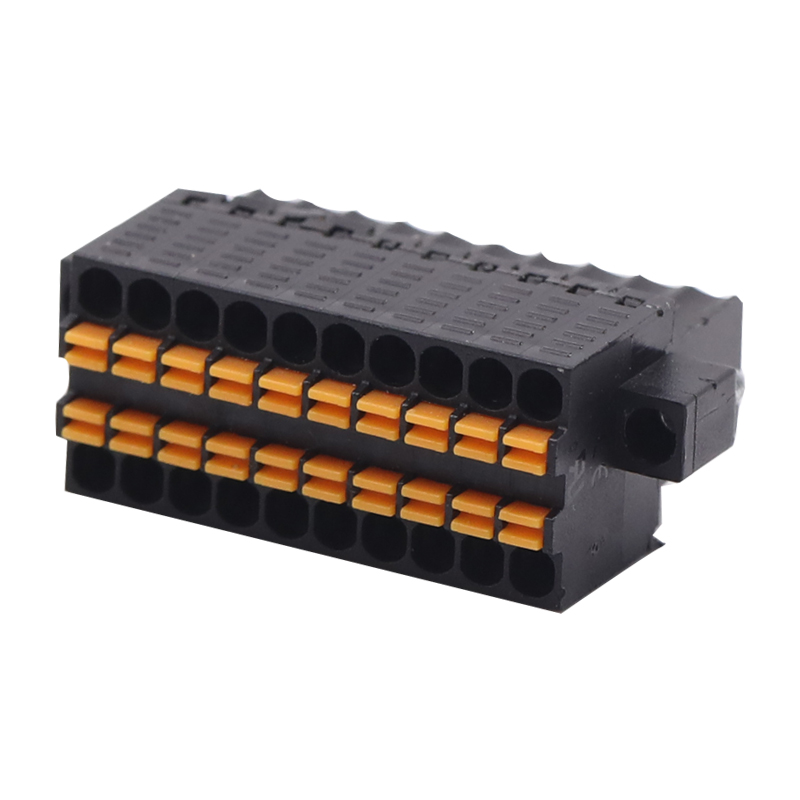

Spring Male Pluggable Terminal Block 3.5MM
  • Spring Male Pluggable Terminal Block 3.5MMSpring Male Pluggable Terminal Block 3.5MM
  • Spring Male Pluggable Terminal Block 3.5MMSpring Male Pluggable Terminal Block 3.5MM
  • Spring Male Pluggable Terminal Block 3.5MMSpring Male Pluggable Terminal Block 3.5MM
  • Spring Male Pluggable Terminal Block 3.5MMSpring Male Pluggable Terminal Block 3.5MM
  • Spring Male Pluggable Terminal Block 3.5MMSpring Male Pluggable Terminal Block 3.5MM

Spring Male Pluggable Terminal Block 3.5MM

Sanan Electronics Technology Co., Ltd. is found in 2020 Ningbo China. With rich experience, we pride toprovide world-class terminal blocks,Io modueles, din rail enclosures and so on to customers around the world.Having a global-quality is our avdantage, thus we'reextremely careful in our production and sourcing process to ensure top-notch quality in the market. Our products are used in all major leading manufacturer sacross automotive, chemical, electrical installation, and many other industries. Our Spring Male Pluggable Terminal Block 3.5MM is commonly used for major power control companies.We serve customers around the world,therefore, majority of our products we offer have received UL, CE, Rosh standard approval and abide with various environmental and industry-specific qualifications,We sincerely look forward to establishing business relationship with the customers all over the world in the future and create development together.

Model:15ESAKNH-3.5-6P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation. Our KNH serises are suitable for SMT welding process, to help clients to in the PCB welding.

Feature

●Suitable for SMT welding process
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density

Product specification of Spring Male Pluggable Terminal Block 3.5MM

Product name Spring Male Pluggable Terminal Block 3.5MM
Material Plastic / copper
Color Black
Contact Form 4P-40P(accept customization )
Conductor cross section solid 0.2~1.5mm²
AWG 26~16AWG
Pitch 3.5mm
Rated voltage 300V 8A
Strip length 10mm
Pin arrangement Double-row in a straight line
Type of installation PCB welding
Weight 6g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Insulation Materials PA66

Details Of Spring Male Pluggable Terminal Block 3.5MM


Drawing of Spring Male Pluggable Terminal Block 3.5MM



Packing of Spring Male Pluggable Terminal Block 3.5MM

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping of Spring Male Pluggable Terminal Block 3.5MM

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
