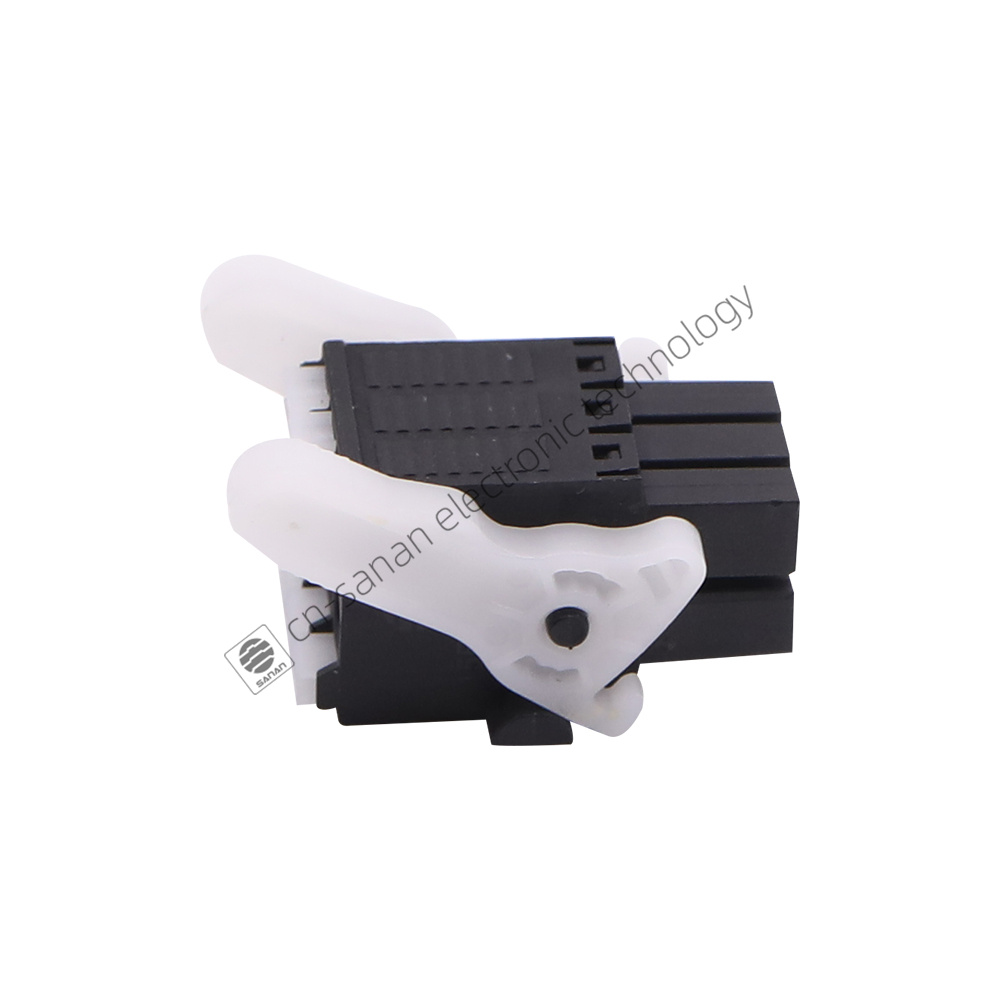

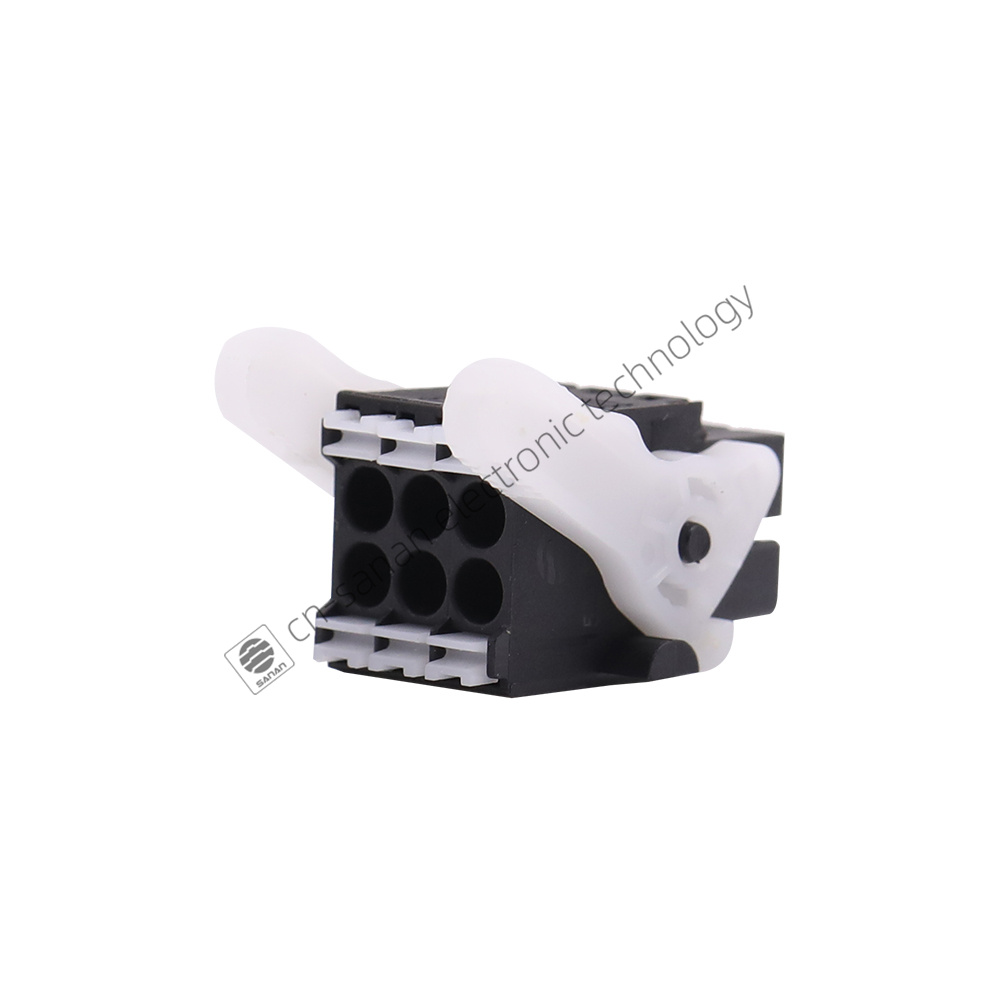

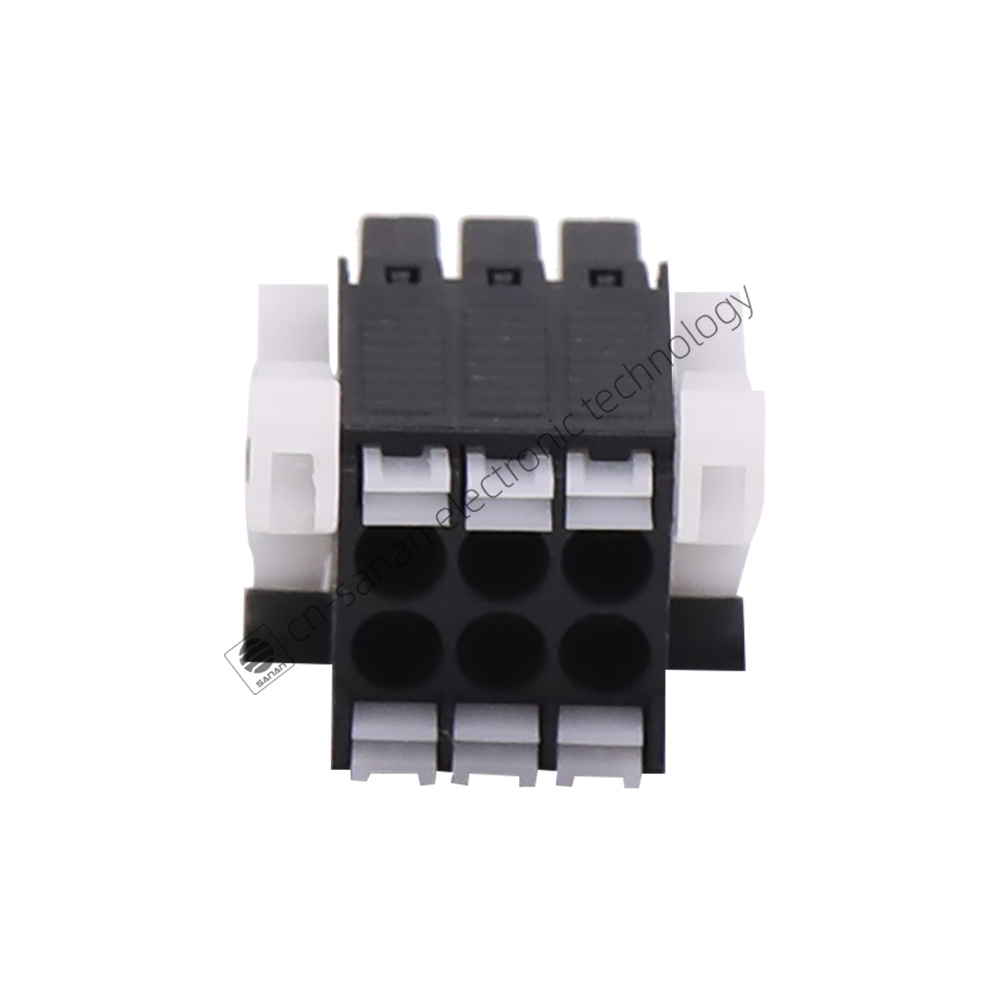

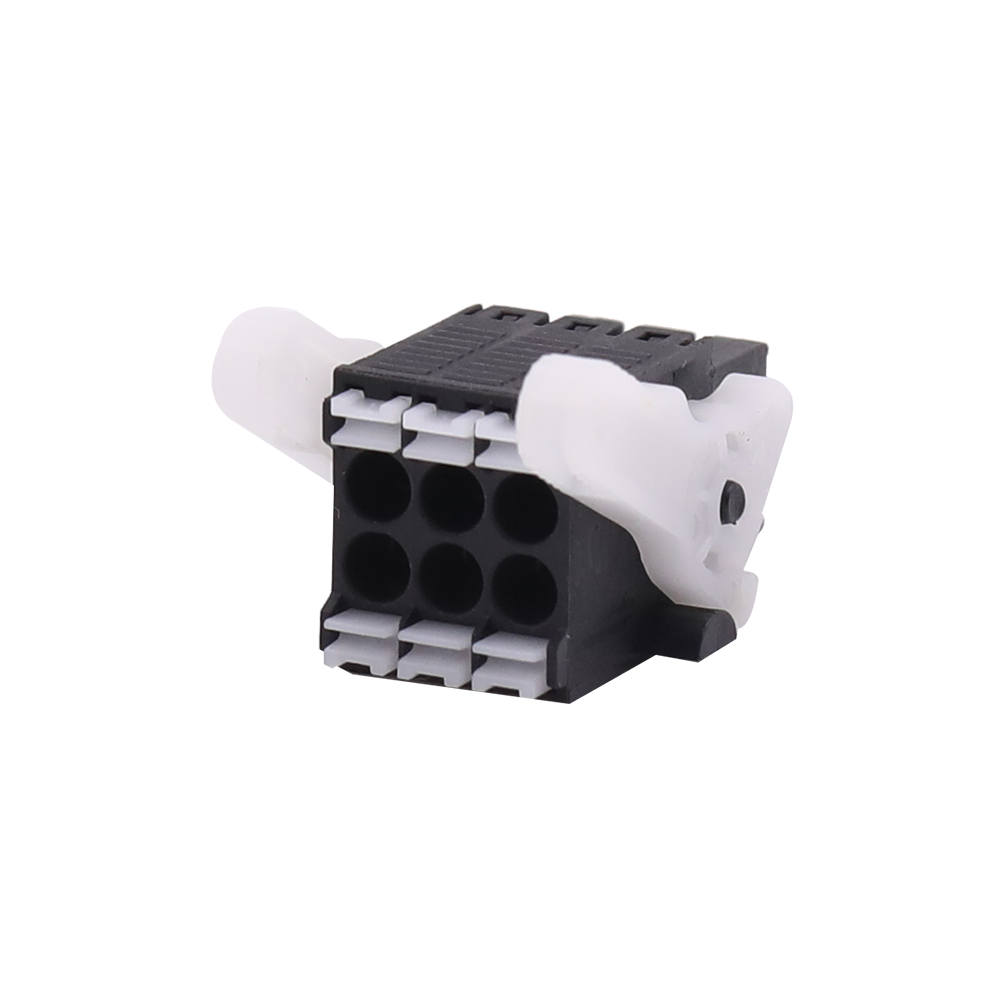

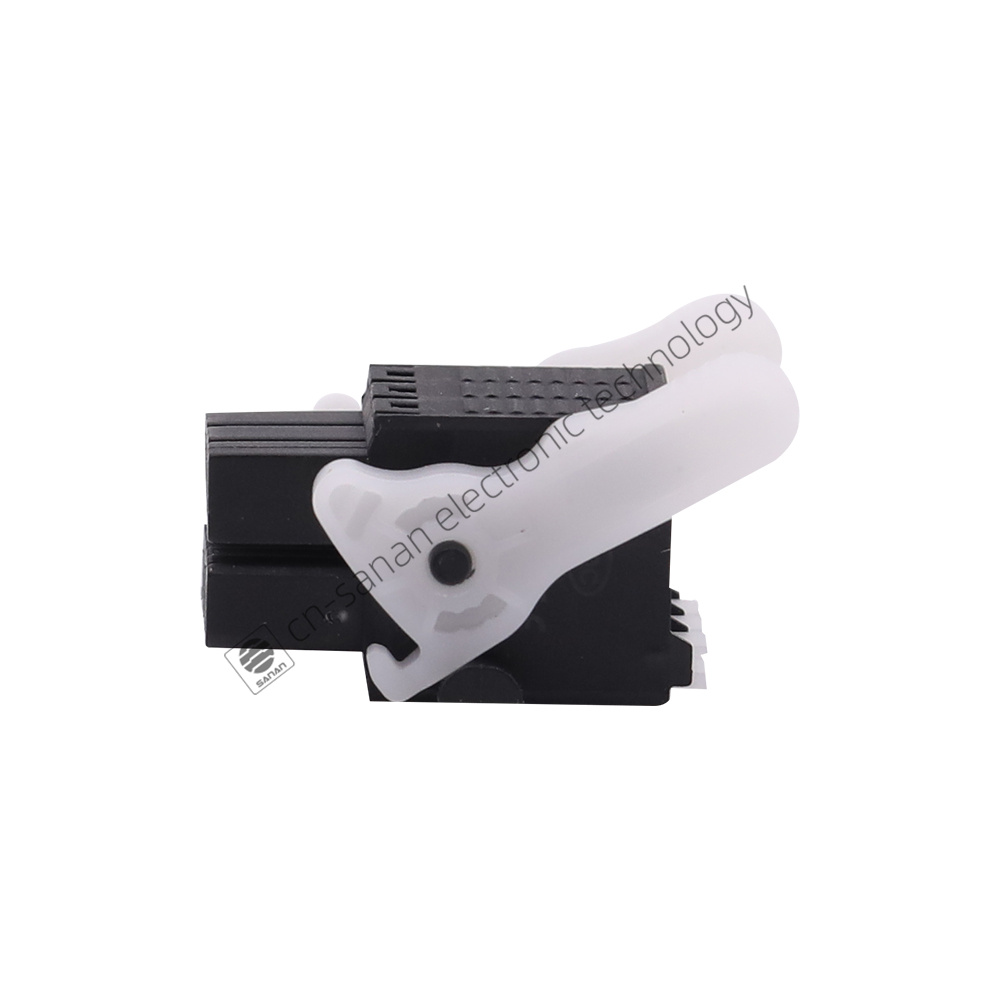

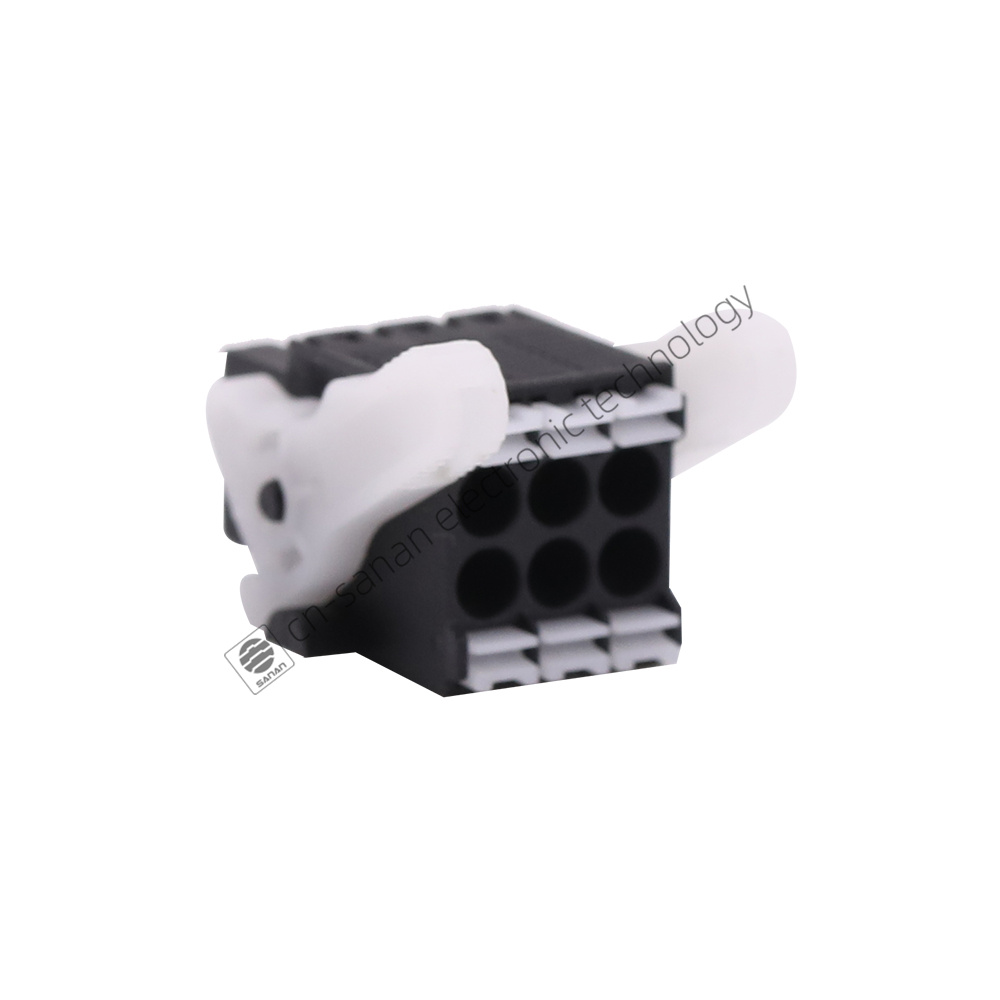

SMT Welding PCB Pluggable Terminal Block

Sanan is a leading China SMT Welding PCB Pluggable Terminal Block manufacturers. There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation. Our KNH serises are suitable for SMT welding process, to help clients to in the PCB welding.

Model:15ESAKNHG-3.5-6P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation. Our KNH serises are suitable for SMT welding process, to help clients to in the PCB welding.

Feature

●Suitable for SMT welding process
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density

Product specification of SMT Welding PCB Pluggable Terminal Block

Product name SMT Welding PCB Pluggable Terminal Block
Material Plastic / copper
Color Black
Contact Form 4P-40P(accept customization )
Pitch 3.5mm
Strip length 10mm
AWG 26~16AWG
Conductor cross section solid 0.2~1.5mm²
Rated voltage 300V 8A
Pin arrangement Double-row in a straight line
Type of installation PCB welding
Contact material Copper
Weight 5g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

Product details of SMT Welding PCB Pluggable Terminal Block


Drawing of SMT Welding PCB Pluggable Terminal Block



Product details of SMT Welding PCB Pluggable Terminal Block

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
