Screwless Type Pluggable Terminal Block With Ear

Sanan Electronics Technology Co., Ltd. was found in year 2020 , the factory located in Ningbo which close to Shanghai. The company specialized in electronic components. We are committed to creating a complete solution for the terminals and connectors for customers around the world. Our main products are din rail enclosures, terminal blocks, IO modules etc.The company strictly implement the ISO9001:2008 quality management system and environmental management system. All products are in line with the RoHS directive, in full accordance with CE, UL, VDE, SGS, REACH and other standard production.We are warmly and sincerely welcomes the domestic and international customers to negotiate cooperation with our Screwless Type Pluggable Terminal Block With Ear

Model:2ESAKDAM-5.0-5P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.

Feature

●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of Screwless Type Pluggable Terminal Block With Ear

Product name Screwless Type Pluggable Terminal Block With Ear
Material Plastic / copper
Color Green
Contact Form 2P-8P(accept customization )
AWG 26~12AWG
Rated voltage 300V 10A UL
Rated voltage 320V 20A IEC
Strip length 9mm
Pitch 5.0/5.08mm
Weight 7g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

Application of Screwless Type Pluggable Terminal Block With Ear

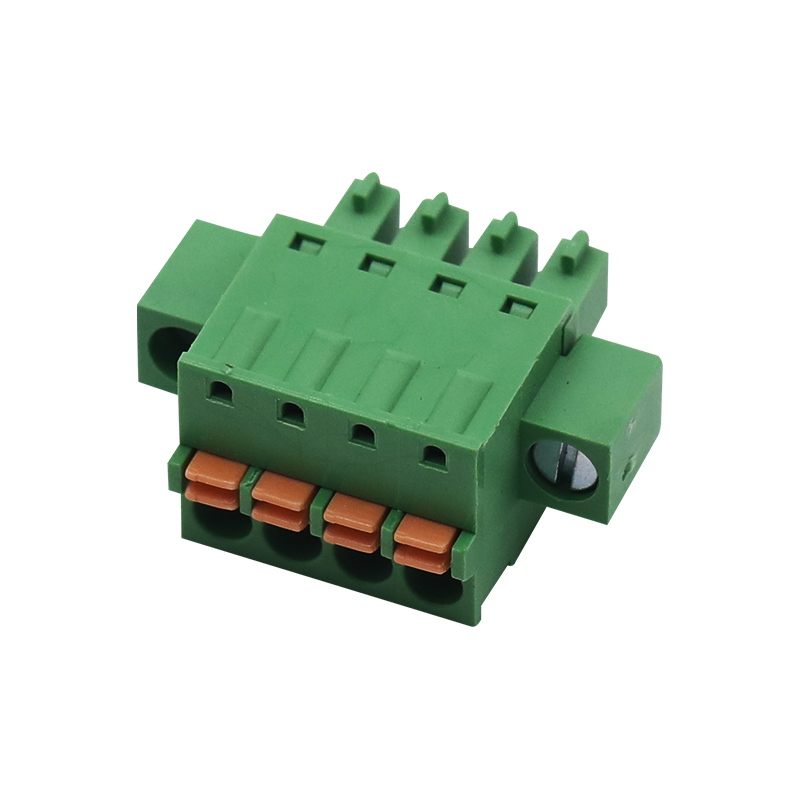

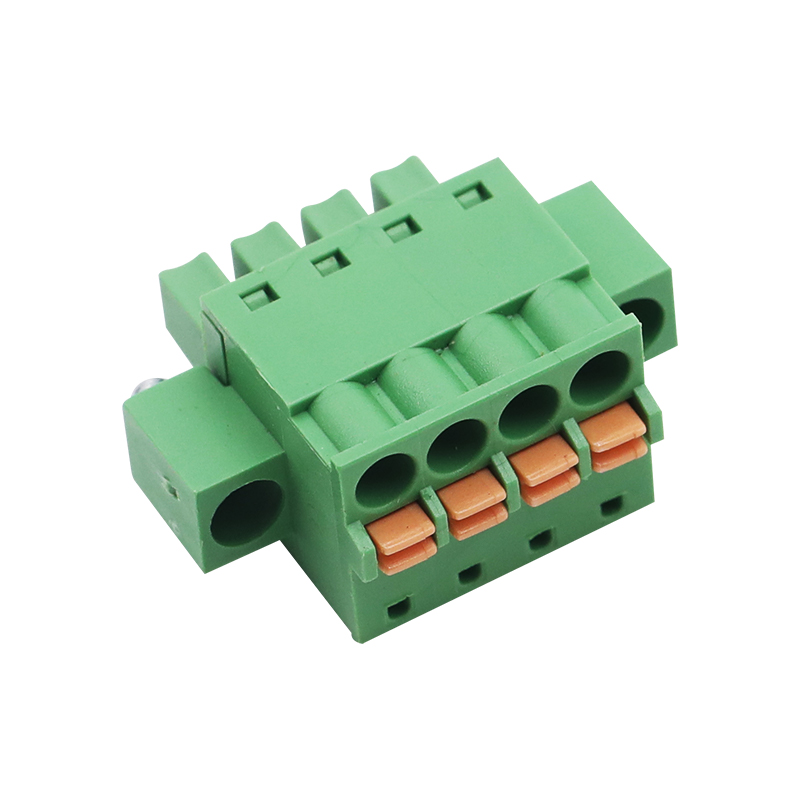

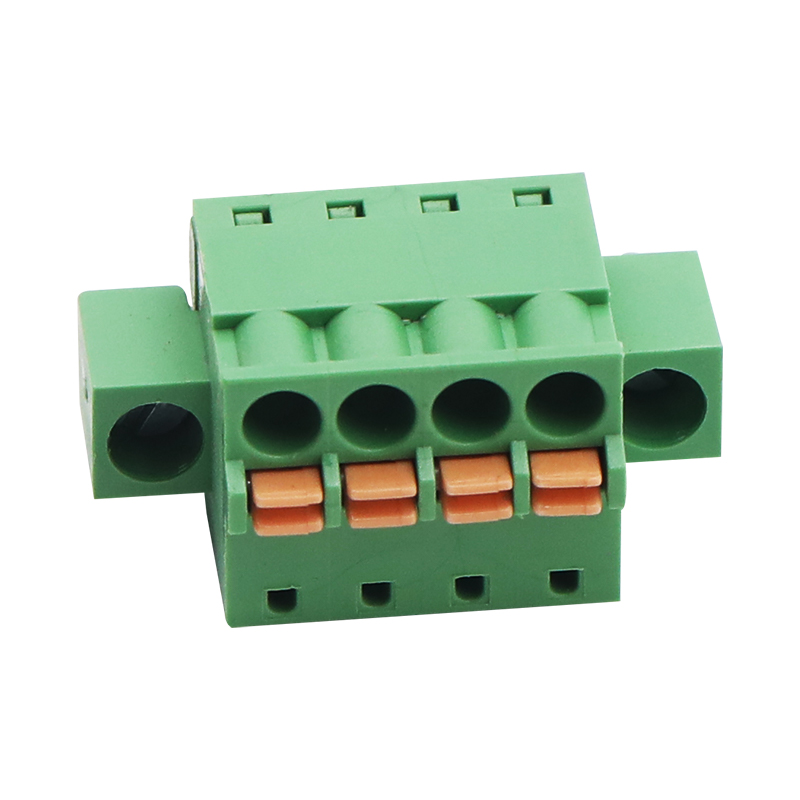

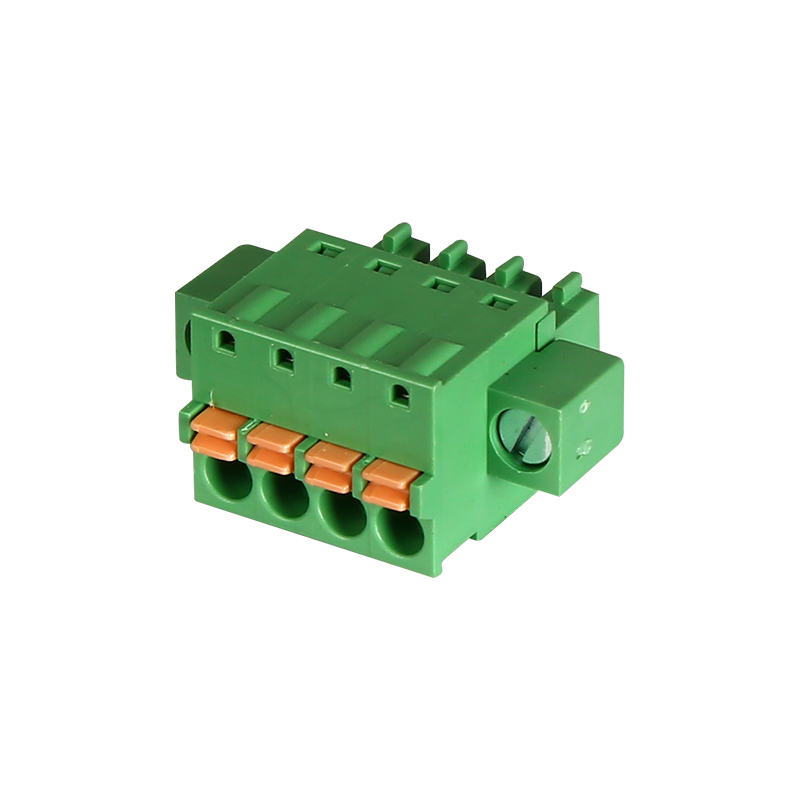

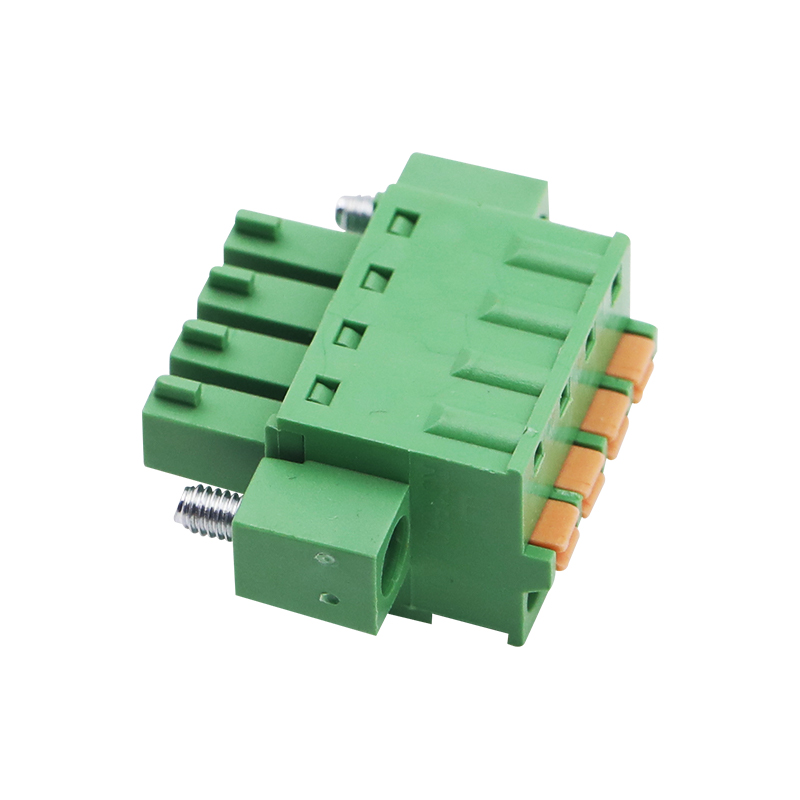

Product details of Screwless Type Pluggable Terminal Block With Ear


Drawing of Screwless Type Pluggable Terminal Block With Ear



Packing of Screwless Type Pluggable Terminal Block With Ear

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
