Screwless PCB Plug Pluggable Terminal Block
Sanan Electronics Technology Co., Ltd. is a set of manufacturing, sales, development and service as one of the professional manufacturers. The company is equipped with fully automated production work shop, with a daily output of more than 150,000 pieces.Sanan specializes in the production of terminal blocks, Screwless PCB Plug Pluggable Terminal Block ，PCB terminal blocks,IO modules and din rail encosures products , excellent performance, can meet the requirements of all businesses.The company is located in Ningbo City, Zhejiang Province, which is economically developed and enjoys a good reputation as the "Electrical Appliance City of China".The transportation is very convenient and smooth.Sanan adhere to the development direction of "specialization, science and technology, globalization".
Model:15ESAKNHG-3.5-6P
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation. Our KNH serises are suitable for SMT welding process, to help clients to in the PCB welding.
Feature
●Suitable for SMT welding process
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density
Product specification of Screwless PCB Plug Pluggable Terminal Block
| Product name | Screwless PCB Plug Pluggable Terminal Block |
| Material | Plastic / copper |
| Color | Black/green |
| Strip length | 10mm |
| AWG | 26~16AWG |
| Conductor cross section solid | 0.2~1.5mm² |
| Contact | Form 4P-40P(accept customization ) |
| Pitch | 3.5mm |
| Rated voltage | 300V 8A |
| Strip length | 10mm |
| Type of installation | Push-in spring connection |
| Weight | 6g(depends the contacts) |
| MOQ | 100pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Insulation Materials | PA66 |

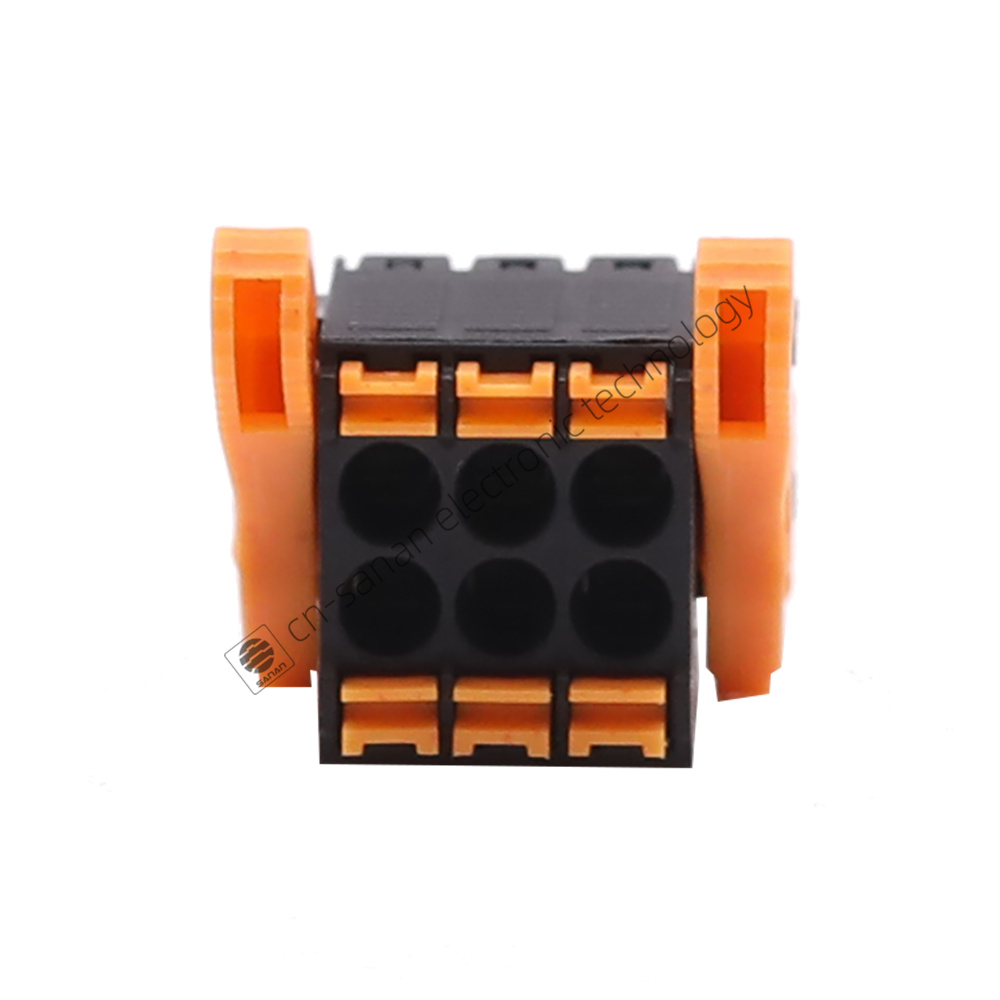

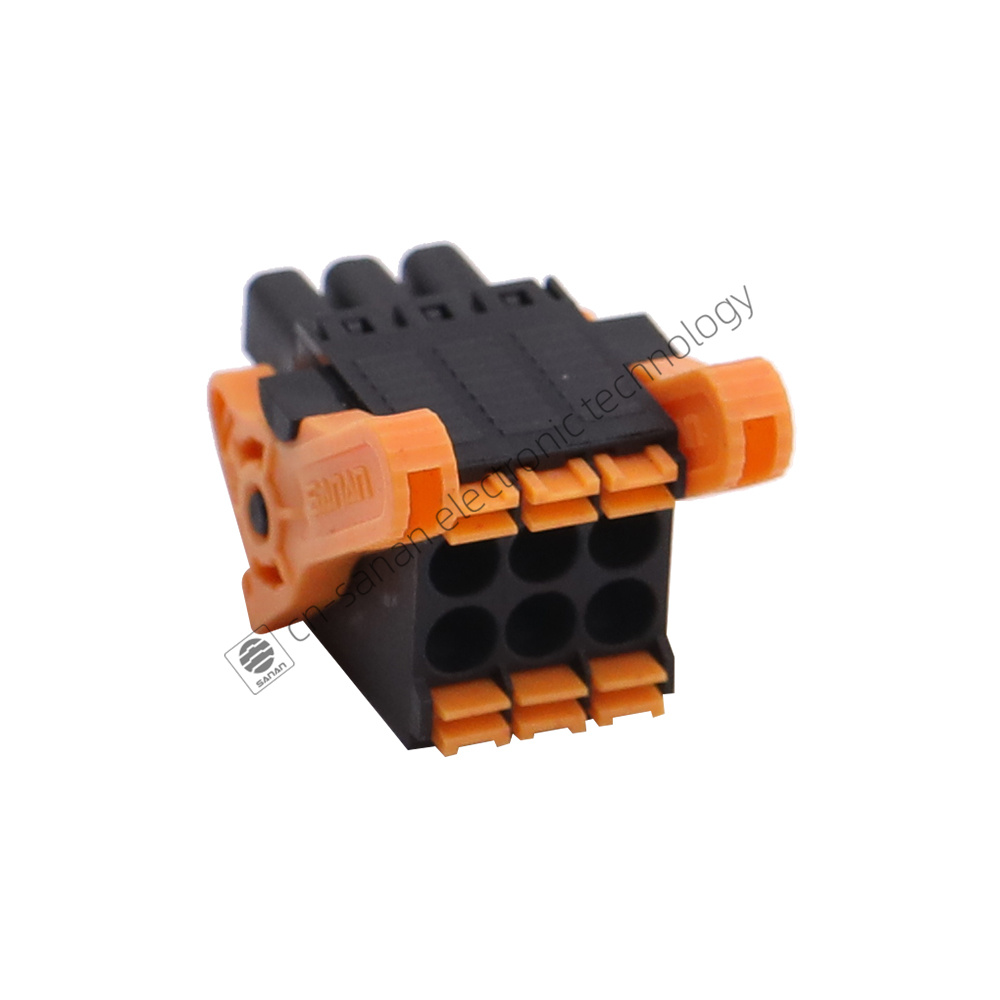

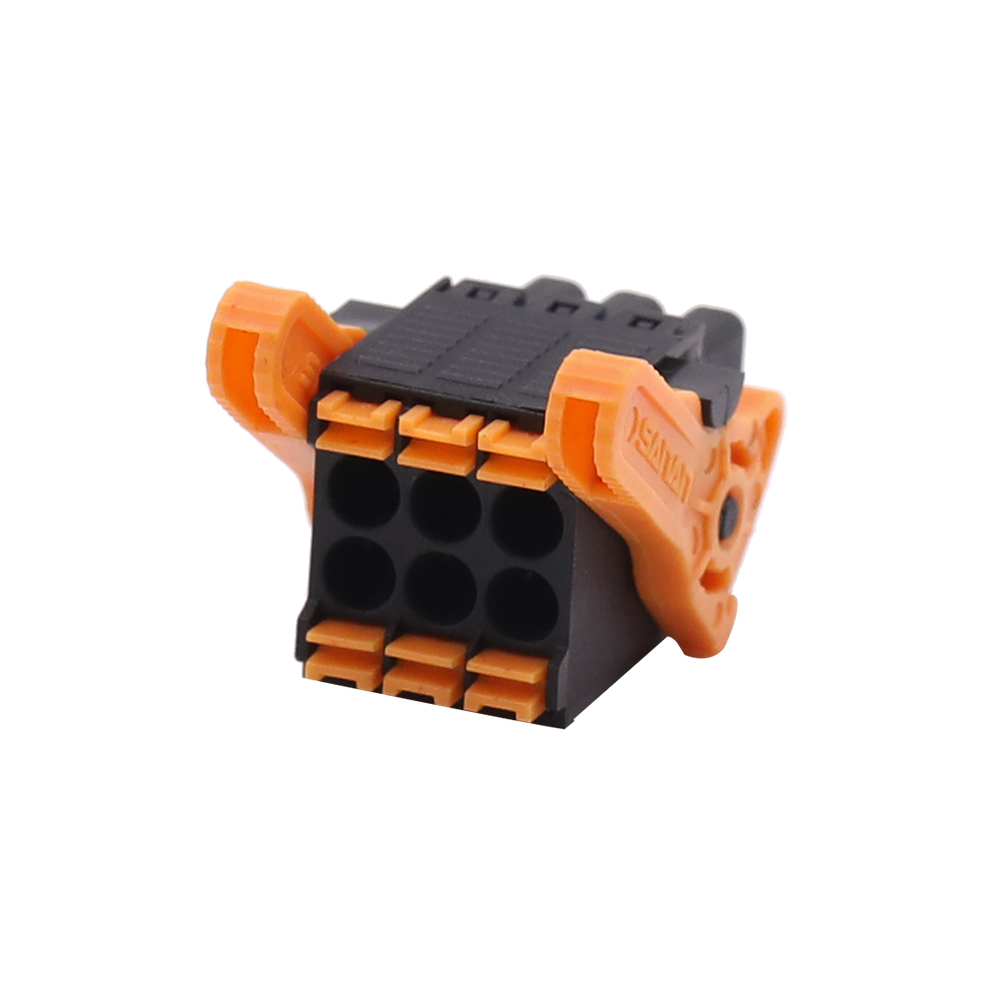

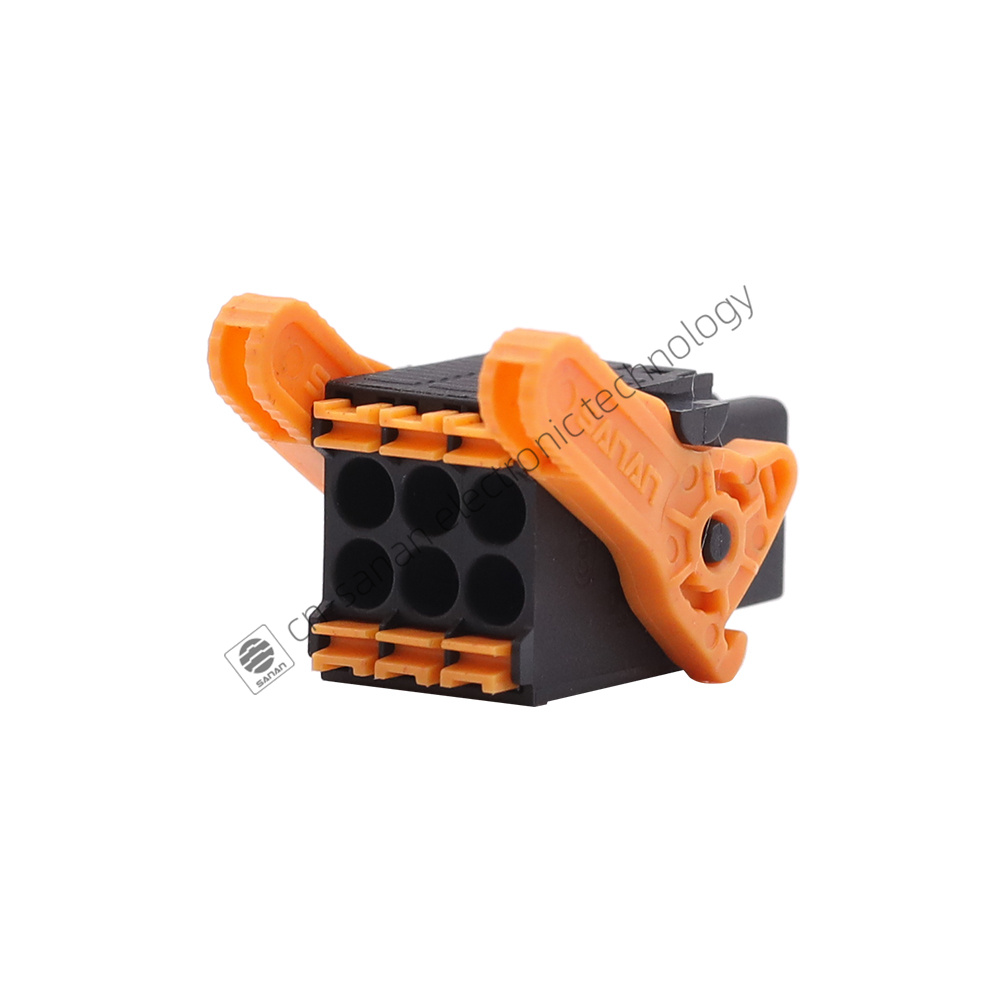

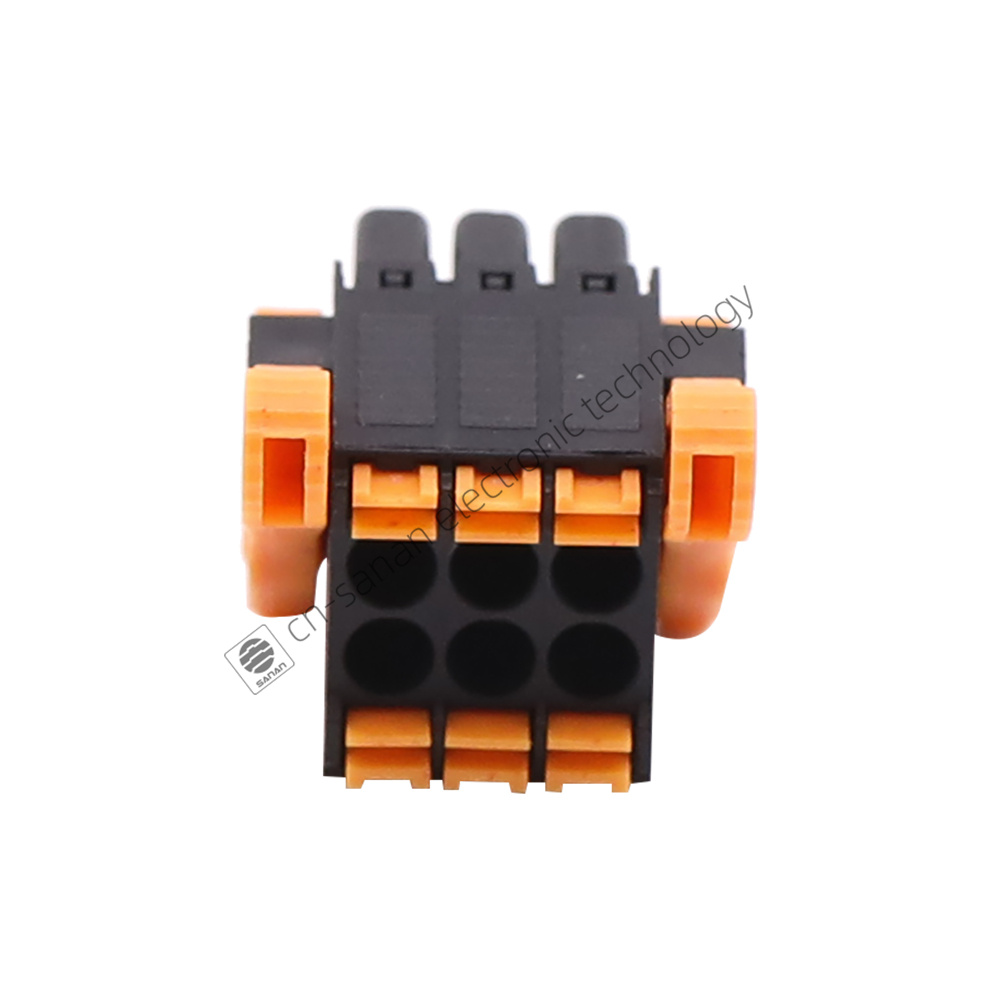

Details Of Screwless PCB Plug Pluggable Terminal Block
Drawing of Screwless PCB Plug Pluggable Terminal Block
Packing of Screwless PCB Plug Pluggable Terminal Block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping of Screwless PCB Plug Pluggable Terminal Block
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
