Screw Green 3.81MM PCB Terminal Block

Sanan Electronics Technology Co., Ltd. is a set of manufacturing, sales, development and service as one of the professional manufacturers. The company is equipped with fully automated production work shop, Screw Green 3.81MM PCB Terminal Block,with a daily output of more than 150,000 pieces.Sanan specializes in the production of terminal blocks, IO modules and din rail encosures products , excellent performance, can meet the requirements of all businesses.The company is located in Ningbo City, Zhejiang Province, which is economically developed and enjoys a good reputation as the "Electrical Appliance City of China".The transportation is very convenient and smooth.Sanan adhere to the development direction of "specialization, science and technology, globalization".

Model:15ESAK-3.81-4P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, Control, and test equipment applications a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry Control.

Feature

● Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
● Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
● Universal installation method, suitable for various situations
● PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of Screw Green 3.81MM PCB Terminal Block

Product name Screw Green 3.81MM PCB Terminal Block
Material Plastic / copper
Color Green
Contact Form 2P-24P(accept customization )
Type of installation PCB welding
Voltage 250V/7A
Pitch 3.81mm
Strip length 7mm
Connection method PCB connection
Weight 6g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

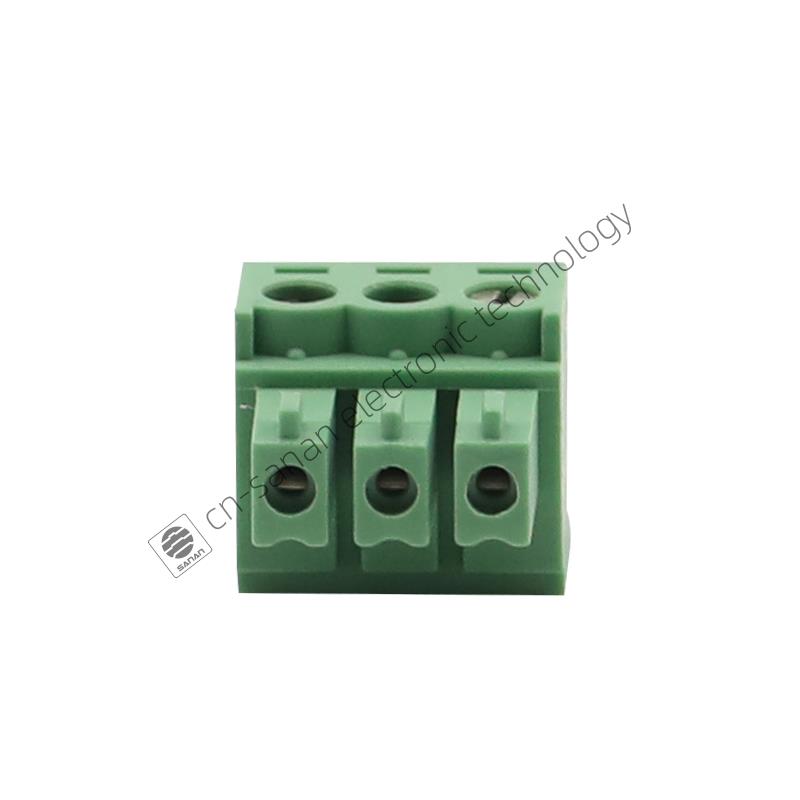

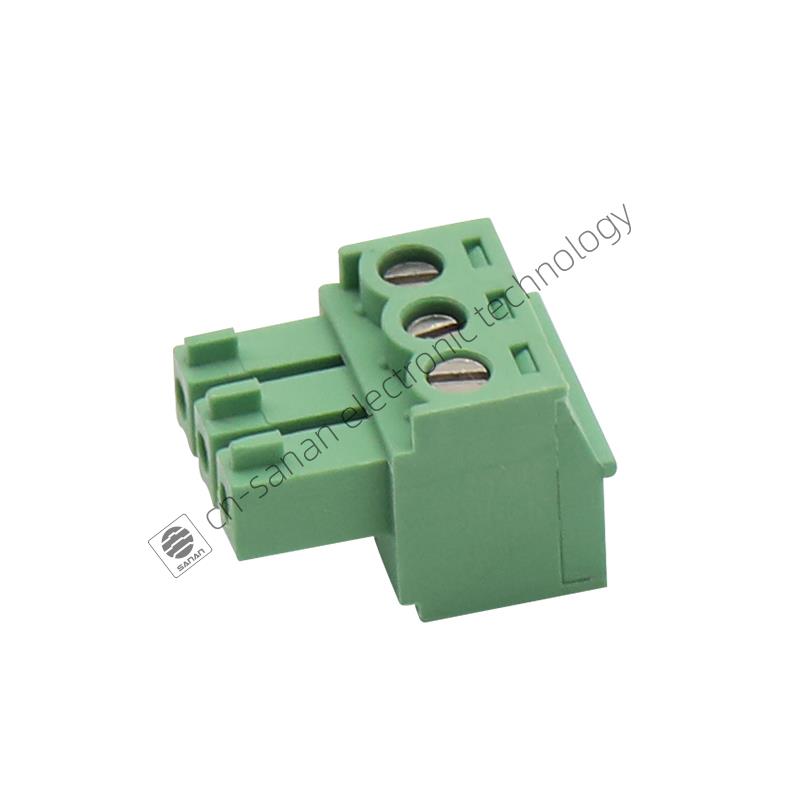

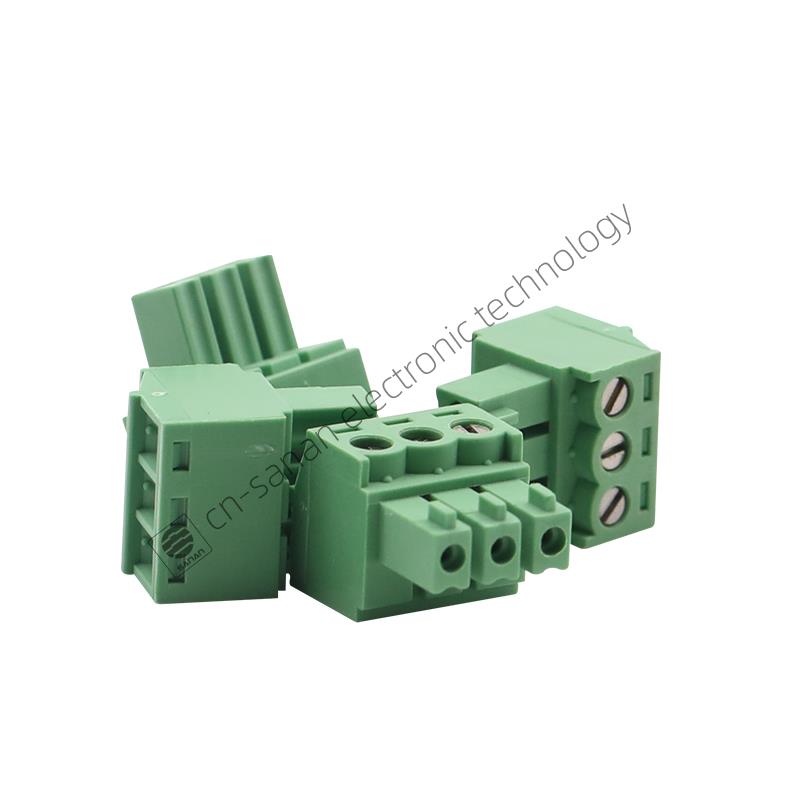

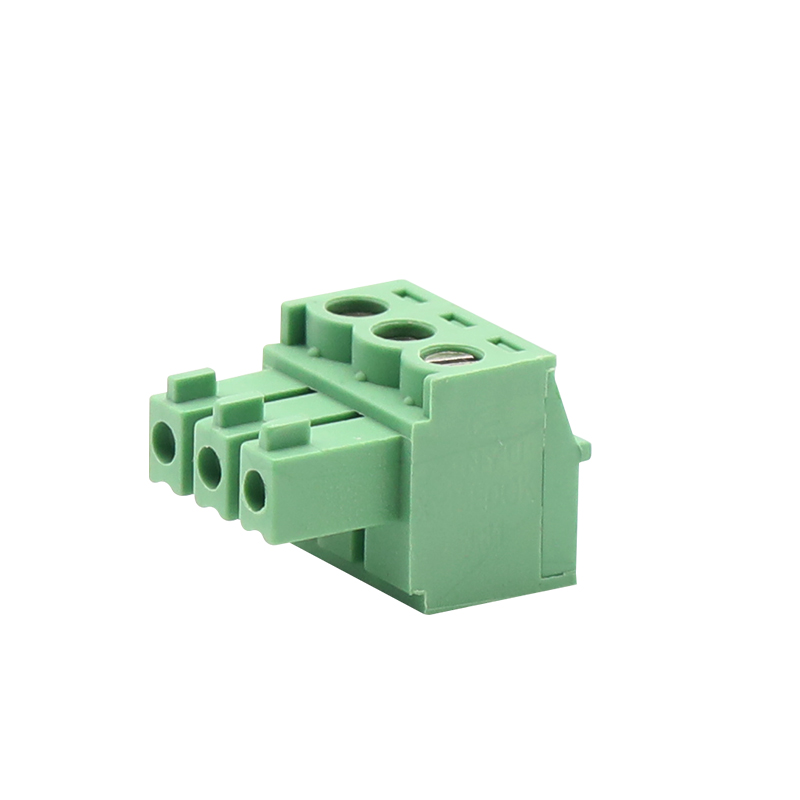

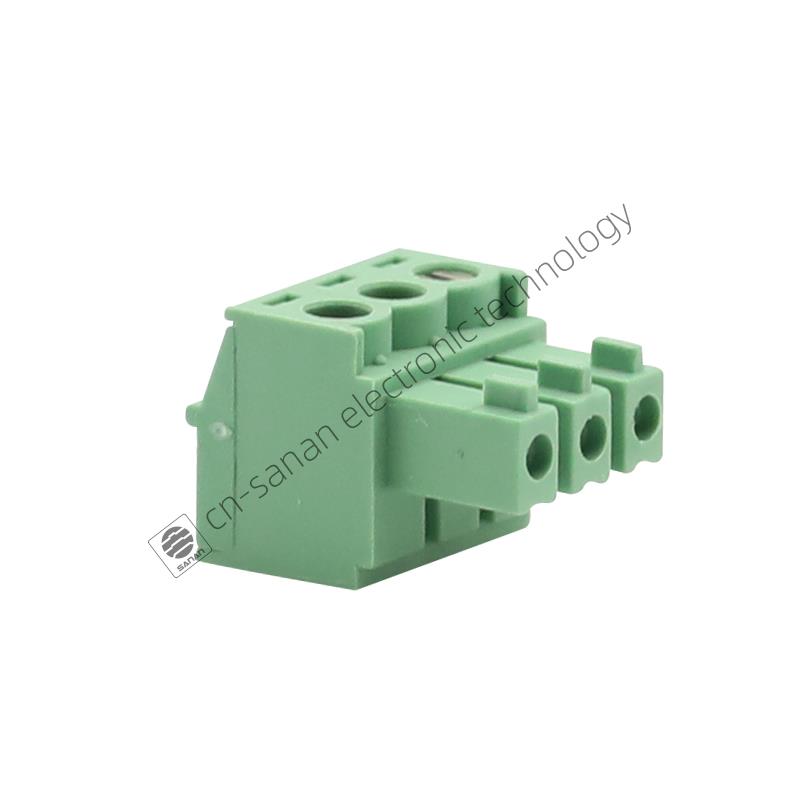

Details of Screw Green 3.81MM PCB Terminal Block


Drawing of Screw Green 3.81MM PCB Terminal Block



Packing of Screw Green 3.81MM PCB Terminal Block

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
