Power System Terminal Block 5.08MM
  • Power System Terminal Block 5.08MMPower System Terminal Block 5.08MM
  • Power System Terminal Block 5.08MMPower System Terminal Block 5.08MM
  • Power System Terminal Block 5.08MMPower System Terminal Block 5.08MM
  • Power System Terminal Block 5.08MMPower System Terminal Block 5.08MM
  • Power System Terminal Block 5.08MMPower System Terminal Block 5.08MM

Power System Terminal Block 5.08MM

San'an Electronic Technology Co., Ltd. a professional factory engages in Power System Female Terminal Block designing, manufacturing and marketing.Who has more than 100 workers and 25,000.00 square meter plant area.Sanan has gained UL, CQC, CE, safety certification and ISO9001, ISO14001 management system certification. All products comply with ROHS, REACH standards and we have professional laboratory meets ULstandard. We work on providing safe and reliable products, and we have serviced and set up good cooperation many world famous corporations already.Our major Terminal Blocks products are Euro series, Barrier series, Pluggable series, Through-wall series and Din Rail series and Power System Terminal Block 5.08MM . Which widely used in frequency converters, server site, switch, power supply, electric lighting, industry control, automation, etc..In the past ten years, Sanan has focused on terminal blocks and provided excellent services.

Model:2ESAK-5.08-4P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, Control, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry Control.

Feature

● Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
● Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
● Universal installation method, suitable for various situations
● PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of Power System Terminal Block 5.08MM

Product name Power System Terminal Block 5.08MM
Material Plastic / copper
Color Green
Contact Form 2P-24P(accept customization )
Type of installation PCB welding
Voltage 320V/20A
Pitch 5.08mm
Wire range 28-12AWG
Pin arrangement Single row in a straight line
Connection method Female connection
Weight 7g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

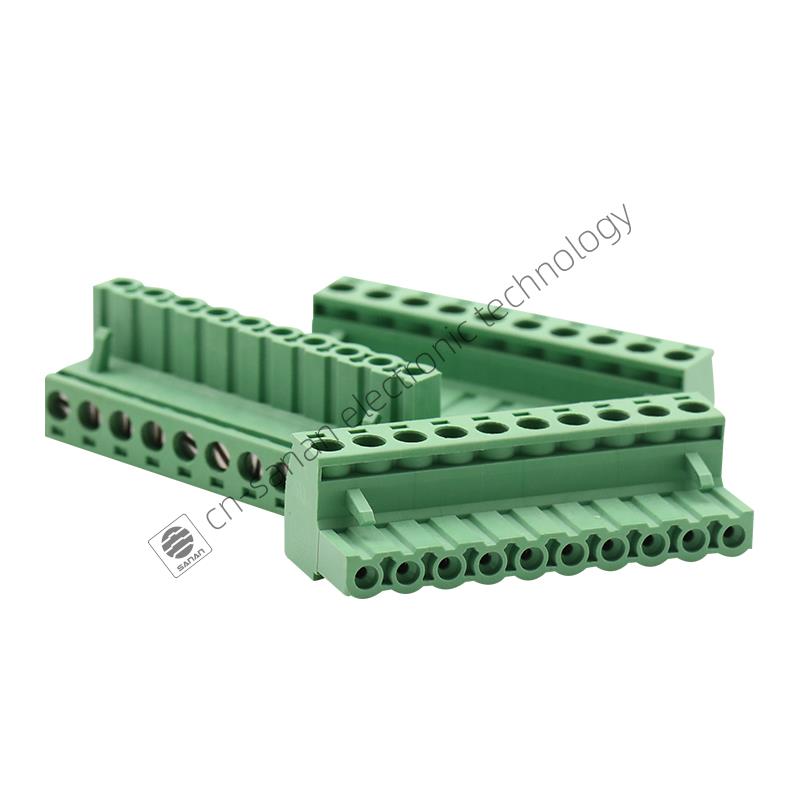

Details of Power System Terminal Block 5.08MM


Drawing of Power System Terminal Block 5.08MM



Packing of Power System Terminal Block 5.08MM

According to Standard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
