Pluggable Terminal Block Application Control System

Sanan Electronics Technology Co., Ltd. is found in 2020 Ningbo China. With rich experience, we pride toprovide world-class terminal blocks, Pluggable Terminal Block Application Control System, Io modueles, din rail enclosures and so on to customers around the world.Having a global-quality is our avdantage, thus we're extremely careful in our production and sourcing processto ensure top-notch quality in the market. Our products are used in all major leading manufacturers across automotive, chemical, electrical installation, and many other industries. Our Control System Female Pluggable Terminal Block is commonly used for major poewr companies.We serve customers around the world,therefore, majority of our products we offer have received UL, CE, Rosh standard approval and abide with various environmental and industry-specific qualifications,We sincerely look forward to establishing business relationship with the customers all over the world in the future and create development together.

Model:2ESAK-5.08-4P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.

Feature

● Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
● Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
● Universal installation method, suitable for various situations
● PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of Pluggable Terminal Block Application Control System

Product name Pluggable Terminal Block Application Control System
Material Plastic / copper
Color Green
Contact Form 2P-24P(accept customization )
Type of installation PCB welding
Voltage 320V/20A
Wire range 28-12AWG
Pitch 5.08mm
Pin arrangement Single row in a straight line
Connection method PCB connection
Weight 7g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

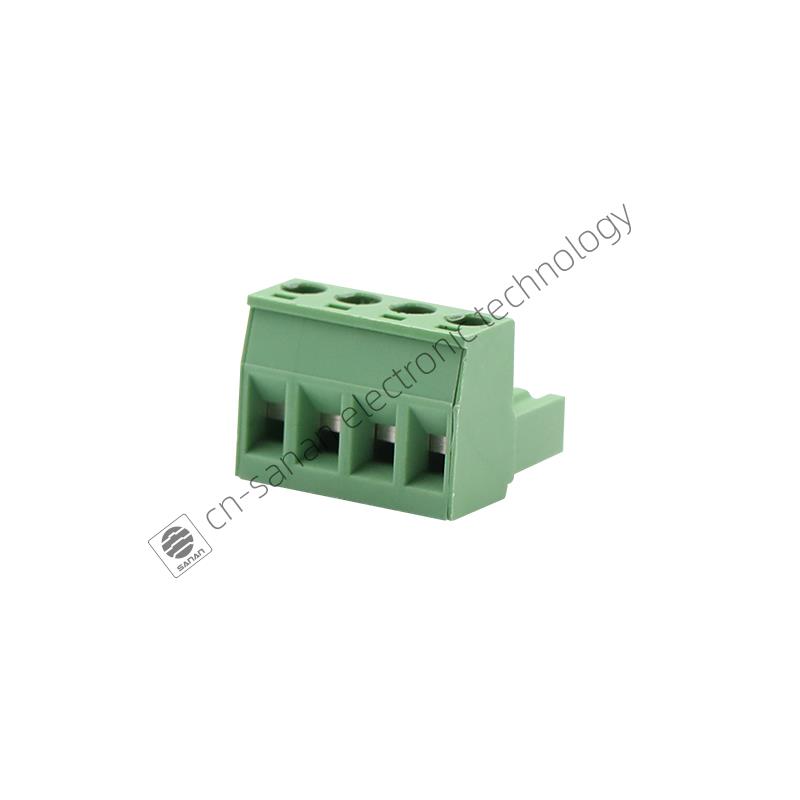

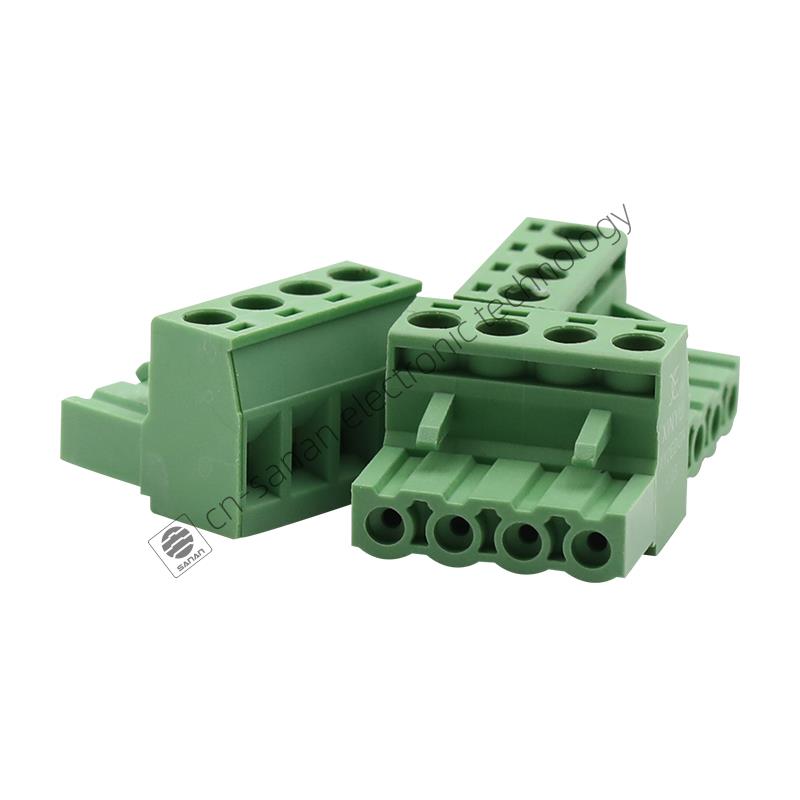

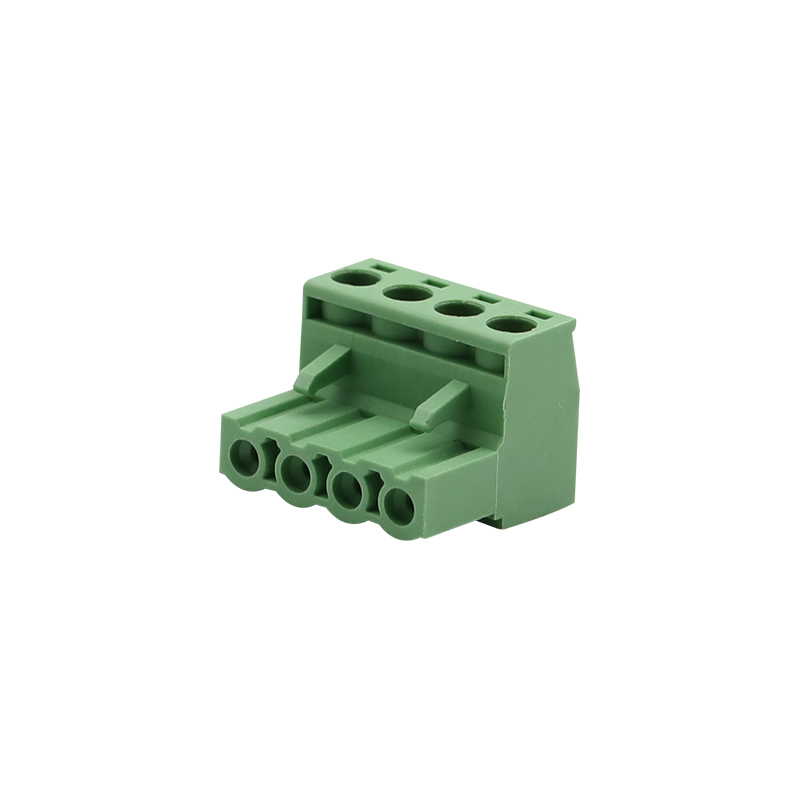

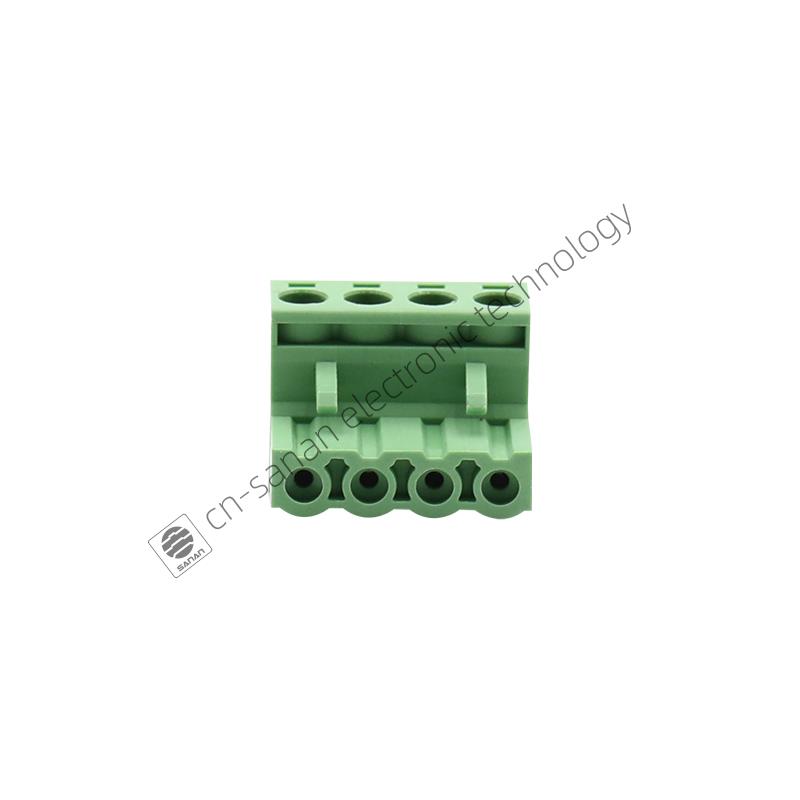

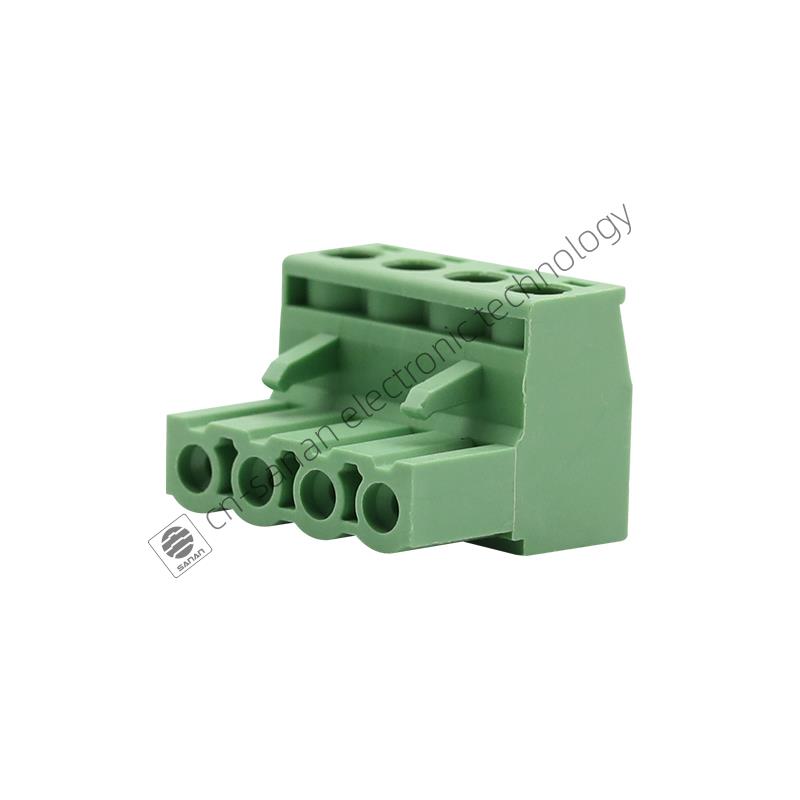

Details of Pluggable Terminal Block Application Control System


Drawing of Pluggable Terminal Block Application Control System



Packing of Pluggable Terminal Block Application Control System

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
