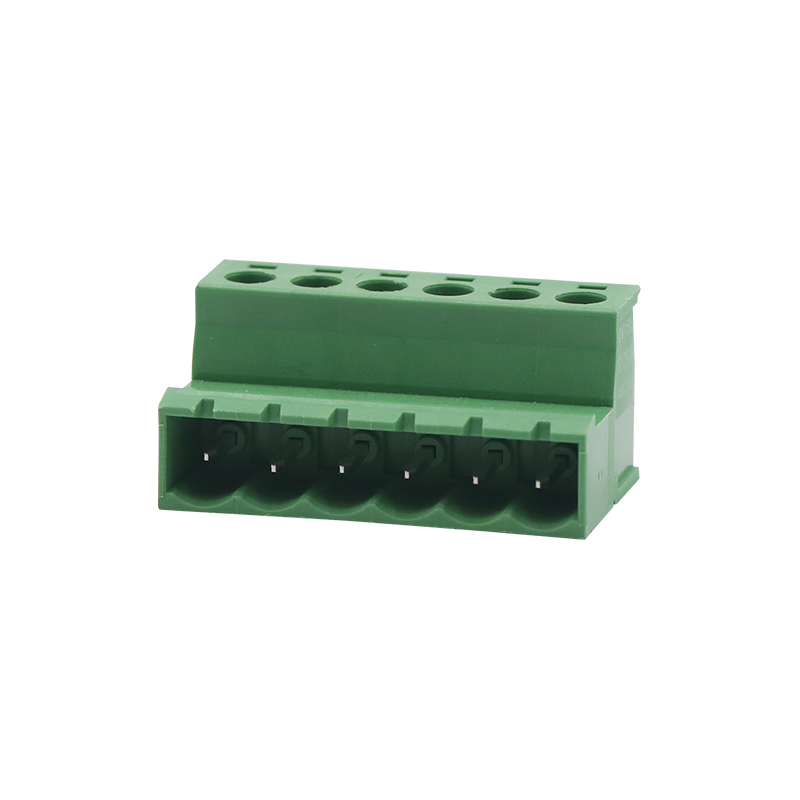

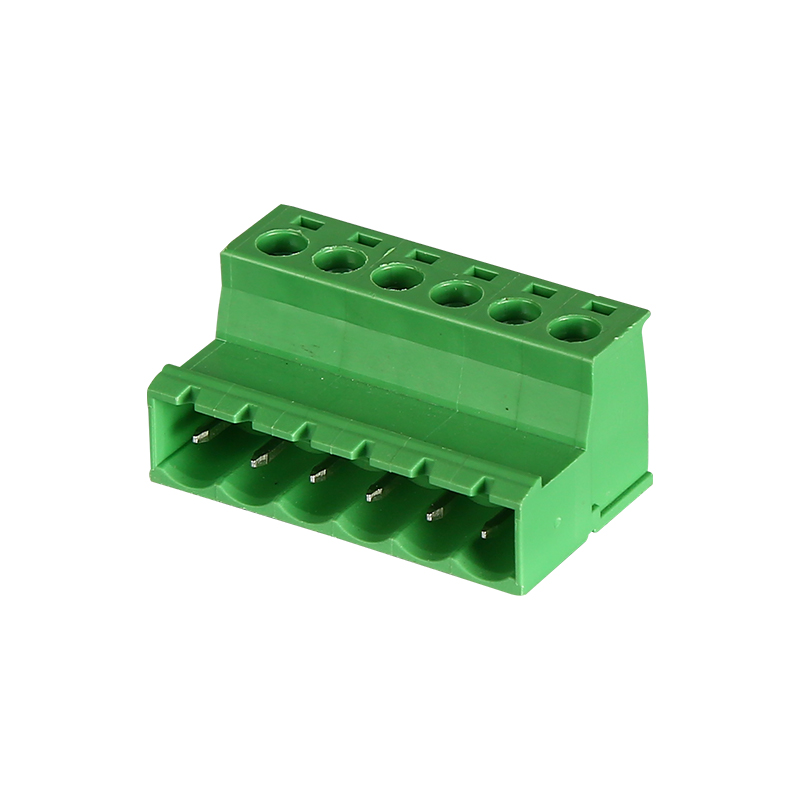

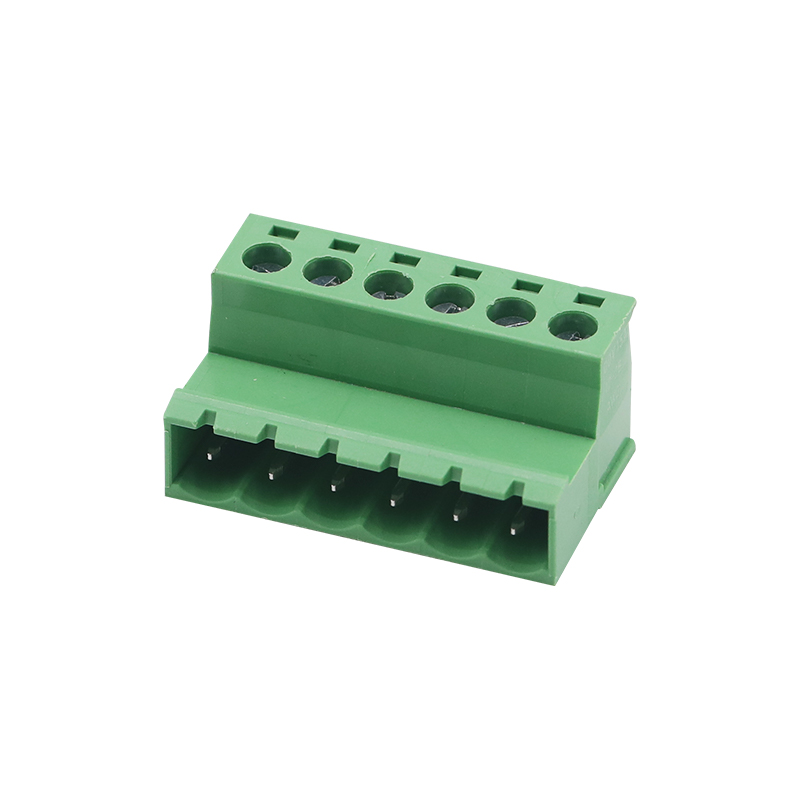

Pluggable Terminal Block 5.0mm 5.08mm 6P

Sanan Electronic Technology Co,Ltd. is a manufacturer specializing in the production of precision and high-precision connectors for industrial automation,electric energy etc.Our terminal block is approved by major national and international bodies (UL, CUL) and complies with the requirements to protect the environment (RoHS, REACH, UL, CUL, TUV, etc.). Tens of thousands of connectors,for example, Pluggable Terminal Block 5.0mm 5.08mm 6P, have been exported to Europe, the US and 66 different other countries, with more than 258 locations worldwide,we are warmly and sincerely welcomes the domestic and international customers to negotiate cooperation.

Model:2ESAKR-5.0/5.08-6P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.

Feature

●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of Pluggable Terminal Block 5.0mm 5.08mm 6P

Product name Pluggable Terminal Block 5.0mm 5.08mm 6P
Material Plastic / copper
Color Green
Contact Form 2P-16P(accept customization )
AWG 28~12AWG
Rated voltage 300V 15A UL
Rated voltage 320V 20A IEC
Strip length 5mm
Pitch 5.0/5.08mm
Weight 7g(depends the contacts)
MOQ 500pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

Application of Pluggable Terminal Block 5.0mm 5.08mm 6P

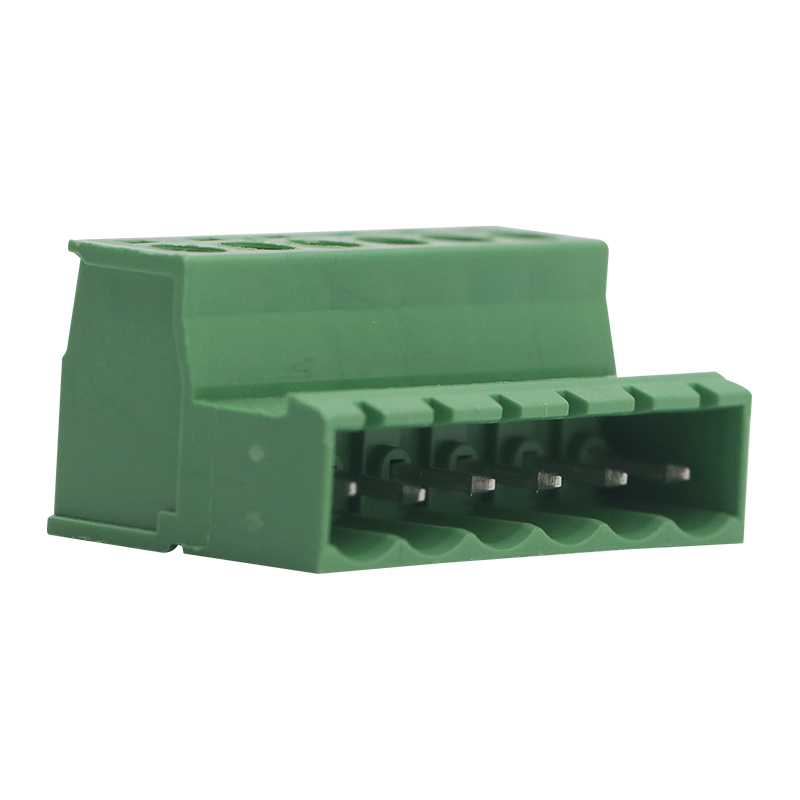

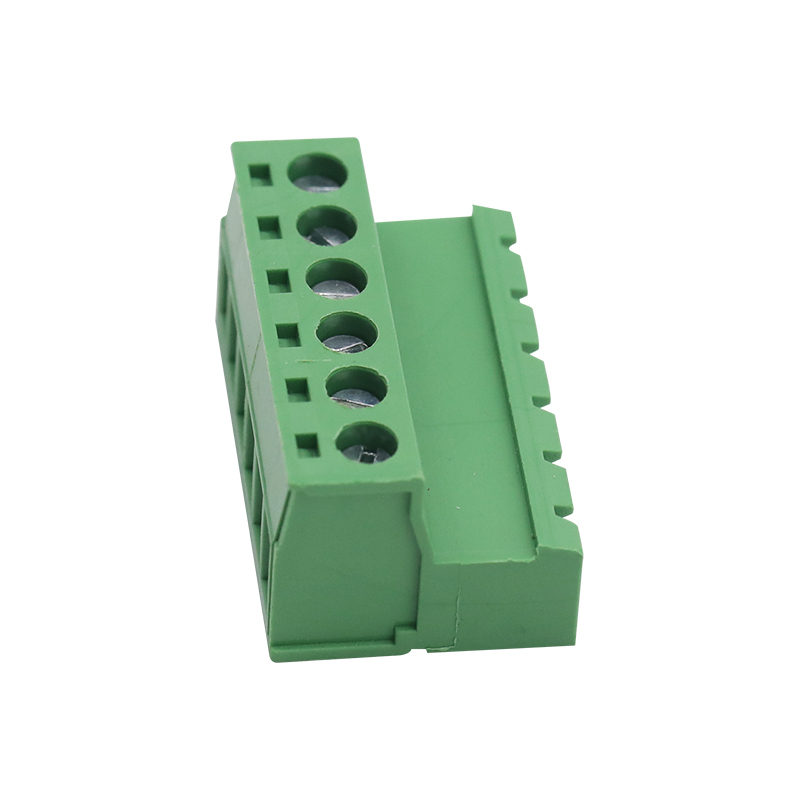

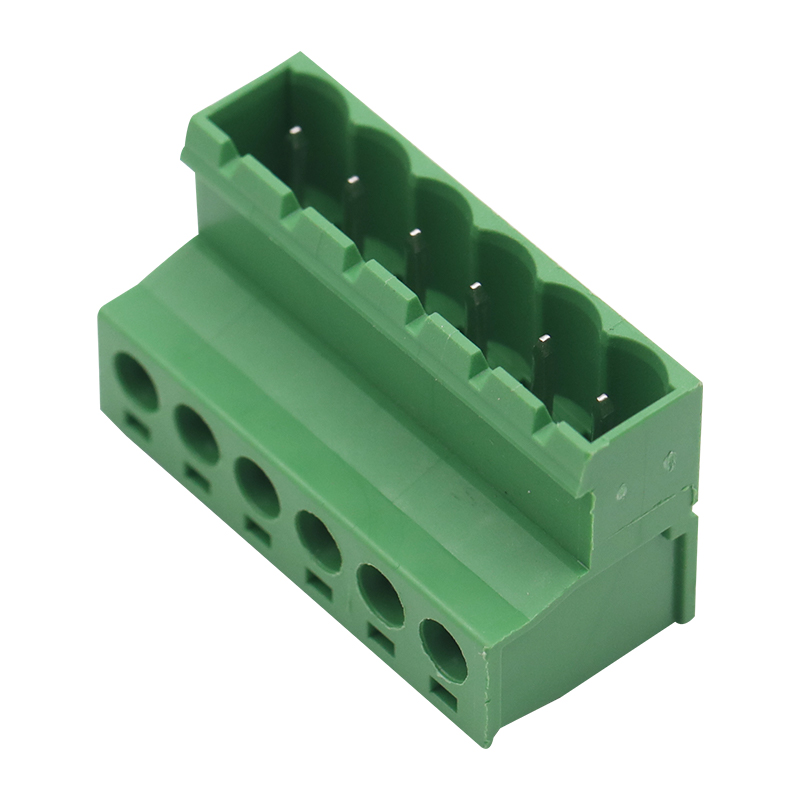

Product details of Pluggable Terminal Block 5.0mm 5.08mm 6P


Drawing of Pluggable Terminal Block 5.0mm 5.08mm 6P



Packing of Pluggable Terminal Block 5.0mm 5.08mm 6P

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
