Product Description

There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.


●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of MCS Terminal Block

Product name MCS Terminal Block
Material Plastic / copper
Color Grey
Contact Form 2P-16P(accept customization )
AWG 28~12AWG
Strip length 7mm
Conductor cross section solid 1.0~2.5mm²
Rated voltage 300V 15A UL
Rated voltage 400V 20A IEC
Pitch 5.08mm
Weight 7g(depends the contacts)
MOQ 500pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

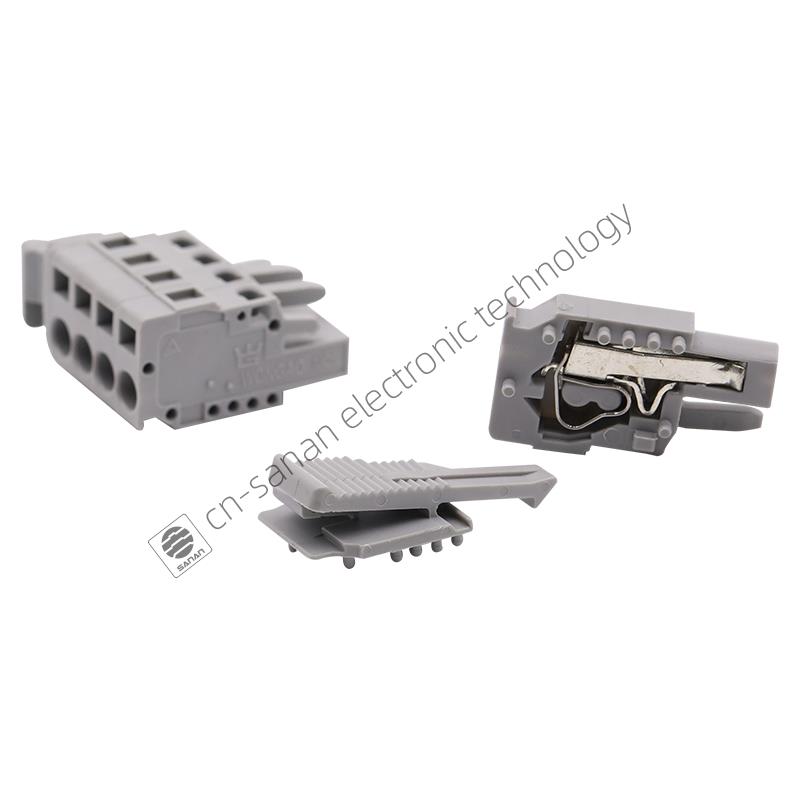

Dtails of MCS Terminal Block

Drawing of MCS Terminal Block

Packing of MCS Terminal Block

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc


- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
