Male Screwless Pluggable Terminal Block 3.5MM

Sanan Electronics Technology Co., Ltd. is a set of manufacturing, sales, development and service as one of the professional manufacturers. The company is equipped with fully automated production work shop, with a daily output of more than 150,000 pieces.Sanan specializes in the production of terminal blocks, Male Screwless Pluggable Terminal Block 3.5MM,PCB terminal blocks,IO modules and din rail encosures products , excellent performance, can meet the requirements of all businesses.The company is located in Ningbo City, Zhejiang Province, which is economically developed and enjoys a good reputation as the "Electrical Appliance City of China".The transportation is very convenient and smooth.Sanan adhere to the development direction of "specialization, science and technology, globalization".

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation. Our KNH serises are suitable for SMT welding process, to help clients to in the PCB welding.

Feature

●Suitable for SMT welding process
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density

Product specification of Male Screwless Pluggable Terminal Block 3.5MM

Product name Male Screwless Pluggable Terminal Block 3.5MM
Material Plastic / copper
Color Black
Contact Form 4P-40P(accept customization )
Pitch 3.5mm
Rated voltage 300V 10A
Strip length 10mm
Pin arrangement Double-row in a straight line
Type of installation PCB welding
Weight 6g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Insulation Materials PA66

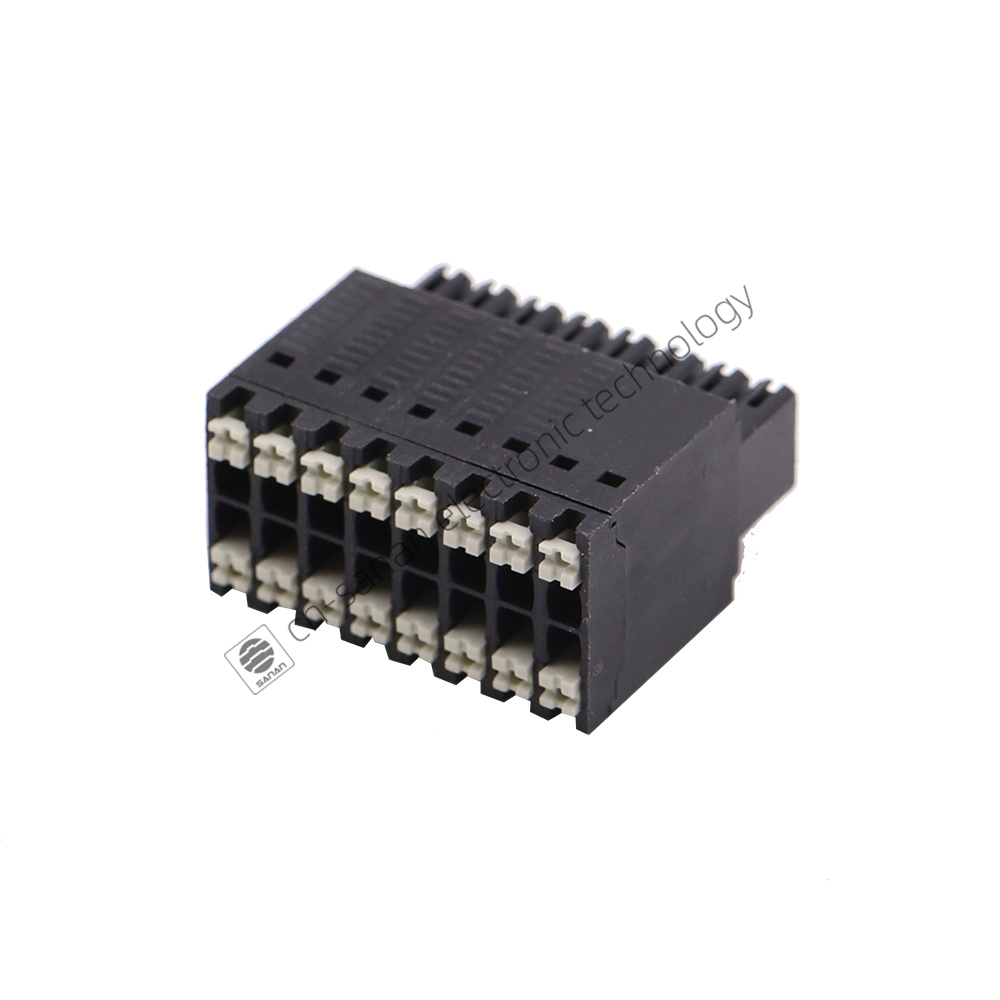

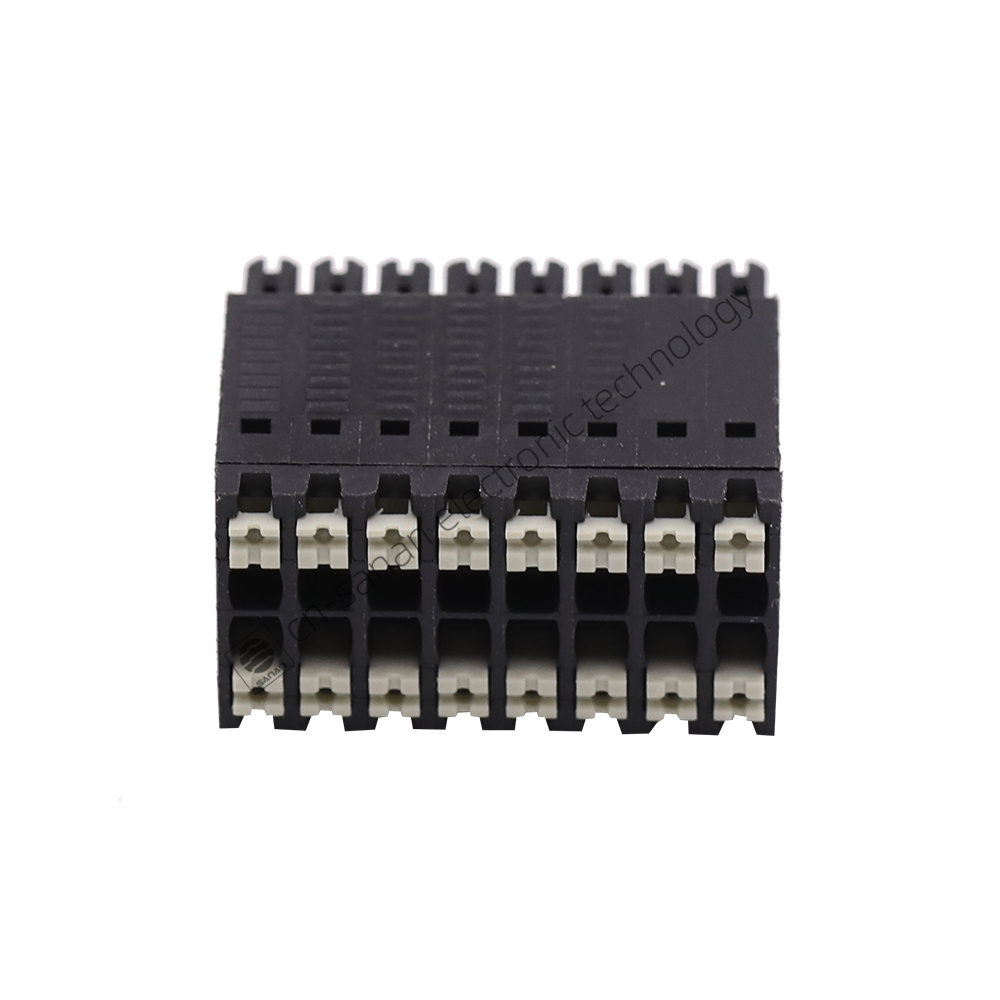

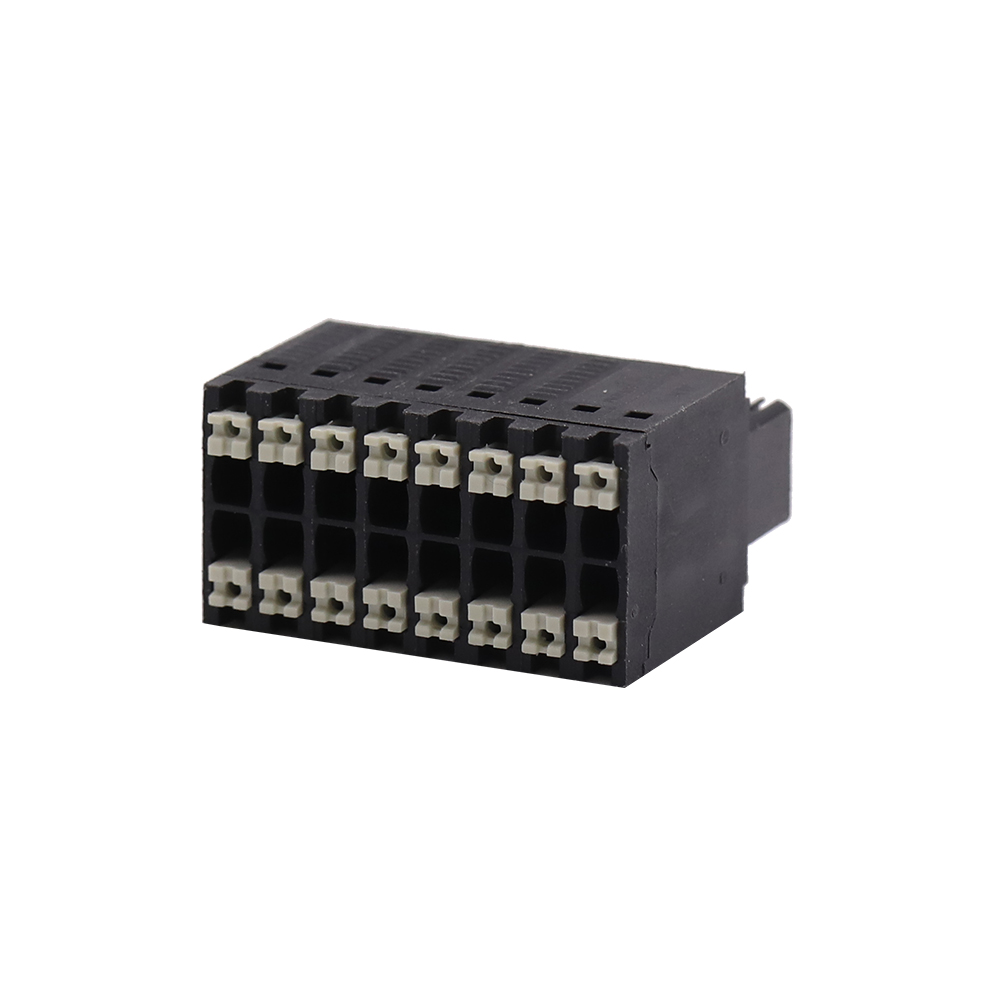

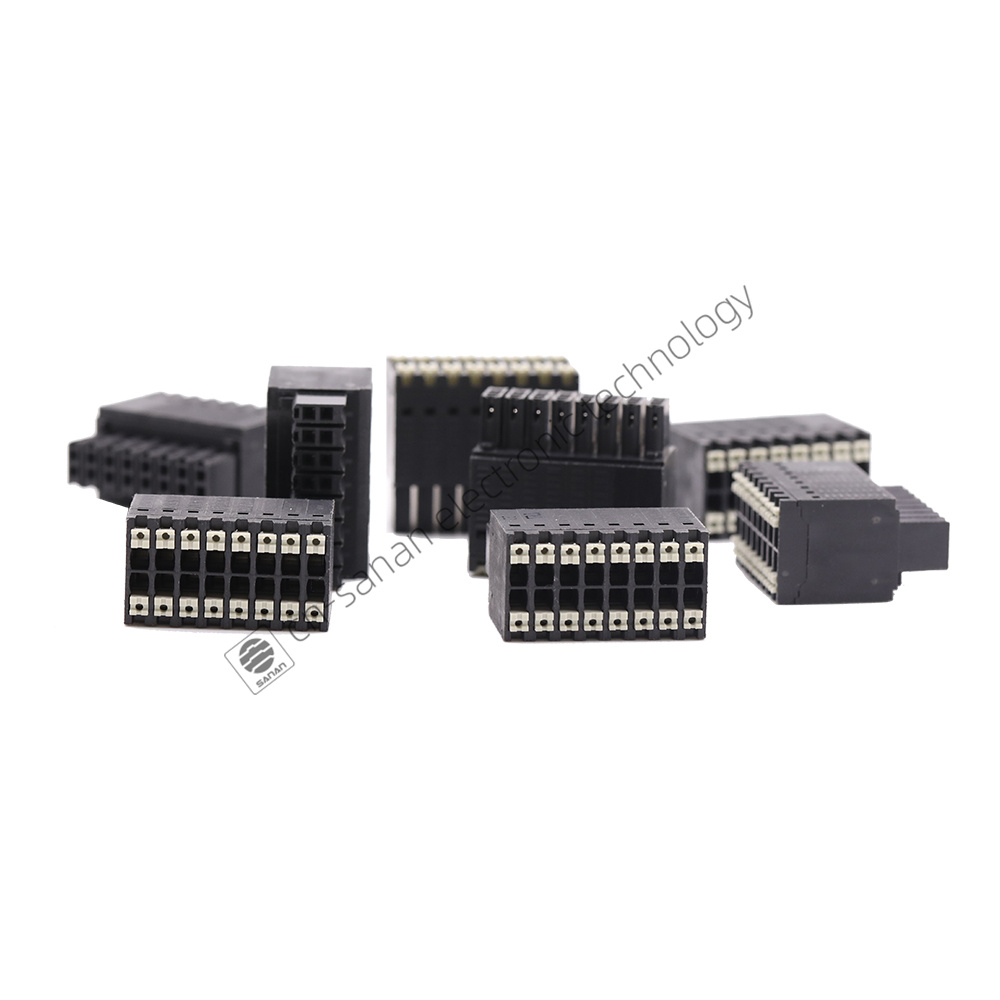

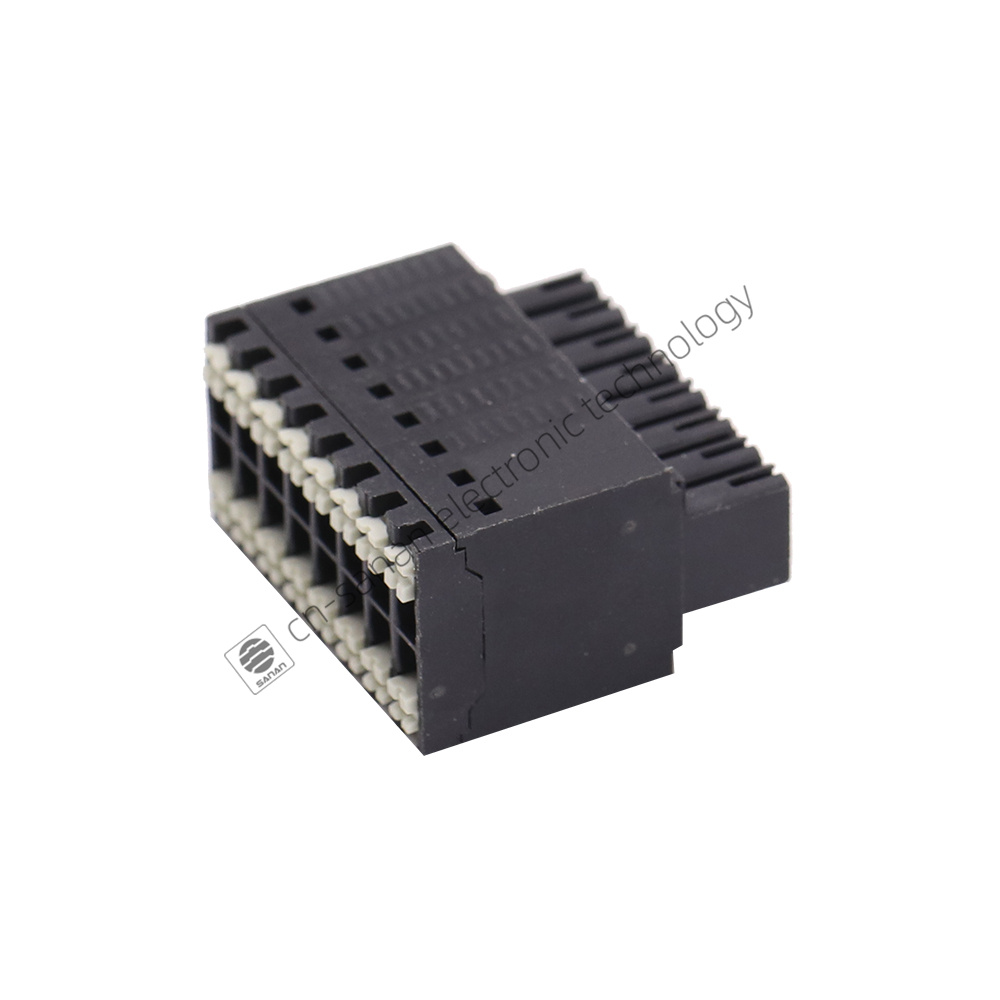

Details Of Male Screwless Pluggable Terminal Block 3.5MM


Drawing of Male Screwless Pluggable Terminal Block 3.5MM



Packing of Male Screwless Pluggable Terminal Block 3.5MM

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping of Male Screwless Pluggable Terminal Block 3.5MM

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
