Horizontal Female 3.5mm 10A 5Pins Pluggable Terminal Block
For the Horizontal Female 3.5mm 10A 5Pins Pluggable Terminal Block, Sanan® have 20 years experience, Sanan makes the efforts to meet new chanllenges and make great progress to offer excellent solution in the industrial automation, electric energy, wind power generation, rail traffic and so on. With spirit of quality, we create Sanan brand
Send Inquiry
Product Description
Sanan® is a leading China Horizontal Female 3.5mm 10A 5Pins Pluggable Terminal Block manufacturers, suppliers and exporter. Pluggable terminal block and pluggable connectors for drive and controller technology, the lighting industry and more，as a supplier, Sanan’s PBC plug made of high-quality plastic and cooper, featured with good conductivity, effective flame retardant, long service time, safe and reliable, has the certification of ROSH, VDE etc.
Feature of Horizontal Female 3.5mm 10A 5Pins Pluggable Terminal Block
●Adapt to multi-type sockets, device design is highly flexible
●PUSH-IN connection technology, fast wiring
●Universal installation method, suitable for various situations
●Not need to weld. Handy and easy to assemble, solder in easily and tighten very well on the terminated wires
●PUSH-IN connection technology, fast wiring
●Universal installation method, suitable for various situations
●Not need to weld. Handy and easy to assemble, solder in easily and tighten very well on the terminated wires
Product specification of Horizontal Female 3.5mm 10A 5Pins Pluggable Terminal Block
| Product name | Pluggable terminal block |
| Material | Plastic / copper |
| Color | Gray |
| Contact | Form 2P-20P(accept customization ) |
| AWG | 28~14AWG |
| Number of potentials | 5 |
| Rated voltage | 130V |
| Conductor cross section solid | 0.2~1.5mm² |
| Pitch | 3.5mm |
| Contact surface | Tin |
| Weight | 5g(depends the contacts) |
| MOQ | 500pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Connection method | spring-cage connection |
| Ambient temperature (operation) | -40℃~105℃ |
Application of pluggable terminal block

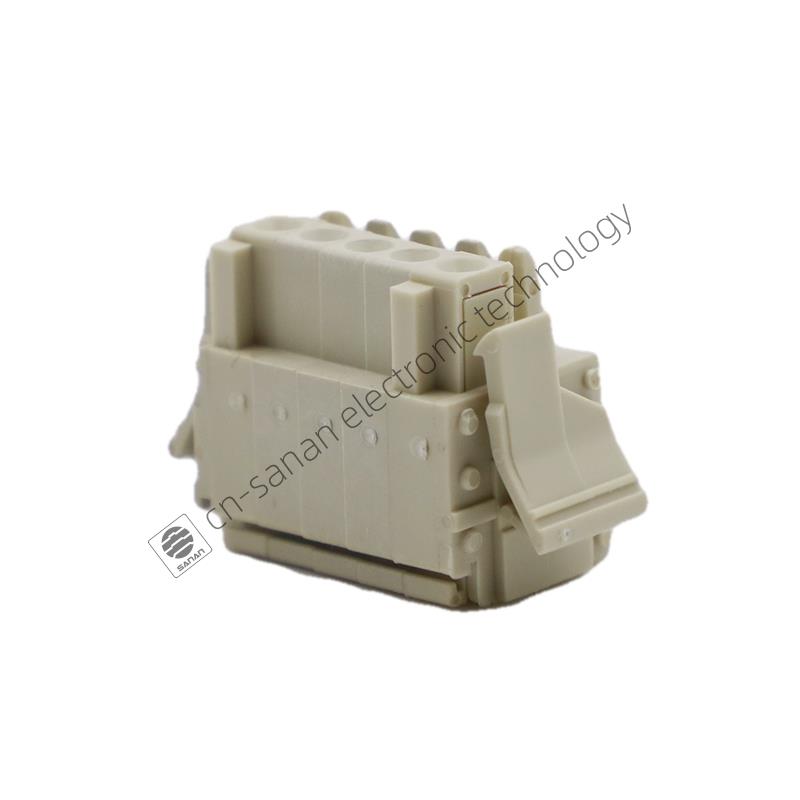

Product details of Horizontal Female 3.5mm 10A 5Pins Pluggable Terminal Block
Packing of pluggable terminal block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
