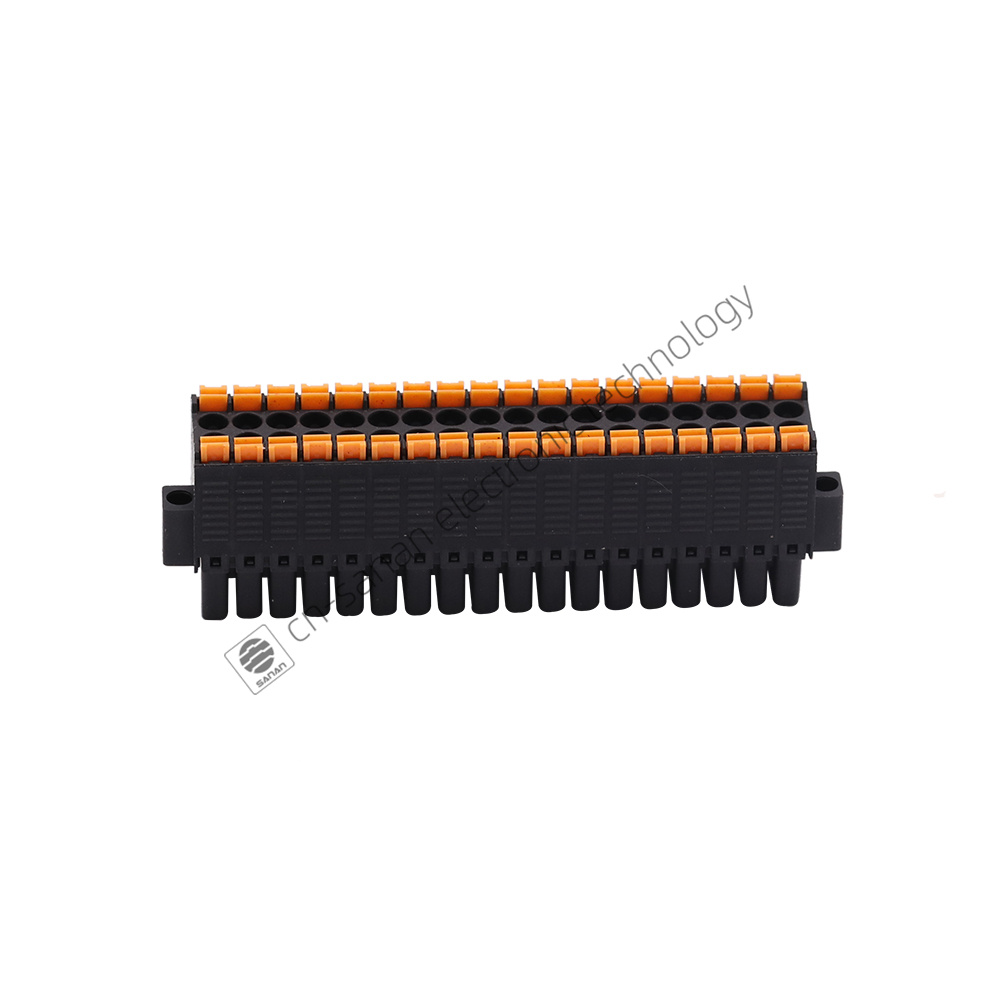

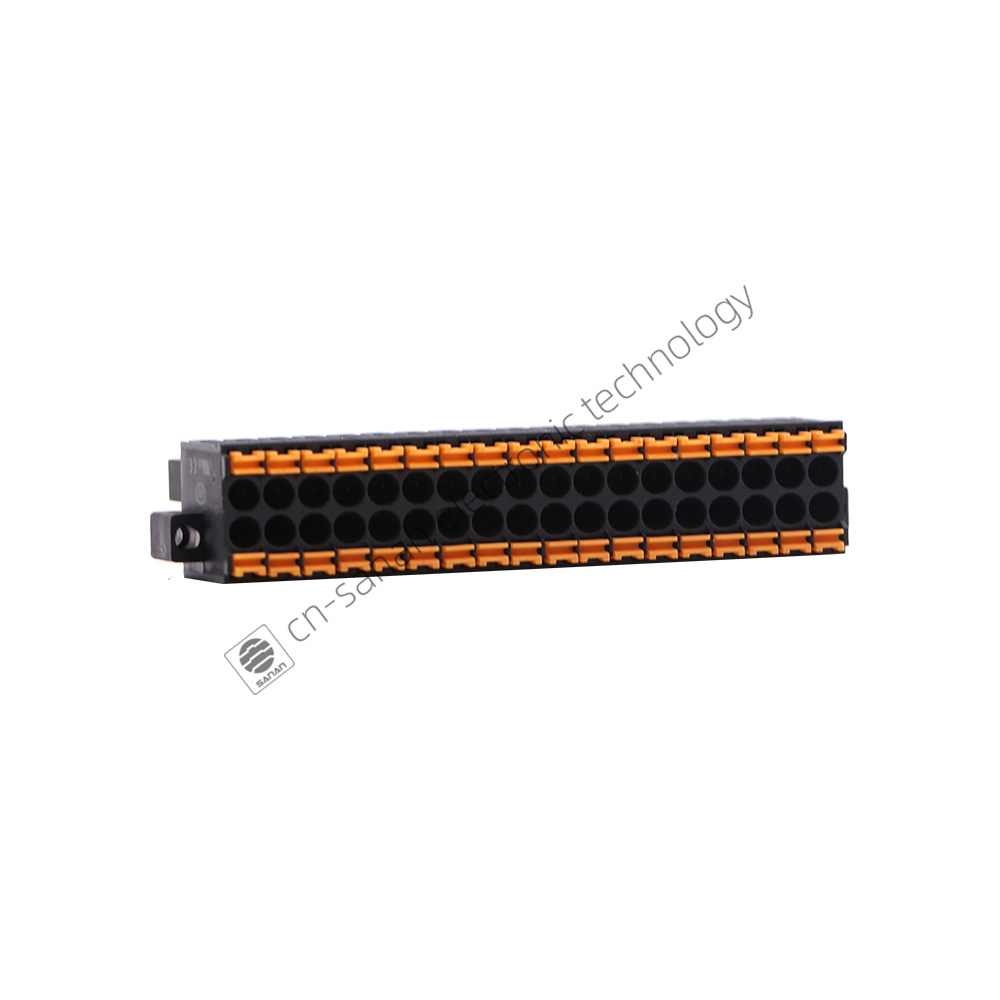

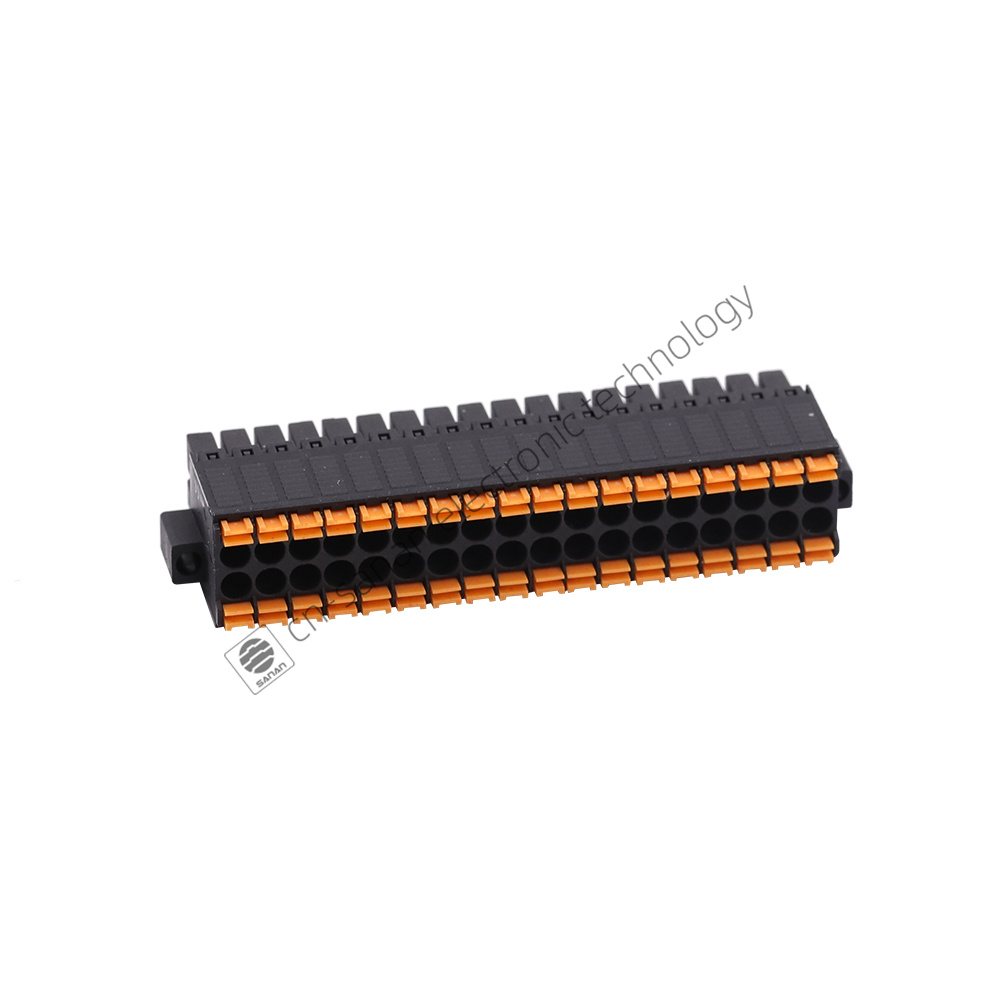

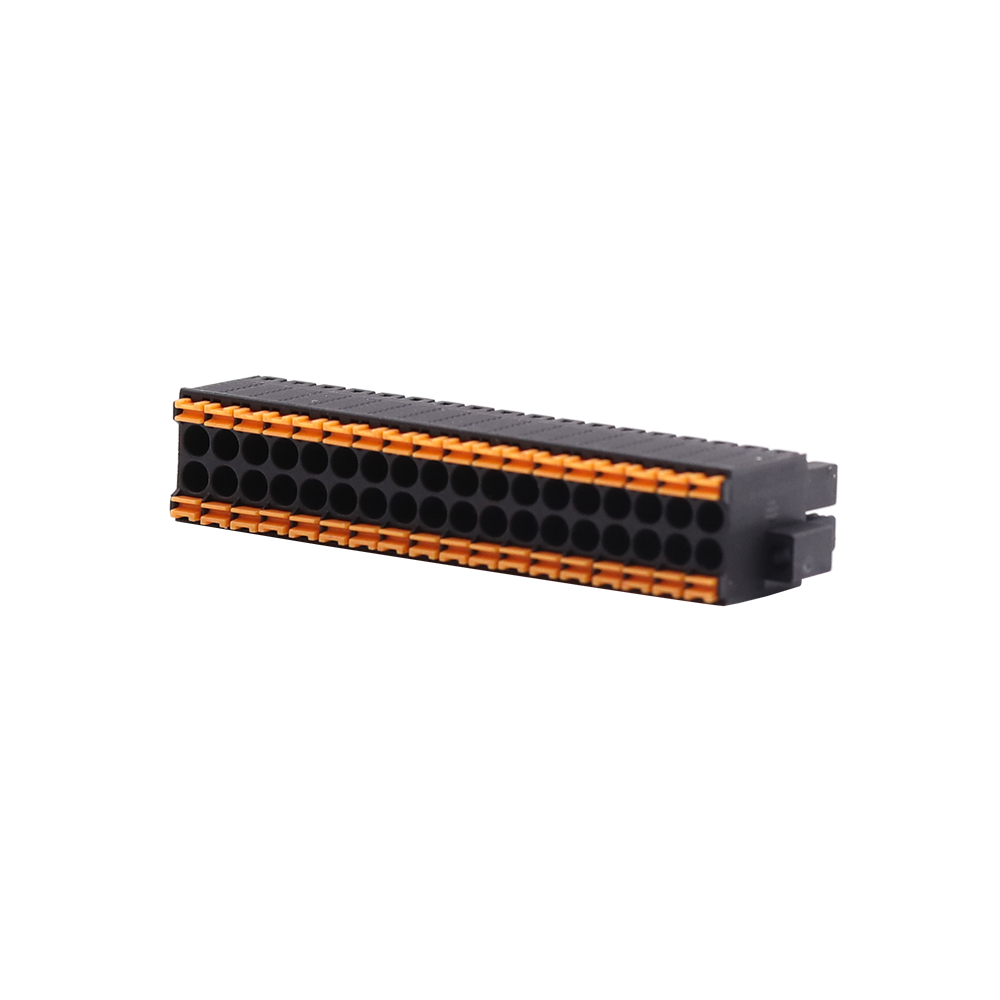

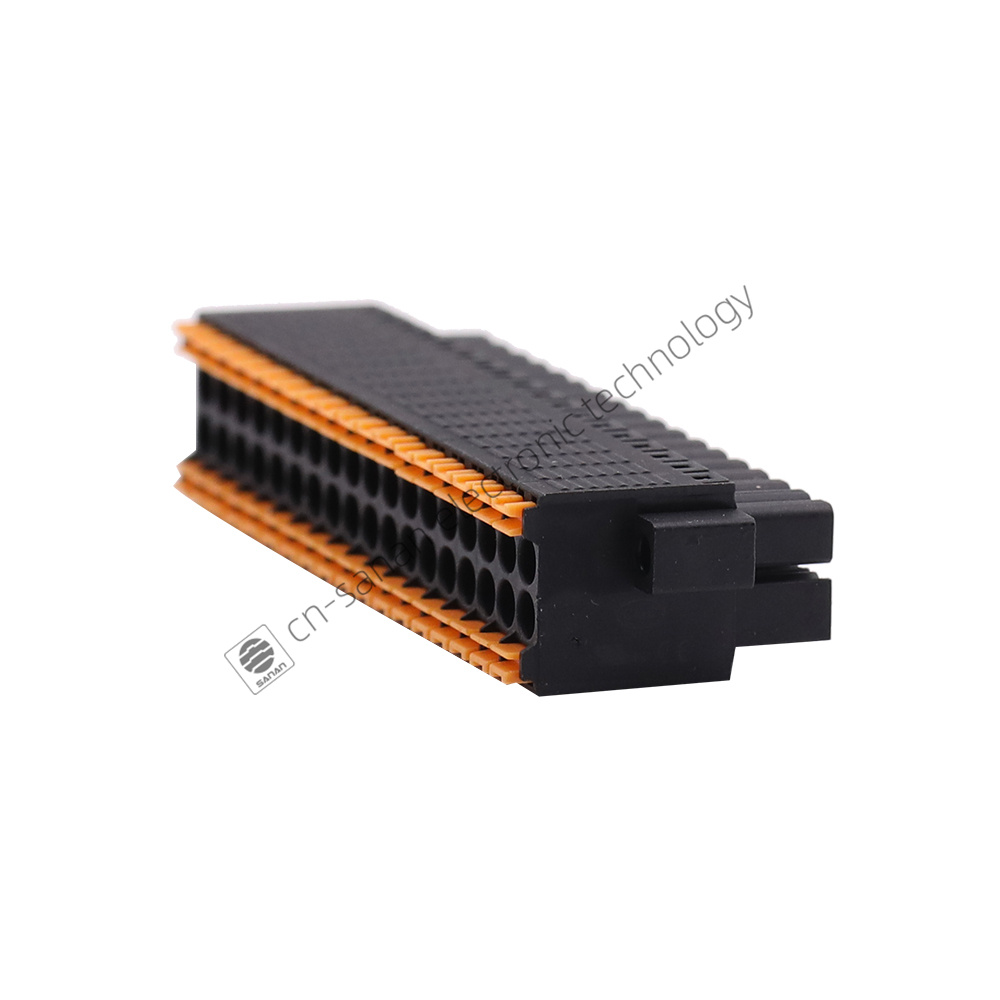

Flange 3.5mm Pluggable Terminal Block

Sanan Electronics Technology Co., Ltd. is a set of manufacturing, sales, development and service as one of the professional manufacturers. The company is equipped with fully automated production work shop, with a daily output of more than 150,000 pieces.Sanan specializes in the production of terminal blocks, Flange 3.5mm Pluggable Terminal Block,PCB terminal blocks,IO modules and din rail encosures products , excellent performance, can meet the requirements of all businesses.The company is located in Ningbo City, Zhejiang Province, which is economically developed and enjoys a good reputation as the "Electrical Appliance City of China".The transportation is very convenient and smooth.Sanan adhere to the development direction of "specialization, science and technology, globalization".

Model:15ESAKNHM-3.5-36P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation. Our KNH serises are suitable for SMT welding process, to help clients to in the PCB welding.

Feature

●●Suitable for SMT welding process
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density

Product specification of Flange 3.5mm Pluggable Terminal Block

Product name Flange 3.5mm Pluggable Terminal Block
Material Plastic / copper
Color Black
Contact Form 4P-40P(accept customization )
Pitch 3.5mm
Rated voltage 300V 10A
AWG 24~16AWG
Strip length 10mm
Conductor cross section solid 0.2~2.5mm²
Pin arrangement Double-row in a straight line
Type of installation PCB welding
Weight 8g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Insulation Materials PA66

Details Of Flange 3.5mm Pluggable Terminal Block


Drawing of Flange 3.5mm Pluggable Terminal Block



Packing of Flange 3.5mm Pluggable Terminal Block

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping of Flange 3.5mm Pluggable Terminal Block

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
