Control System PCB Terminal Block 5.0MM

Ningbo San'an Electronic Technology Co., Ltd.established in 2020 is a professional manufacture engaged in the research, development, sale and service of electronic components, terminal blocks,din rail terminal blocks,Control System PCB Terminal Block 5.0MM ,IO moduels, din rail enclosures. We are located in Ningbo with convenient transportation access with more than 200 workers team and 10000 meter square factory.Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, we have obtained Rohs, CE , ISO14001, ISO9001, HI-Tech certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as USA and Europe etc. We also welcome OEM and ODM orders.We are glad to work together with you and finally bring you the satisfied products.

Model:SA128V-5.0-3P

Send Inquiry

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, Control, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry Control.

Feature

● Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
● Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
● Universal installation method, suitable for various situations
● PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of Control System PCB Terminal Block 5.0MM

Product name Control System PCB Terminal Block 5.0MM
Material Plastic / copper
Color Green
Contact Form 2P-24P(accept customization )
AWG 28~12AWG
Strip length 7mm
Rated voltage 250V18A
Conductor cross section solid 0.2~2.5mm²
Pitch 5.0mm (accept customization )
Weight 8g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

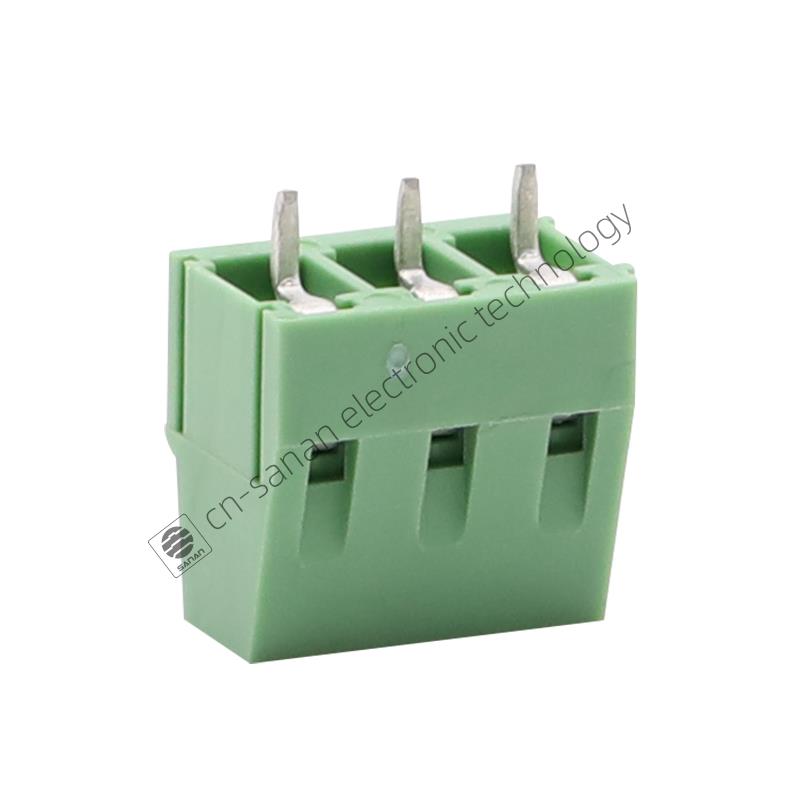

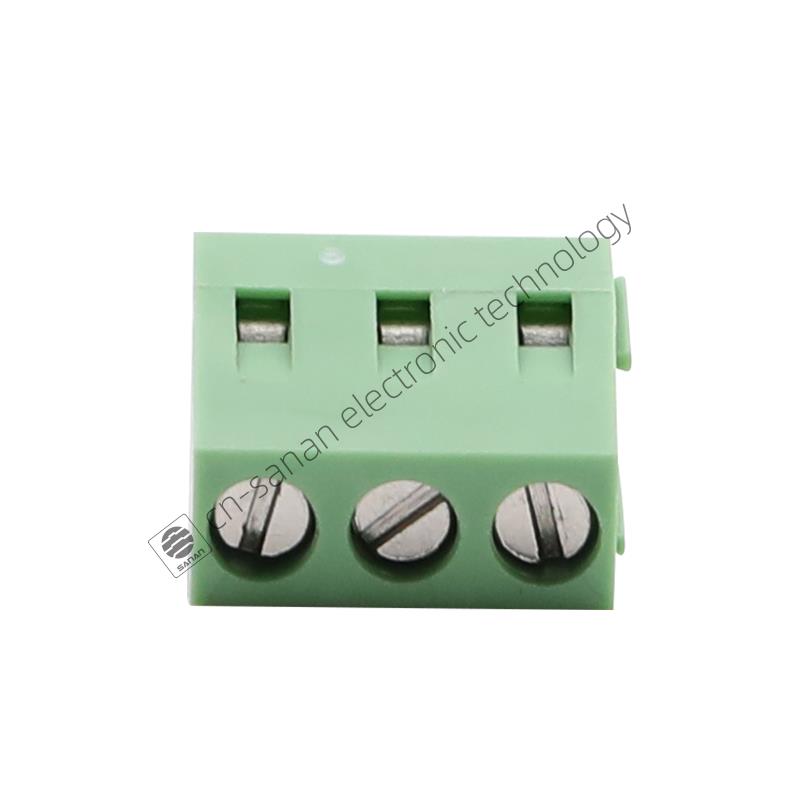

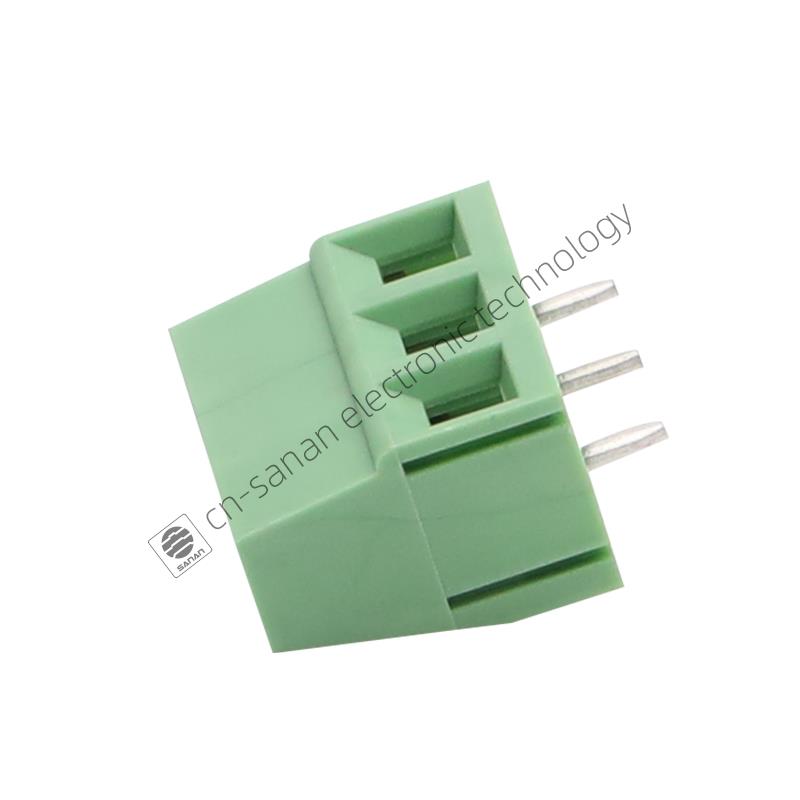

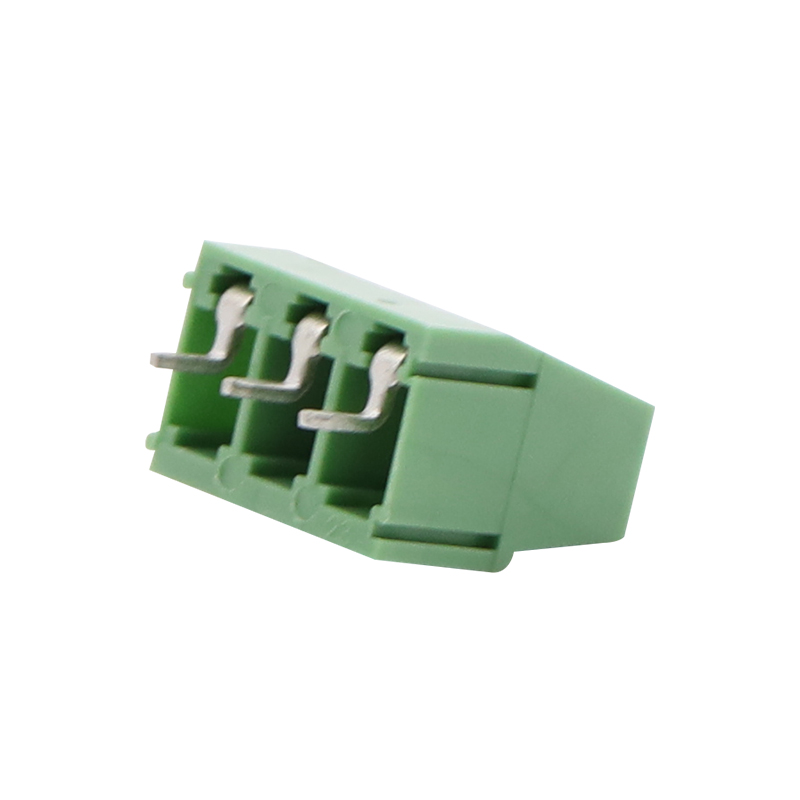

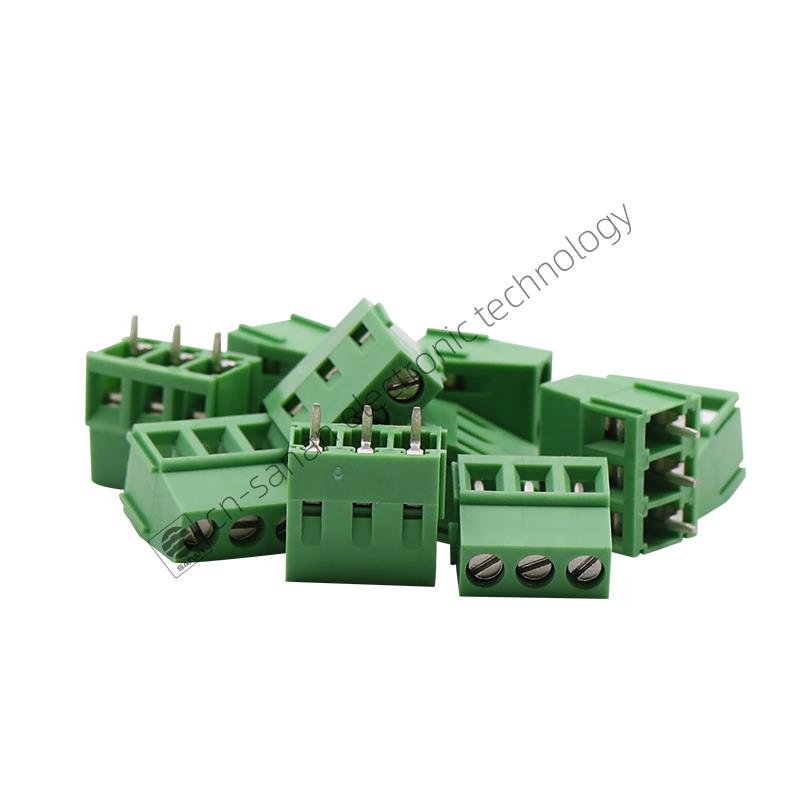

Details of Control System PCB Terminal Block 5.0MM


Drawing of Control System PCB Terminal Block 5.0MM



Packing of Control System PCB Terminal Block 5.0MM

According to Standard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
