Products

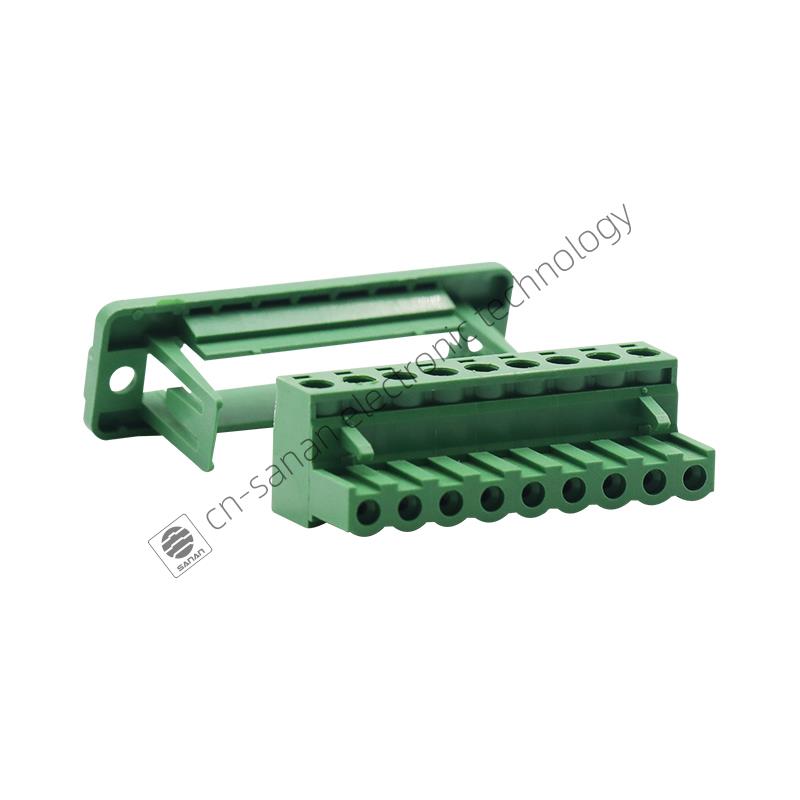

9P Through Wall Terminal Block
Sanan Electrical Technology Co.Ltd was established in 2003 in China.We are manufacturer who mainly produce electronic components, terminal block is one of them, we have screw terminal blocks, plug-in terminal blocks,through wall terminal blocks and spring terminal blocks etc.The following is the introduction of 9P Through Wall Terminal Block, hoping to help you better understand 9P Through Wall Terminal Block. Welcome new and old customers to continue to cooperate with us to create a better future!
Model:2ESAK-5.0/5.08
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.
Feature
●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of 9P Through Wall Terminal Block
| Product name | 9P Through Wall Terminal Block |
| Material | Plastic / copper |
| Color | Green |
| Contact | Form 2P-8P(accept customization ) |
| AWG | 26~12AWG |
| Strip length | 6mm |
| Rated voltage | 300V |
| Conductor cross section solid | 0.5~2.5mm² |
| Pitch | 5mm/5.08mm(accept customization) |
| Contact surface | Tin |
| Weight | 4.5g(depends the contacts) |
| MOQ | 500pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Type of installation | PCB welding |
| Connection method | Screw connection |
| Pin arrangement | Single row in a straight line |
| Ambient temperature (operation) | -40℃~105℃ |
Application of 9P Through Wall Terminal Block
Product details of 9P Through Wall Terminal Block
Drawing
Packing of pluggable terminal block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
