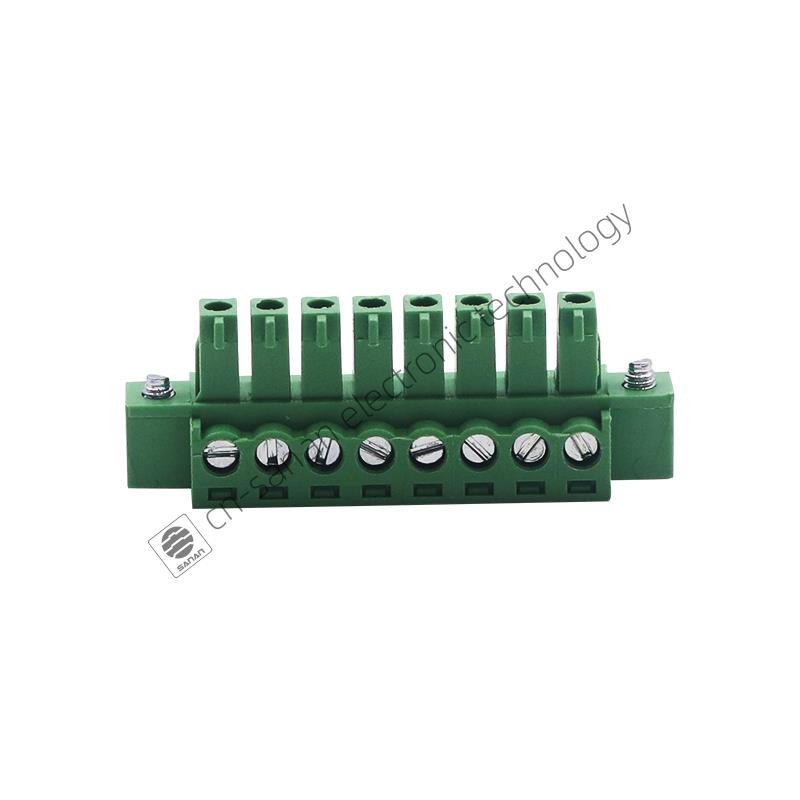

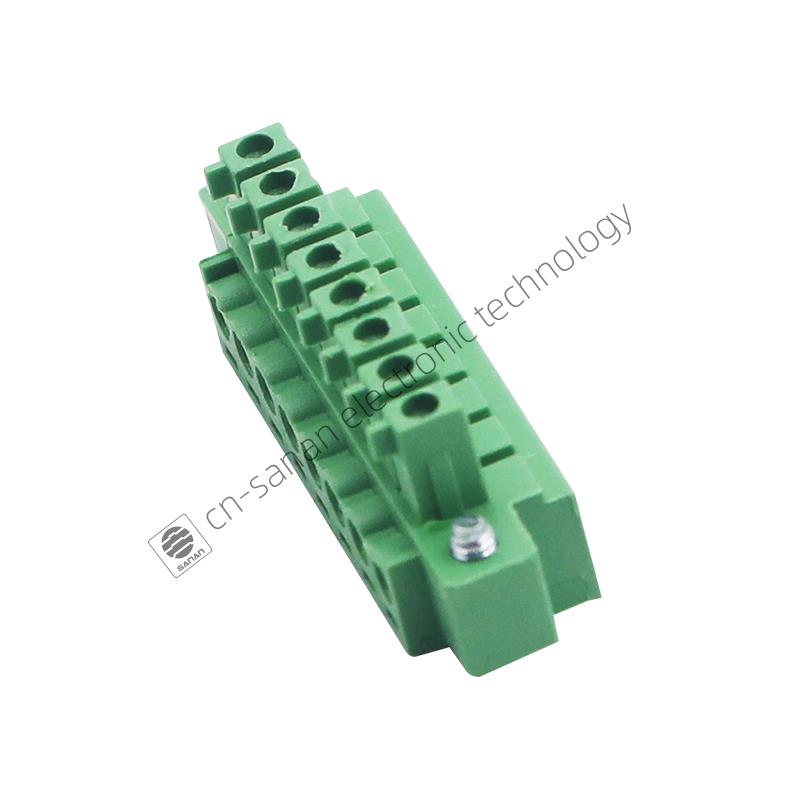

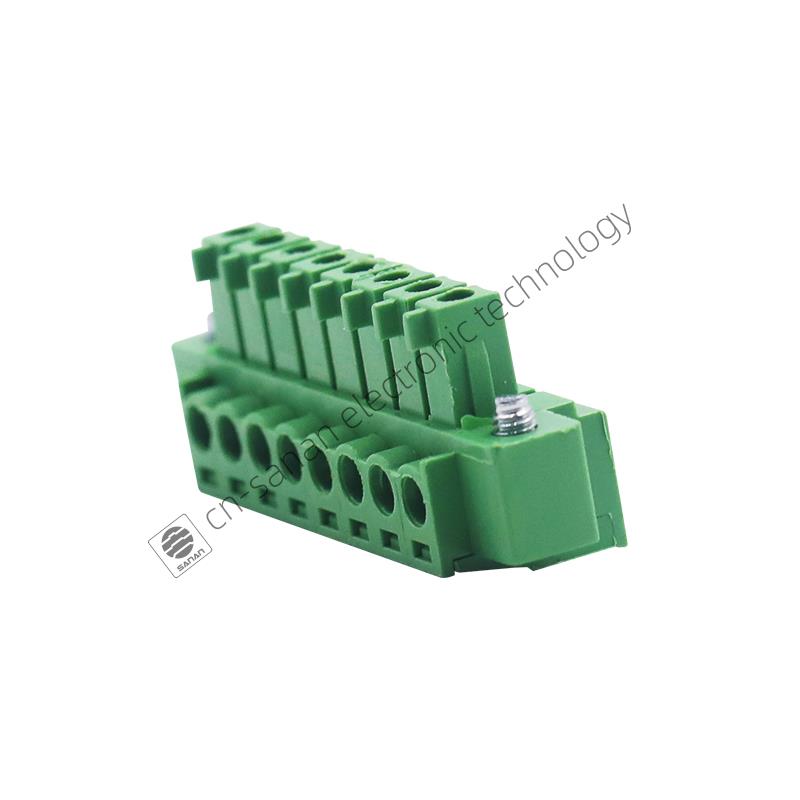

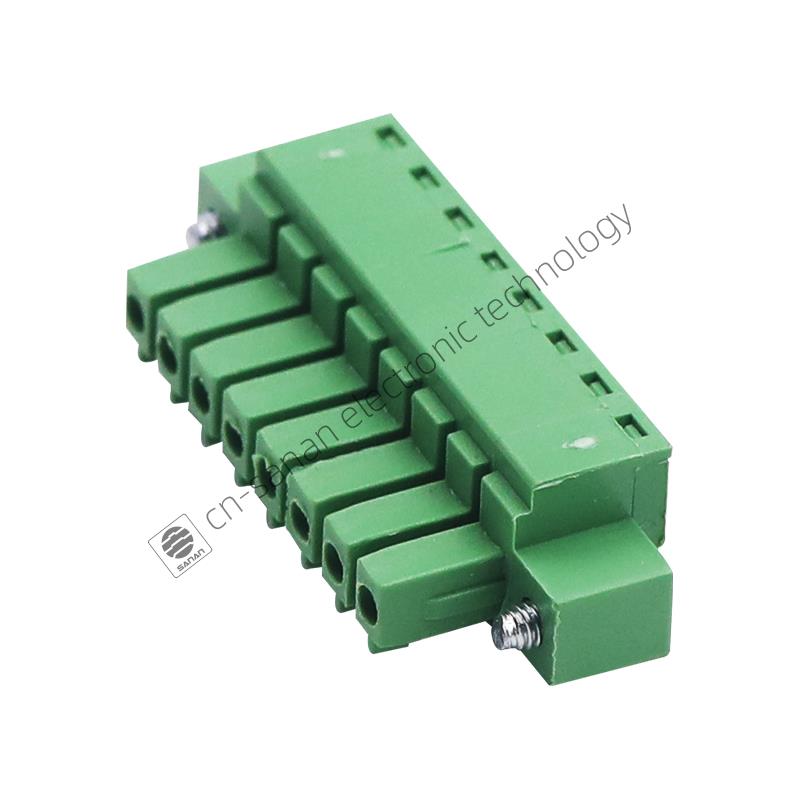

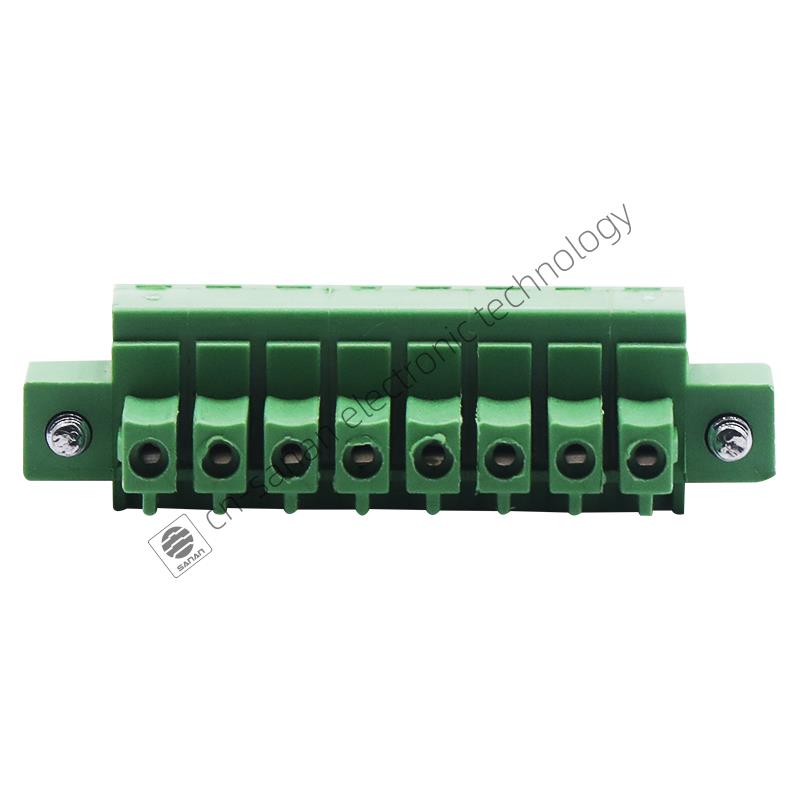

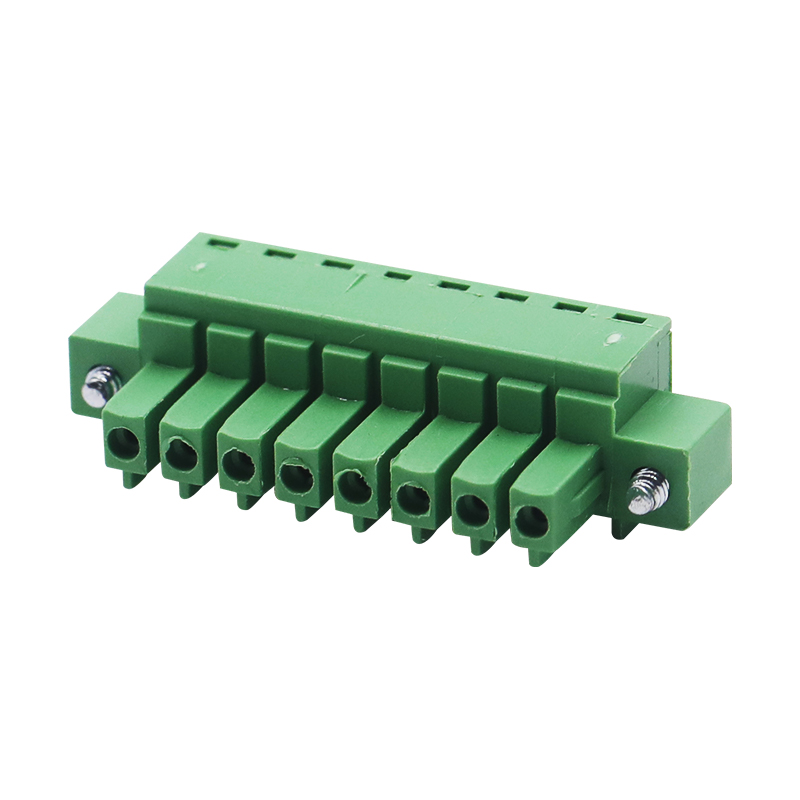

8P Pitch 3.5mm 3.81mm Pluggable Terminal Block

Sanan Electronic Technology Co,Ltd.is a manufacturer engaged in the production of termianl block connectors in China.We have outstanding technical staff with advanced management. Our company already has more than 20 years experience in the field of industry automation. We have focused on product development,assembling finished product and others.As a professional high quality 8P Pitch 3.5mm 3.81mm Pluggable Terminal Block manufacture, you can rest assured to buy 8P Pitch 3.5mm 3.81mm Pluggable Terminal Block from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.

Feature

●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of 8P Pitch 3.5mm 3.81mm Pluggable Terminal Block

Product name Pluggable terminal block
Material Plastic / copper
Color Green
Contact Form 2P-20P(accept customization )
AWG 28~16AWG
Strip length 7mm
Rated voltage 300V
Rated current 8A
Conductor cross section solid 0.5~1.5mm²
Pitch 3.5mm 3.81mm
Weight 6g(depends the contacts)
MOQ 500pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

Application of pluggable terminal block



Product details


Drawing



Packing of pluggable terminal block

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
