7.5MM Screw Terminal Blocks For PCB

Sanan Electrical Co,ltd was a manufacturer in China.We mainly produces, 7.5MM Screw Terminal Blocks For PCB,screw terminal, plug-in terminal blocks, din rail enclosure, IO module etc.Through unremitting efforts,our company has rich experience in manufacturing terminal blockscomplete professional production equipment, strict quality control procedures, perfect salesnetwork, and extensive product application examples.At present, Our company has become one of the leading manufacturers of terminal blocks inthe field.Our brand values of fair, effort, innovation, dedication are rooted in all levels of the company.We constantly use new method to create and enhance value for our clients.ln delivering superior value product and services for our clients, we focus on our quality policyand objective that we adopted to capitalize on existing resources and strengths and to providea more structured approach to growing and expanding our business.

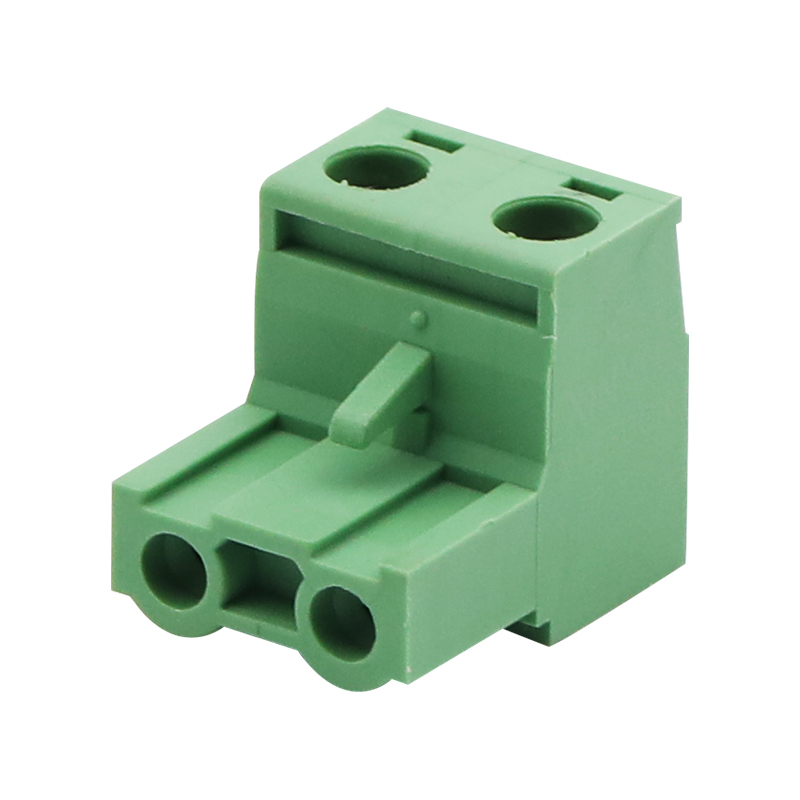

Model:2ESAK-7.5-2P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.

Feature

● Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
● Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
● Universal installation method, suitable for various situations
● PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of 7.5MM Screw Terminal Blocks For PCB

Product name Terminal Blocks For Control System
Material Plastic / copper
Color Green
Contact Form 2P-12P(accept customization )
Type of installation PCB welding
Conductor cross section solid 1.0~2.5mm²
Voltage 300V/15A
Pin arrangement Single row in a straight line
Pitch 7.5mm
AWG 28-12AWG
Strip length 7mm
Connection method Screw connection
Weight 5g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

Details of 7.5MM Screw Terminal Blocks For PCB



Drawing of 7.5MM Screw Terminal Blocks For PCB



Packing of 7.5MM Screw Terminal Blocks For PCB

According to Standard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- International air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
