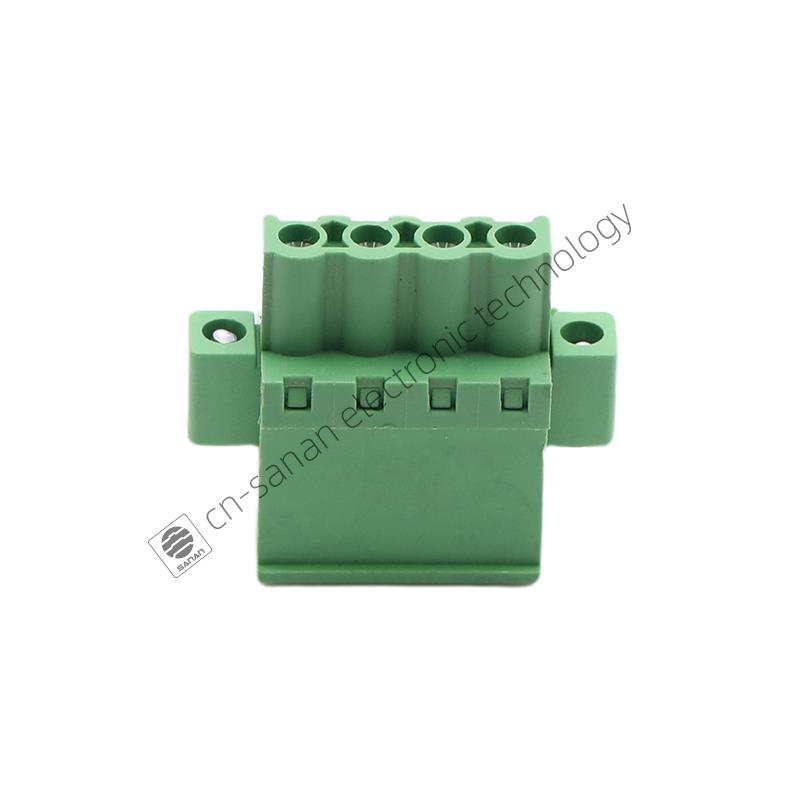

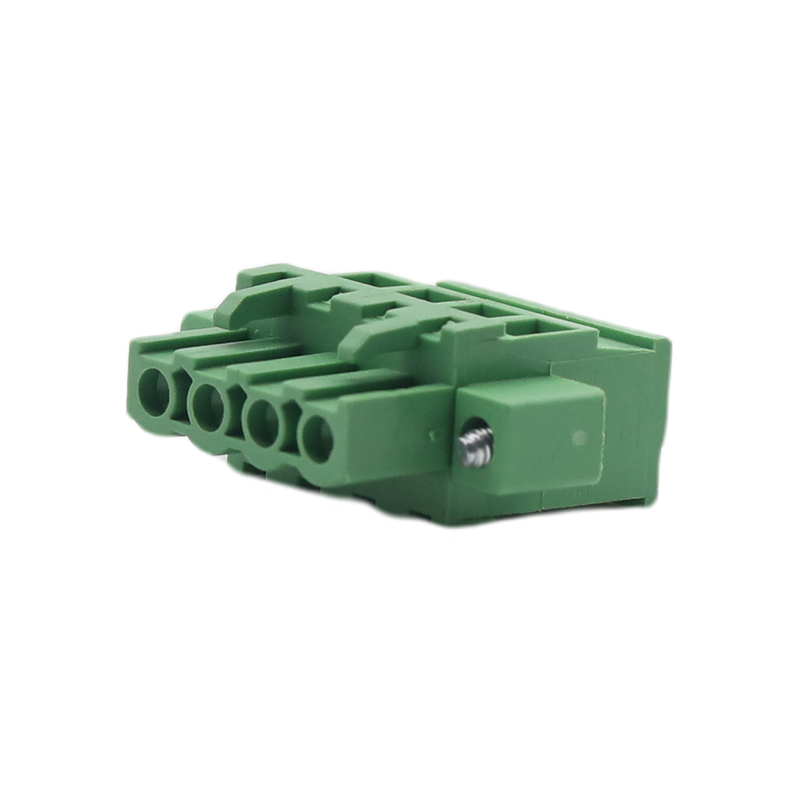

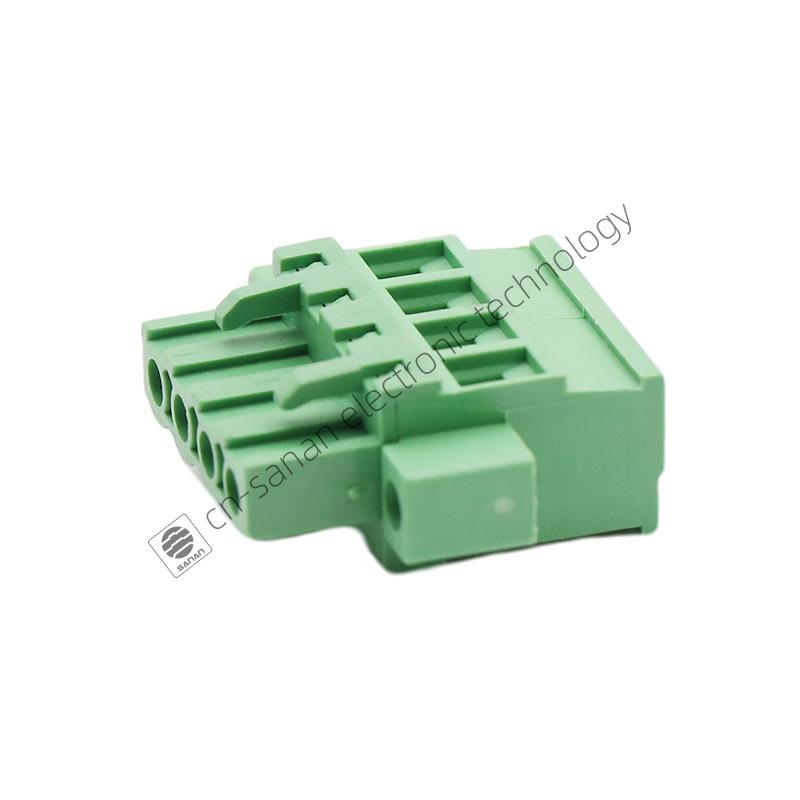

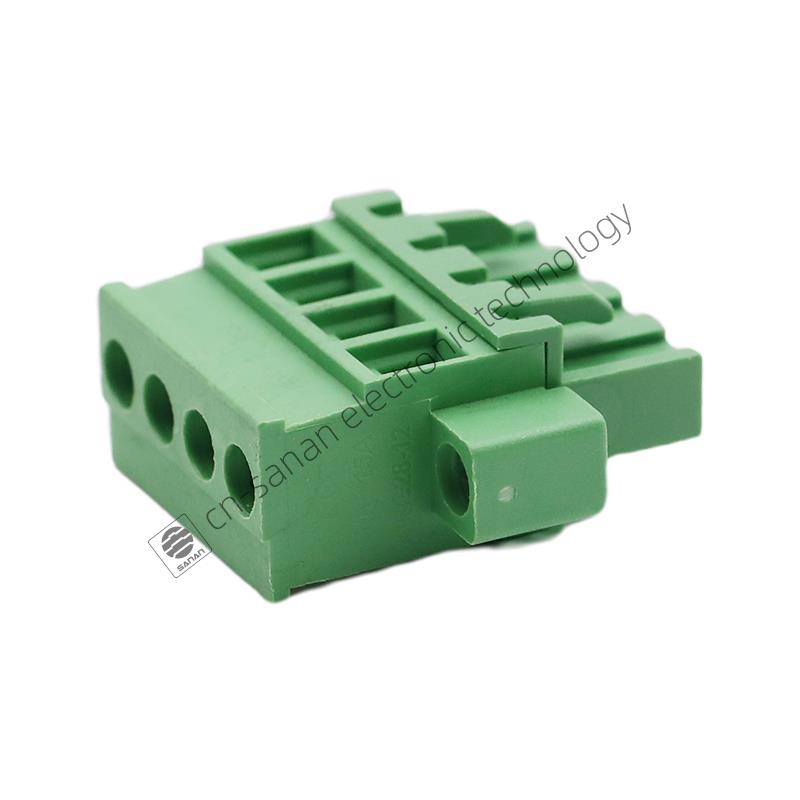

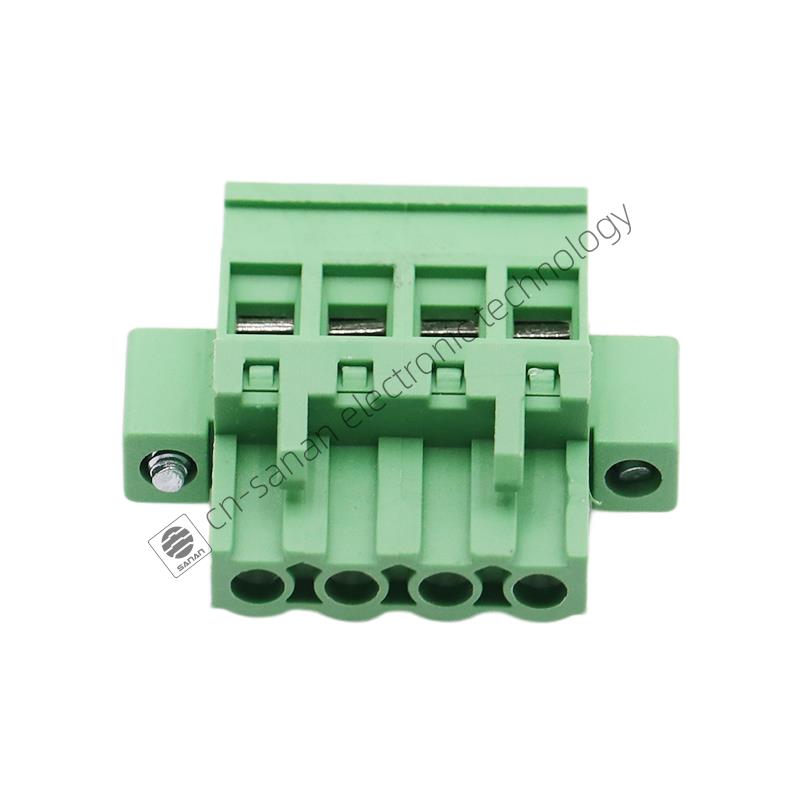

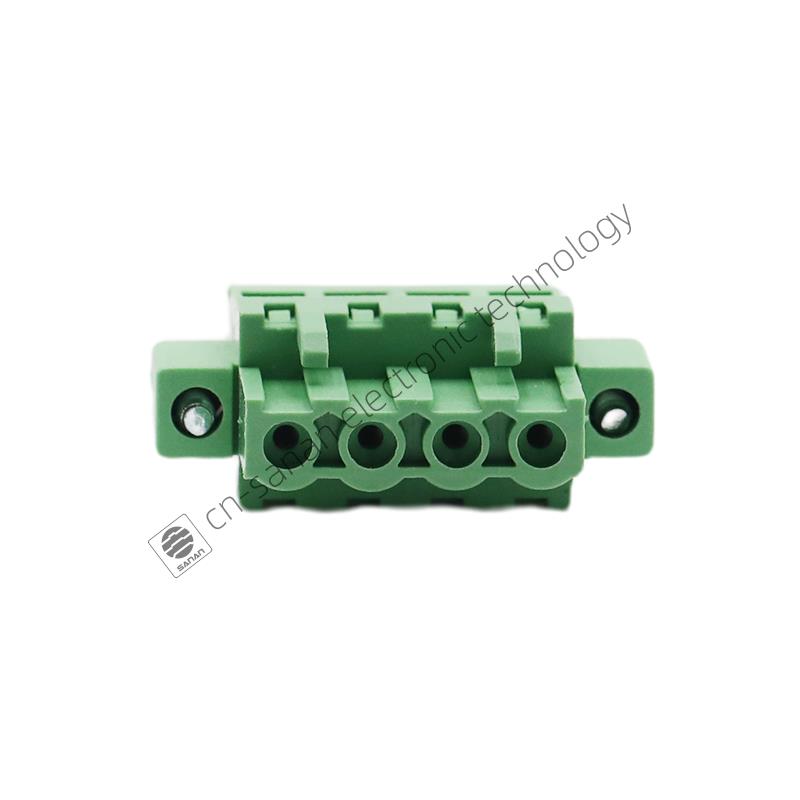

4P Pitch 5.0 5.08 Pluggable Terminal Block

Sanan is a professional manufacturer engaged in the research , development ,design , production and sales service of terminal blocks, who are widely used in power control, automation control, elevator, instrumentation,communication etc, in order to provide high quality service for our customers, we build up the management system(ISO)and products passed (UL, CE, ROSH etc), we always keep the customers’ need at first, and hope we can offer them the best solution.As the professional manufacture, we would like to provide you high quality 4P Pitch 5.0 5.08 Pluggable Terminal Block. And we will offer you the best after-sale service and timely delivery.

Model:2ESAKAM-5.0/5.08MM-4P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.

4P Pitch 5.0 5.08 Pluggable Terminal Block Feature

●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of Pluggable Terminal Block

Product name Pluggable terminal block
Material Plastic / copper
Color Green
Contact Form 2P-20P(accept customization )
AWG 28~12AWG
Strip length 7mm
Rated voltage 300V
Conductor cross section solid 1.0~2.5mm²
Pitch 5mm/5.08mm(accept customization)
Contact surface Tin
Weight 4.5g(depends the contacts)
MOQ 500pieces
Brand OEM
Packing Natural packing or customization
Type of installation PCB welding
Pin arrangement Single row in a straight line
Ambient temperature (operation) -40℃~105℃

Application of pluggable terminal block



Product details



Drawing



Packing of pluggable terminal block

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
