3.81MM Pluggable Terminal Blocks Female
  • 3.81MM Pluggable Terminal Blocks Female3.81MM Pluggable Terminal Blocks Female
  • 3.81MM Pluggable Terminal Blocks Female3.81MM Pluggable Terminal Blocks Female
  • 3.81MM Pluggable Terminal Blocks Female3.81MM Pluggable Terminal Blocks Female
  • 3.81MM Pluggable Terminal Blocks Female3.81MM Pluggable Terminal Blocks Female
  • 3.81MM Pluggable Terminal Blocks Female3.81MM Pluggable Terminal Blocks Female
  • 3.81MM Pluggable Terminal Blocks Female3.81MM Pluggable Terminal Blocks Female

3.81MM Pluggable Terminal Blocks Female

Ningbo San'an Electronic Technology Co., Ltd. is a leading manufacturer of high quality industrial control components, such as terminal Blocks, 3.81MM Pluggable Terminal Blocks Female, 81MM Pluggable Terminal Blocks Female Type,IO modules For Digital remote control, Din Rail enclosures etc. San'an offers a complete range of control components which are reliable, competitive and compliant with all standards. Our manufacturing facilities are ISO9001:2000 certified and the majority of our products are certified by UL,CE and IOS standards. Our products are the right choices for your applications, We are committed to delivering world-class products and services efficiently and effectively to our customers and your total satisfaction is our goal. As an established member in the industry, we will continue our endeavors in delivering better products and services to our new and old customers.

Model:15ESARC-3.81-2P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.

Feature

●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.

Product specification of 3.81MM Pluggable Terminal Blocks Female

Product name 3.81MM Pluggable Terminal Blocks Female
Material Plastic / copper
Color Green
Contact Form 2P-18P(accept customization )
Type of installation PCB welding
Connection direction 90°
Rated voltage/current 250V/7A
Pin arrangement Single row in a straight line
Pitch 3.81mm
Weight 5g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

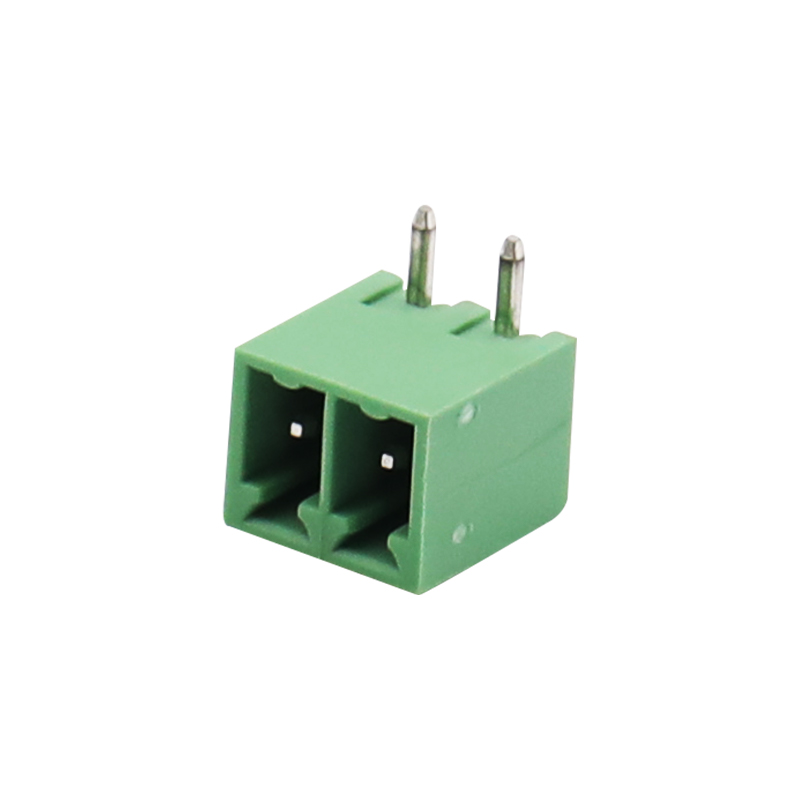

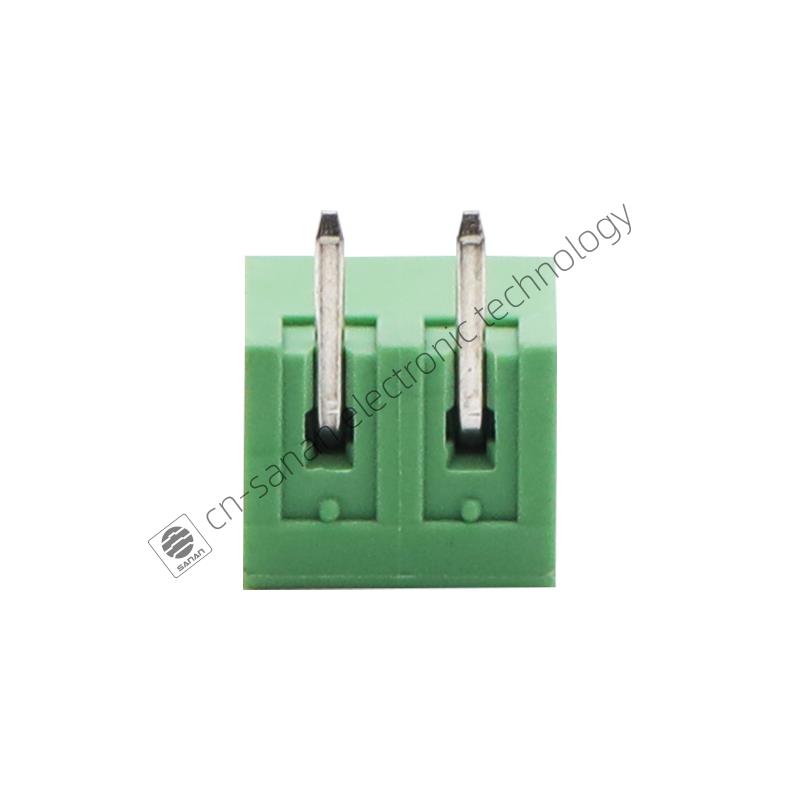

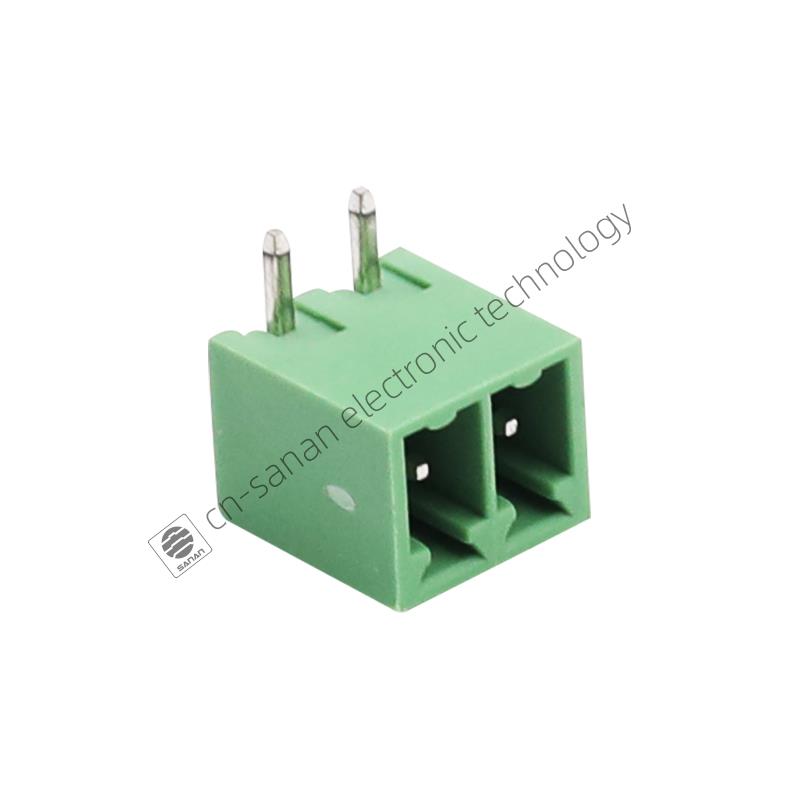

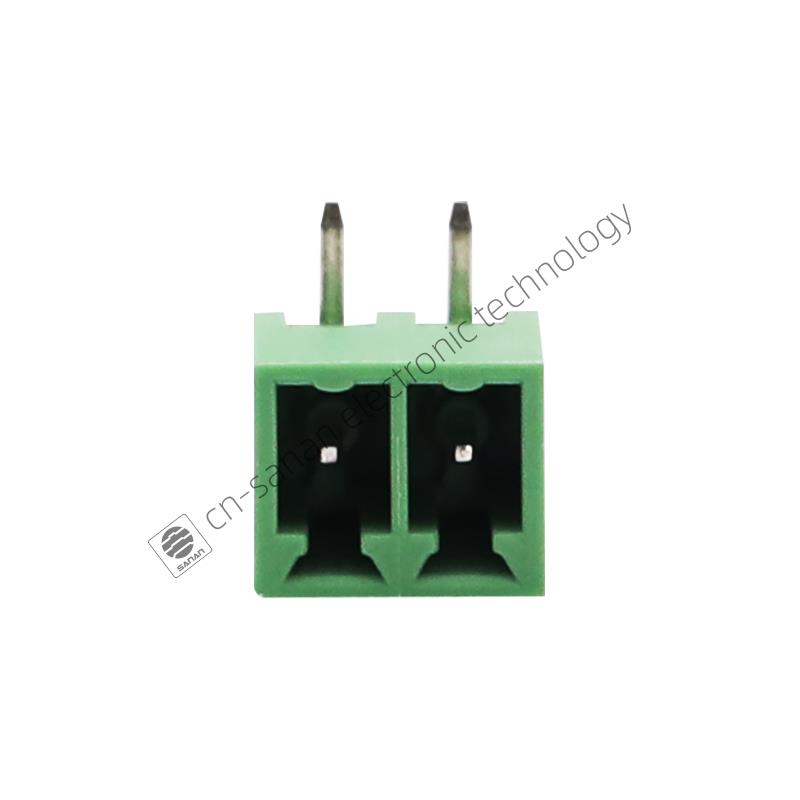

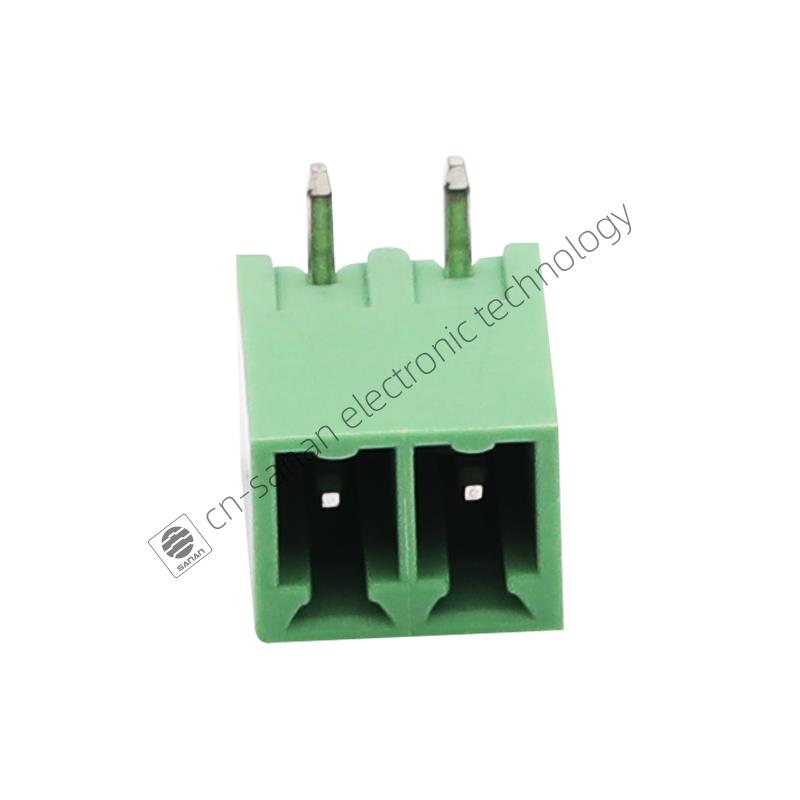

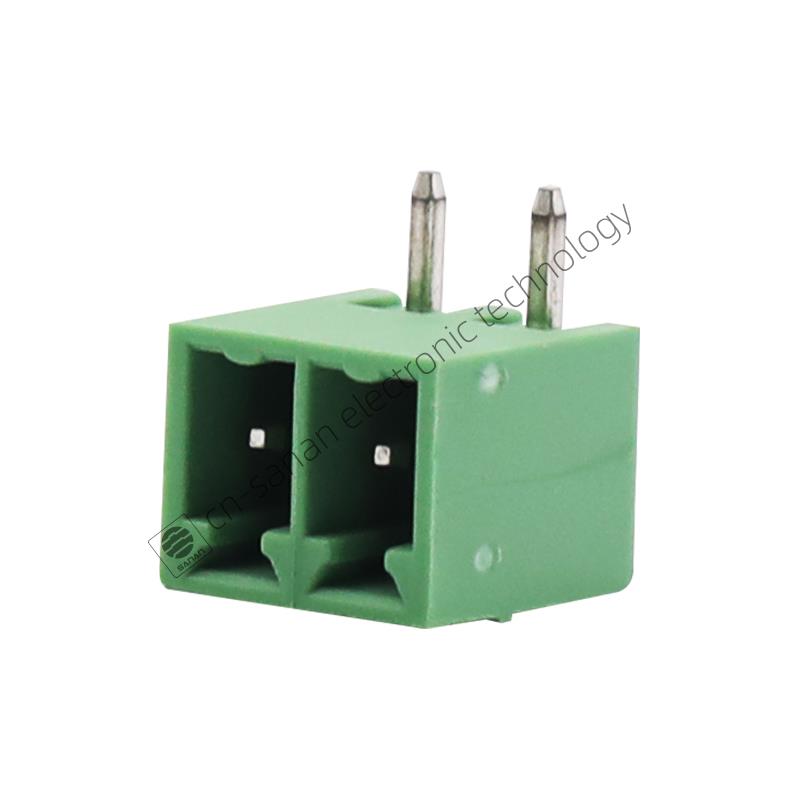

Details of 3.81MM Pluggable Terminal Blocks Female



Drawing of 3.81MM Pluggable Terminal Blocks Female



Packing of 3.81MM Pluggable Terminal Blocks Female

According to Standard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- International air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
