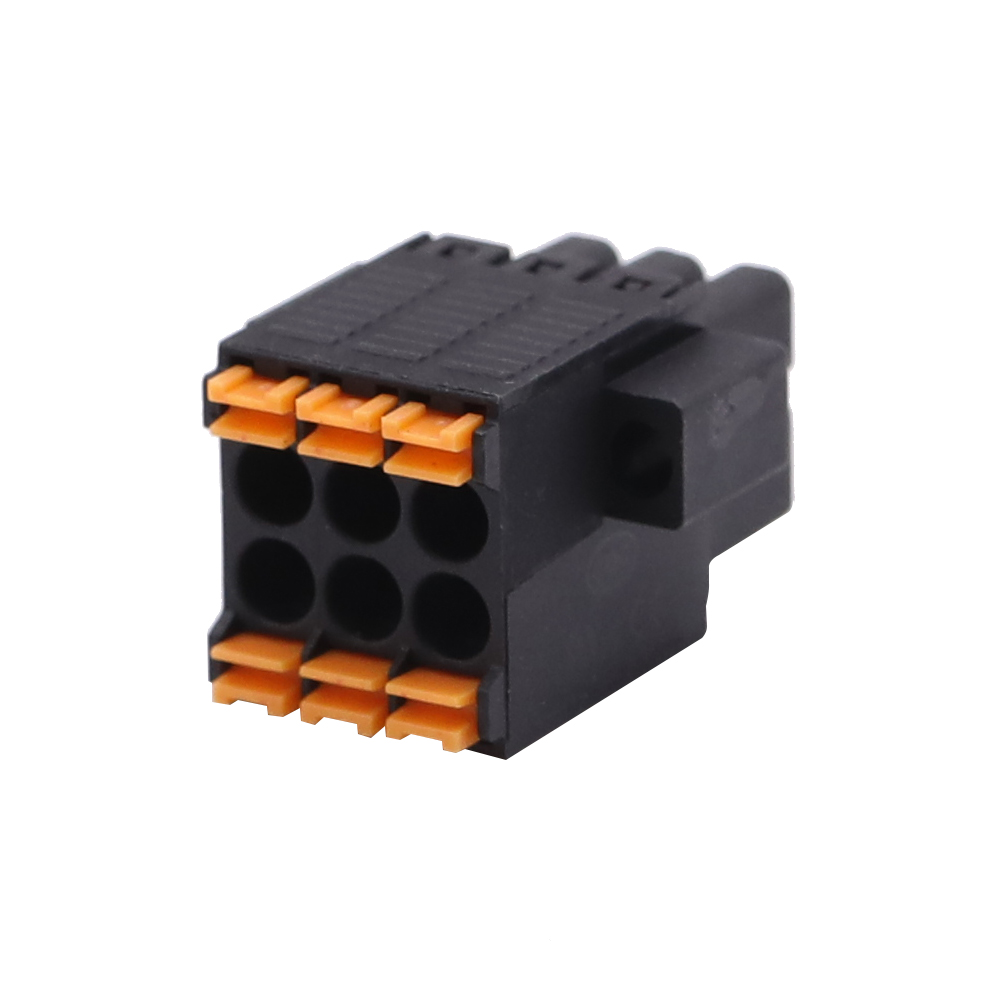

3.5mm Pluggable Terminal Block With Flange

Sanan Electronics Technology Co., Ltd. specialized in 3.5mm Pluggable Terminal Block With Flange, PCB terminal block and control system enclosures, IO modules with good quality and competitive price. Founded in 2020,Sanan has been committed to technical, manufacture and product innovation in connector industrial line.Sanan products are widely used in lighting, building and electric power system. We have professional RD team and exploit 5 to 10 new products every year. We have a very strict quality controlling system which promisesthe products that we produced are always of the best quality. OEM and ODM are our basic service.We sincerely welcome customers at home and abroad to cooperation negotiation of trade and investment.

Model:15ESAKNHM-3.5-6P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation. Our KNH serises are suitable for SMT welding process, to help clients to in the PCB welding.

Feature

●Suitable for SMT welding process
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density

Product specification of 3.5mm Pluggable Terminal Block With Flange

Product name 3.5mm Pluggable Terminal Block With Flange
Material Plastic / copper
Color Black
Contact Form 4P-40P(accept customization )
Pitch 3.5mm
Rated voltage 300V 10A
AWG 24~16AWG
Strip length 10mm
Conductor cross section solid 0.2~2.5mm²
Pin arrangement Double-row in a straight line
Type of installation PCB welding
Weight 8g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Insulation Materials PA66

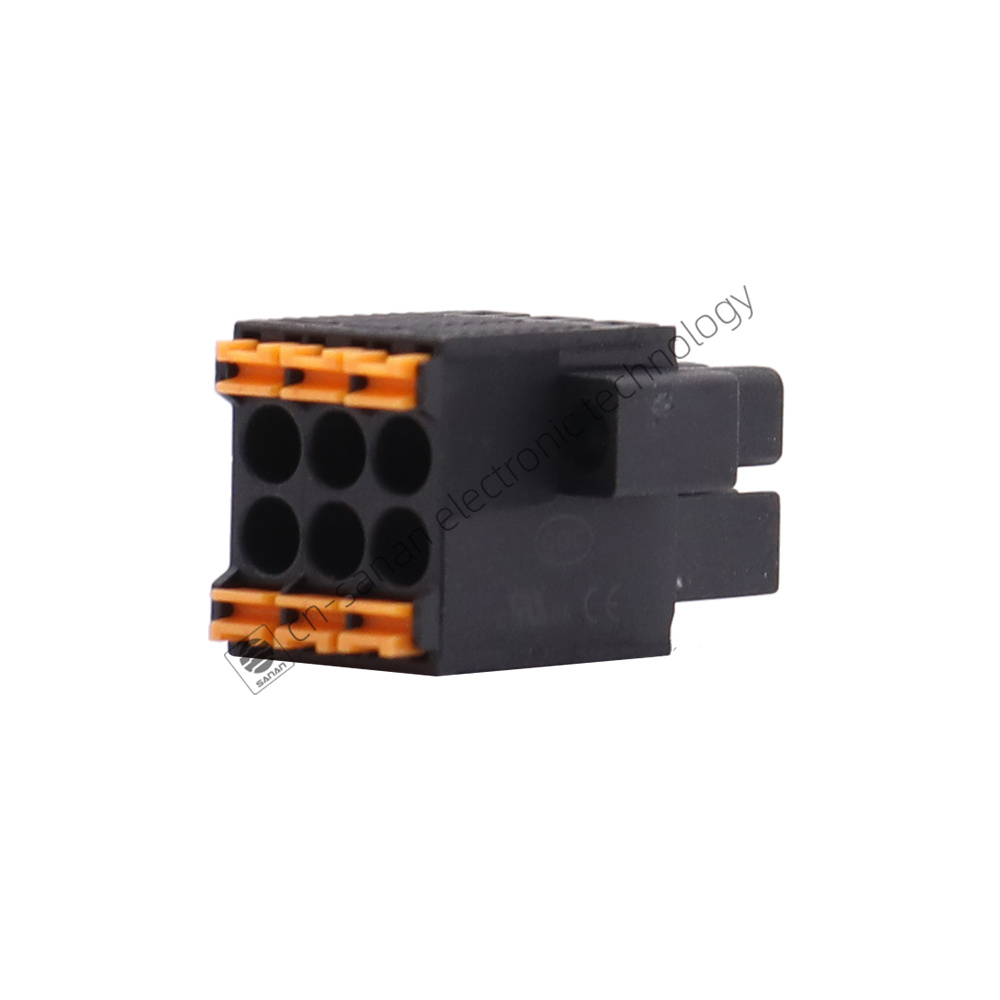

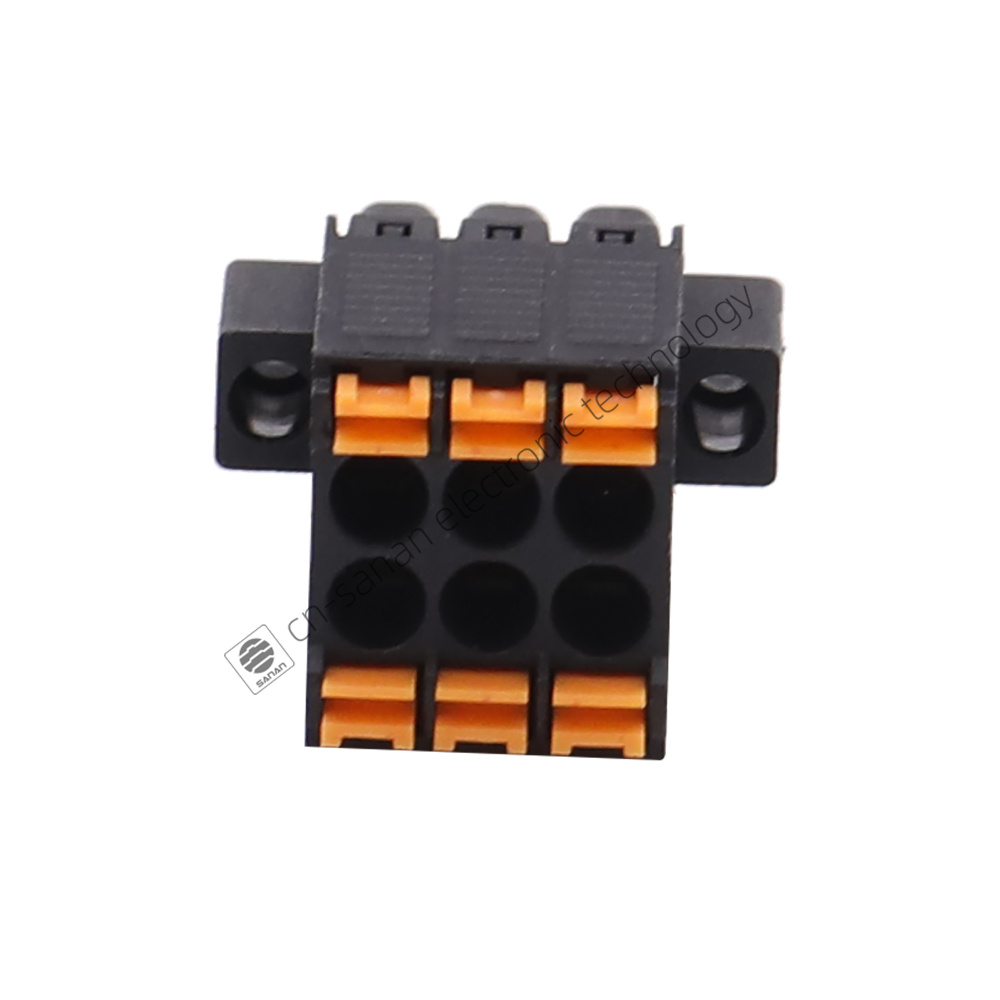

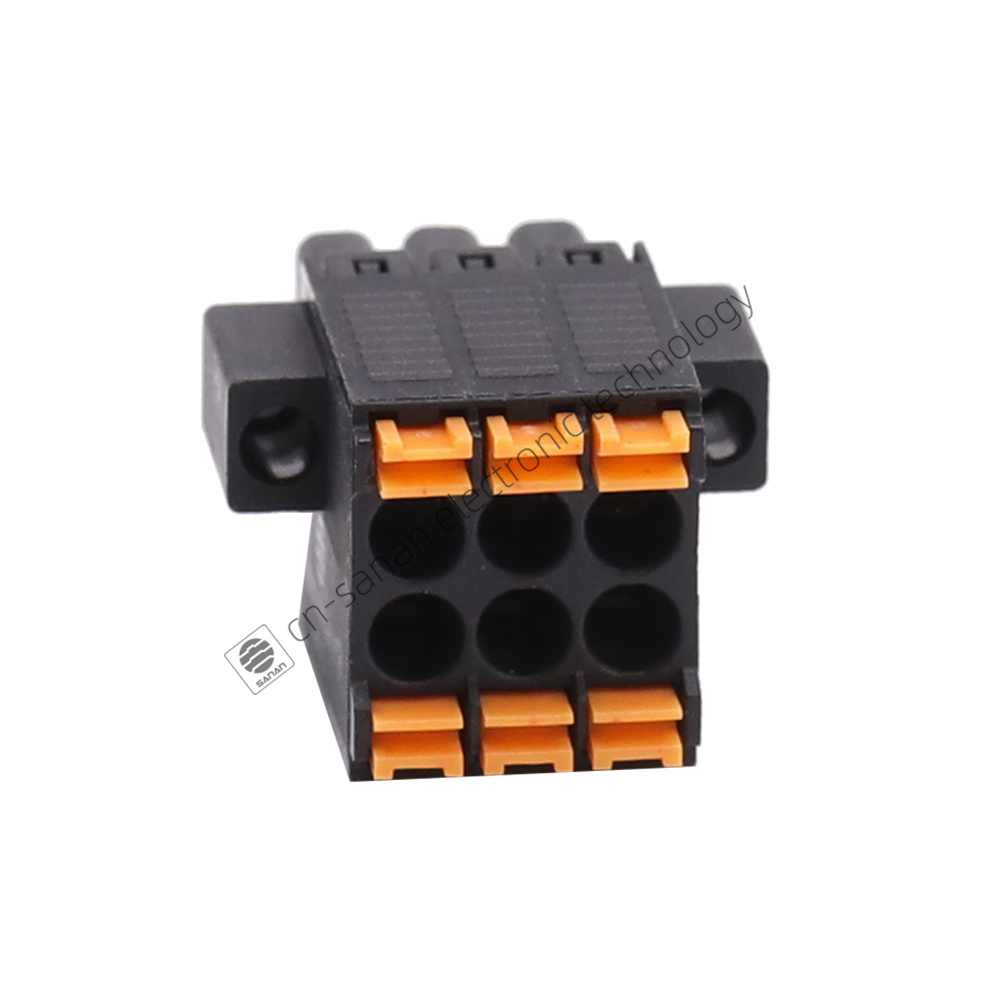

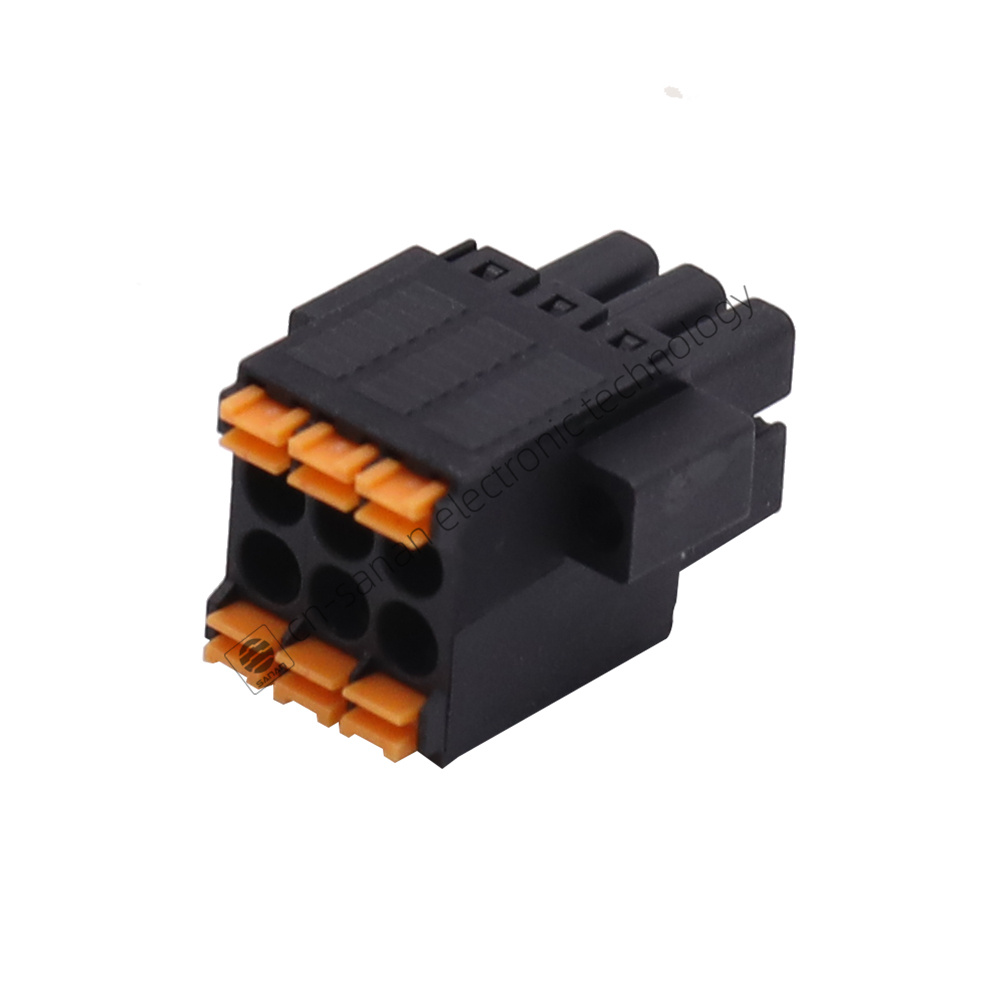

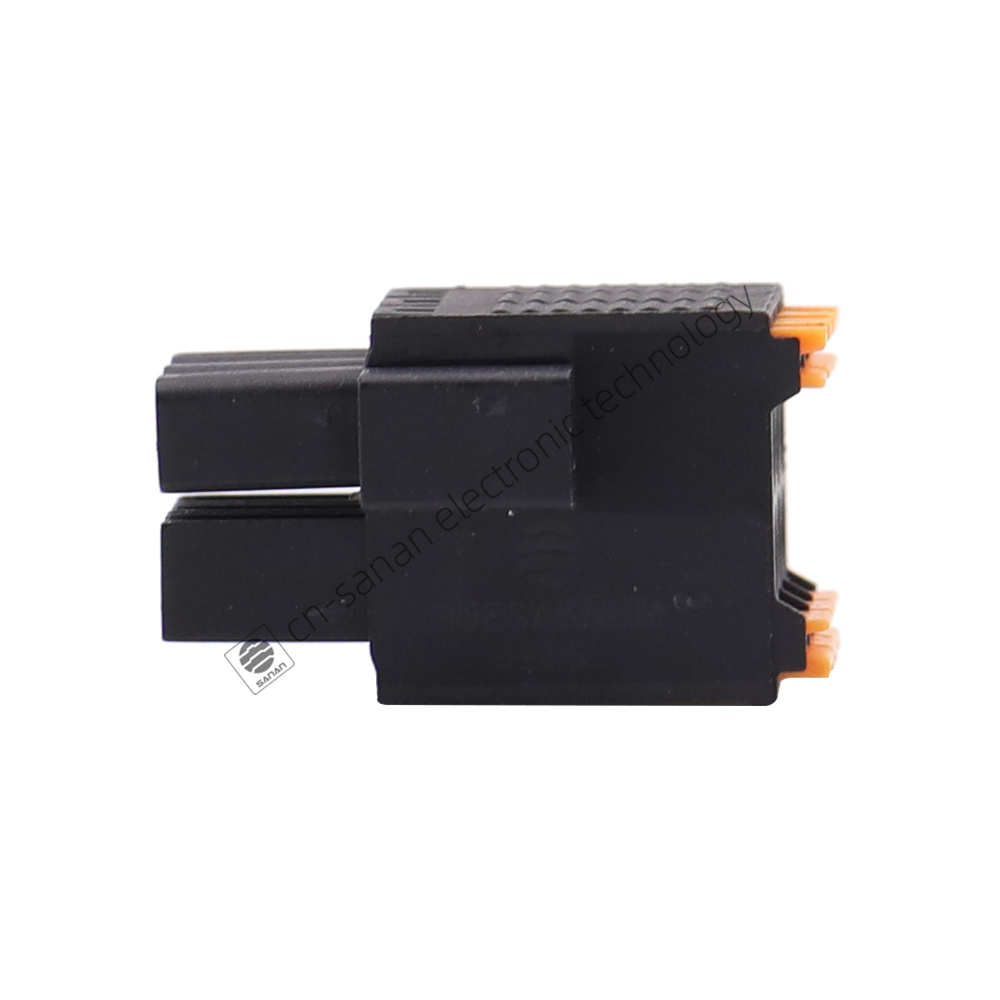

Details Of 3.5mm Pluggable Terminal Block With Flange


Drawing of 3.5mm Pluggable Terminal Block With Flange



Packing of 3.5mm Pluggable Terminal Block With Flange

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping of 3.5mm Pluggable Terminal Block With Flange

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
