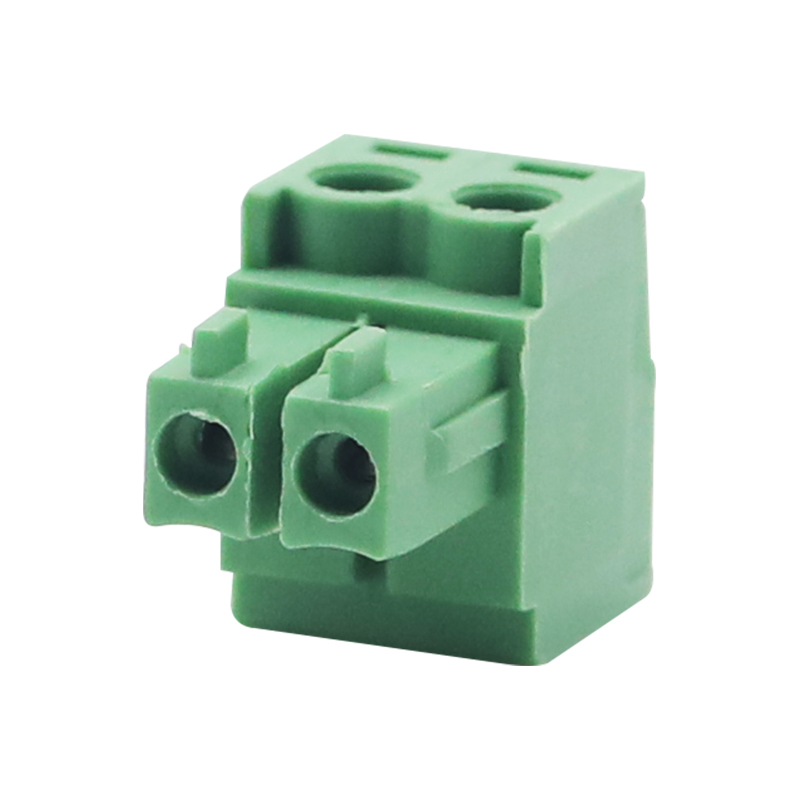

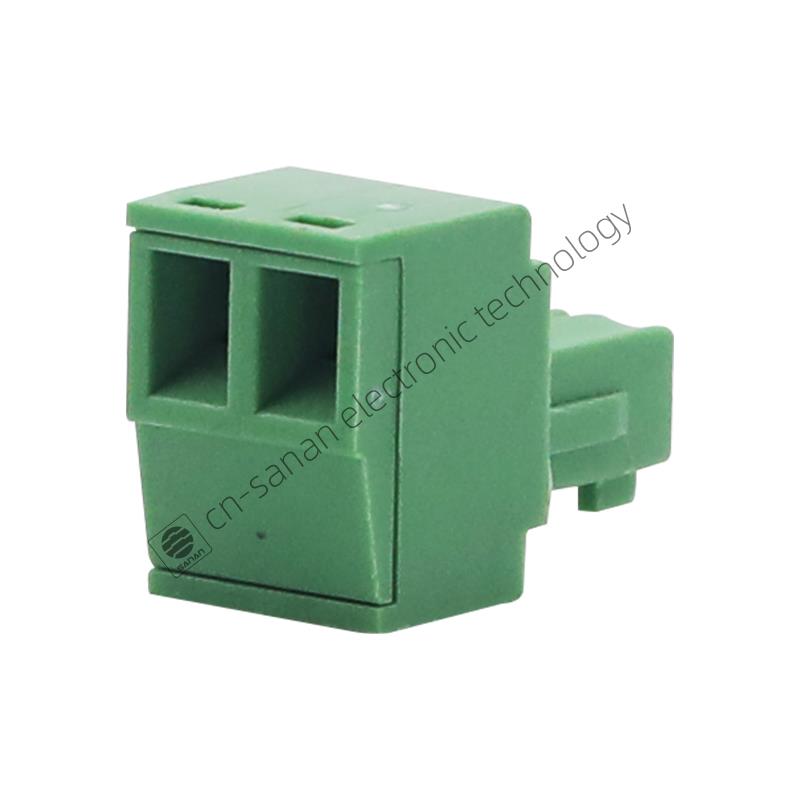

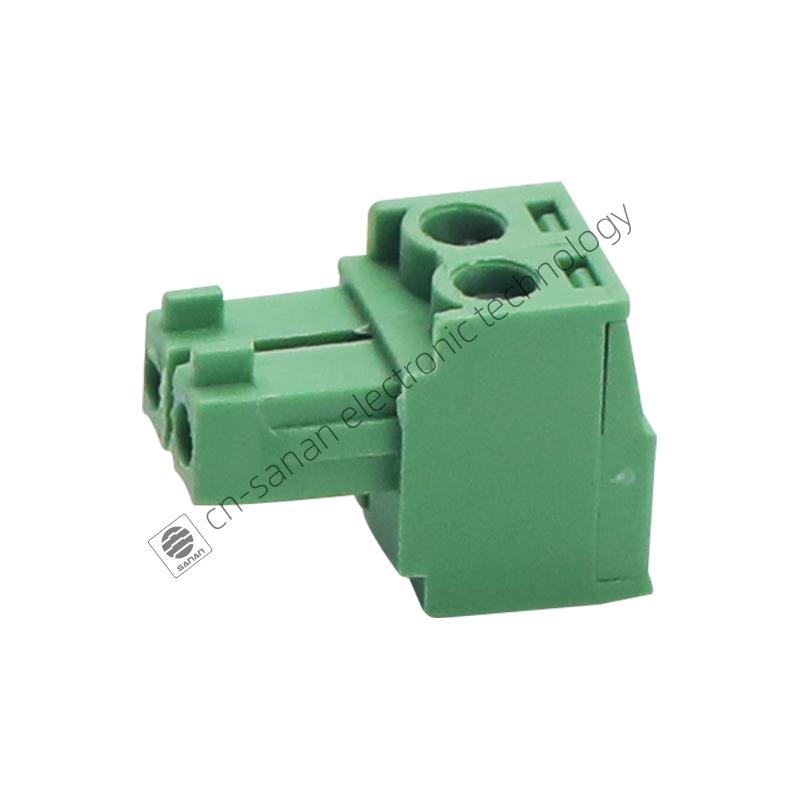

2 Position Pluggable Terminal Block
Sanan Electronics Co,.Ltd was manufacturer located in Ningbo which close to Shanghai.The company specialized in terminal block &electronic components. We are committed to creating a complete solution for the terminals and connectors for customers around the world.As the professional manufacture, we would like to provide you high quality 2 Position Pluggable Terminal Block. And we will offer you the best after-sale service and timely delivery.
Model:15ESAK-3.5/3.81-2P
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.
Feature
●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of 2 Position Pluggable Terminal Block
| Product name | Pluggable terminal block |
| Material | Plastic / copper |
| Color | Green |
| Contact | Form 2P-22P(accept customization ) |
| AWG | 28~12AWG |
| Strip length | 7mm |
| Rated voltage | 300V |
| Conductor cross section solid | 0.2~2.5mm² |
| Pitch | 5mm/5.08mm(accept customization) |
| Contact surface | Tin |
| Weight | 3.5g(depends the contacts) |
| MOQ | 500pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Type of installation | PCB welding |
| Pin arrangement | Single row in a straight line |
| Ambient temperature (operation) | -40℃~105℃ |
Application of pluggable terminal block
Product details
Packing of pluggable terminal block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
