2.54mm Spring Pluggable PCB Terminal Block

Sanan Electronics Technology Co., Ltd. foundedin 2020 at Ningbo City China,it is a professional manufacturer specializing in Terminal Blocks,2.54mm Spring Pluggable PCB Terminal Block,Din rail eclsore, IO moduels etc. The products are suitable for Security system,Lighting,automation control, home appliance and soon,which covered both of electronic and electronicapplication.The company make development, production,sales together,have completed processed capability and advanced equipment, mould design, tooling making.injection molding,stamping and assembling all by UL,CE,CQC,and ROHS.The company has always adhereto the quality first, reputation first, customer first. ALL the products are dispatched to American,Europe,Middle East and other countries&areas. We sincerelywelcome customers at home and abroad to cooperationnegotiation of trade and investment.

Model:5ESAKDHM-2.54-20P

Send Inquiry    PDF DownLoad

Product Description


There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner,ideal for a variety of industrial control, automation, and test equipment applications,a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation. Our KNH serises are suitable for SMT welding process, to help clients to in the PCB welding.

Feature

●Suitable for SMT welding process
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density

Product specification of 2.54mm Spring Pluggable PCB Terminal Block

Product name 2.54mm Spring Pluggable PCB Terminal Block
Material Plastic / copper
Color Black
Contact Form 4P-40P(accept customization )
Pitch 2.54mm
Strip length 10mm
AWG 264~14AWG
Conductor cross section solid 0.2~0.5mm²
Rated voltage 150V 4A
Pin arrangement Double-row in a straight line
Type of installation PCB welding
Contact material Copper
Weight 5g(depends the contacts)
MOQ 100pieces
Brand OEM
Packing Natural packing or customization
Ambient temperature (operation) -40℃~105℃
Contact zone metal surface Tin-plated
Insulation Materials PA66

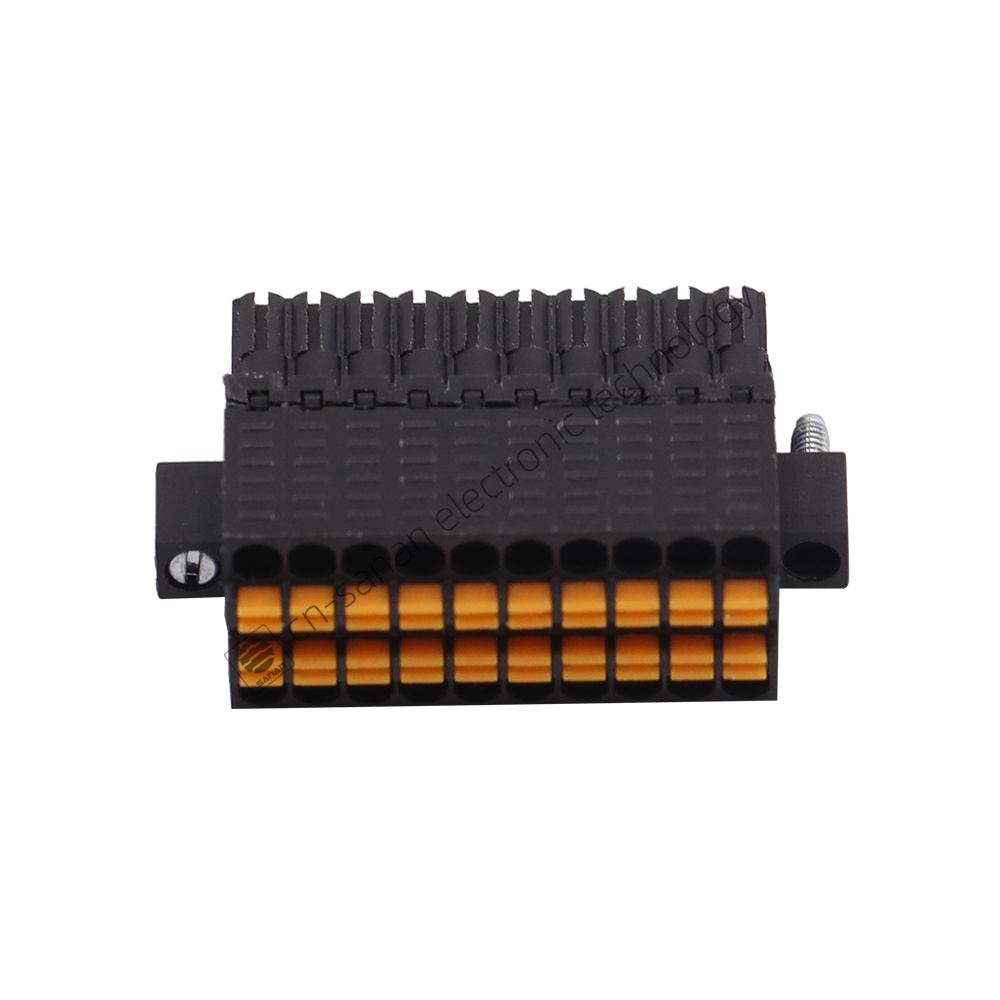

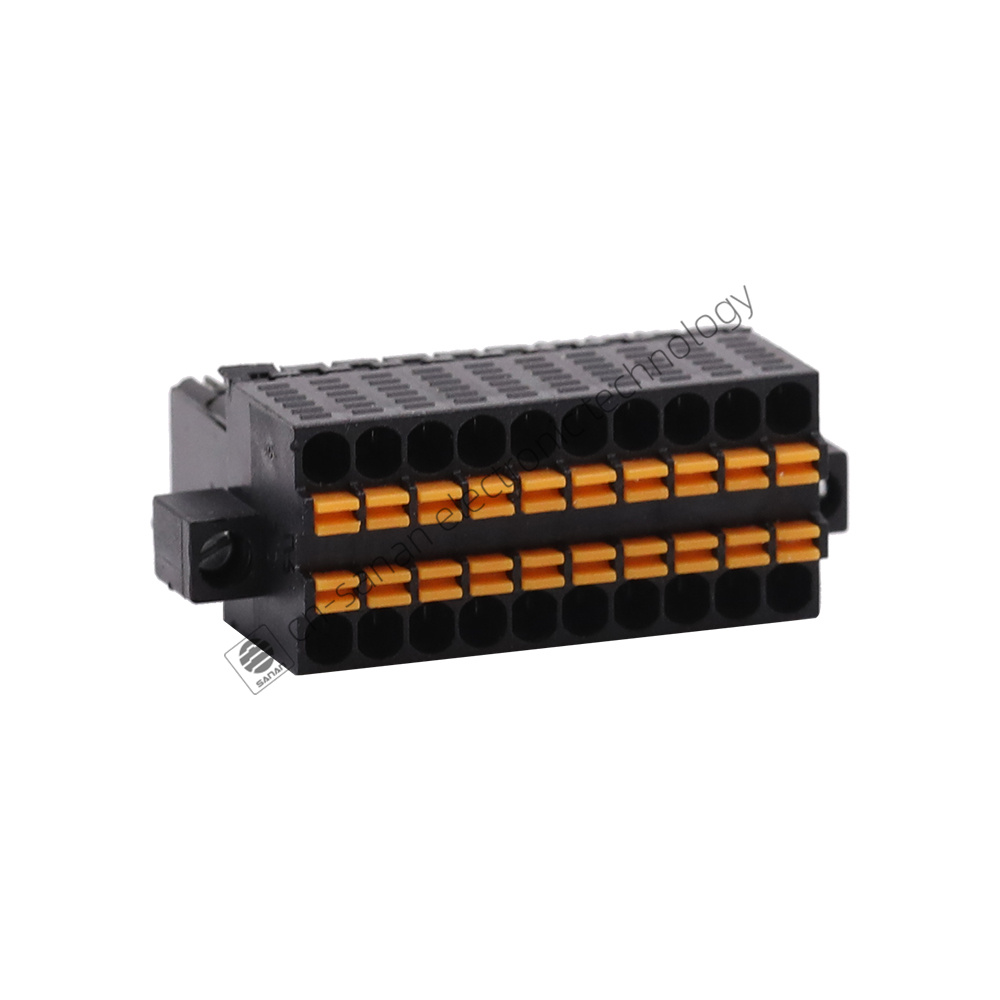

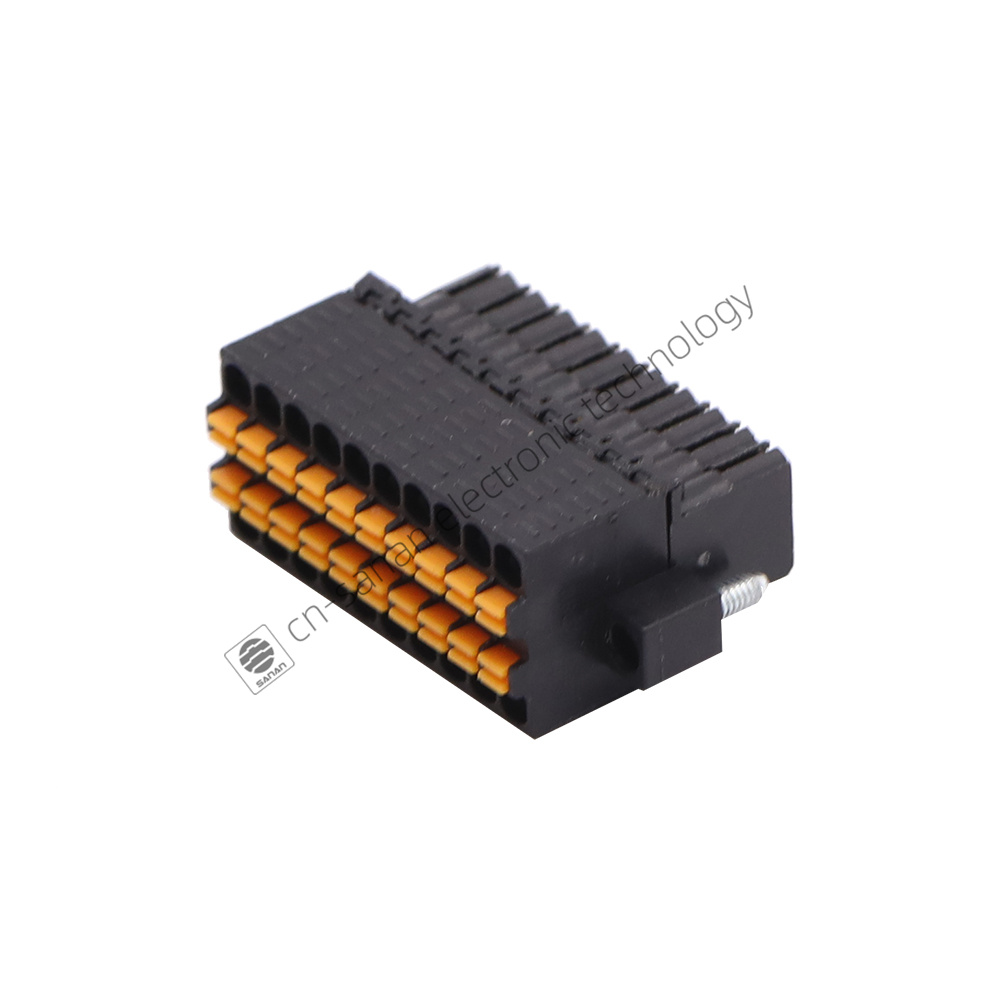

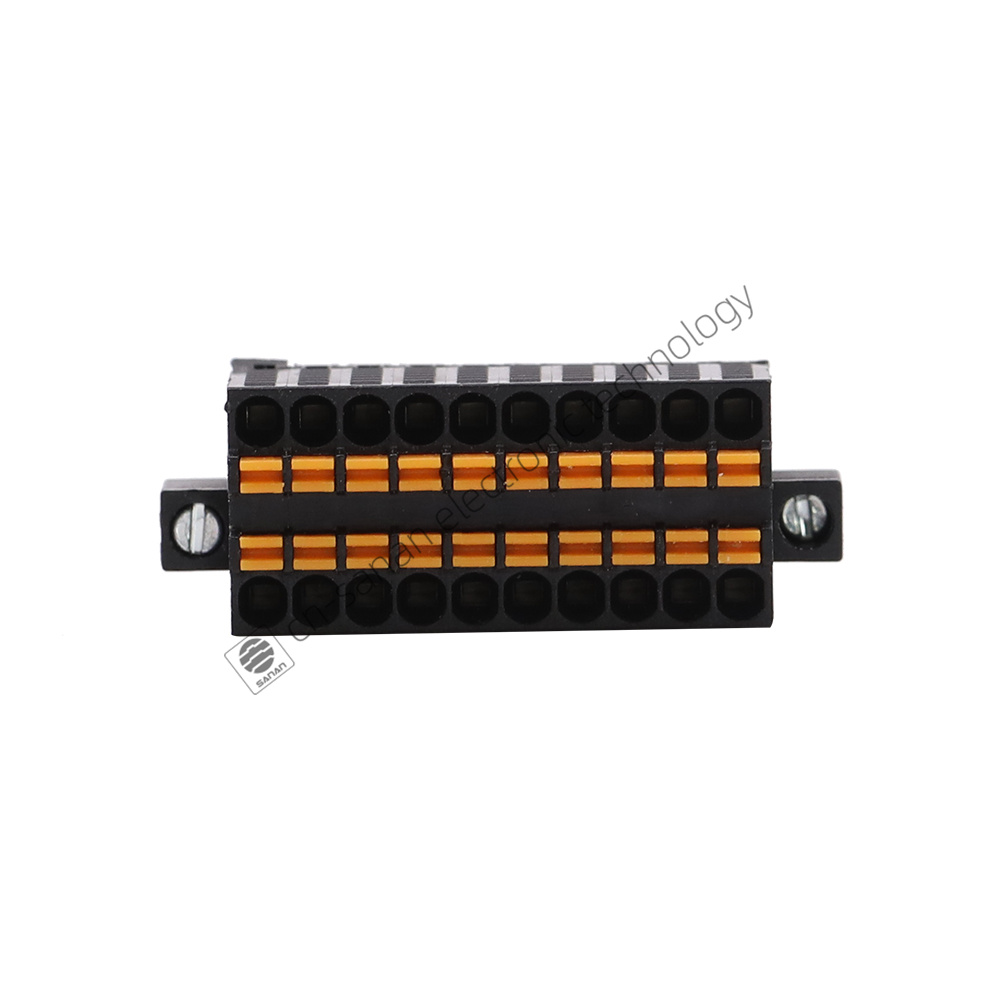

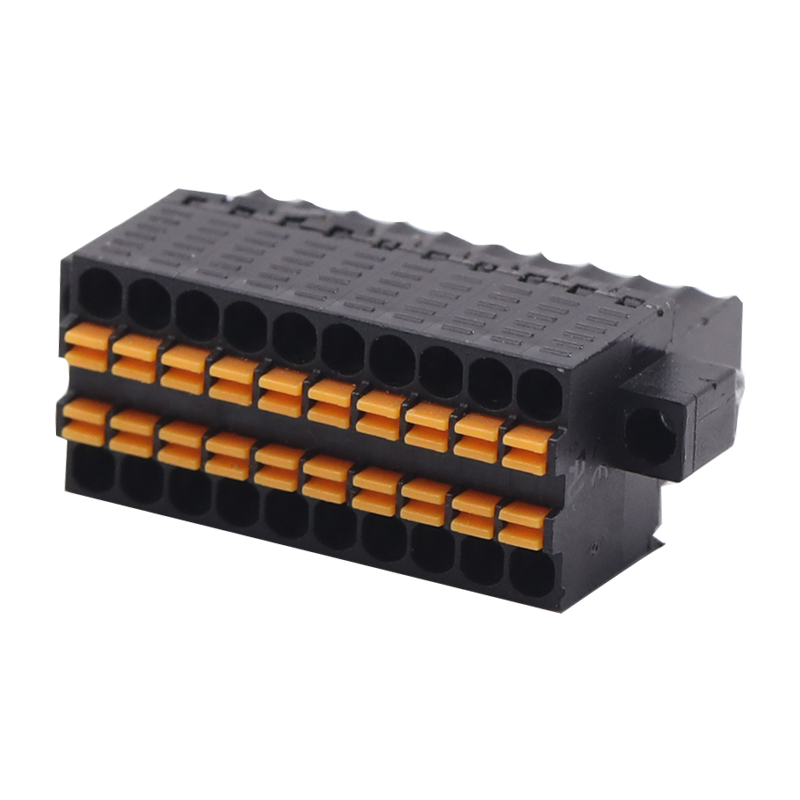

Product details of 2.54mm Spring Pluggable PCB Terminal Block


Drawing of 2.54mm Spring Pluggable PCB Terminal Block



Packing of SMT Welding PCB Terminal Block

According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc

Shipping

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
